Mandrel cutter, solid carbide
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
Application: for circumferential milling and for universal machining. For rough milling, grooving and finishing milling. Extremely quiet operation thanks to the uneven 41°/43°/45° groove line, allowing for good surface quality of the workpiece during machining. With grooving and rough milling, feeds up to a maximum can still be achieved. 60 %. Significantly longer durability compared to ordinary tools. The larger chip chambers of the 3-blade milling cutters allow the tool to be used even at very large milling depths.
Long mandrel milling DIN6527 FIRE,type RF100 3,50mm full,GÜHRING
€45.72
Shipping from warehouse: B6
Estimated shipping: Wed, Dec 25 - Mon, Dec 30
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- GÜHRING
- Product code:
- 9038920035000 / 4049844078369
Share this product:
Specification
Aluminium > 8% silicon: | 250 |
---|---|
Cast iron gg/gts: | 200 |

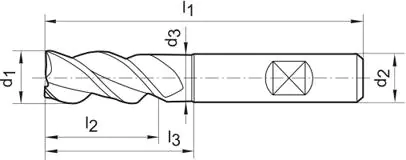

Cutting part length l2: | 10 mm |
Diameter d1 = e8: | 3.5 mm |
Ggg cast iron: | 160 |
Hardened steel < 55 hrc: | 100 |
Inox austenite.: | 64 |
Inox duplex: | 51 |
Inox ferrite./martenz.: | 80 |
Neck diameter d3: | 3.2 mm |
Neck length l3: | 21 mm |
Shank diameter d2 = h6: | 6 mm |
Steel < 1000 n/mm2: | 152 |
Steel < 1000 n/mm2 fz: | 0.019 mm/rev. |
Steel < 1400 n/mm2: | 122 |
Steel < 700 n/mm2: | 190 |
Titanium > 850 n/mm2: | 70 |
Total length l1: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
