Mandrel cutter, solid carbide
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
Application: for circumferential milling and for universal machining. For rough milling, grooving and finishing milling. Extremely quiet operation thanks to the uneven 41°/43°/45° groove line, allowing for good surface quality of the workpiece during machining. With grooving and rough milling, feeds up to a maximum can still be achieved. 60 %. Significantly longer durability compared to ordinary tools. The larger chip chambers of the 3-blade milling cutters allow the tool to be used even at very large milling depths.
Long mandrel cutter DIN6527fulls,FIRE,typRF100 3mmGÜHRING
€41.34
Shipping from warehouse: B6
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9038920030000 / 4049844020566
Share this product:

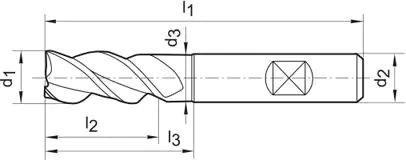

Specification
| Aluminium > 8% silicon: | 250 |
|---|---|
| Cast iron gg/gts: | 200 |
| Cutting part length l2: | 8 mm |
| Diameter d1 = e8: | 3.0 mm |
| Ggg cast iron: | 160 |
| Hardened steel < 55 hrc: | 100 |
| Inox austenite.: | 64 |
| Inox duplex: | 51 |
| Inox ferrite./martenz.: | 80 |
| Neck diameter d3: | 2.7 mm |
| Neck length l3: | 21 mm |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.019 mm/rev. |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 70 |
| Total length l1: | 57 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
