LOGARITHMIC ANTENNA ATK-ALP/LTE+SMA/5 GSM/DCS/UMTS/HSDPA

€46.44
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Dec 30 - Wed, Jan 1
14 days returnUnconditional return policy
Availability:
moderate quantity
Product code:
ATK-ALP/LTE+SMA/5 / 5907634500386

Specification

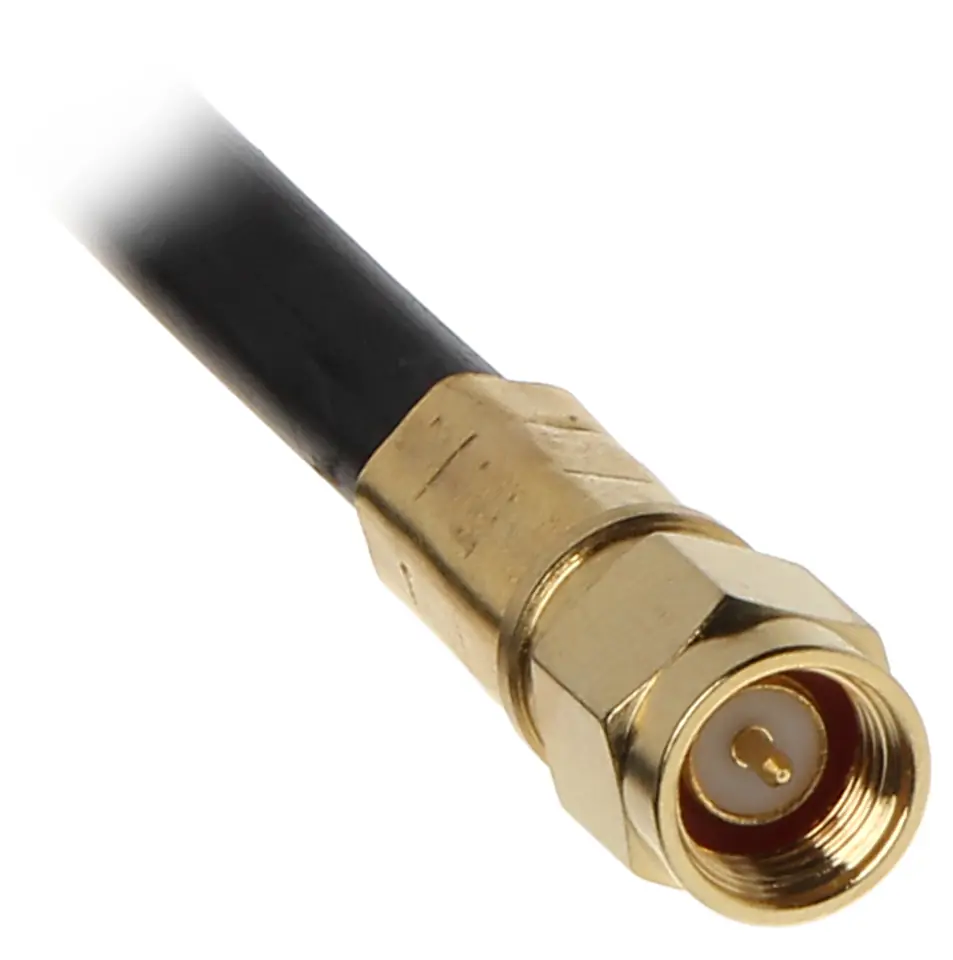

Connectors::SMA plug
Dimensions::260 x 180 x 25 mm

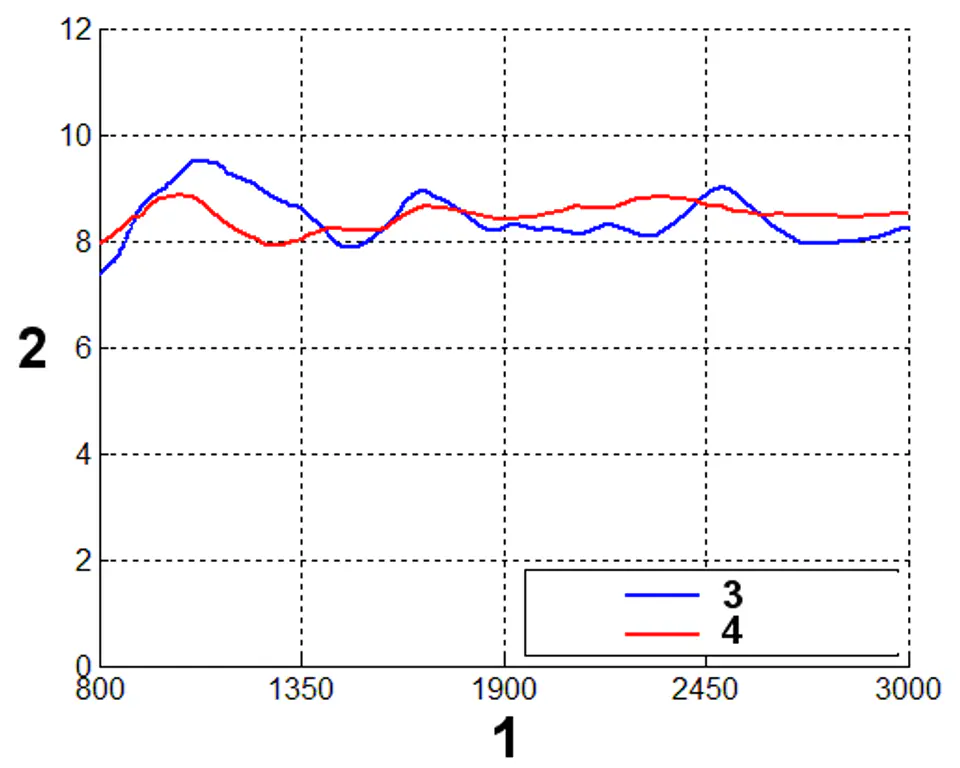

Energy gain ::Max. 9 dBi
Frequency range::800  ... 3000 MHz : GSM / DCS / UMTS / HSDPA / LTE
Impedance::50 Ω
Polarity::Vertical
Scales::0.31 kg

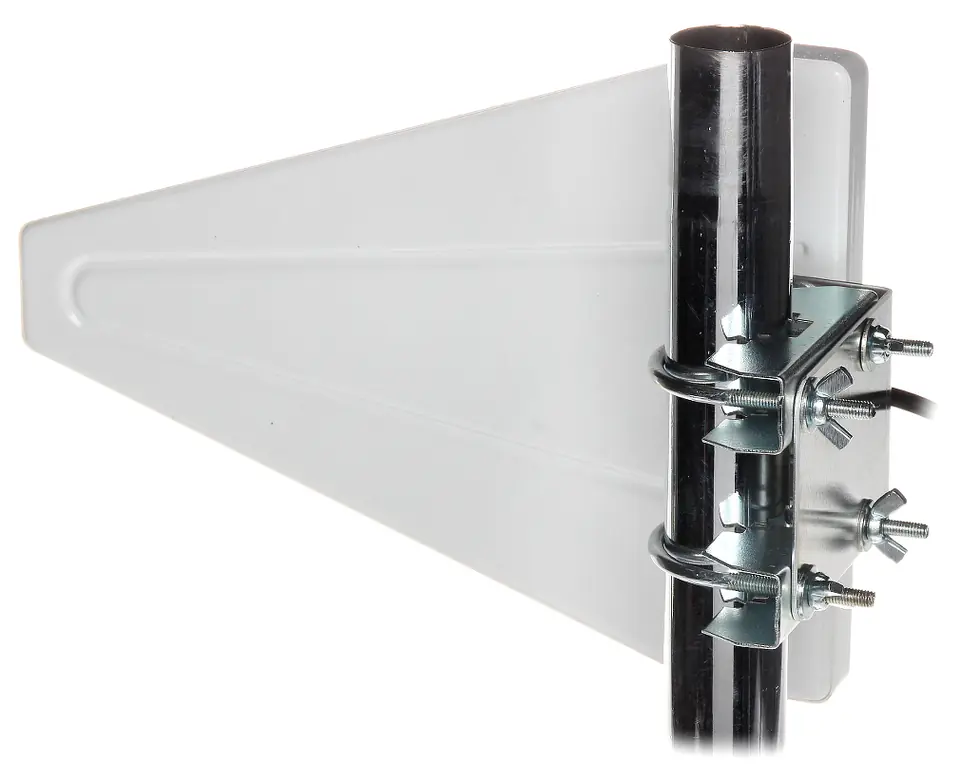

Selected features::Cable length - 5 m, Antenna is short circuit for direct current (DC), Maximum mast diameter 45 mm Very simple and quick installation

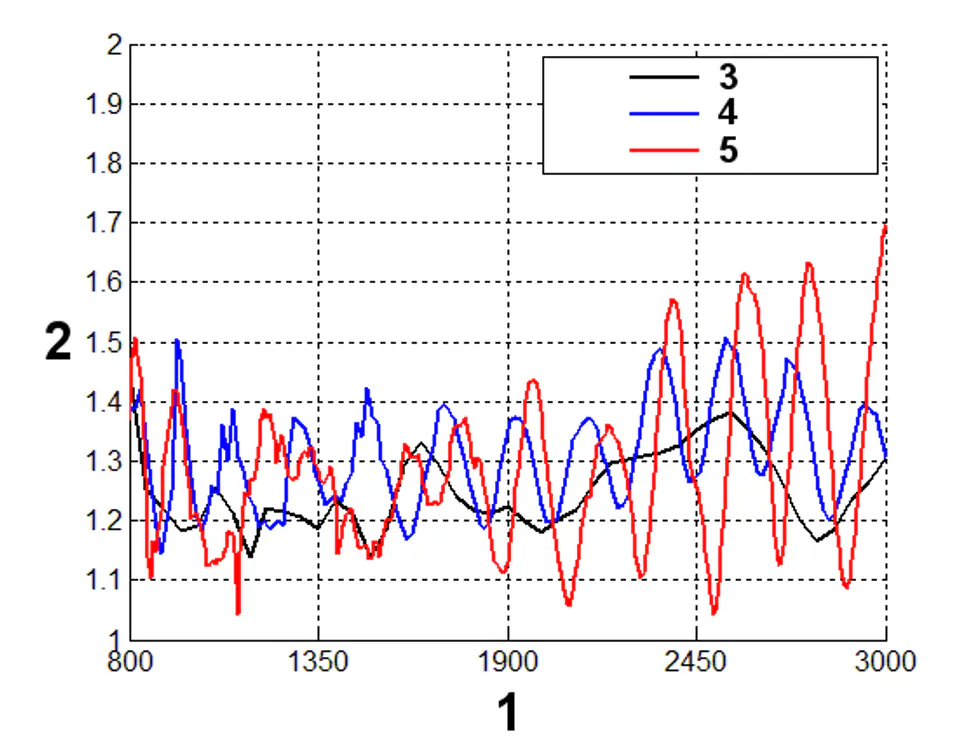

Vswr::< 1.7
Warranty::2 years

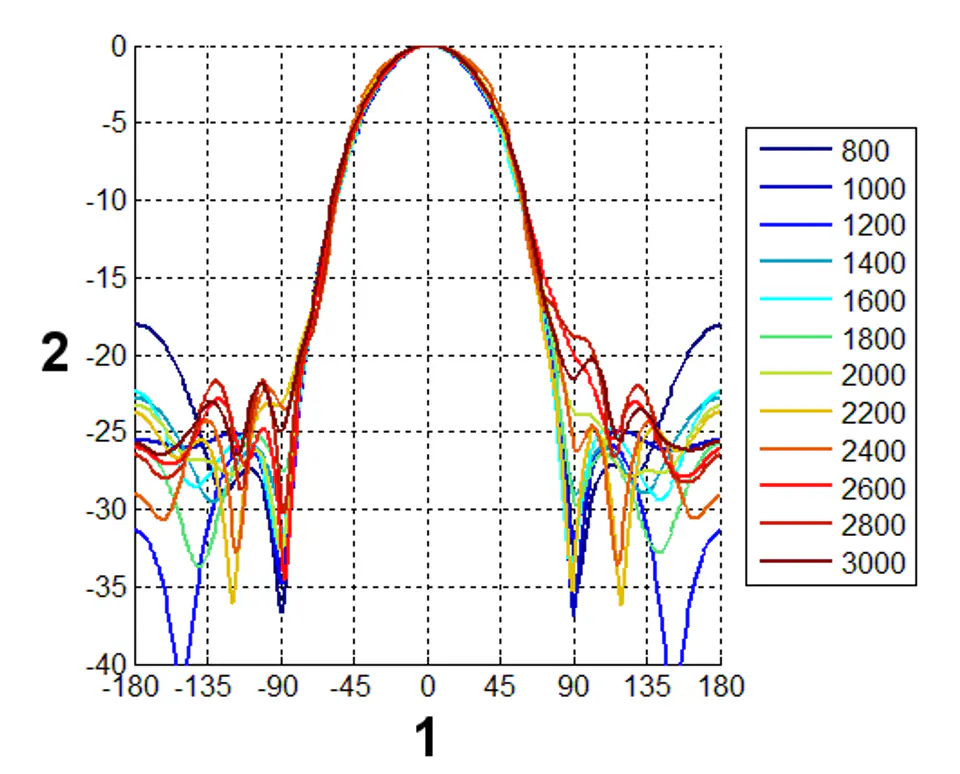

Width of the main beam in the horizontal plane (h)::76 °

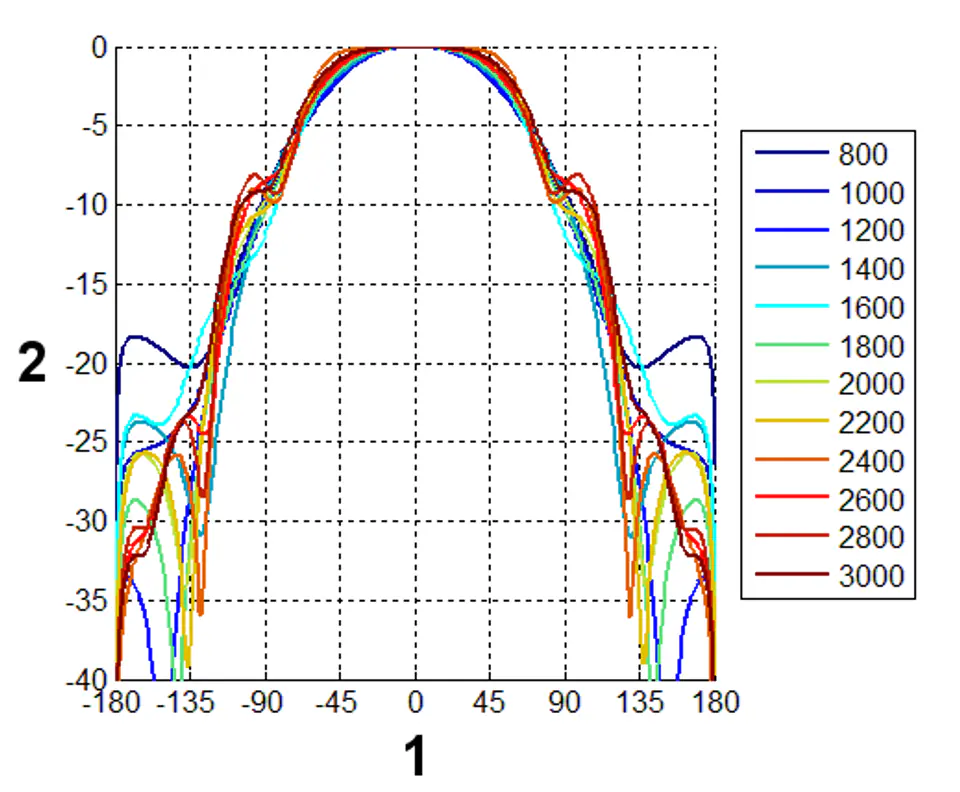

Width of the main beam in the vertical plane (v)::66 °

Logarithmic antenna designed for use in GSM/DCS/UMTS/HSDPA/LTEAntena telephony systems perfectly solves the problems of insufficient signal level, which often occurs in the case of modems/devices with built-in antennas

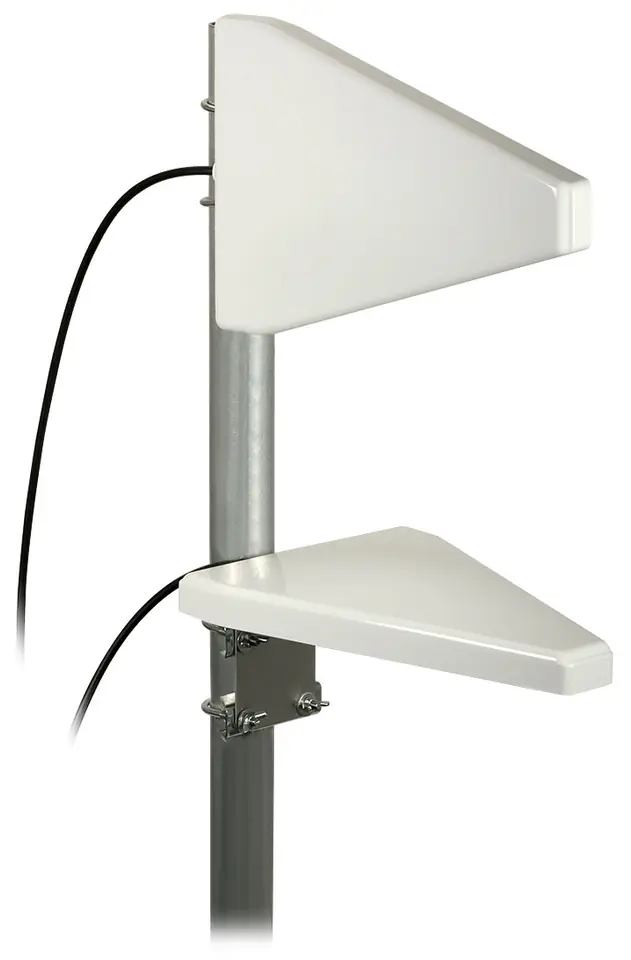

To take advantage of the full LTE speed, you need to purchase 2 antennas - and install one vertically, and the other horizontally (vertical and horizontal polarization)

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
