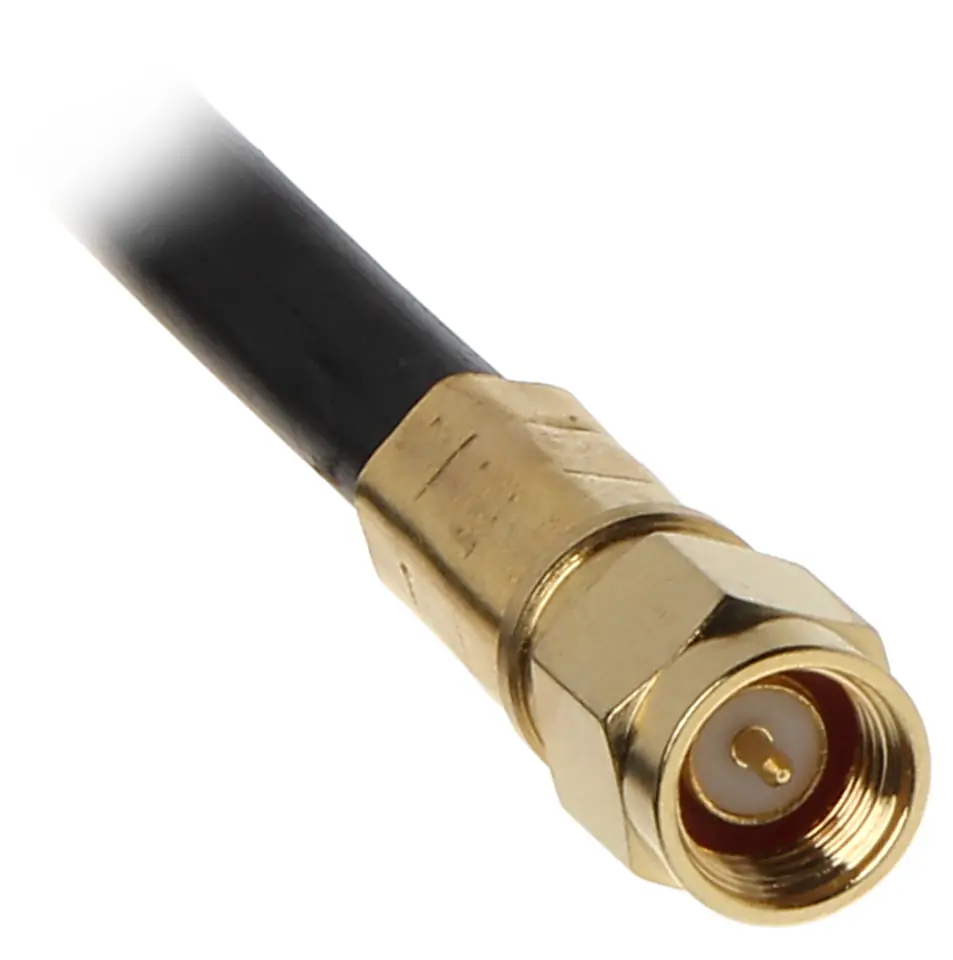

| Connectors:: | SMA plug |
|---|---|
| Dimensions:: | 260 x 180 x 25 mm |

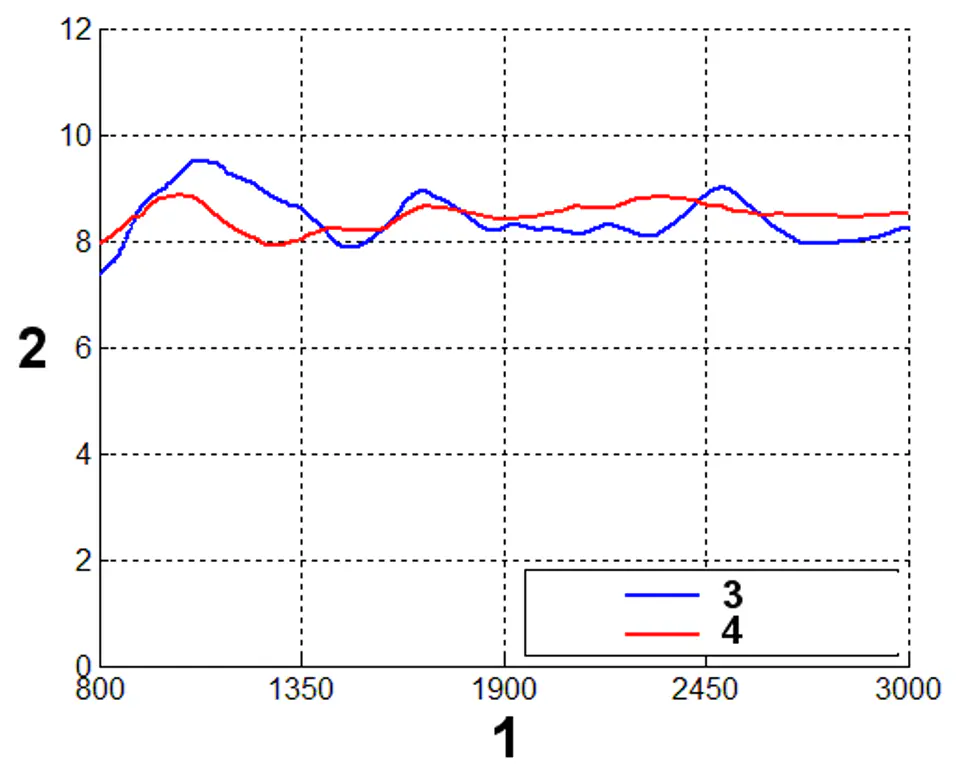

| Energy gain :: | Max. 9 dBi |
| Frequency range:: | 800 ... 3000 MHz : GSM / DCS / UMTS / HSDPA / LTE |
| Impedance:: | 50 Ω |
| Polarity:: | Vertical |
| Scales:: | 0.31 kg |

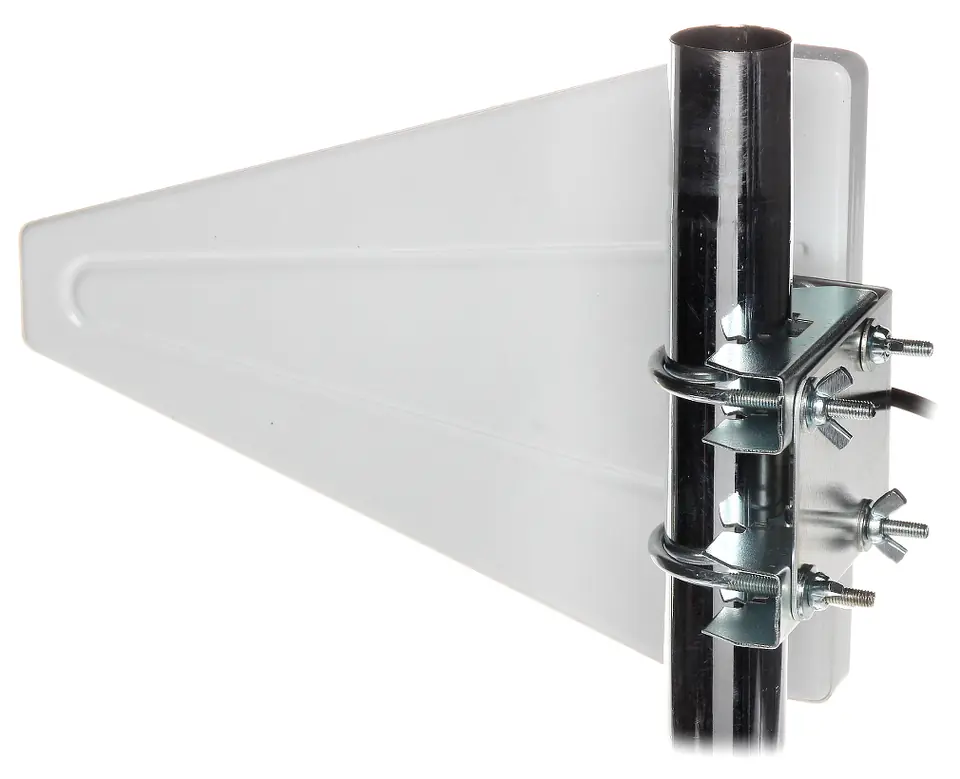

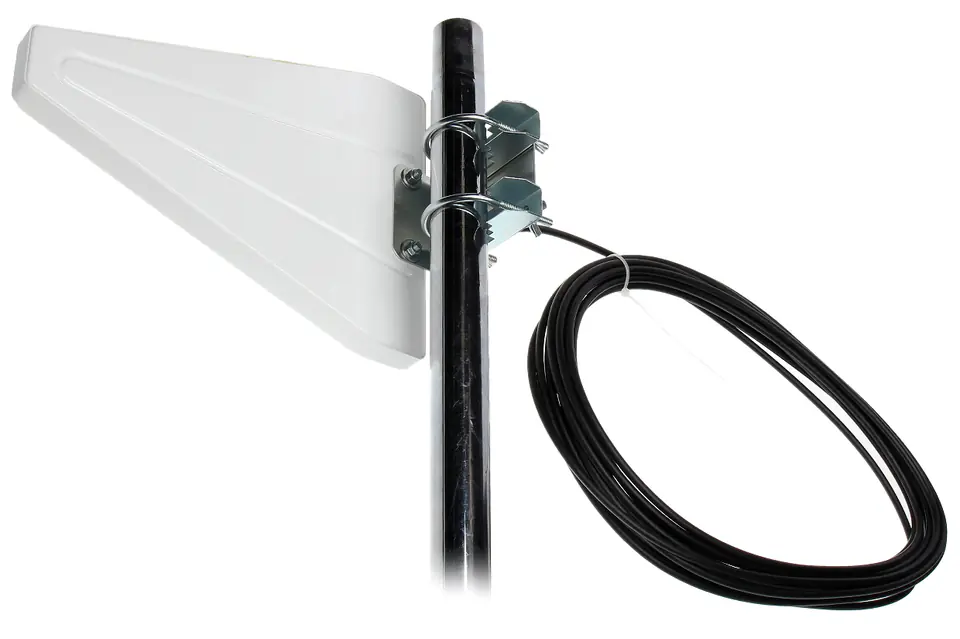

| Selected features:: | Cable length - 10 m, Antenna is short circuit for direct current (DC), Maximum mast diameter 45 mm Very simple and quick installation |

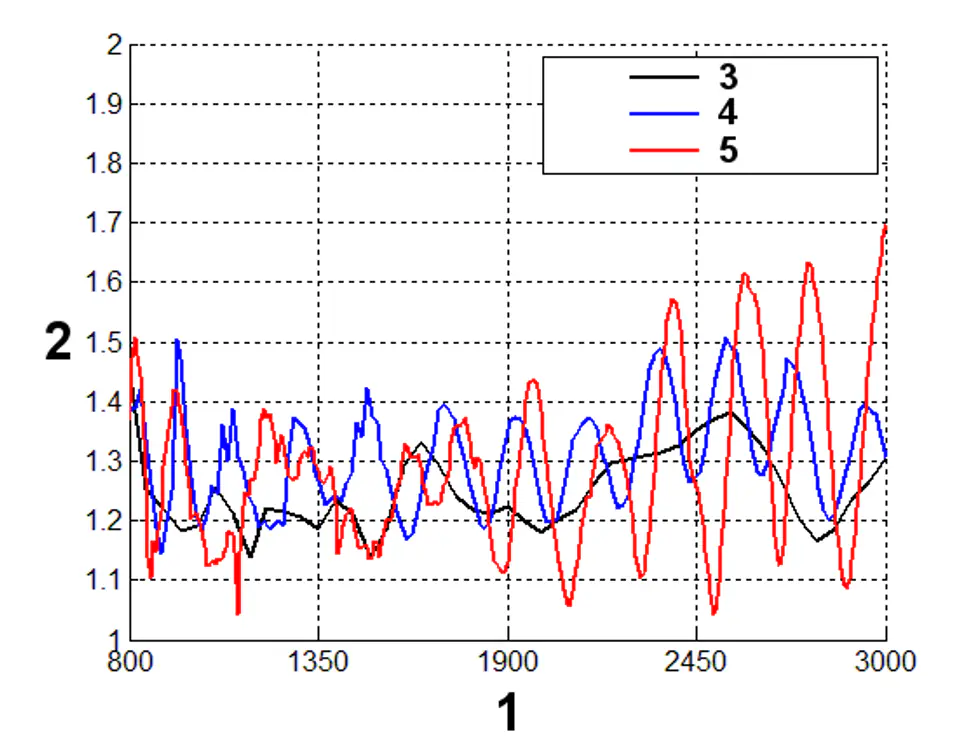

| Vswr:: | < 1.7 |
| Warranty:: | 2 years |

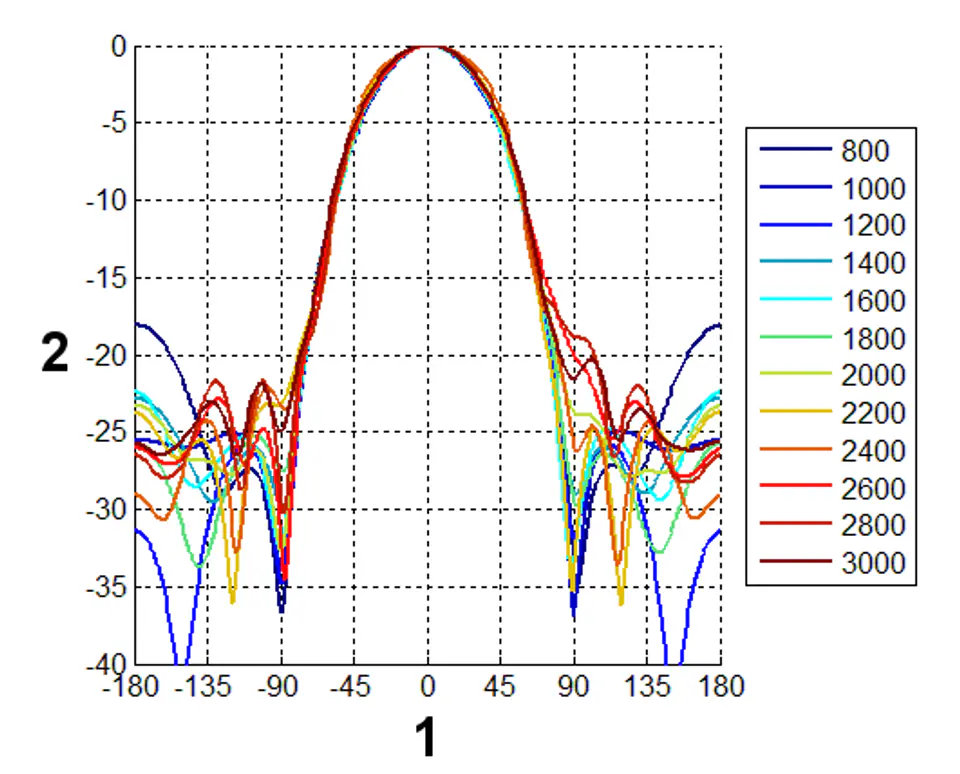

| Width of the main beam in the horizontal plane (h):: | 76 ° |
| Width of the main beam in the vertical plane (v):: | 66 ° |
Logarithmic antenna designed for use in GSM/DCS/UMTS/HSDPA/LTEAntena telephony systems perfectly solves the problems of insufficient signal level, which often occurs in the case of modems/devices with built-in antennas

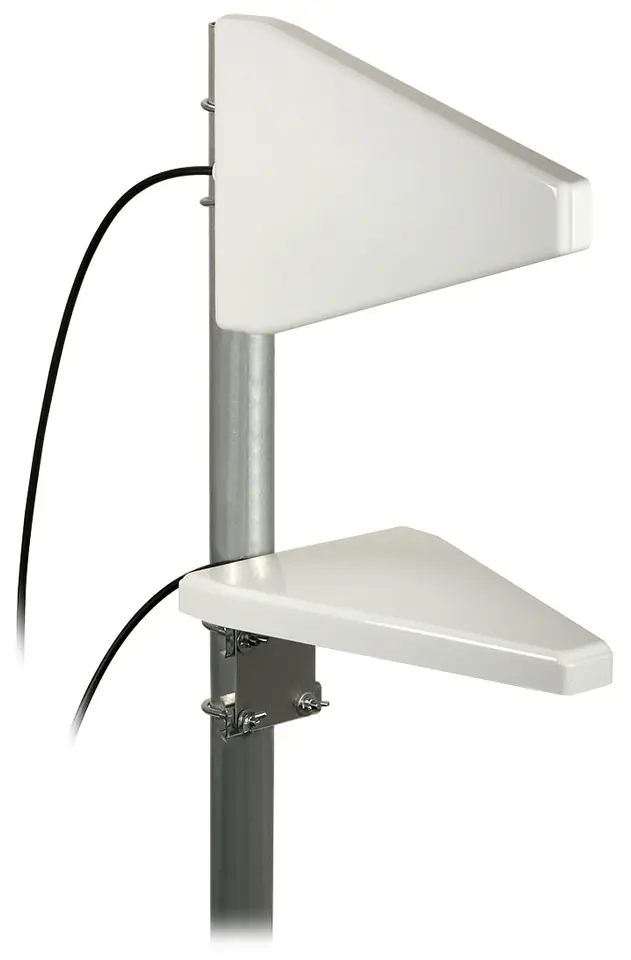

To take advantage of the full LTE speed, you need to purchase 2 antennas - and install one vertically, and the other horizontally (vertical and horizontal polarization)
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
