Locksmith screw clamps, solid steel
Design: fixed arm and pressure plate made entirely of special heat-treated steel, stiff for warping. Re-shaped U-shaped sliding arm made of heat-treated forged steel. Maximum safety thanks to rectilinear force transfer to the sliding arm. Heat-resistant, high-performance pressure plate with large spherical head, 35° tiltable and replaceable, with hardened and oil-soaked steel sintered insert. 20% more clamping force per spindle rotation thanks to optimized rail profile.
Application: especially suitable for clamping forces up to 12 kN. Thus, it is intended for all applications in metalworking, steel construction and woodworking.

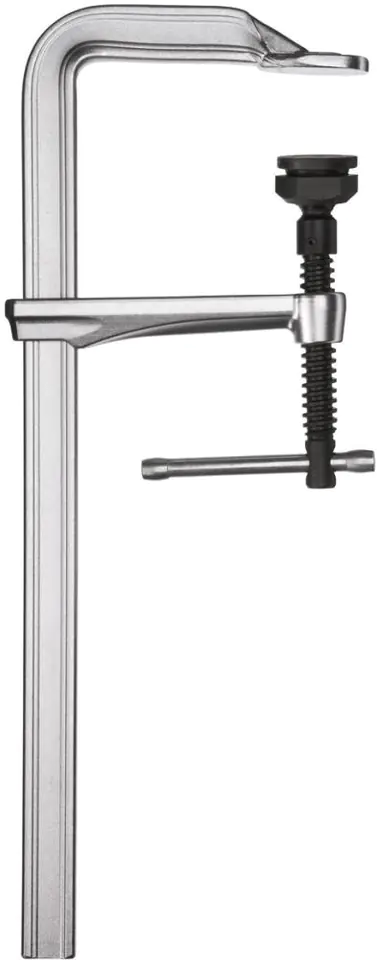

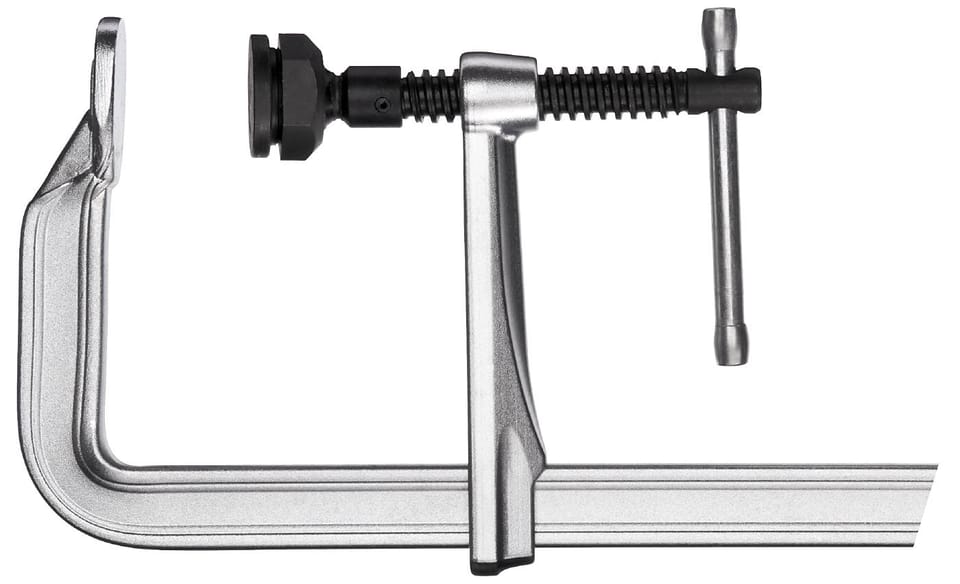

Locksmith clamp, solid steel 1000x140mm BESSEY
€181.24
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- BESSEY
- Product code:
- SG100M / 4008158007151
Share this product:
Specification
| Mounting span: | 1000 mm |
|---|---|
| Outreach: | 140 mm |
| Slide rail: | 34 x 13 mm |
