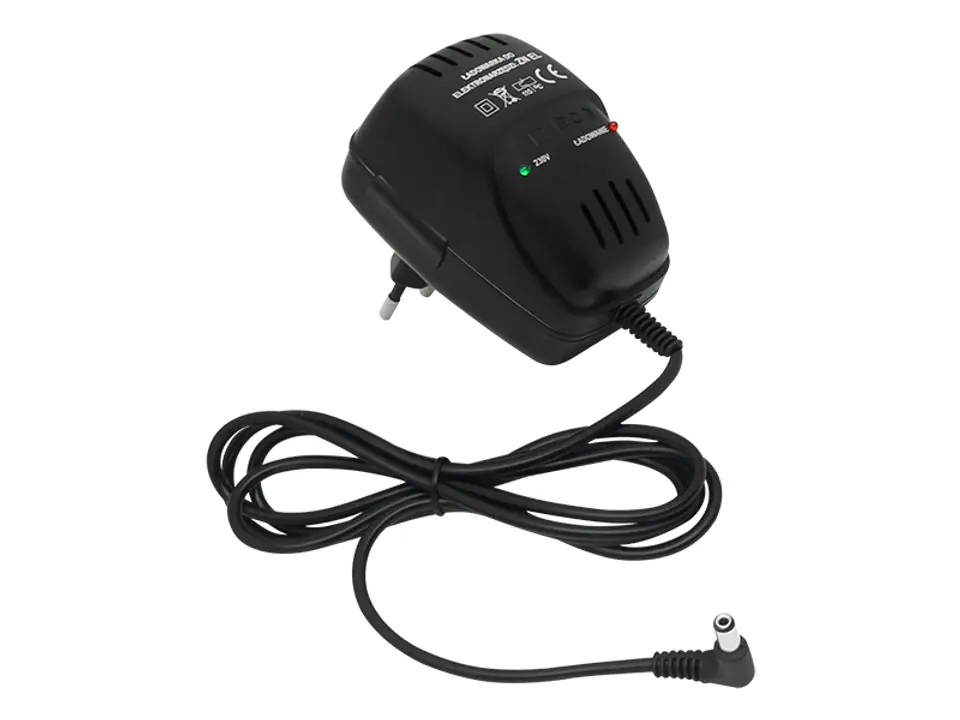

The charger is dedicated to powering and charging the battery of power tools. It allows direct charging of the battery or, when connected to the stand/holder, powers the electronics of the device's charger. The charger is dedicated to batteries: NiMH, NiCd, Li-ion. The battery model determines which battery it is dedicated to.
Specification:
- Supply voltage: 230V AC (+/- 10%)
- Current consumption: <30mA
- Rated power: 4 ; 6 ; 8 VA (*)
- Thermal protection: 115 deg.C
- Output voltage: 5 – 21.5 V (*)
- Battery charging current: Ogre. 500mA (*)
- Short-circuit protection: YES
- Reverse polarity protection: YES
- Dimensions: 75mm x 90mm x 62mm
- Weight: 0,35kg
- dedicated to batteries: 2-7Ah
- 7Ah battery charging time: about 10h
- Operation signaling: green LED
- Charging indication: red LED

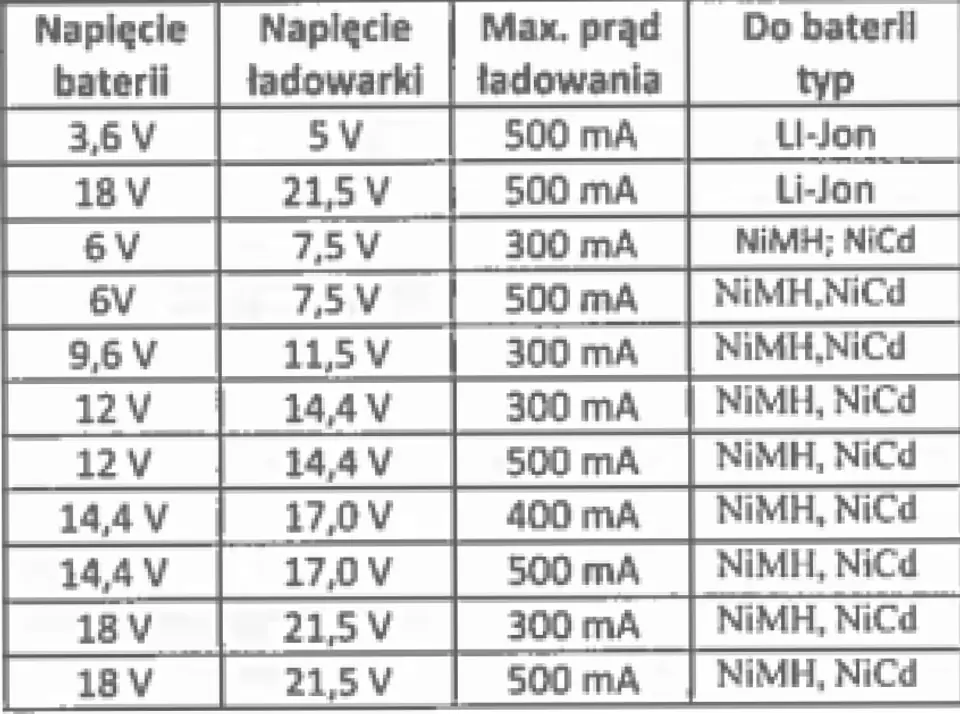

* - depending on the charger model (see table)
