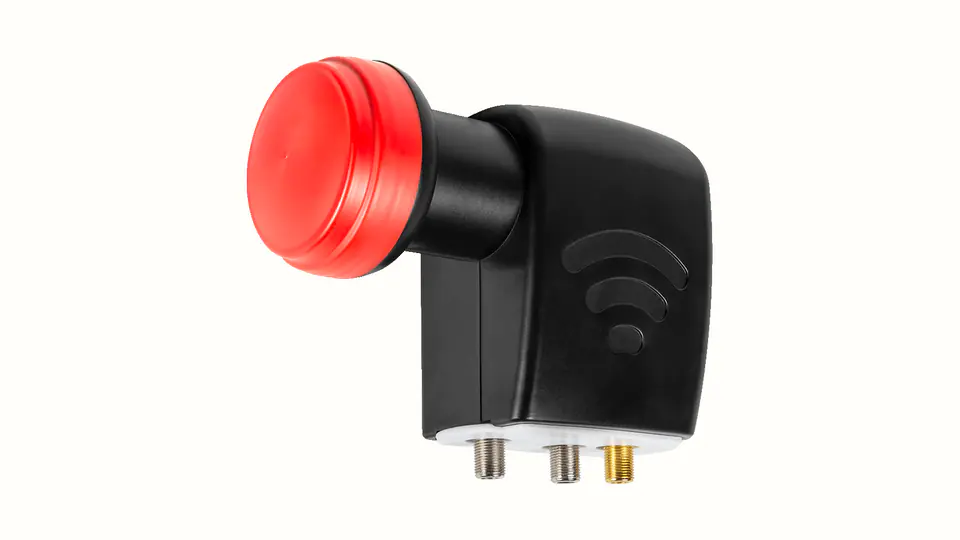

LNB Unicable SCR Quad with Twin Legacy (6 receivers) Megasat Diavolo

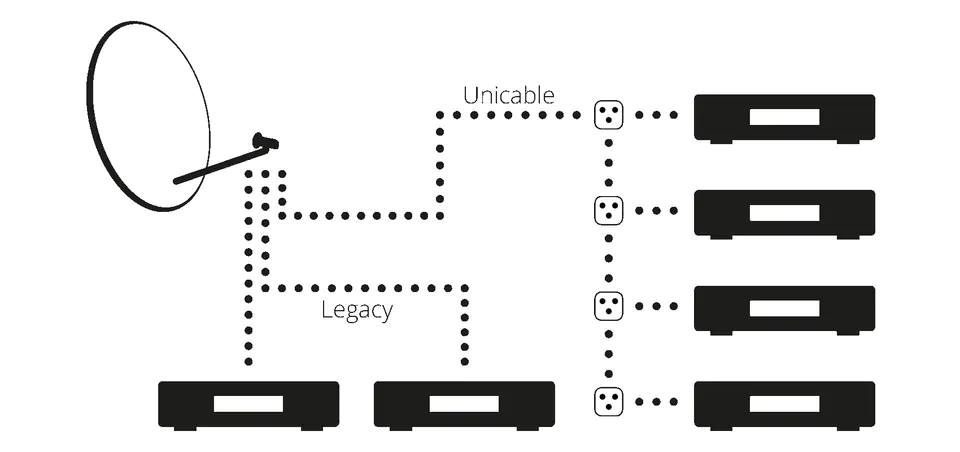

Professional Megasat single-wire LNB for up to 6 receivers (4 SCR-compatible receivers and 2 conventional satellite receivers via 2 legacy outputs)
One output of the UNICABLE (SCR) converter in gold allows to route the signal with one cable up to max. 4 digital receivers with SCR or UNICABLE signal.
Other outputs of the so-called full band converter in silver allow you to connect a traditional digital receiver.
The condition for the operation of such an installation is that the receiver has the UNICABLE function, which consists in using 4 frequencies for signal transmission:
- Receiver 1 - 1210 MHz
- Receiver 2 - 1420 MHz
- Receiver 3 - 1680 MHz
- Receiver 4 - 2040 MHz.
