Konwerter LNB Qutro Opticum AX BLACK BUSTER BLACK
The professional series of converters is characterized by exceptional precision, excellent stability of transmitted signal and high resistance to changing weather conditions.
QUATRO LNBs can be connected to SAT TV systems only via multiswitch!
It is not possible to connect the QUATRO converter directly to the TV-SAT tuner.

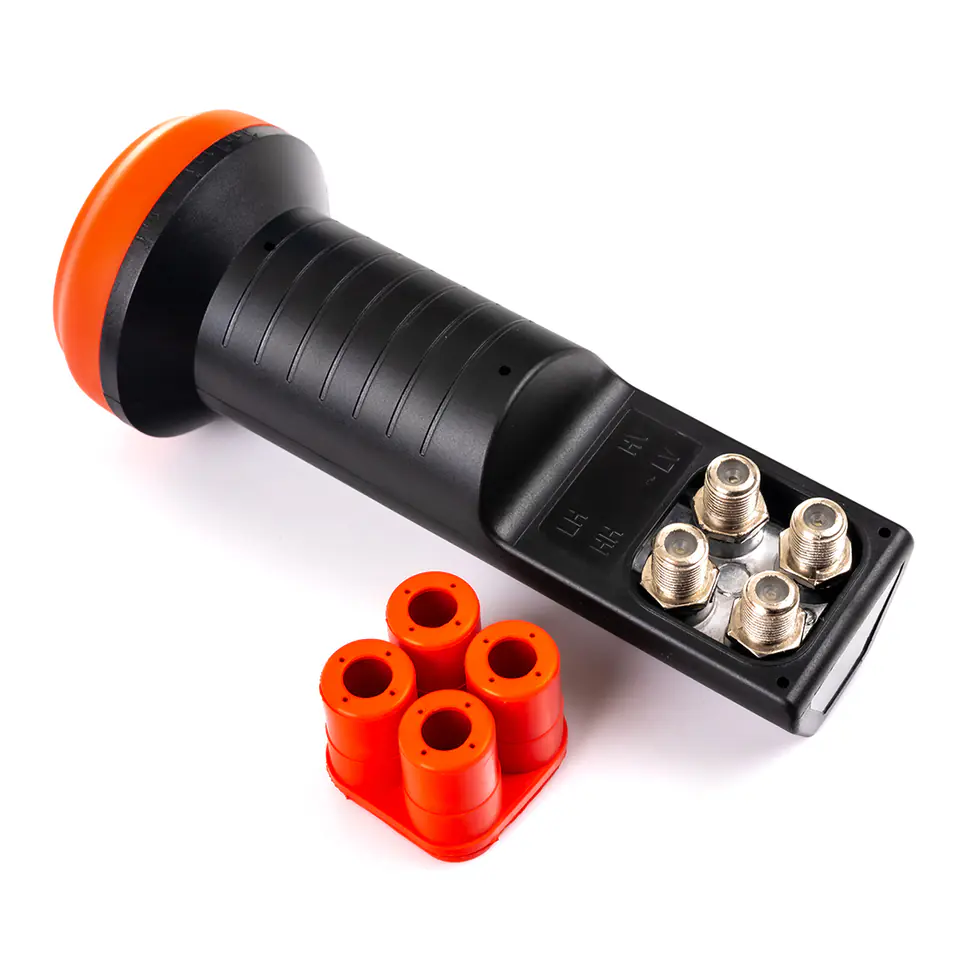

QUATRO OPTICUM AX BLACK BUSTER LNG is a high-quality, branded German converter designed for cooperation with multiswitches.
The converter is one of the leading devices of this type in the world.
Characterized by a low phase noise ratio of 0.1dB (the smaller this factor, the better the converter).
Precise workmanship and high technical parameters practically translate into less impact of weather conditions on the quality of the received signal.
Technical parameters:
Input frequency:
- bottom band, vertical polarization - 10.7-11.7GHz
- bottom band, horizontal polarization - 10.7-11.7GHz
- upper band, vertical polarization - 11.7-12.75GHz
- upper band, horizontal polarization - 11.7-12.75GHz
oscillator frequency:
- LOW 9.75GHz
- HIGH 10.60GHz
Output frequency:
- lower band 950-1950MHz
- upper band 1100-2150MHz
- switching signal - 22KHz
- noise ratio - 0,1dB
- handle diameter - 40mm
