LINE LASER GLL 3-80 CG+BM1 L-BOXX GREEN BEAM SOLO

Technical Specifications

Manufacturer: Bosch
Manufacturer no: 601063T03
Operating range with receiver, value: 120 m
Levelling accuracy: +/– 0.2 mm/m*/** (*at four intersection points **plus additional deviation depending on application)
Projection: 3 360° lines
Battery voltage: 12
Laser diode: 500 – 540 nm, < 10 mW
Operating temperature: -10 – 40 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Operating range*: up to 30 m
Operating range with receiver*: up to 120 m
Auto-leveling range: ± 4°
Levelling time: 4 s
Protection against dust and water: IP 54*** (***except Li-ion battery and AA1 battery adapter)
Power supply: 12V Li-Ion battery, 4 x 1.5V LR6 (AA) batteries
Max. runtime: 6 h (Li-ion) and 2.5 h (4 AA batteries) in 3-line mode
Tripod thread: 1/4", 5/8"
Weight, Approx.: 0.9 kg
Laser beam color: green
Compatible laser receivers: LR 7
Operating range, value: 30 m

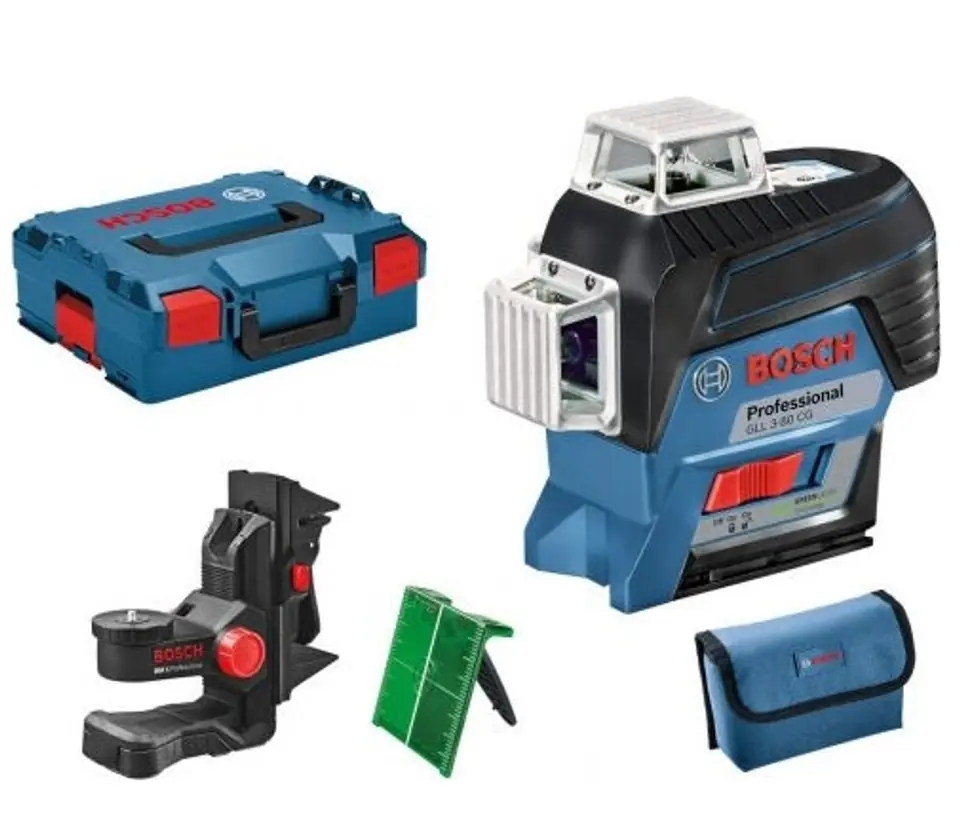

Line laser GLL 3-80 CG+BM1 L-BOX Green beam solo

3 thick x 360° lines for optimum visibility. Simply Connected.
Wide green laser lines offer up to four times better visibility compared to red lines
High-precision monitoring with CAL Guard and remote control via app and Bluetooth®
3 x 360° lines allow simultaneous horizontal and vertical applications to increase work efficiency


**

Illustrative photos
