Technical Specifications
Manufacturer: Bosch
Manufacturer's code: 601063T00
Operating range with receiver, value: 120 m
Levelling accuracy: +/– 0.2 mm/m*/** (*at four intersection points **plus additional deviation depending on application)
Projection: 3 360° lines
Battery voltage: 12
Laser diode: 500 – 540 nm, < 10 mW
Operating temperature: -10 – 40 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range:up to 30 m
Operating range with receiver: up to 120 m
Auto-leveling range: ± 4°
Levelling time: 4 s
Protection against dust and water: IP 54*** (***except Li-ion battery and AA1 battery adapter)
Power supply: 12V Li-Ion battery, 4 x 1.5V LR6 (AA) batteries
Max. runtime: 6 h (Li-ion) and 2.5 h (4 AA batteries) in 3-line mode
Tripod thread: 1/4", 5/8"
Weight, Approx.: 0.9 kg
Laser beam color: green
Compatible laser receivers: LR 7
Operating range, value: 30 m
Line laser GLL 3-80 CG+ BM1 L-BOXX green beam
3 thick x 360° lines for optimum visibility. Simply Connected.
Wide green laser lines offer up to four times better visibility compared to red lines
High-precision monitoring with CAL Guard and remote control via app and Bluetooth®
3 x 360° lines allow simultaneous horizontal and vertical applications to increase work efficiency
**

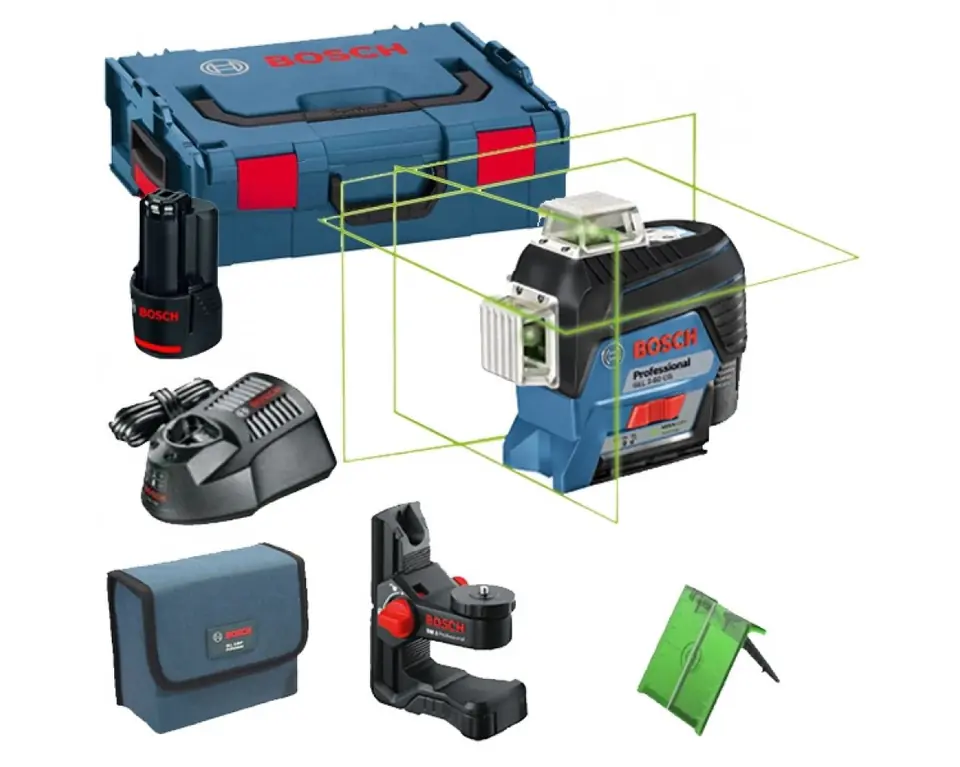

Illustrative photos
LINE LASER GLL 3-80 CG+BM1 L-BOXX GREEN BEAM
€770.03
Shipping from warehouse: U1
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 0601063T00 / 3165140888424
Share this product:
Specification
| Battery technology: | Lithium-Ion (Li-Ion) |
|---|---|
| Battery voltage: | 12 V |
| Beam direction: | Horizontal/Vertical |
| Colour of laser beam: | Green |
| Depth: | 162 mm |
| Height: | 148 mm |
| International protection (ip) code: | IP54 |
| Laser class: | 2 |
| Laser diode: | 500-540 nm (< 10 mW) |
| Levelling accuracy (±): | 0.2 mm/m |
| Maximum range: | 30 m |
| Maximum range (with receiver): | 120 m |
| Number of batteries supported: | 4 |
| Number of laser lines: | 3 |
| Operating temperature (t-t): | -10 - 40 °C |
| Operating time: | 6 h |
| Power source: | Battery |
| Product colour: | Black, Red, Blue |
| Self-levelling: | Yes |
| Self-levelling range (±): | 4° |
| Storage temperature (t-t): | -20 - 70 °C |
| Tripod mounting supported: | Yes |
| Tripod thread: | 1/4, 5/8" |
| Type: | Line level |
| Wavelength: | 500 nm |
| Weight: | 900 g |
| Width: | 84 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
