Technical #Dane
Laser diodeLine: 630 - 650 nm, < 10 mW
Operating temperature-10 – 40 °C
Storage temperature-20 – 70 °C
Laser class2
Working range30 m
Working range with the receiver120 m
Operating range without receiver, value30 m
Leveling accuracy± 0.2 mm/m
Automatic leveling range± 4°
Leveling time4 s
Protection against dust and waterIP 54
Power Supply Li-Ion Battery 12 V
4 x 1.5V LR6 (AA) batteries
Max. operating time8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode
Tripod thread1/4", 5/8"
Weight, approx.0.9 kg
Color of the laser beamred
Projection3 360° lines
Compatible laser receiversLR 6 + 7
@
New visibility standard: 3 lines x 360°. Simply Connected.
High precision thanks to the innovative CAL Guard function and Bluetooth® communication with the smartphone, which allows remote control and non-contact correction of tool settingsGood visibility due to three high-power LEDs
High work efficiency due to 3 x 360° lines: simultaneous horizontal and vertical levelling work throughout the room, with only one device
Dual Power: the power source can be a 12V Li-Ion battery or standard alkaline batteries
Automatic levelling (<4 s do nachylenia ±4°), duża precyzja (±0,2 mm/m) i zasięg pracy do 120 m z odbiornikiem LR 6 lub LR 7 Professional (opcja)
Compact, easy to use and extremely robust (IP54)
Pendulum mechanism lock for safety during transport

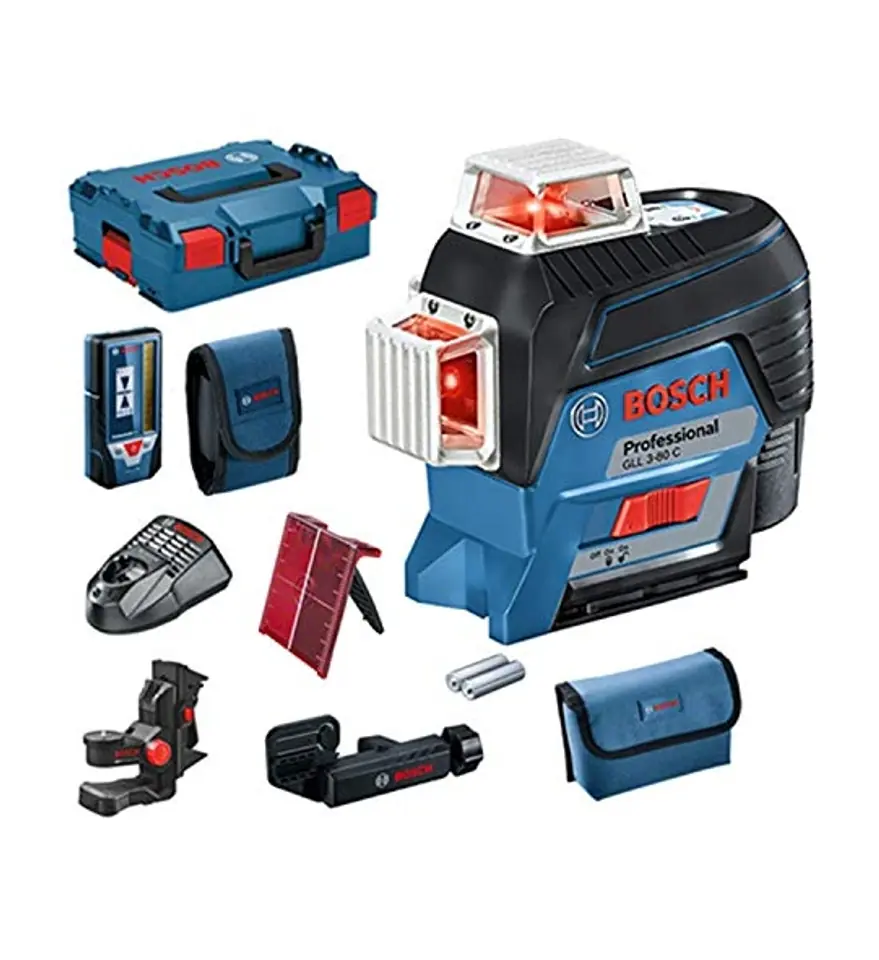

[Equipment :
1 x GBA 12V 2.0 Ah1 600 Z00 02X battery
L-BOXX 1361 600 A01 2G0 USED
Laser aiming board
Fast charger GAL 1230 CV1 600 A00 R44
Handbag
Laser receiver holder LR 6/71 608 M00 C1L
Universal holder BM 1 Professional0 601 015 A01
]
