TECHNICAL DATA:
Instrument Accuracy± 2mm / 10m
Automatic leveling range± 3°
Battery poweredLi-Ion (4.2V, 5200mAh)
Working time – one charge8 h
Laser safety class/wavelength2M/635 nm
Type of laser/keyed beam
Laser diodes number/wavelength3/635 nm
Laser visibility zone diameter N/O*40 m/ 60 m
Laser detection zone diameter100 m
Manual setting of drops X, YTak
Method of mounting instrumentthread 5/8''x11,thread 1/4
Operating temperature range – 10 °C – +50 °C
Enclosure protection classIP 54
Instrument weight0.8 kg
FUNCTIONAL FEATURES:
Self-leveling – instant preparation for work without the need for manual leveling.
3D line grid, two verticals and one level in full 360 degrees.
Six laser crosses set at right angles – allow you to determine horizontal, vertical and right angles.
Plummet function - crossing vertical lines allow you to move points from the floor to the ceiling.
Ability to work in manual mode – determination of bevels.
Works with optional detectors to extend the range and facilitate long-distance laser beam location indoors and outdoors.
Non-leveling alarm – optical indication of the instrument deflecting out of the self-adjustment range eliminates errors.
Laser head equipped with two metal threads in size 1"" and ?"".
Work in all conditions – thanks to the sealed housing in accordance with IP 54.
Work in negative temperatures – an instrument adapted to year-round operation.
Possibility to activate each line separately.
Transport protection – mechanical compensator lock protects the internal mechanism from damage.

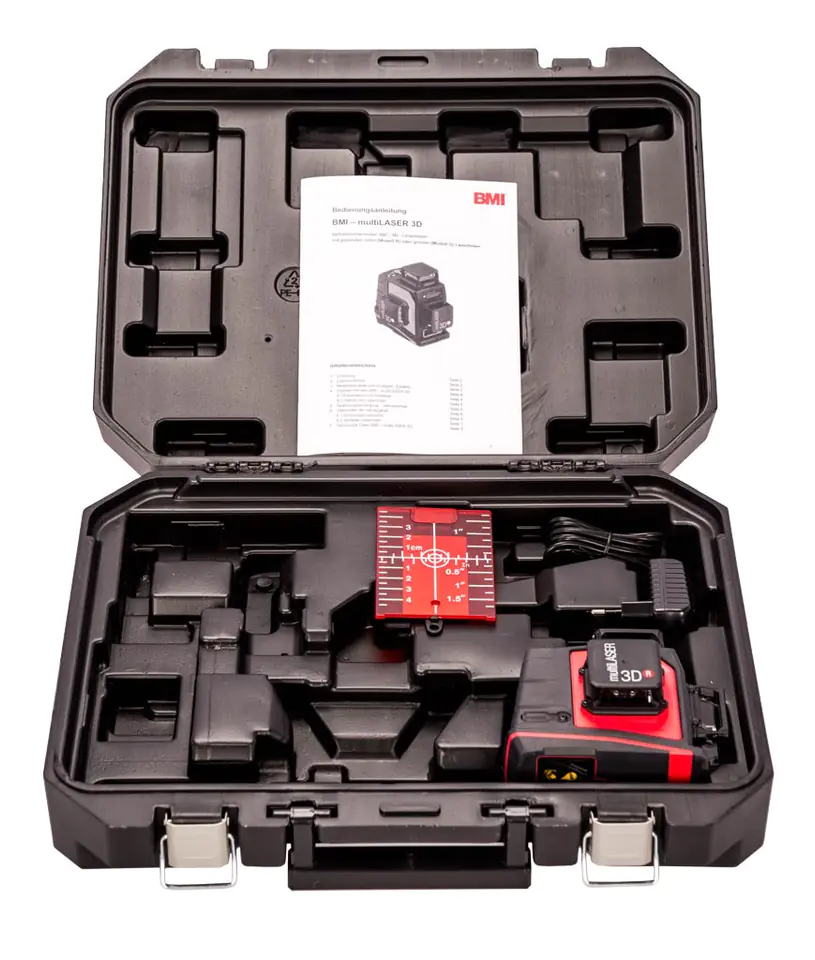

STANDARD EQUIPMENT:
Magnetic sight.
Li-ion battery.
Wall charger with USB socket.
Charging cable with USB plug.
Transport case.

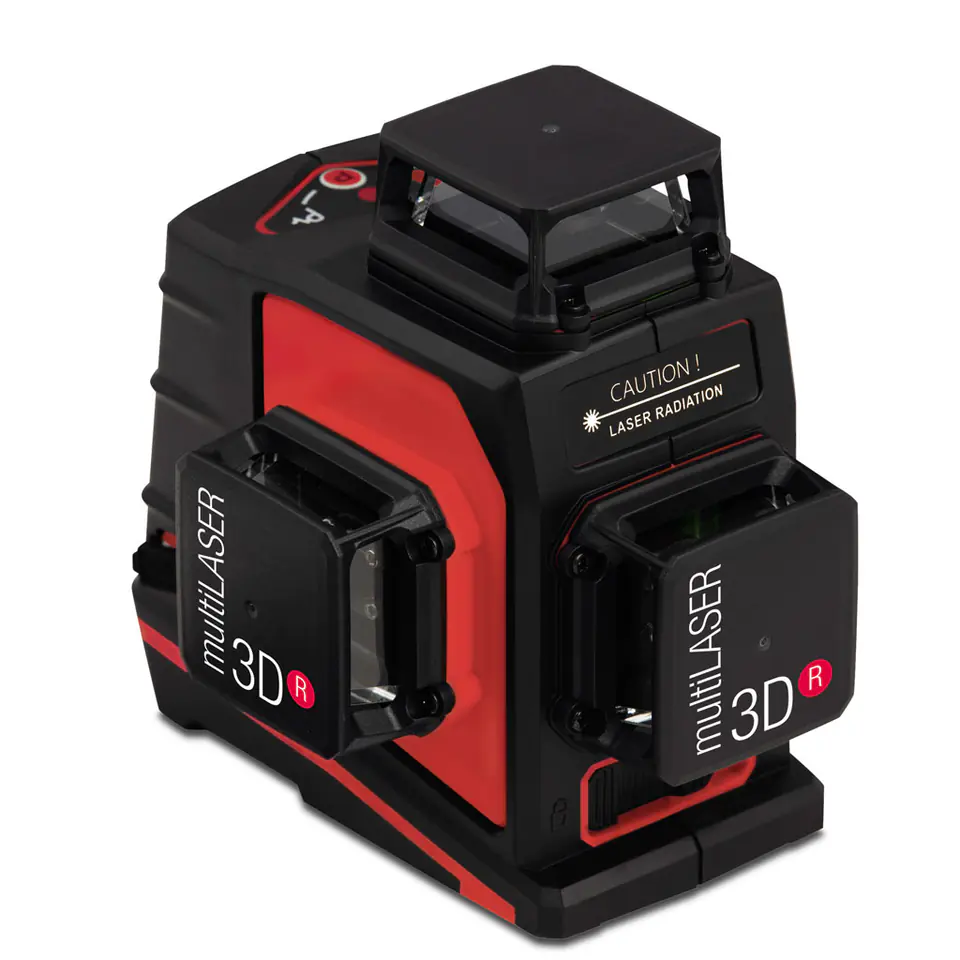

LINE CROSS LASER MULTILASER 3D
€368.38
Shipping from warehouse: U1
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- BMI
- Product code:
- 4007368116103
