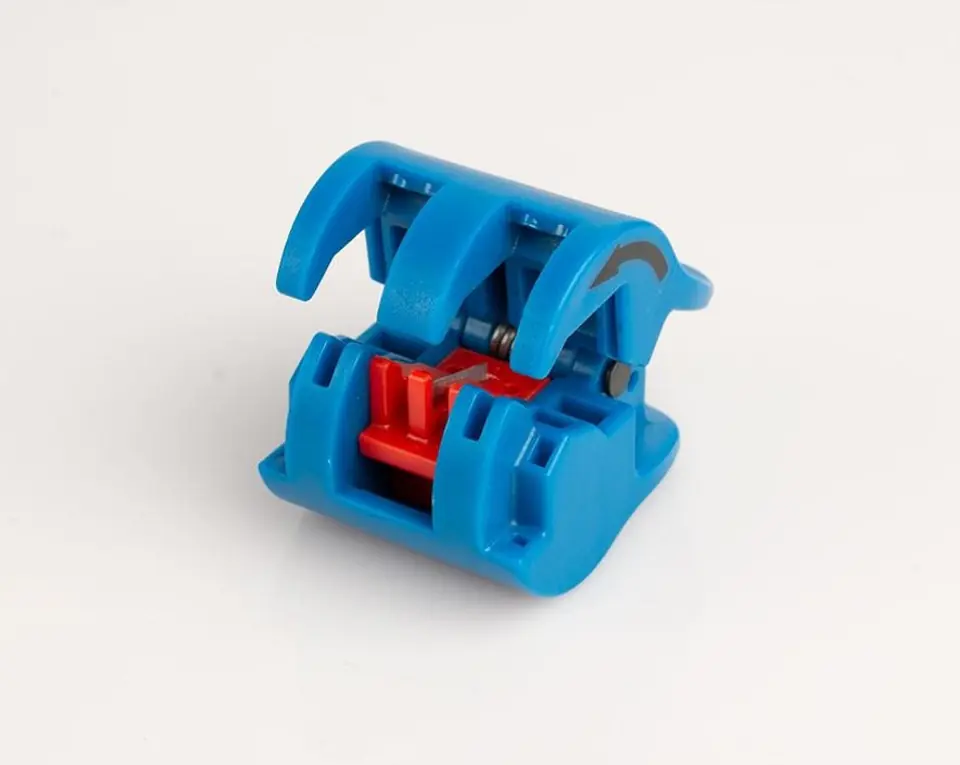

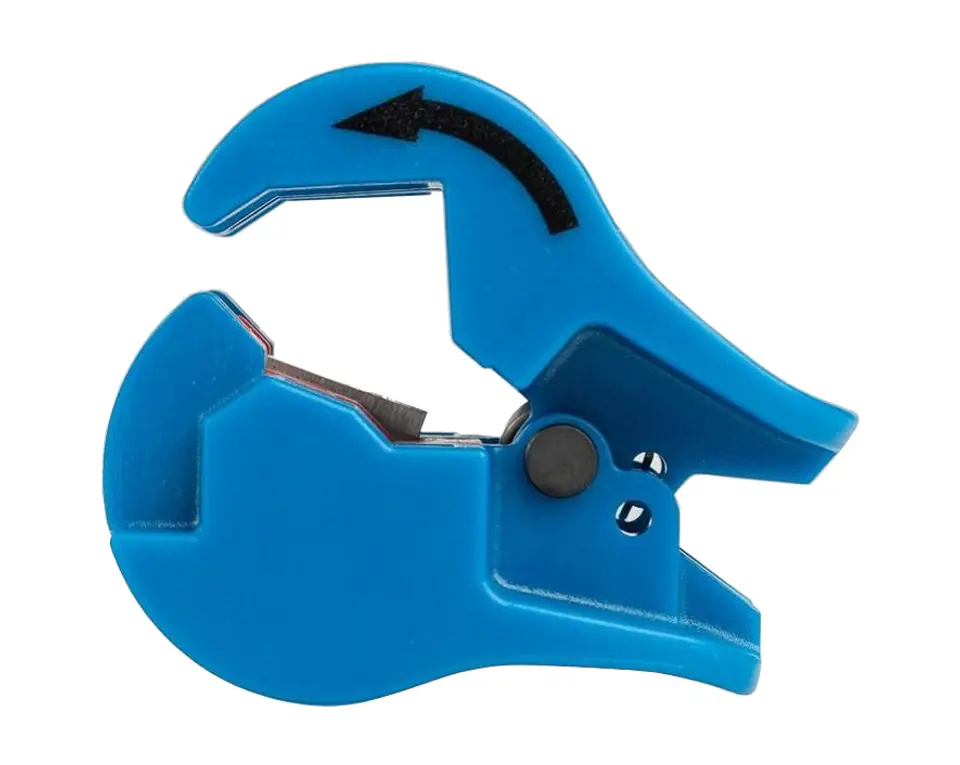

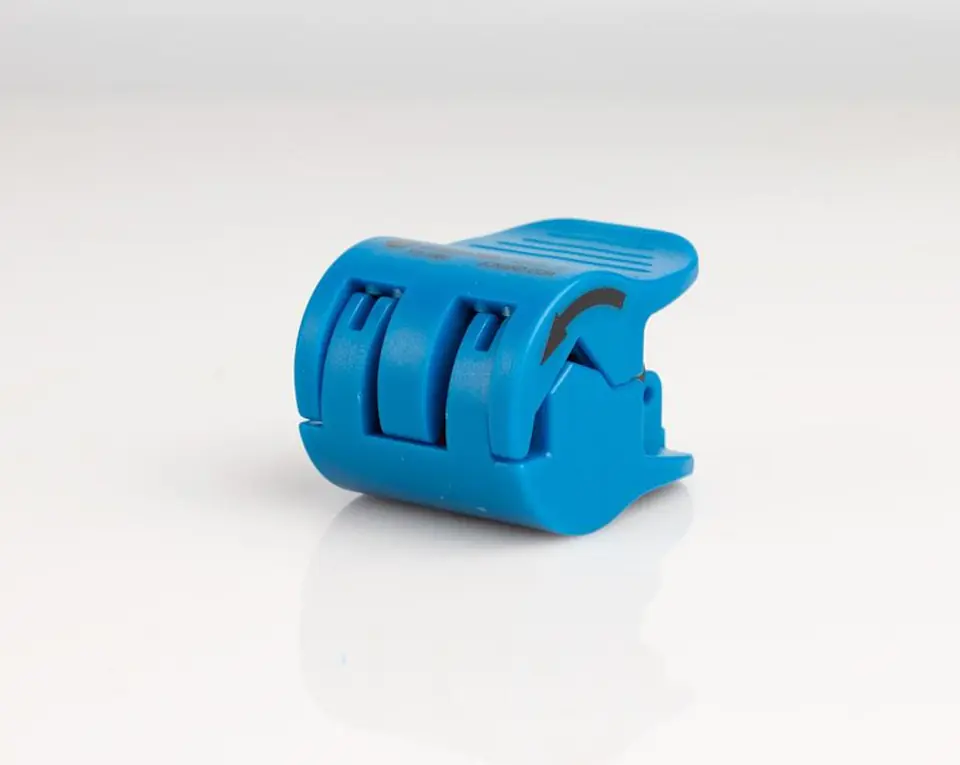

Fiber optic microduct cutter JONARD TOOLS FS-1080
The Jonard Tools FS-1080 is the ideal tool for scorching and terminating 10/8, 12/10 fiber optic microtubes without damaging the fibers inside.
- Unique design allows cutting and finishing of 10/8, 12/10 fiber optic microtubes
- Ideal for microducts with a diameter of 5mm-16mm (0.20"-0.63") with a wall thickness of 1.0mm-1.3mm

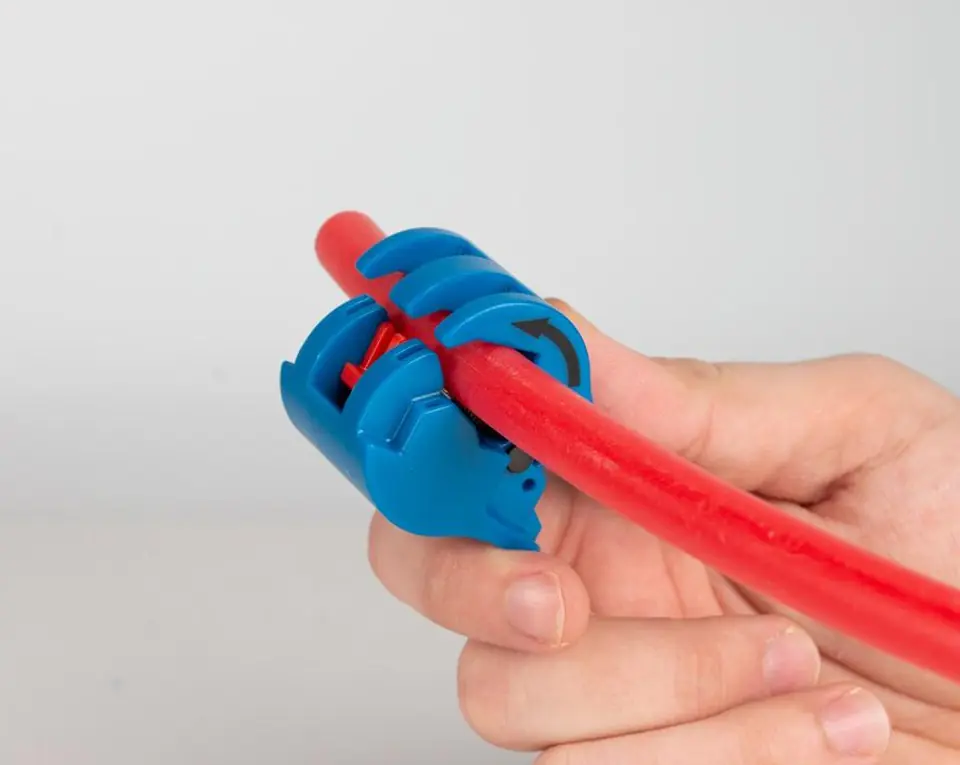

- Wide jaws wrap around microtubes, keeping them in place during incision

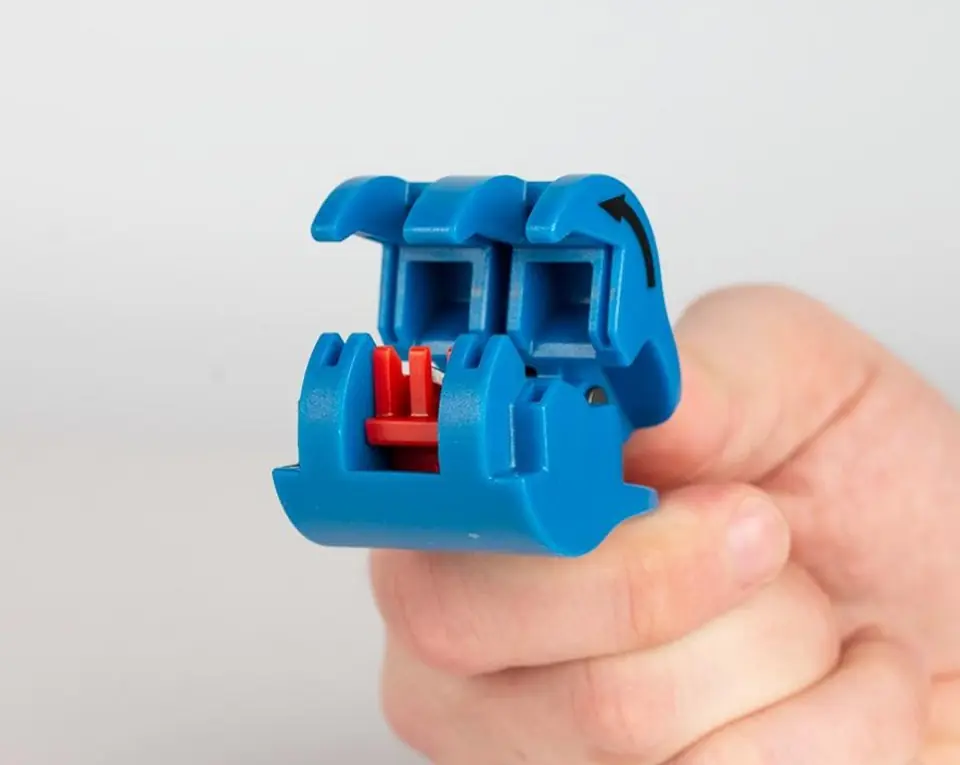

- Spring-loaded butterfly clip for easy opening and perfect positioning on microtubes
- Includes FS-1080RB blade for 10/8 and 12/10, but is also compatible with FS-1416RB blade for 14/10 and 16/1 fiber optic microtubes
Specifications:
- Microtube wall thickness: 1.0mm-1.3mm (0.039"-0.051")
- Microtube diameter range: 5.0-16.0mm (0.20"-0.63")
- Blade depth: 1 mm (0.039")
- Weight: 0.080 lbs (36.3 g)
