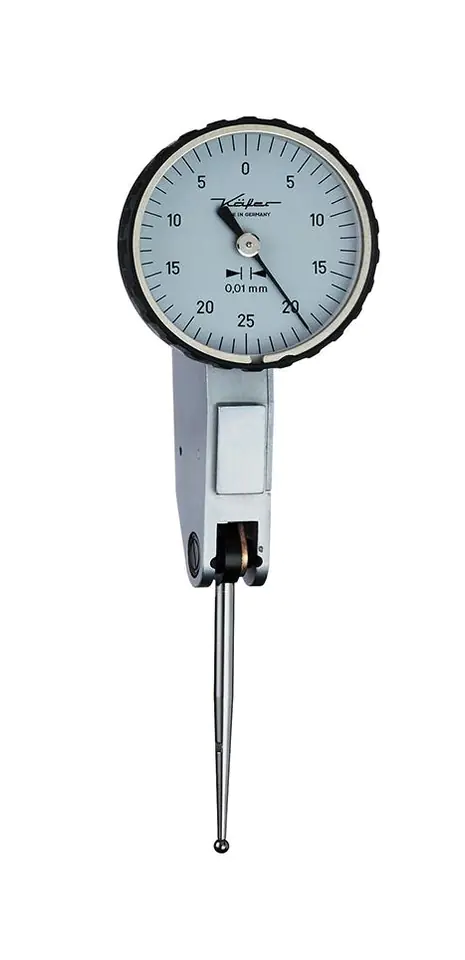

Lever sensor, Käfer, shape A
Design: chrome-plated housing to protect against damage guides with dovetail cross-section, resistant to impact, bearing of the lever shaft in precision ball bearings, measuring mechanisms embedded in rubies, automatic switching of the measurement direction, housing with three milled guides with a dovetail cross-section for fixing the mounting stem (diameter 8 mm h6), measuring tip M1,6 equipped with a ball of cemented carbides with a diameter of 2 mm, Rotating outer ring. Delivery with key, in a plastic cassette.
Application: for control of rotation of shafts and bushings, center of holes, for surface setting and control of parallelism.
Shape A = measuring tip tilted at right angles to 240°.
Shape B = measuring tip tilted parallel to the 240° scale.
Shape C = measuring tip tilted backwards in relation to the scale of 240°.
Note: matching test tips M1,6.
