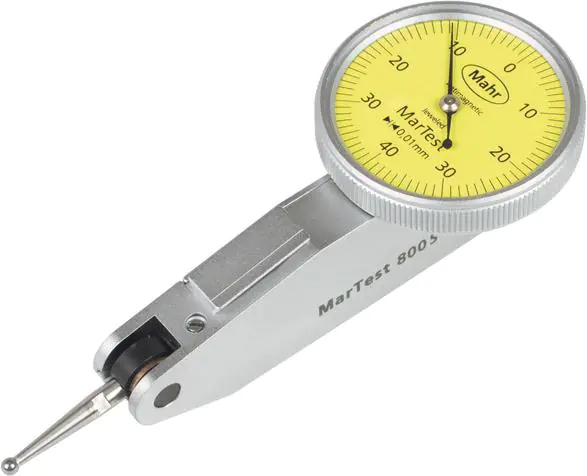

Lever measuring device
Design: high contrast clock face, O-ring seal, mineral glass glass for best protection against cracking, scratches, hot chips, solvent resistance, matt chrome plated housing with 3 integrated dovetail moldings, shock-resistant measuring mechanism, antimagnetic, automatic measurement direction adjustment for error-free reading, double lever on ball bearing, protection overload by means of slipper clutch, measuring tip with cemented carbide ball. Delivery with key for changing measuring tips, measuring tip with a diameter of 2 mm, mounting pin (diameter 8 mm h6), in the case.
Application: measurements of radial run-out, axial run-out, deviations from parallelism and flatness, centering of shafts or holes, parallel or rectangular positioning of workpieces.
