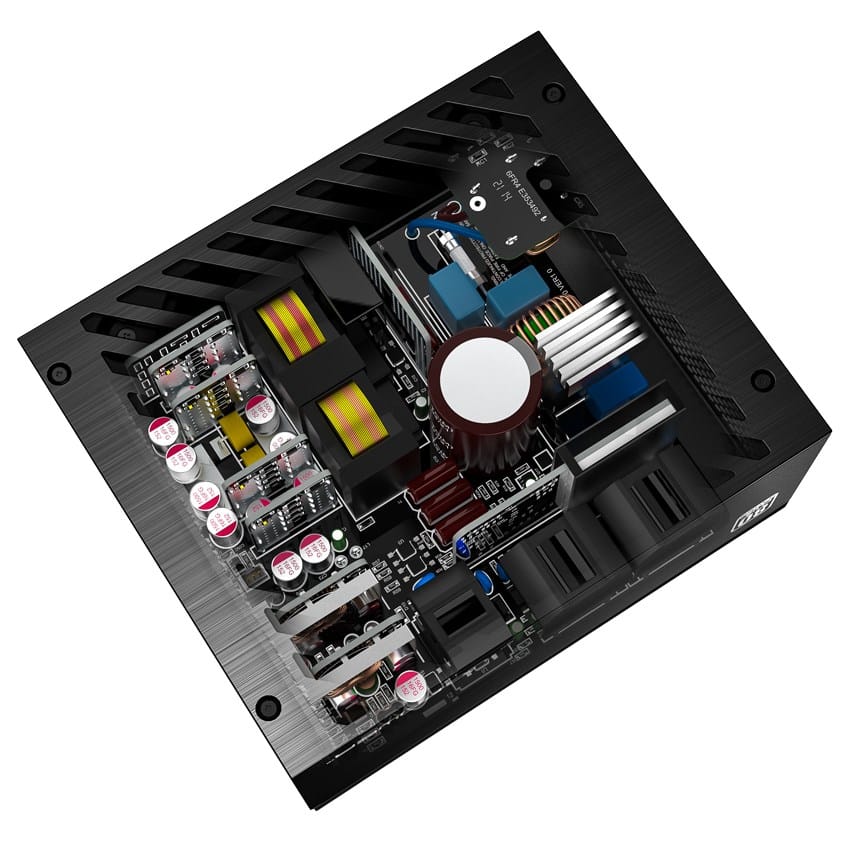

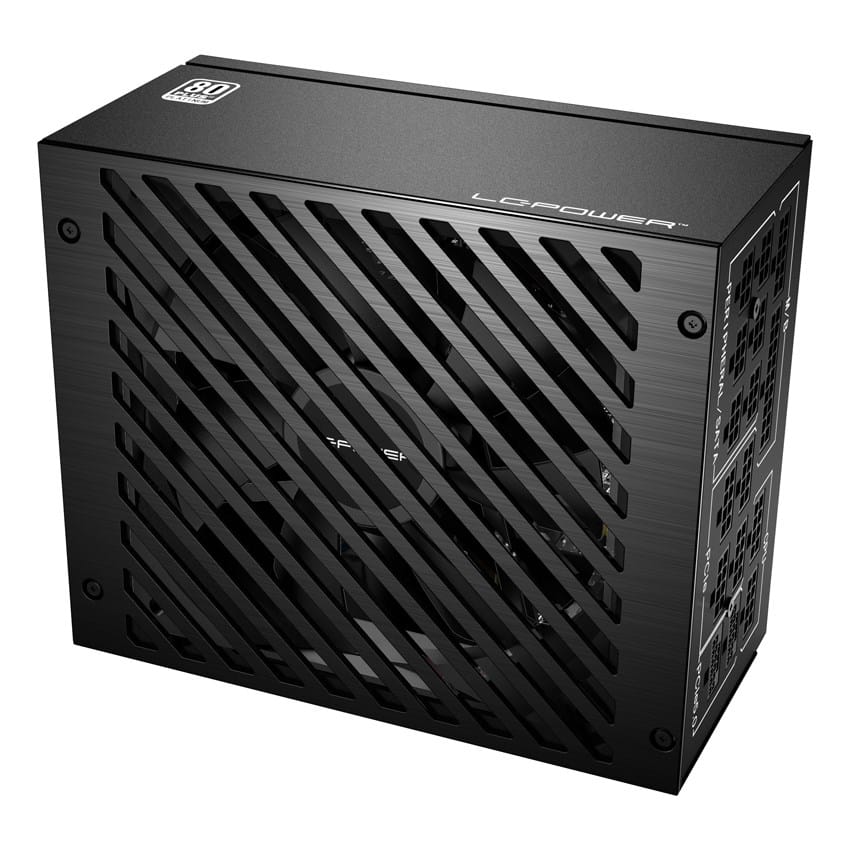

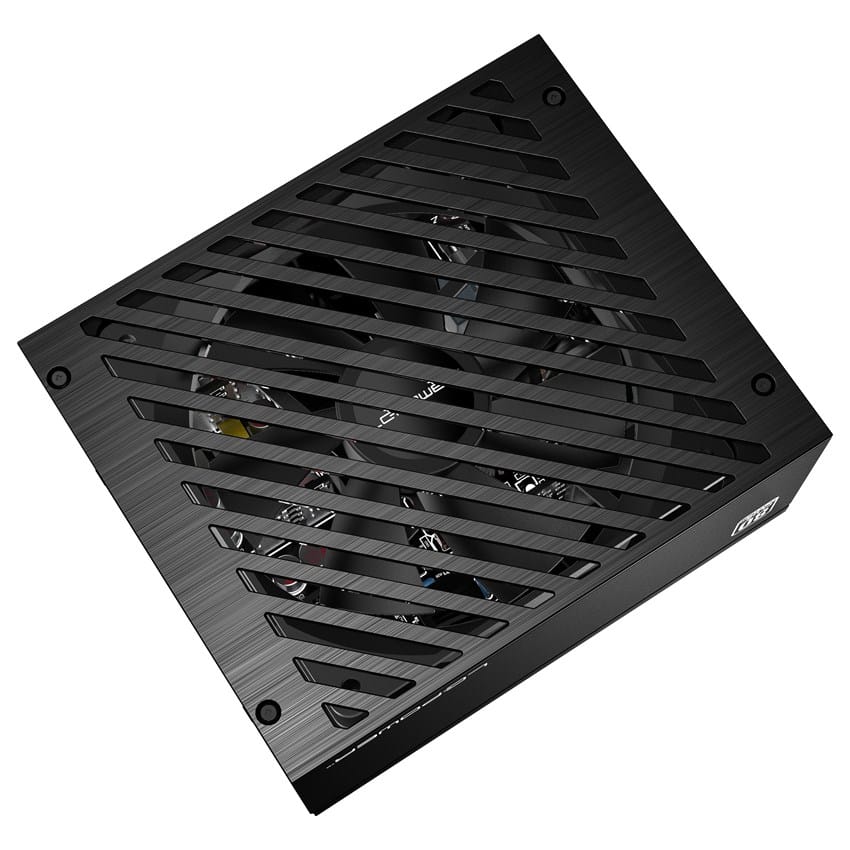

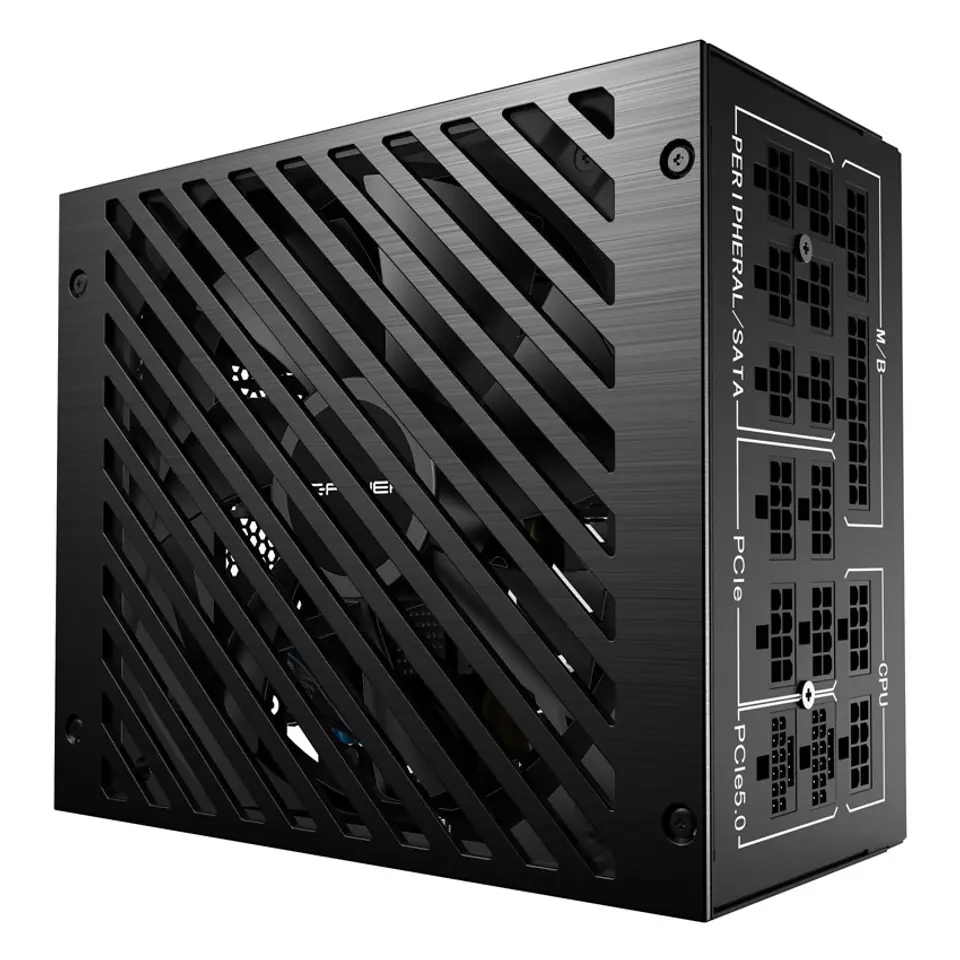

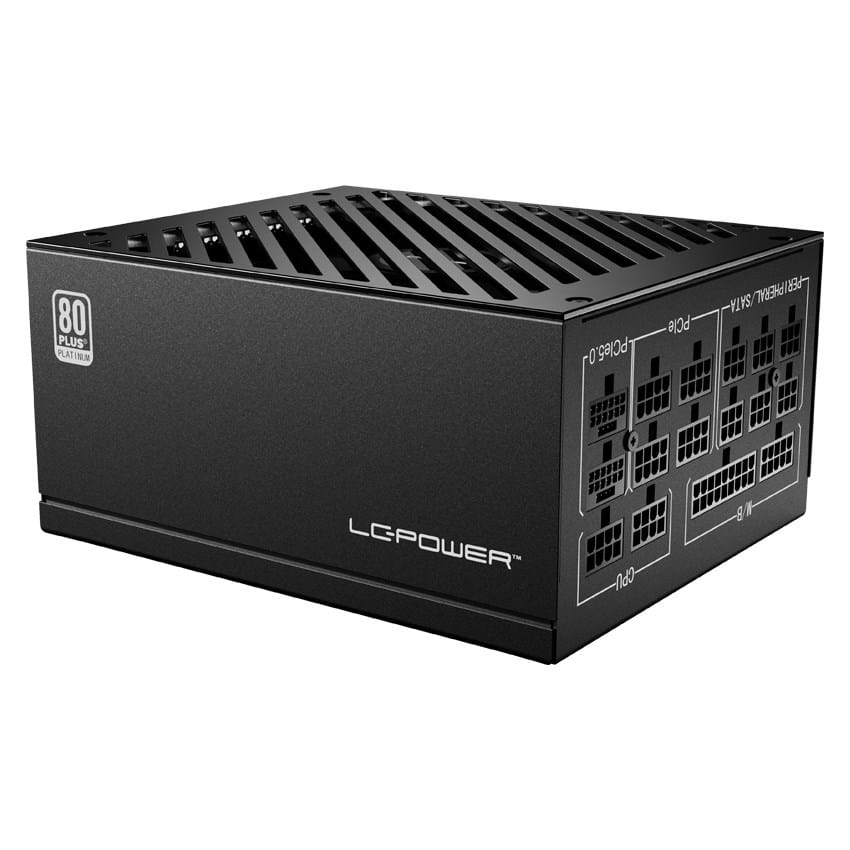

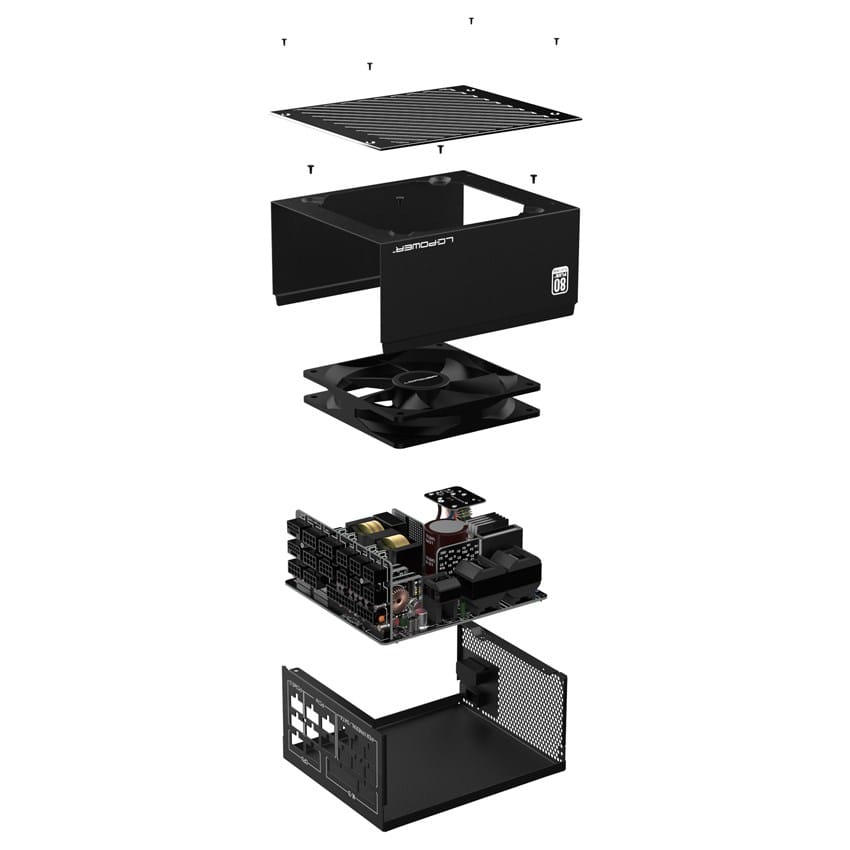

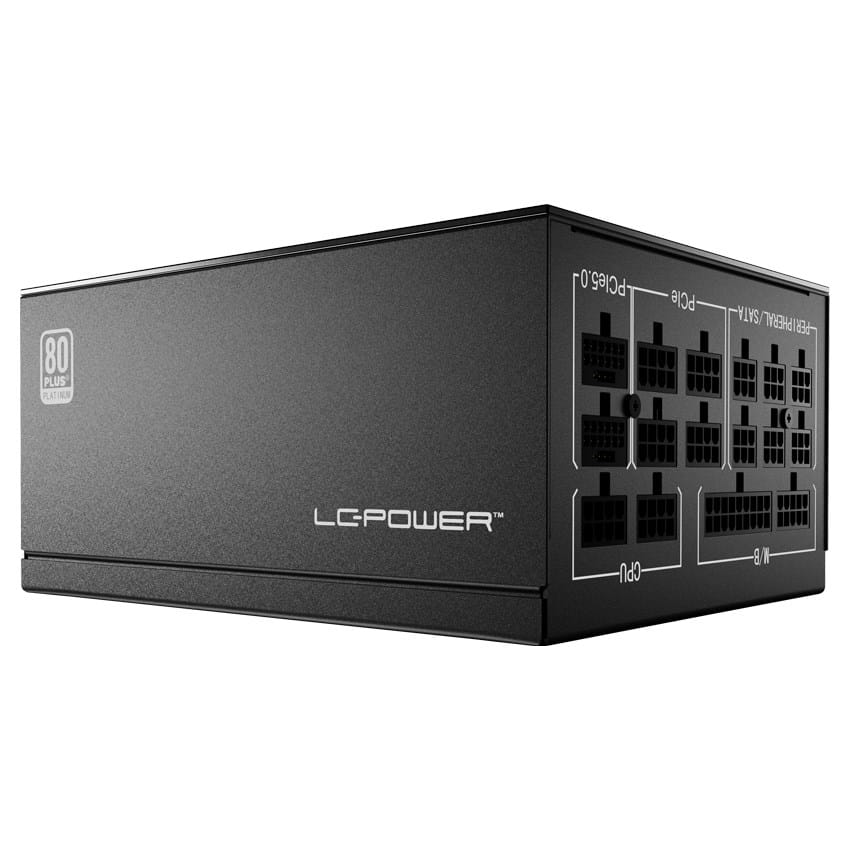

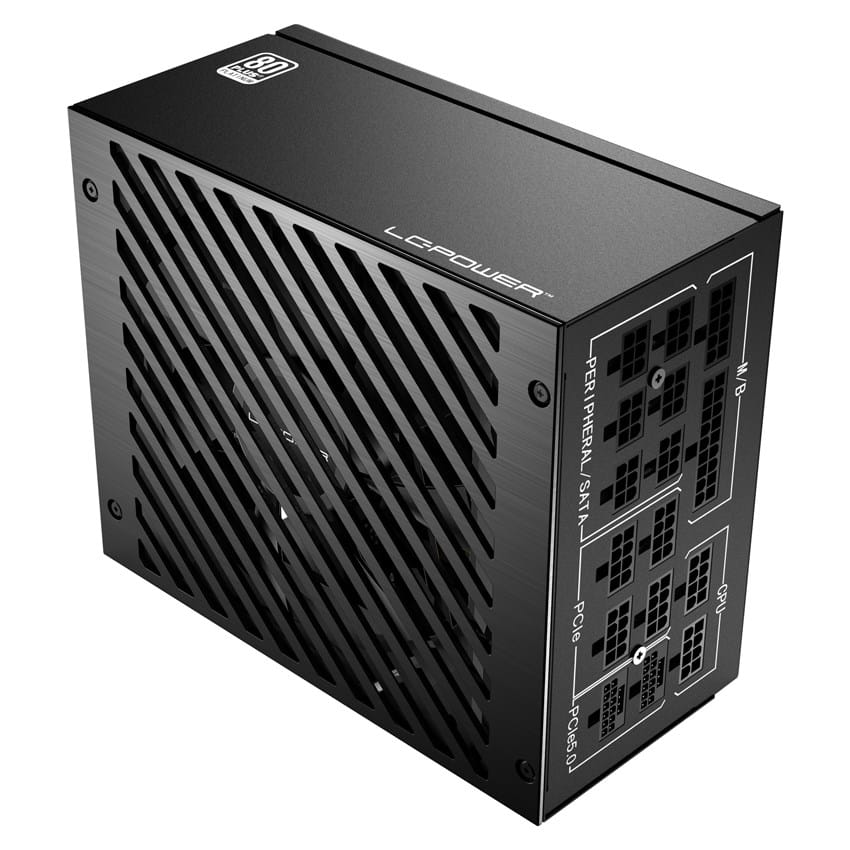

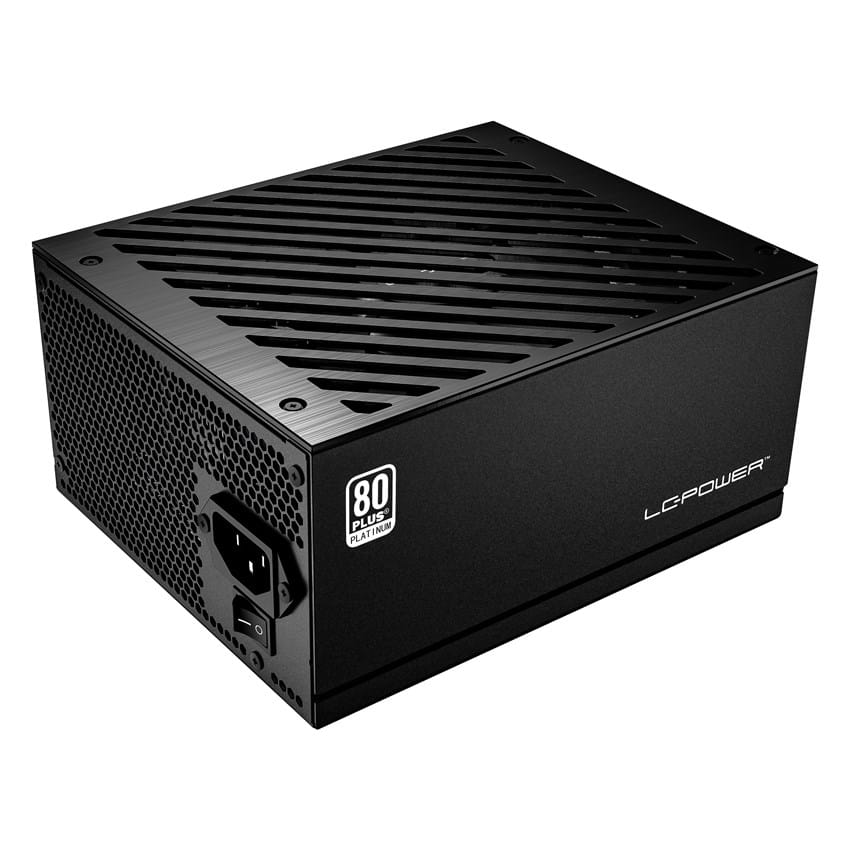

LC-Power LC1000P V3.0 power supply unit 1000 W 20+4 pin ATX ATX Black
€187.33
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 8 - Fri, Oct 11
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- LC-POWER
- Product code:
- LC1000P V3.0 / 4260070120220
Share this product:
Specification
| 80 plus certification: | 80 PLUS Platinum |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 110 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 3.0 |
| Cables included: | PATA, PCIe, SATA |

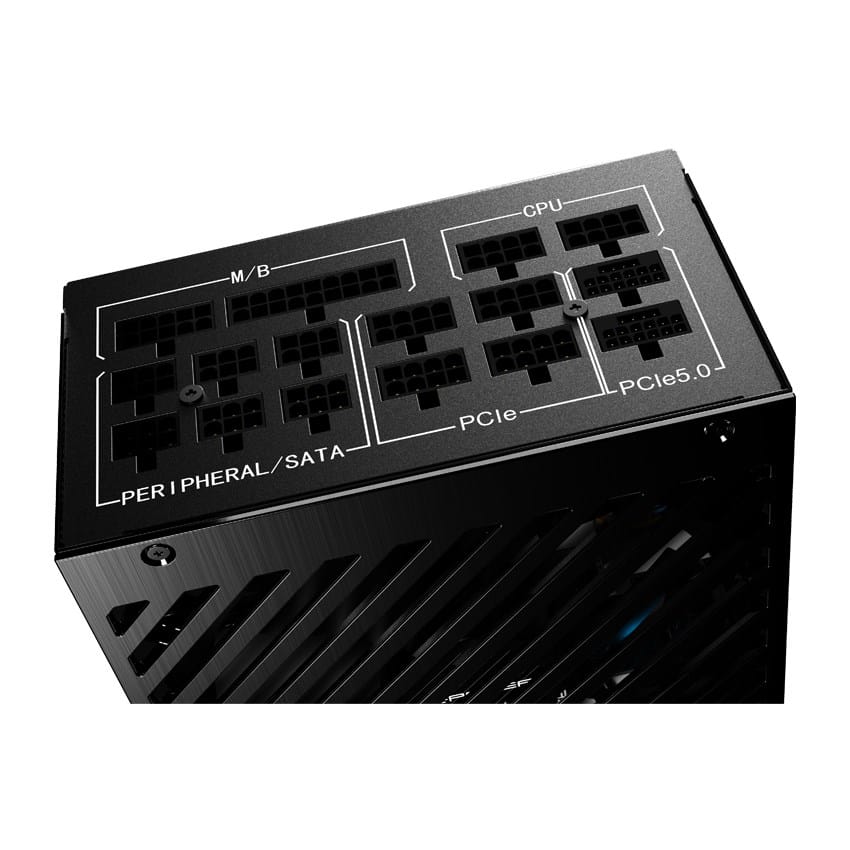

| Cabling type: | Fully-Modular |
| Combined power (-12v): | 4.8 W |
| Combined power (+12v): | 999.6 W |
| Combined power (+3.3v): | 100 W |
| Combined power (+5v): | 100 W |
| Combined power (+5vsb): | 15 W |
| Compliance certificates: | CE, cTUVus |
| Cooling type: | Active |
| Depth: | 180 mm |
| Efficiency: | 92% |
| Eps power connector (4+4 pin): | Yes |
| Eps power connector (8-pin): | Yes |

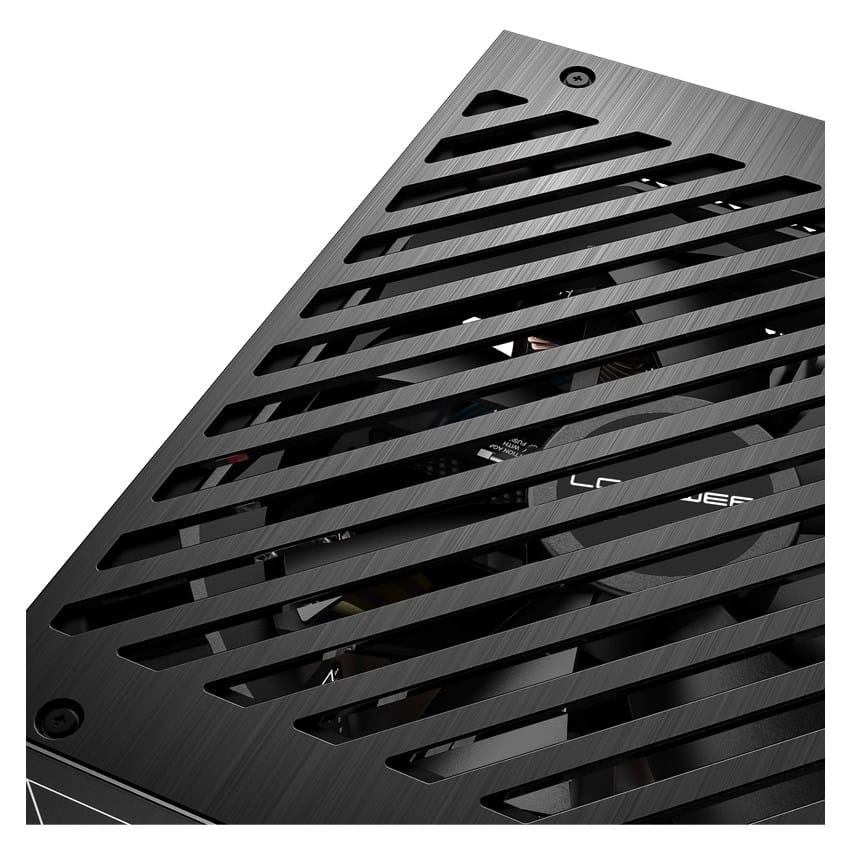

| Fan diameter: | 13.5 cm |
| Height: | 150 mm |
| Max output current (-12v): | 0.4 A |
| Max output current (+12v): | 83.3 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Motherboard power cable length: | 65 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of pata power connectors: | 5 |
| Number of sata power connectors: | 10 |
| On/off switch: | Yes |
| Package depth: | 310 mm |
| Package height: | 225 mm |
| Package type: | Box |
| Package weight: | 3.39 kg |
| Package width: | 115 mm |
| Pci express power connectors (12+4 pin): | 1 |
| Pci express power connectors (12+4 pin) cable length: | 600 mm |
| Pci express power connectors (6+2 pin): | 6 |
| Peripheral (molex) power cable length: | 800, 500 mm |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power factor correction (pfc) type: | Active |
| Power protection features: | Overheating, Short circuit, Over voltage, Under voltage, Over current, Over power |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Sata power cable length: | 650, 950 mm, 500, 800 mm |
| Supported motherboard form factors: | ATX |
| Sustainability compliance: | Yes |
| Total power: | 1000 W |
| Warranty period: | 3 year(s) |
| Weight: | 3.05 kg |
| Width: | 86 mm |
