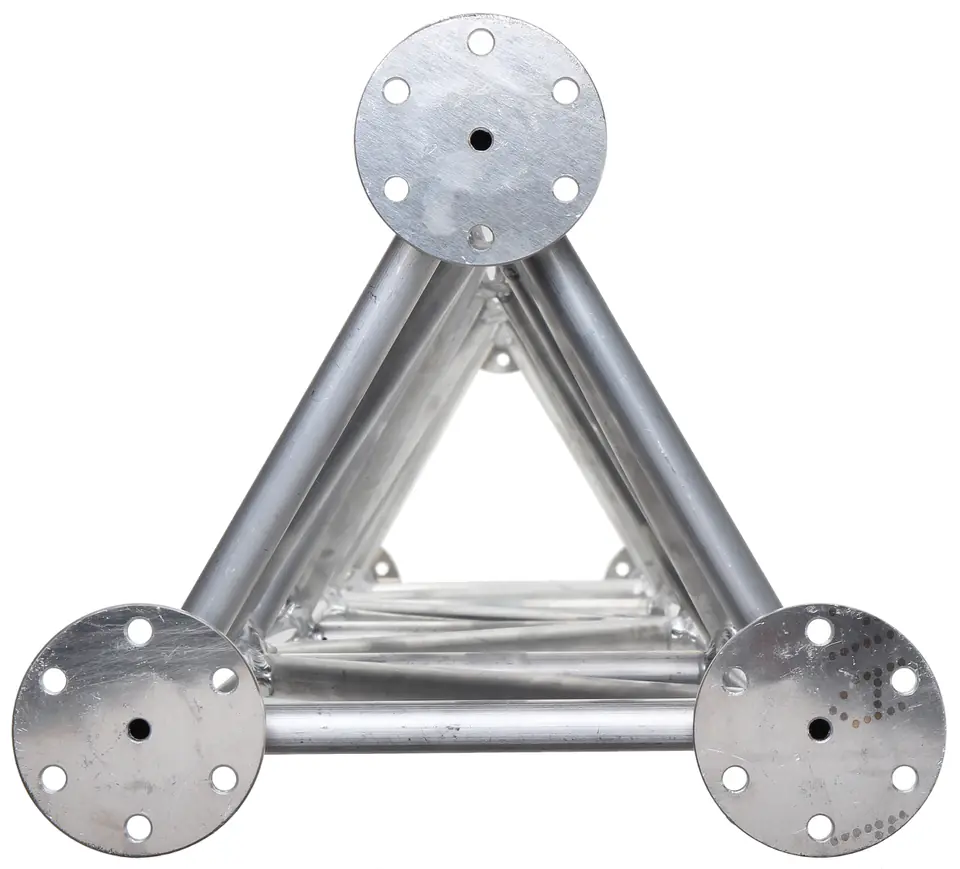

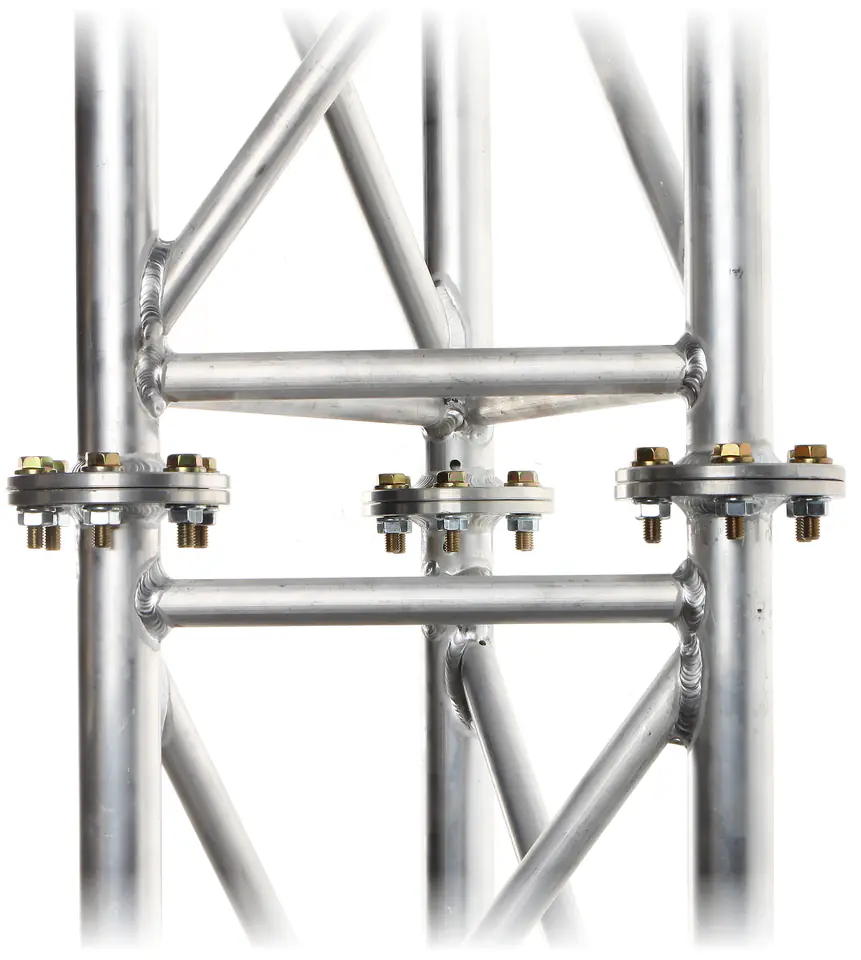

| Construction: | Lattice with triangle cross-section: 250 x 250 x 250 mm |
|---|---|
| Load-bearing pillars: | Aluminium tube Ø 35 mm |

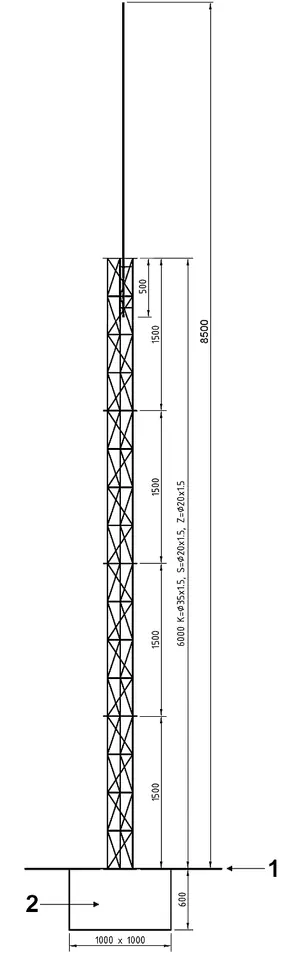

| Mast height: | 8.5 m |
| Material: | Aluminium |

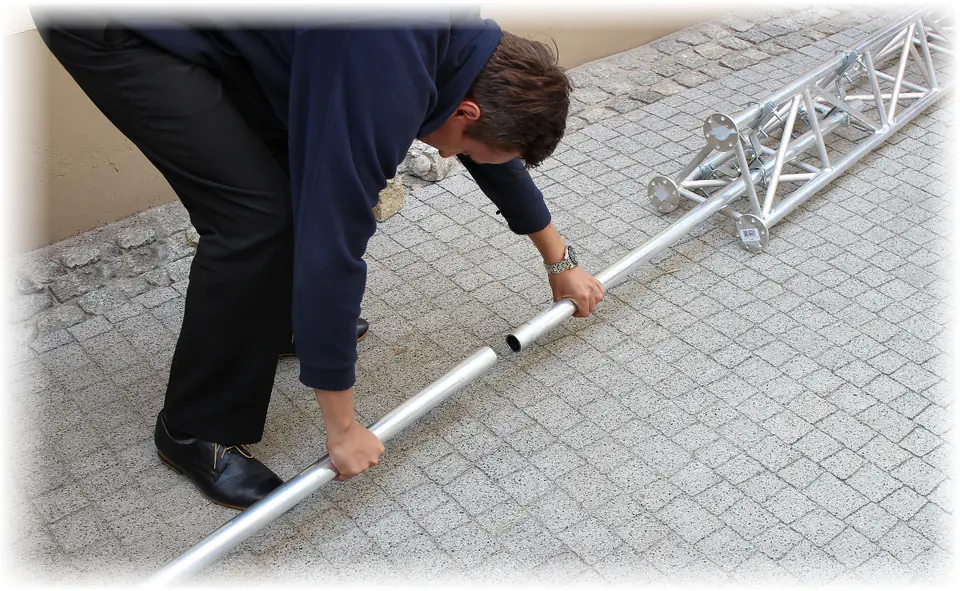

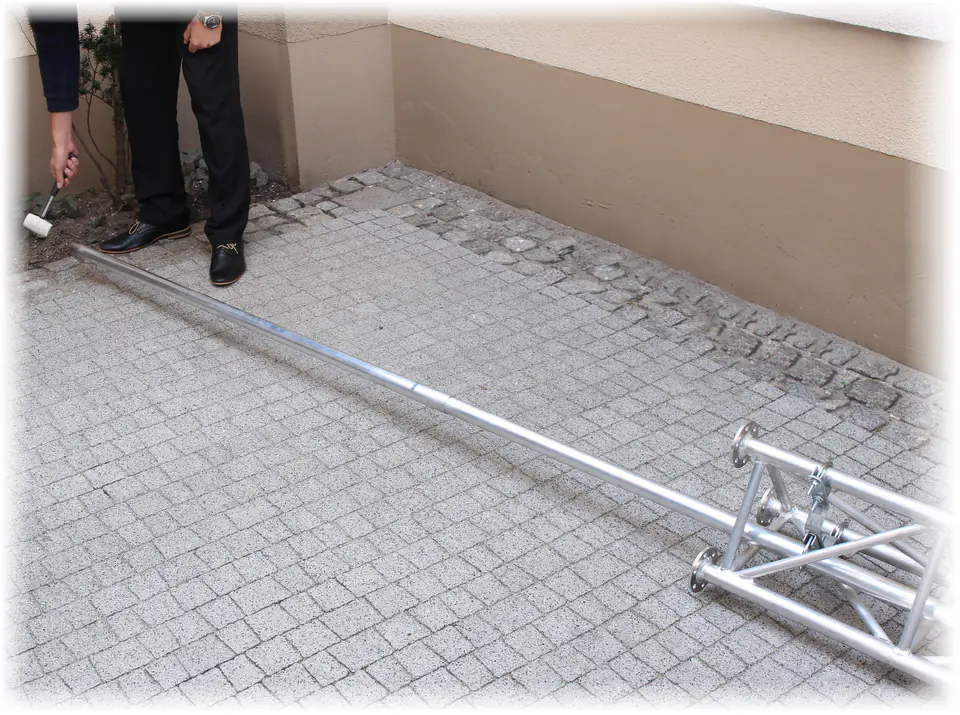

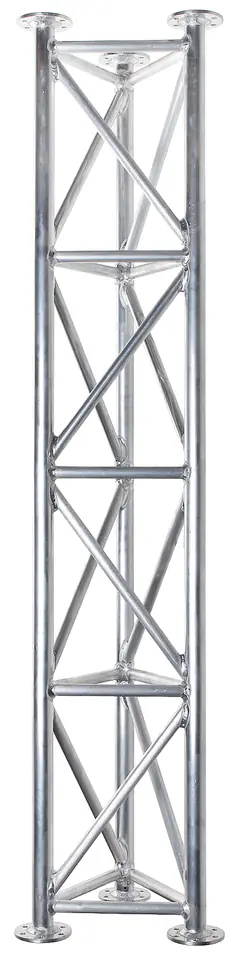

| Number of segments: | 4 pcs. - Lattice mast, 2 pcs. - Tubular mast |

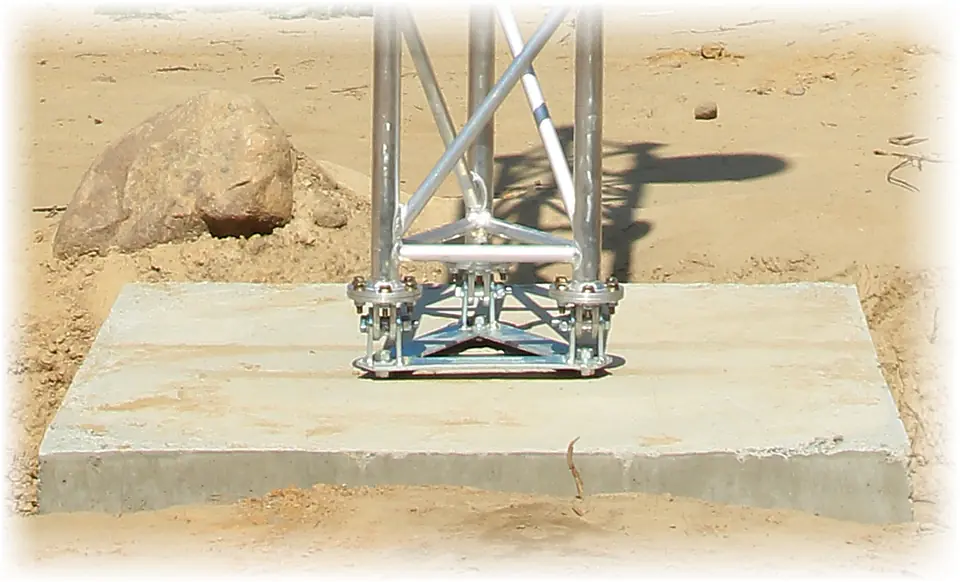

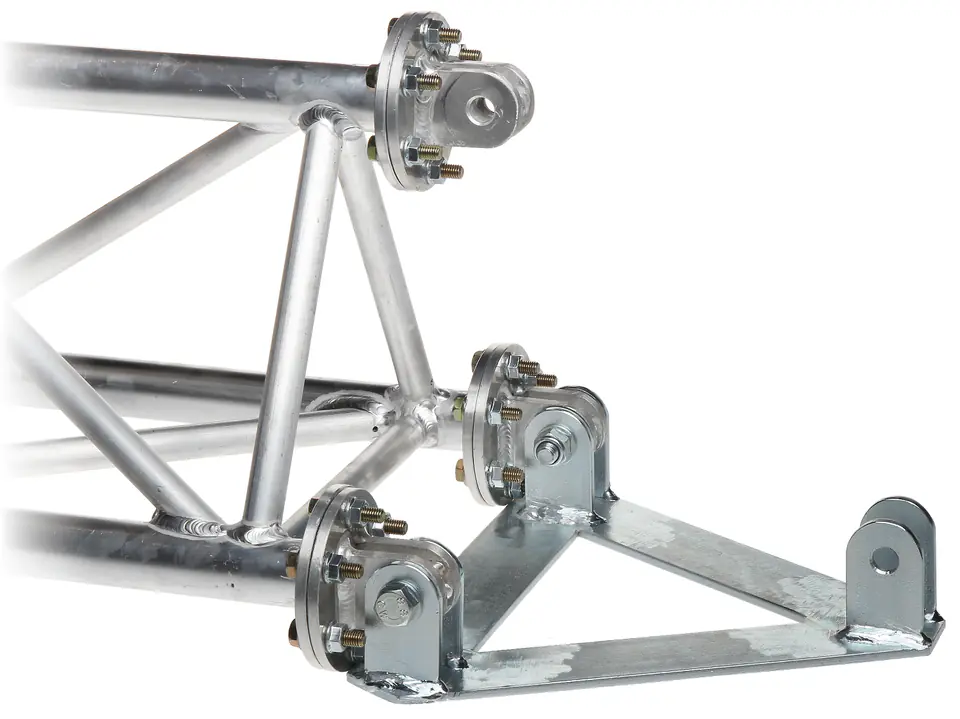

| Scales: | 4 x 5.05 kg - Lattice mast 2 x 0.72 kg - Tubular mast 1.56 kg - Tubular clamp OR3-50W6 3.01 kg - Mast base 1.6 kg - Concrete anchor |

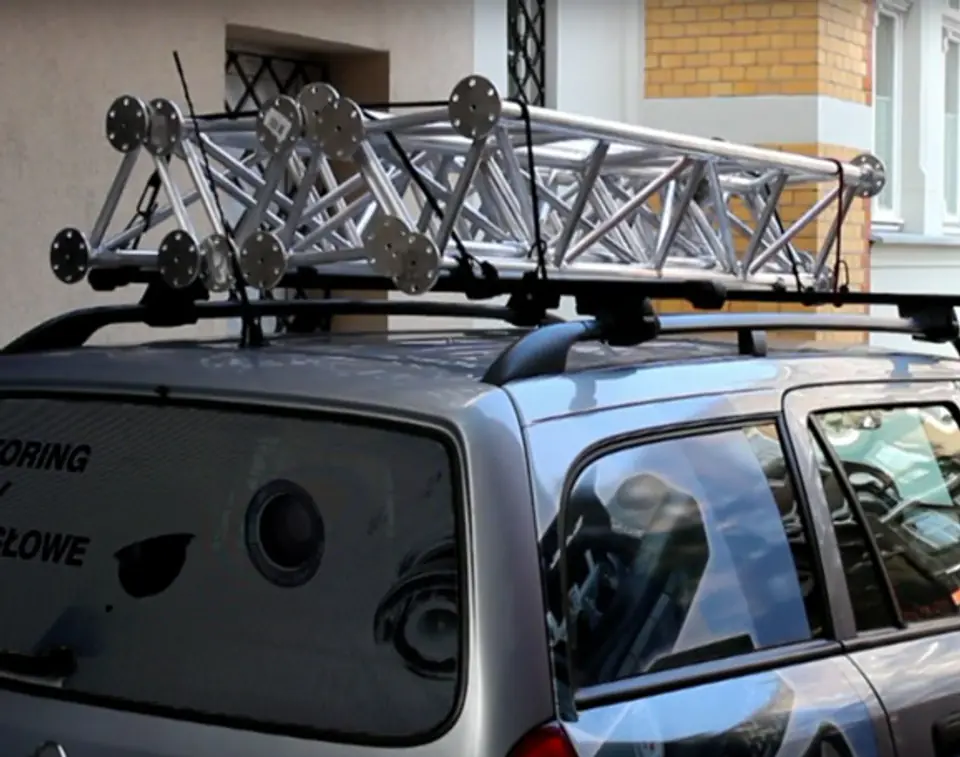

| Selected features: | No lashings The use of the MK-1.5 / POD base allows the position of the mast The possibility of entering the assembled mast of a person weighing up to 100 kg in a wind of up to 5 m / s Possibility of transport in the trunk of a passenger car The dimensions of the goods after packing allow courier to be sent throughout Europe |
| Wall thickness: | 1.5 mm |
| Warranty: | 2 years |

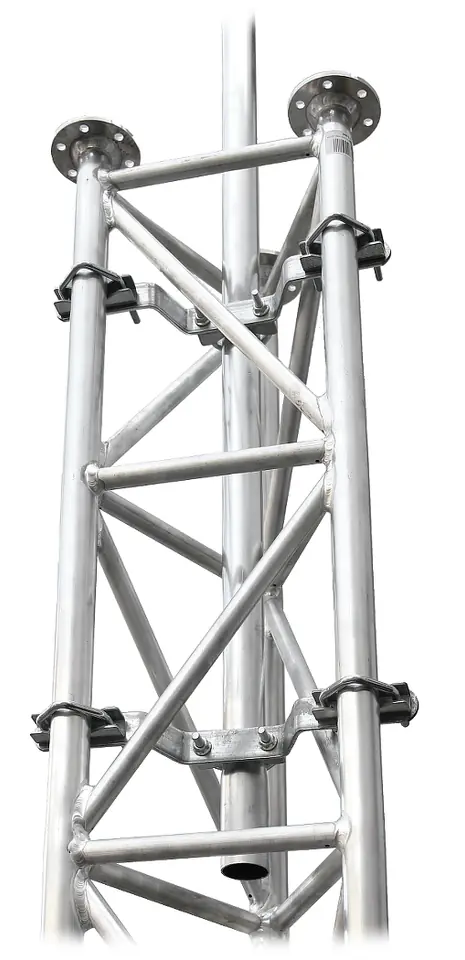

The MKR-8.5/CT mast is a solid, lightweight aluminum structure with the possibility of entering it by an authorized installer
The lack of the need for lashings means that the mast requires little space and has a positive effect on the aesthetics of the environment
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
