LASER LIGHT SOURCE SP-OSM32/MINI 1310 / 1550 nm Spacetronik

Name: LASER LIGHT SOURCE SP-OSM32/MINI 1310 / 1550 nm Spacetronik
Brand: Spacetronik
SKU: 542165
Price: 107.73 EUR
Availability: InStock

€107.73

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: running out
Brand:
Product code:: SP-OSM32/MINI / 5903031018523

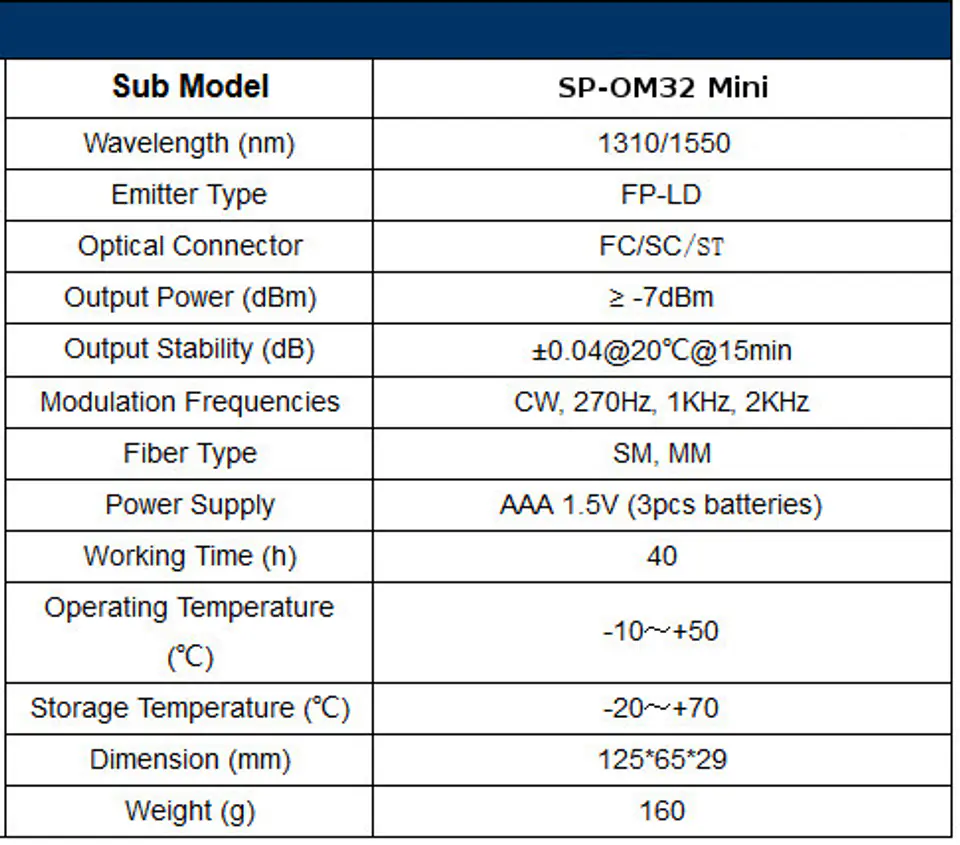

Specification

Connector type:	Ferrula 2.5 mm
Dimensions:	132 x 65 x 29 mm
Material:	Plastic
Optical wavelength:	1310 / 1550 nm

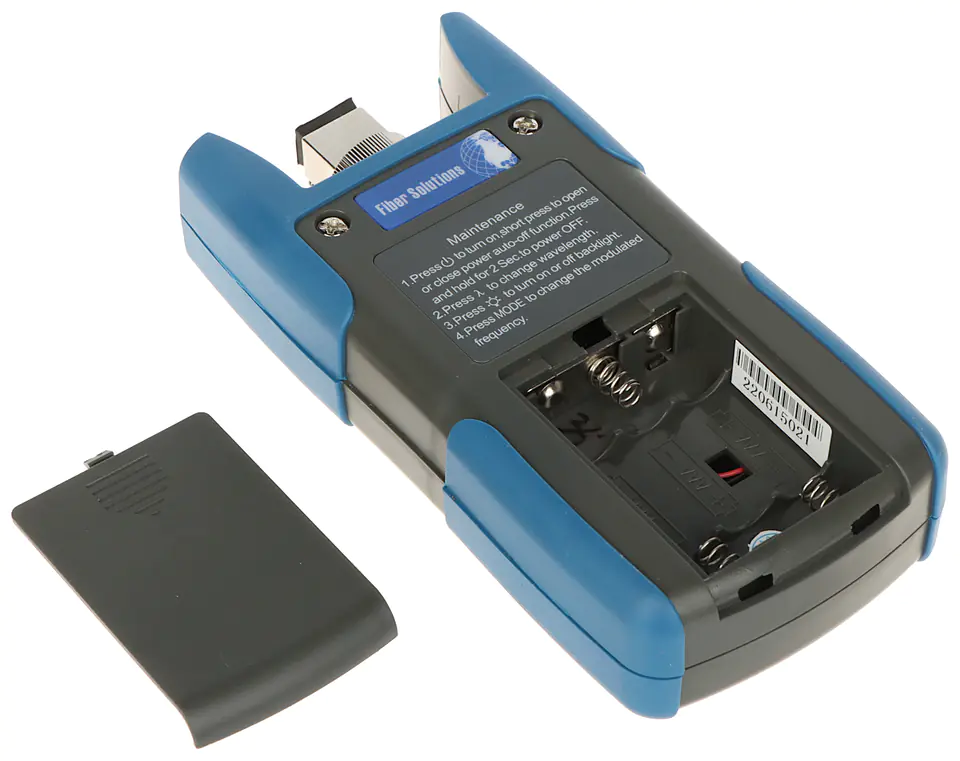

Power:	3 x 1.5 V - Battery type LR3 (AAA) (not included)
Power at optical output:	≥ -7 dBm
Producer / brand:	Spacetronik
Scales:	0.13 kg - Without batteries

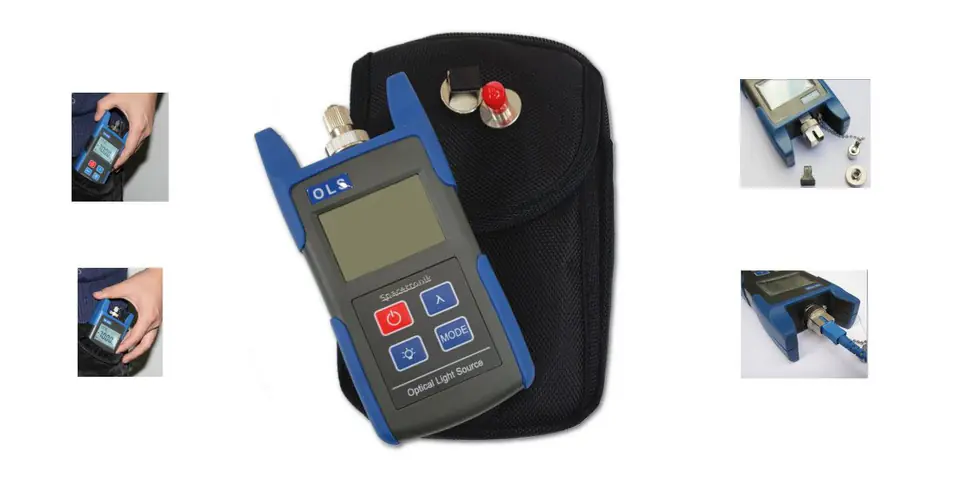

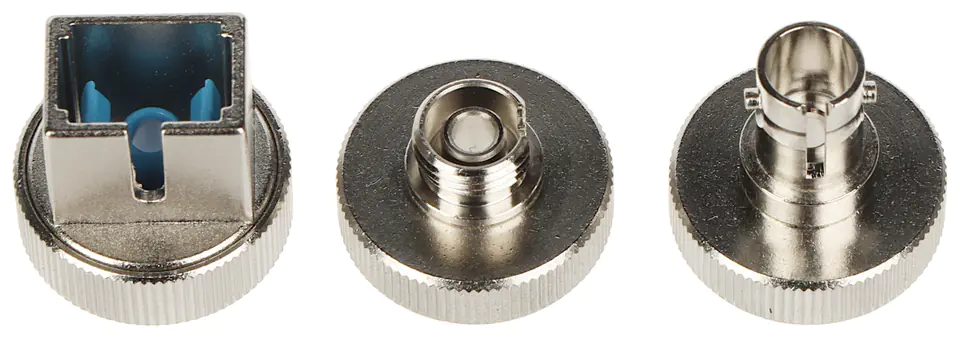

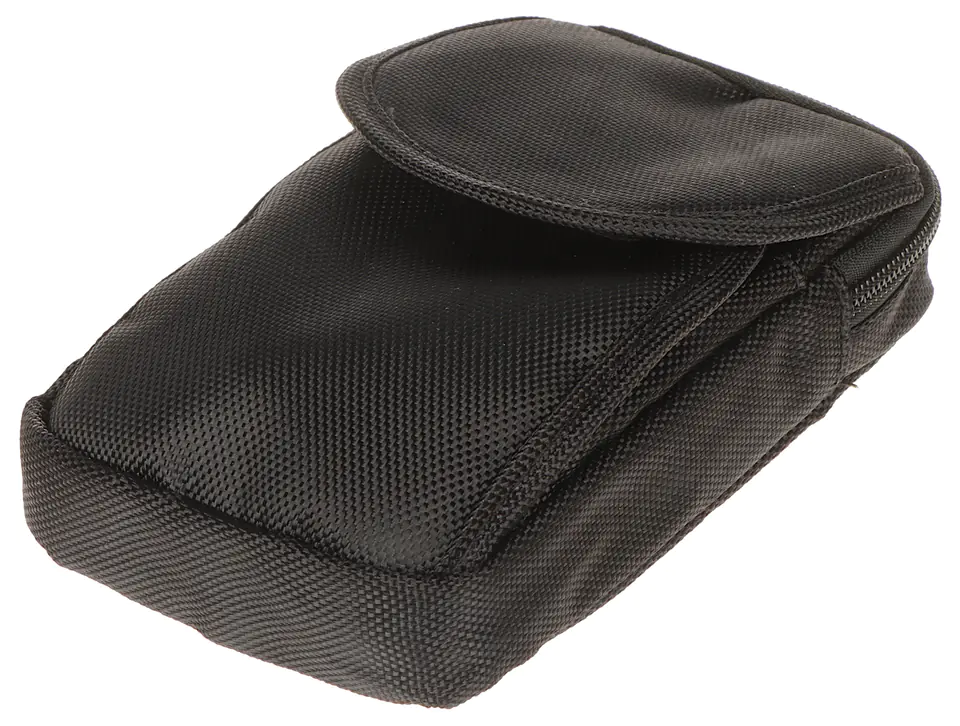

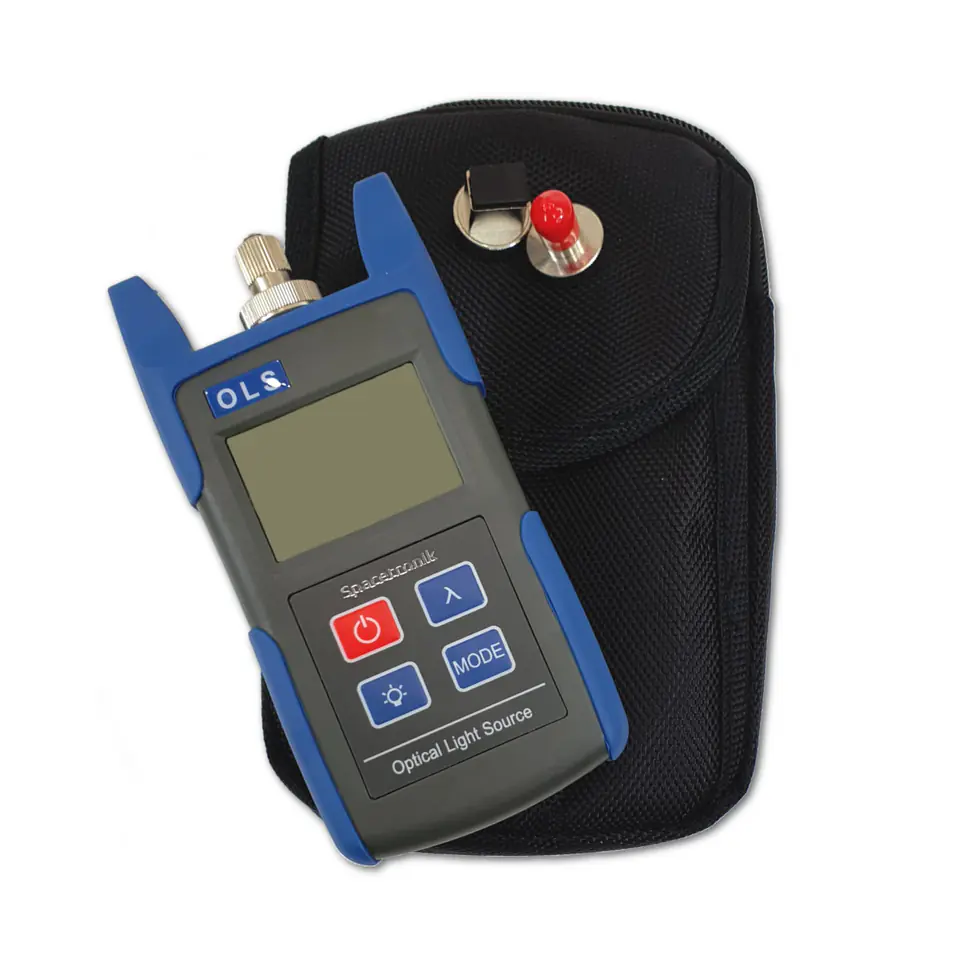

Selected features:	Good output power stability Large, easy-to-read LCD display with backlight Auto power off Battery charge indicator The universal connector allows you to connect all optical connectors of the 2.5 mm standard, e.g. SC/FC/ST Long-lasting tool made of the highest quality materials SC / FC / ST adapters are included The device works with both single-mode and multimode fibers Small size A practical case is included Battery life : 40 h
Warranty:	2 years

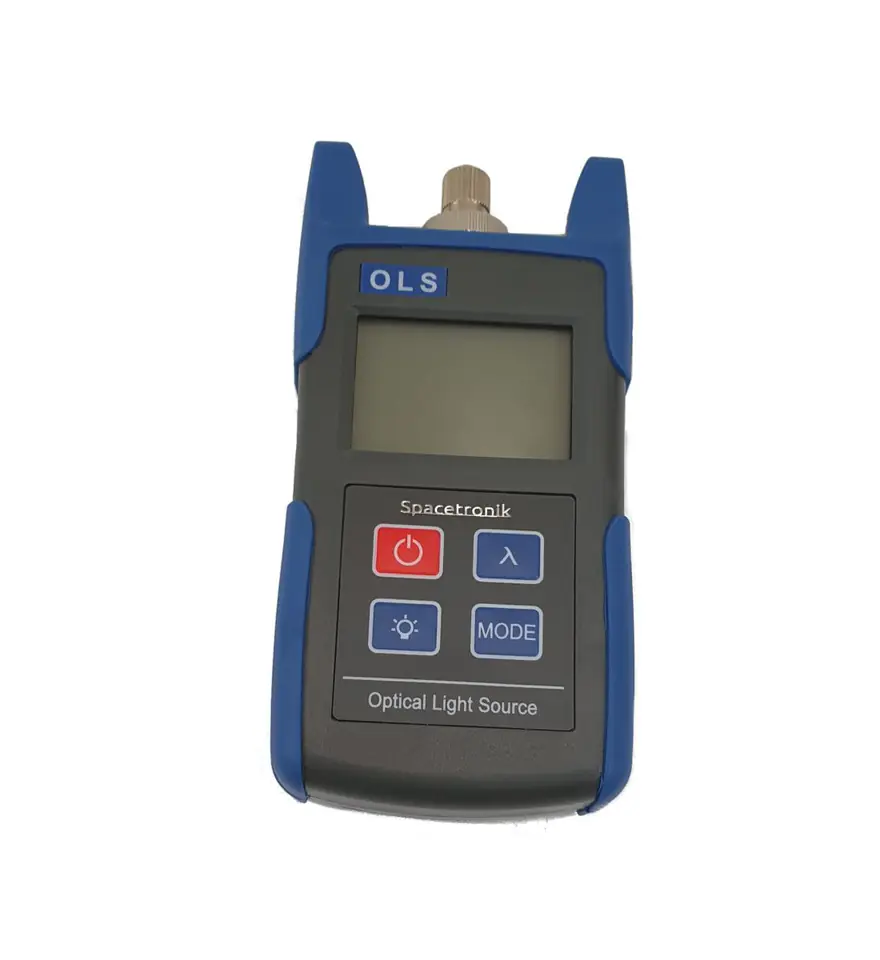

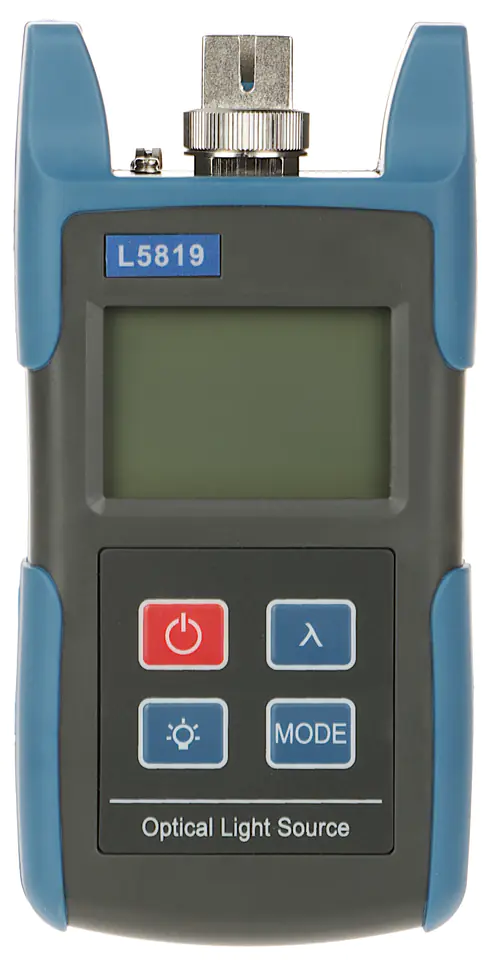

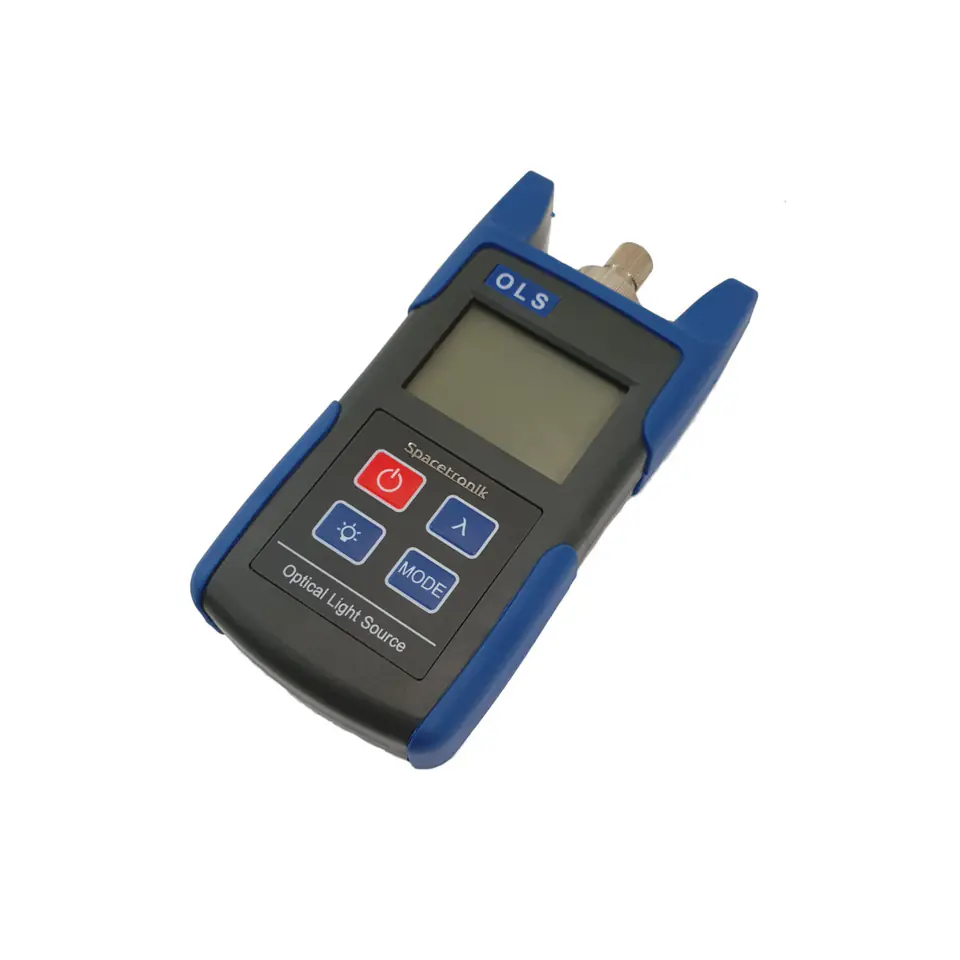

The SP-OSM32/MINI laser light source generates a test light beam with a wavelength of 1310 nm / 1550 nmThanks to this, using any optical power meter, it is possible to quickly and accurately assess the condition of optical fibers and their connections in the tested installation

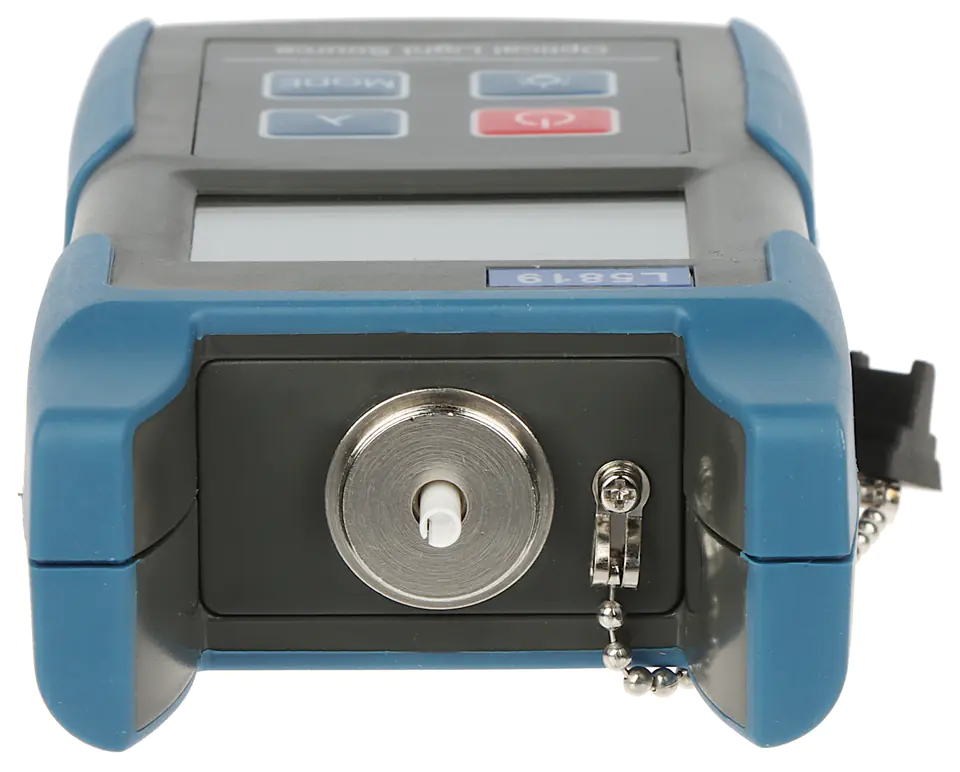

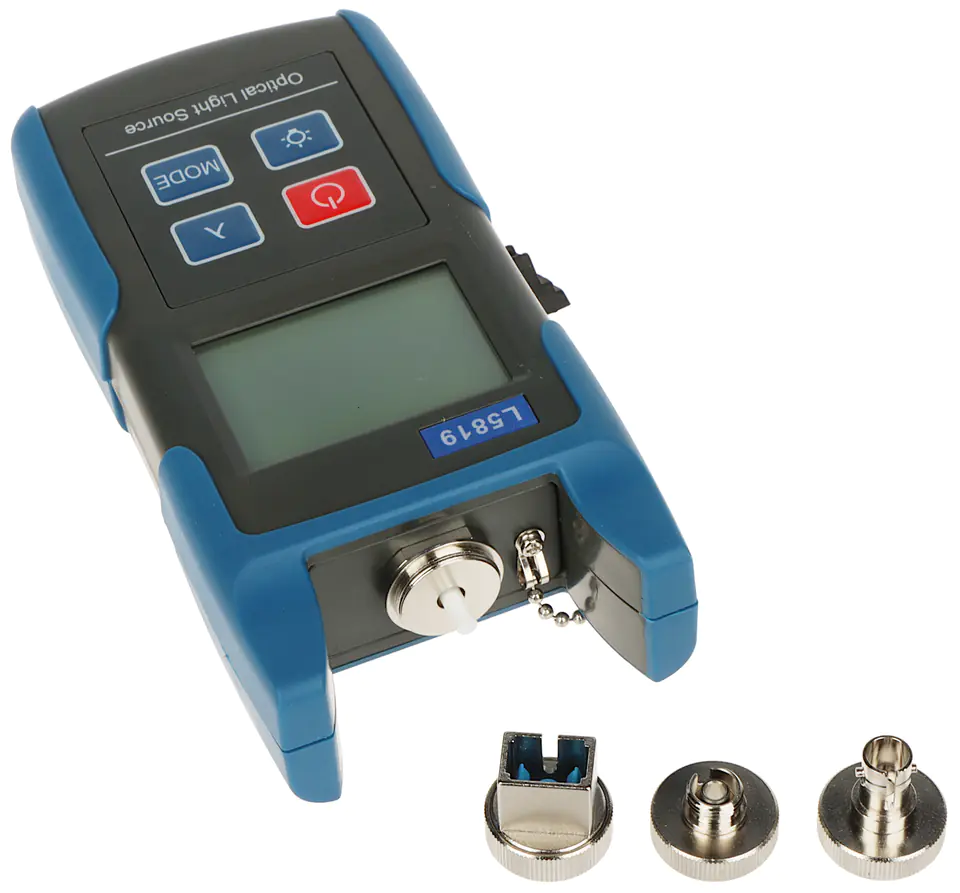

The source can be lit in continuous (CW) or intermittent mode at a frequency of 270 Hz / 1 kHz / 2 kHzThe universal connector allows the connection of all optical connectors of the 2.5 mm standard, e.g. SC/FC/ST

REMARK! When using the device, avoid directing the laser beam towards the skin and eyes

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
