LASER LEVEL FLG 190A - GREEN

Specifications:

Instrument Accuracy: ± 1.5mm / 10m
Vertical Instrument Accuracy: ± 3mm / 10m
Automatic levelling range: ± 3°
Built-in compensator: mechanical
Battery powered: NiMH
Working time – one charge: 10 h
Laser safety class/wavelength: 2/532 nm
Laser diodes number/wavelength: 1/532 nm
Laser Visibility Zone Diameter (Scan)***: 60 m
Laser detection zone diameter: 600 m
Head speed: 200, 400, 600 rpm
Method of mounting the instrument: 5/8'' thread, universal bracket
Operating temperature range: -10 °C – +45 °C
Enclosure protection class: IP 54
Instrument weight: 1.5kg
Transport dimensions of the instrument: 26 x 22 x 18cm
conditions typical for rooms – white wall, illuminance 250 lx
oscillating beam
Laser detector ˇ
Designation DtSt: FRG 45
Type of beam detected: green
Detection precision setting range: ± 2 mm, ± 4 mm, ± 10 mm
Detection field length: 40 mm
Level indication by detector: LCD screen x 2, LEDs, beep
Detector battery powered: 1 x 9V alkaline
Detector mounting method: patch holder, magnets
Beep tones: 3
Libelle built into the detector: 2
Detector housing protection class: IP 66
Detector weight: 0.3 kg

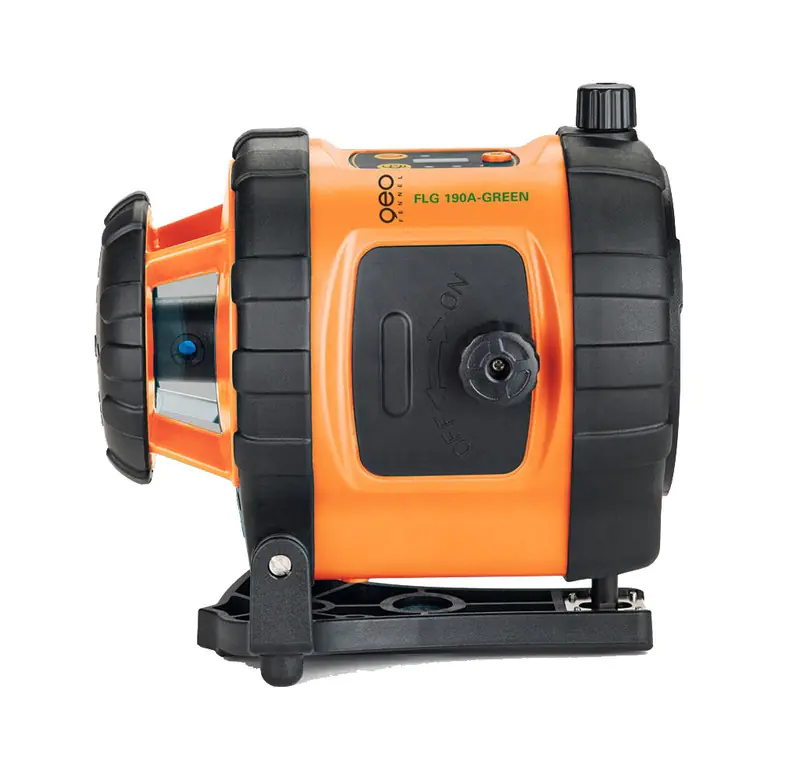

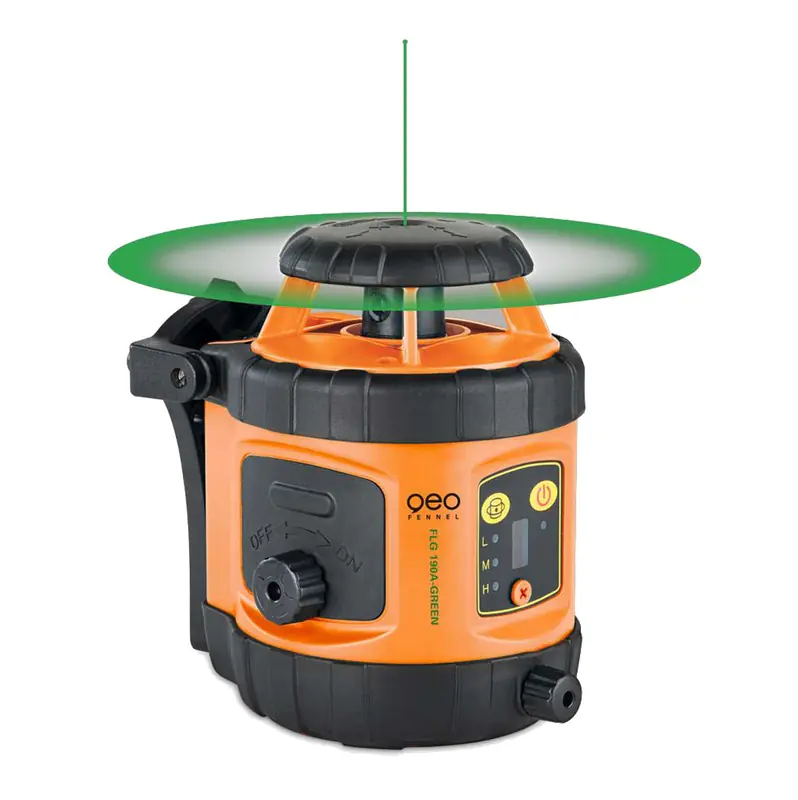

The FLG 190A-GREEN rotary laser is designed to work in two positions. In the standard position, the rotational beam determines the level and the point beam is emitted upwards at an angle of 90°. When the laser is rotated to a vertical position, the rotational beam forms a perfectly even vertical plane, and the point beam is emitted laterally at an angle of 90°.

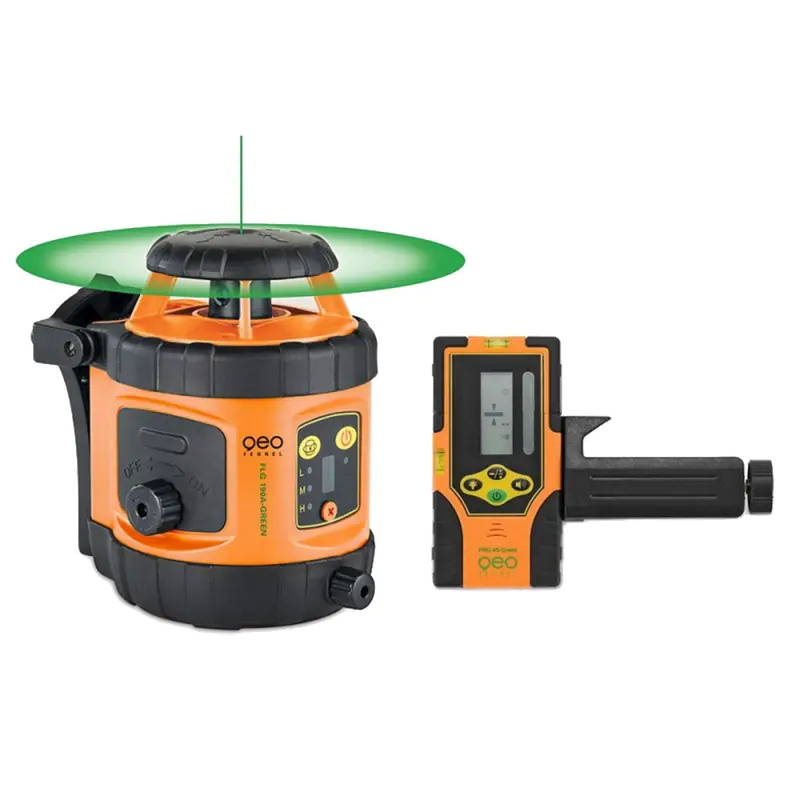

The automatic rotary laser FLG 190A-GREEN is a professional instrument for determining and controlling the level and vertical in the field and in buildings. It emits bright green visible light in the form of two mutually perpendicular beams - rotary and solid. The device has an external housing resistant to dust and moisture (in accordance with the IP 54 waterproof standard). Thanks to this, the instrument is very well adapted to external conditions.

The high-end green laser beam is perfectly visible even in spacious interiors and halls. The bright green color strongly stands out on various types of surfaces. A large amount of sunlight reaching the workplace does not interfere with the location of the laser beam over a considerable distance. In the field, using the included detector, the laser can handle an area with a large diameter

FLG 190A-GREEN is a modern rotary laser at a good price, which provides a long range and very good accuracy. With its help, most of the measurement work on the construction site will be carried out much faster and more accurately compared to traditional methods using an optical level

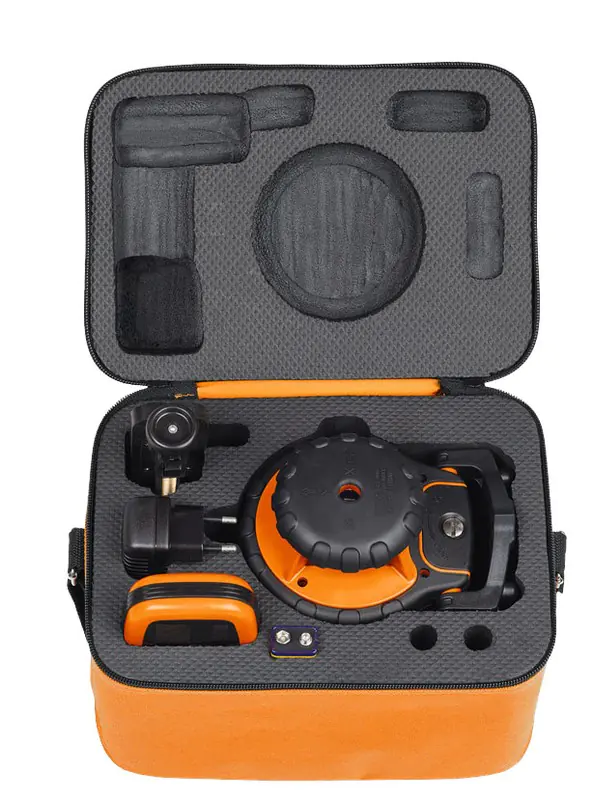

The device is equipped with a modern compensator, which automatically adjusts itself relative to the axis of the earth. The standard 5/8" socket allows mounting on most traditional tripods found on construction sites - geodetic or with a screw-out column. Standard equipment includes a package including a detector and power accessories. All equipment, including the laser, is packed in a handy bag.


FLG 190A-GREEN is a self-leveling construction laser level from a professional series of year-round rotary lasers designed for continuous operation, determining the level and vertical:

Extremely bright green laser beam for maximum visibility.
Instant self-leveling – instant start.
Rotating beam, marking the level or vertical.
Fixed laser spot at an angle of 90° to the rotating beam.
Non-leveling alarm – optical and acoustic signaling of the instrument deflecting the instrument out of the self-adjustment range eliminates errors.
Work in an upright position with the compensator locked.
Transport protection – mechanical compensator lock protects the internal mechanism from damage.
Work in all conditions – thanks to the sealed housing in accordance with IP 54.
Work in negative temperatures – an instrument adapted to year-round operation.
Powered by powerful NiMH rechargeable batteries.
Includes detector to increase the range of the level.
The device is adapted to work outdoors.

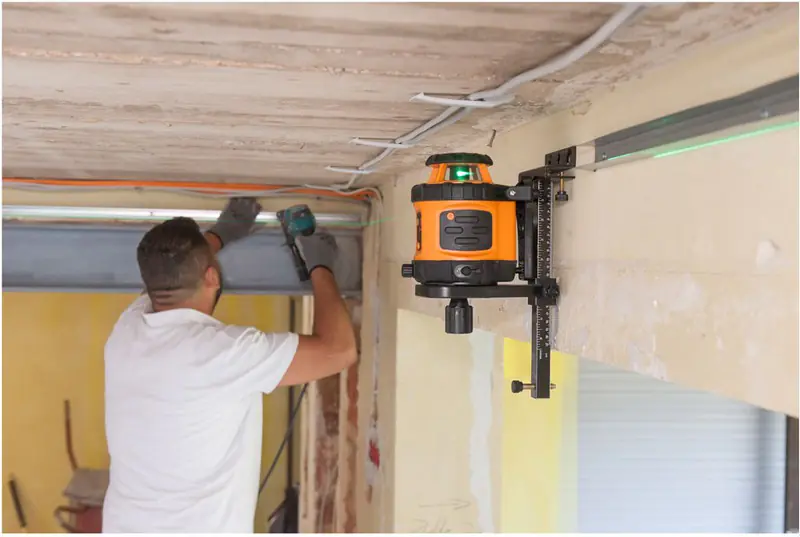

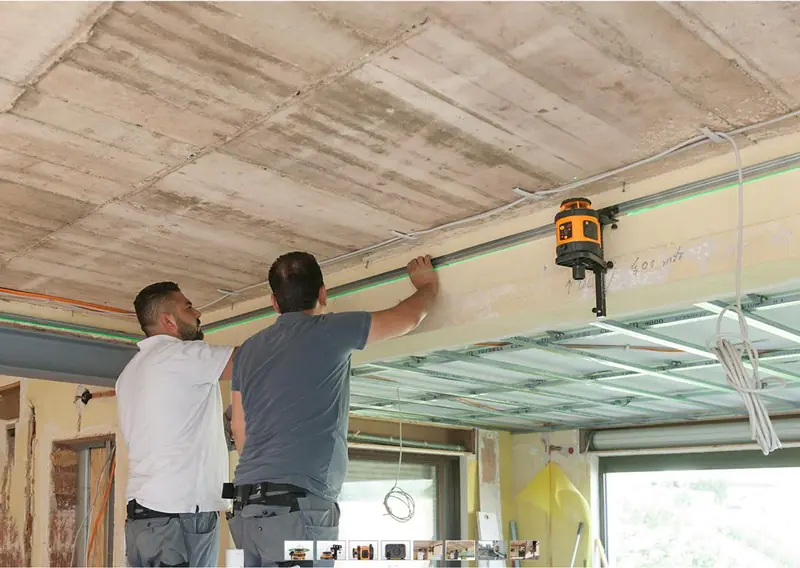

Integrated bracket for mounting the instrument on the wall, on the floor and on a tripod in a vertical position.


**
