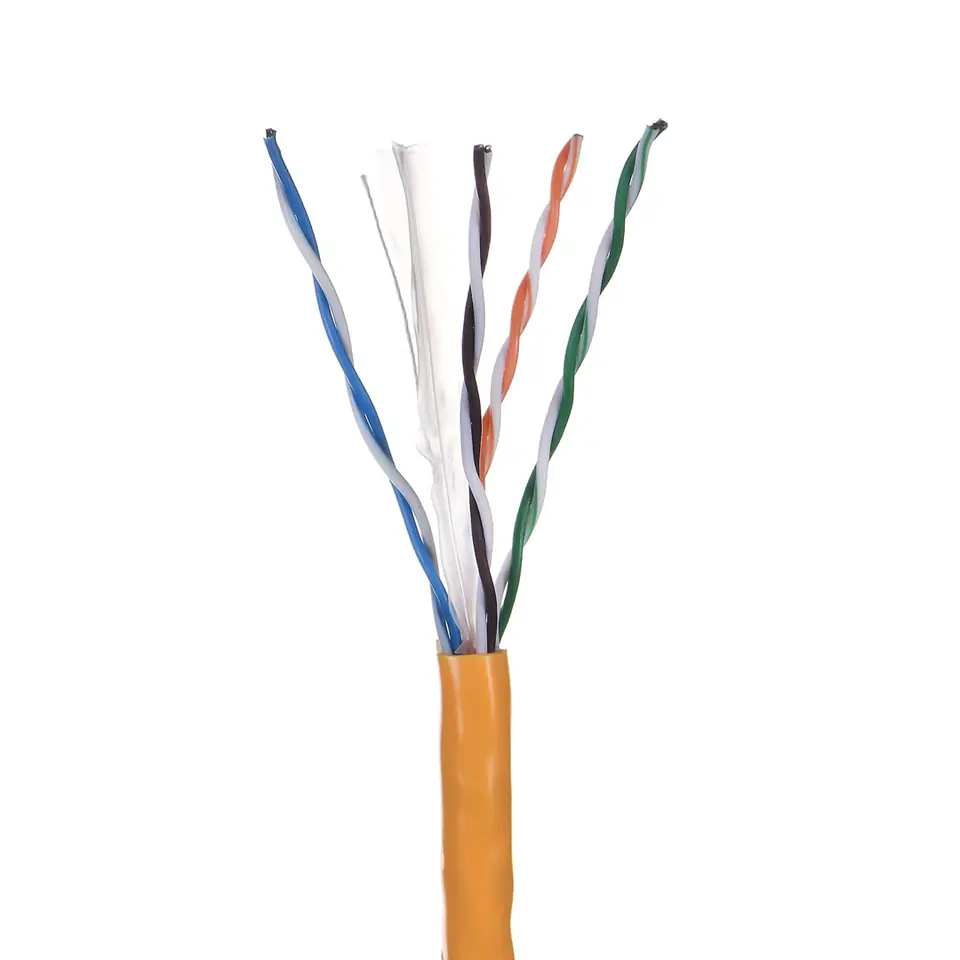

LANBERG CABLE UTP 1GB/S 305M WIRE CCA ORANGE

€44.89

14 days returnUnconditional return policy

Availability:: running out
Brand:
Product code:: LCU6-10CC-0305-O / 5901969439885

Specification

Awg wire size:	23
Cable colour:	Orange
Cable length:	305 m
Cable shielding:	U/UTP (UTP)
Conductor material:	Copper-Clad Aluminium (CCA)
Connector gender:	No
Frequency:	250 MHz
Jacket material:	High-Density Polyethylene (HDPE), Polyvinyl chloride (PVC)
Operating temperature (t-t):	-20 - 75 °C
Outer diameter:	5.6 mm
Package depth:	240 mm
Package height:	380 mm
Package width:	380 mm
Plug and play:	Yes
Quantity per pack:	1 pc(s)
Storage temperature (t-t):	0 - 60 °C

UTP LAN cable 1GB/S 305M CCA wire, orange

Data transmission speed: 1Gb/s
Conductor design: copper-plated (CCA)
AWG 23 (4 x 2 x 0.57 mm)
Conductor structure: single wire
Length counter print for every meter of cable
External PVC insulation: 5.6 mm
HDPE insulation of the core: 0.95 mm
Operation up to 250 MHz

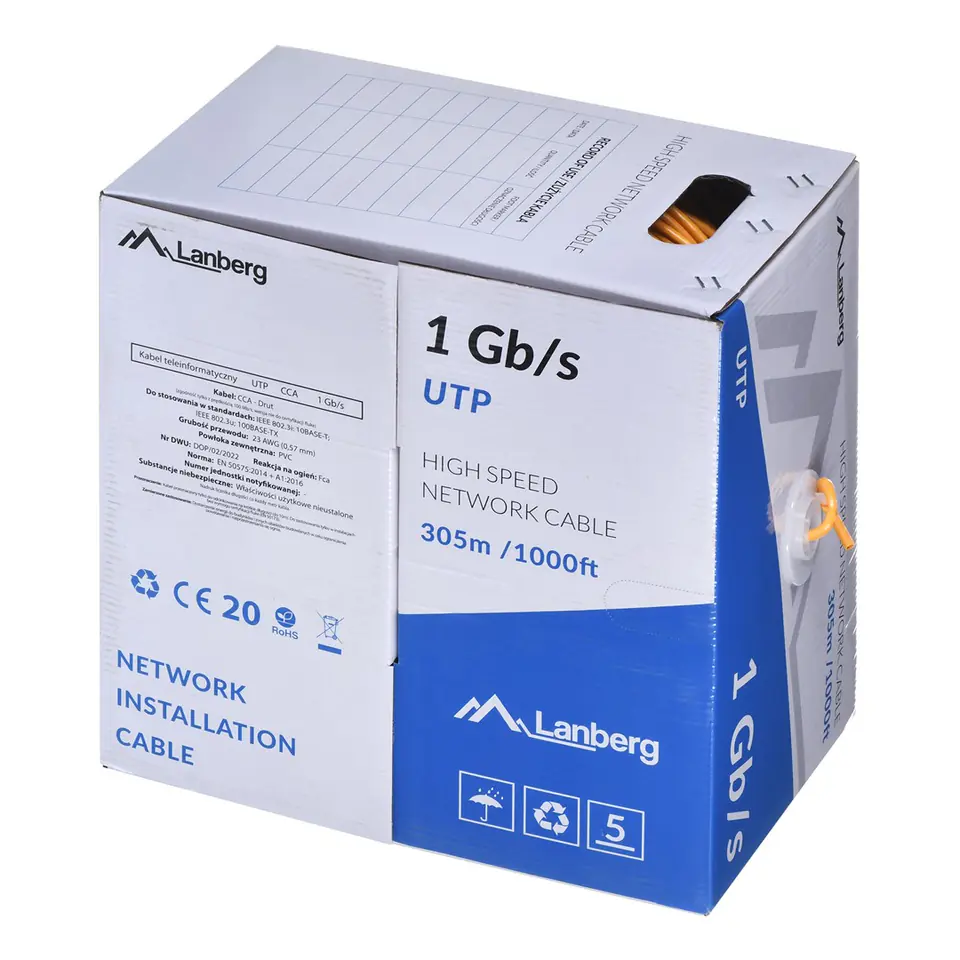

Packaging: carton

Electrical parameters (20 degrees):

Core resistance (max.):
Rated voltage:
Maximum current: 0.5 A
Storage and transportation temperature: 0 - 60 degrees
Operating temperature: -20 - 75 degrees
Operating distance: 100 m

PURPOSE: cable intended only for cutting into short lengths (up to 10 m). For use only in installations without Fluke certification (EN 50173).

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
