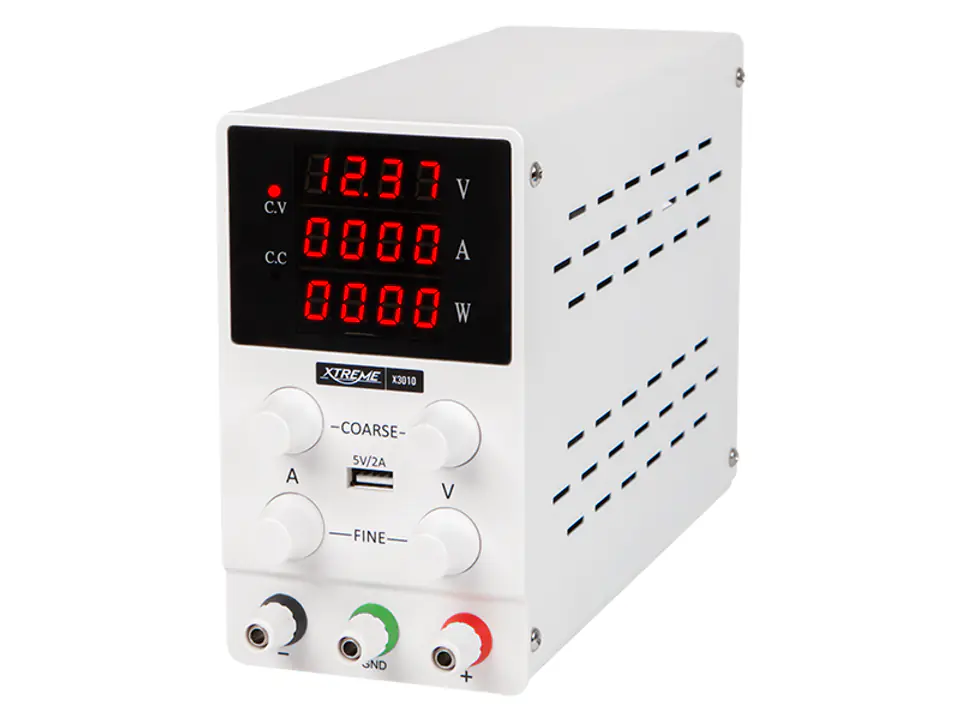

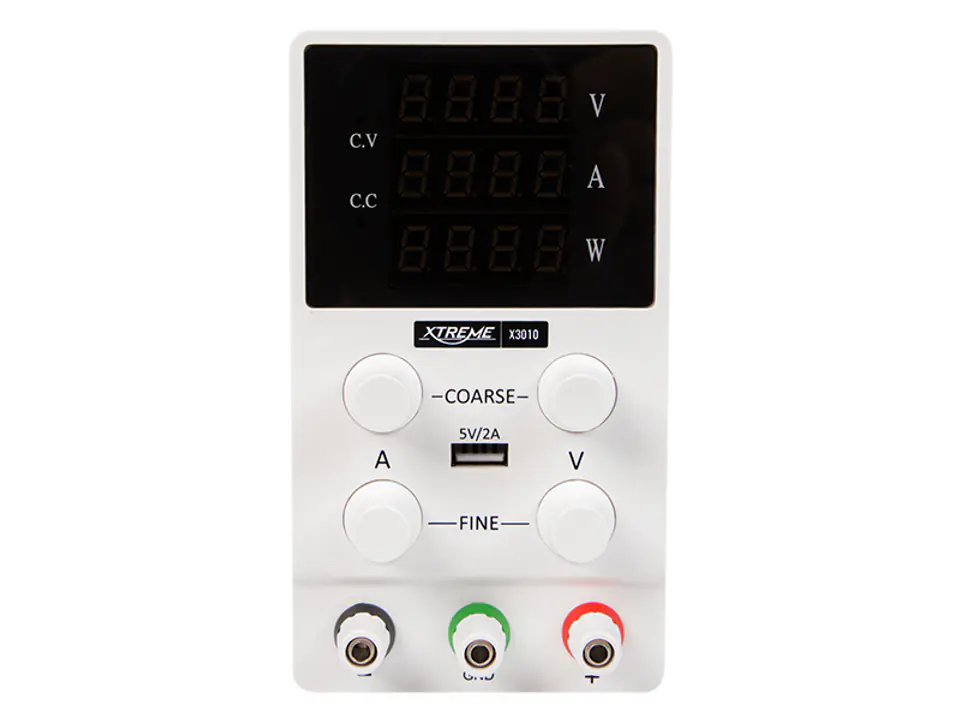

Laboratory power supply with current and voltage regulation function and clear display indicating data. The product is intended for professional use.
Specification:
- Supply voltage: 200-240V AC / 50-60Hz
- Input current: 0.12A
- Output voltage range: 0-30V
- Output current range: 0-10A
- Voltage display accuracy: +/- 0.5%
- Current display accuracy: +/- 0.5%
- Efficiency: > 85%
Voltage regulation:
- Load regulation (10-100%): 50mV
- Line adjustment (200-240V AC): 20mV
- Ripple and noise: 50mV
Current regulation:
- Load regulation (10-100%): 20mV
- Line adjustment (200-240V AC): 20mV
- Ripple and noise: 20mV
Dimensions of the device:
- Height: 155 mm
- Width: 85 mm
- Depth: 220 mm
- Power cord length: approx. 110 cm
- Length of test leads: approx. 100 cm
Other data:
- Acceptable working environment: - 10°C to + 60°C / 30% RH to 90% RH
