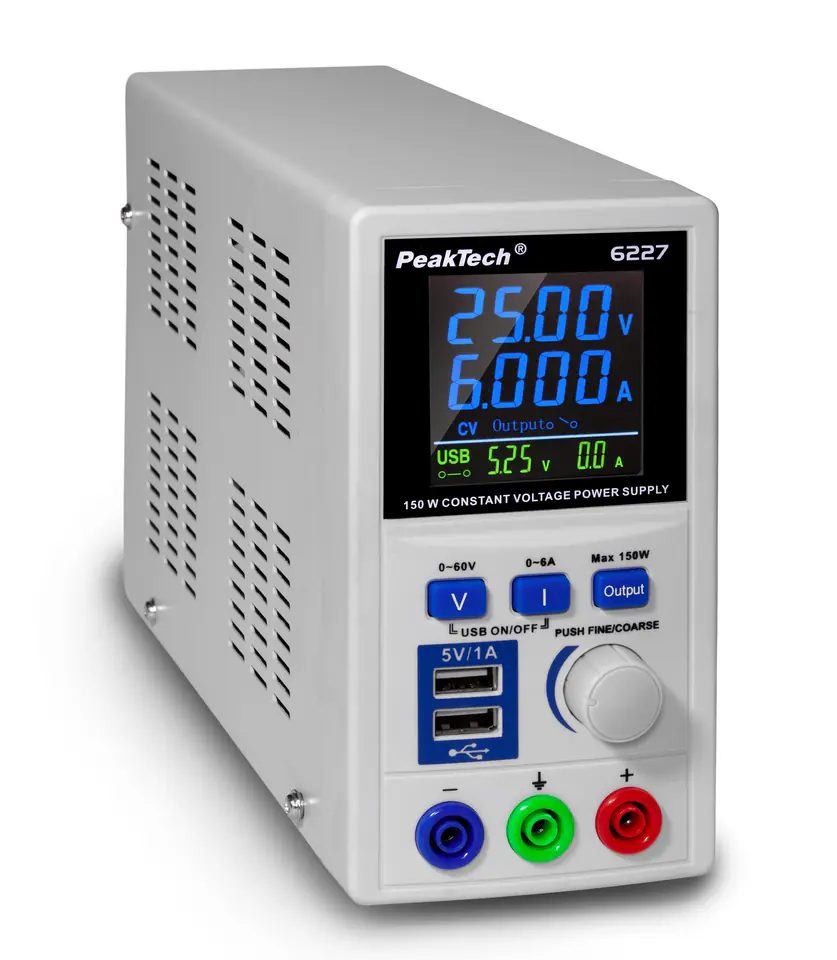

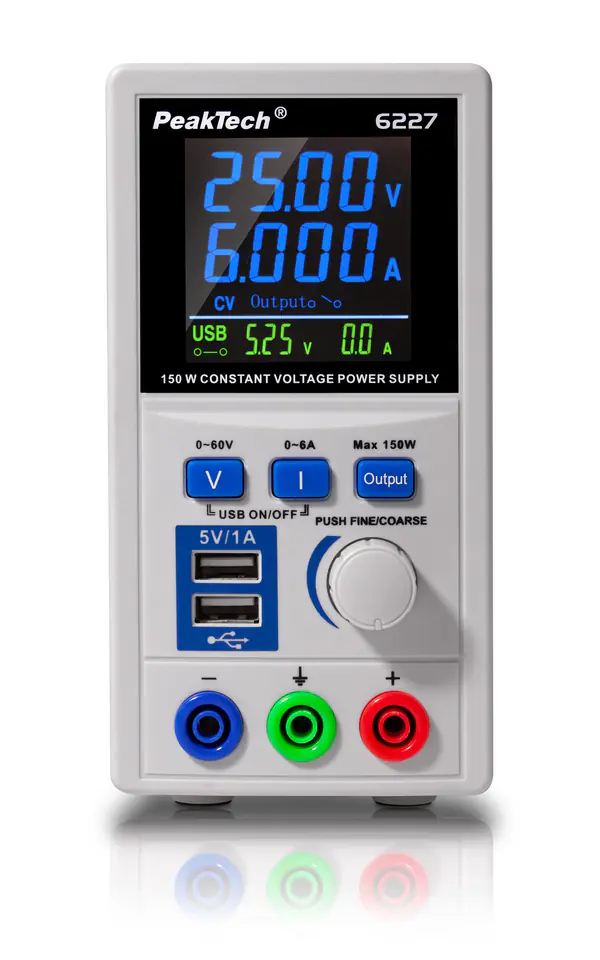

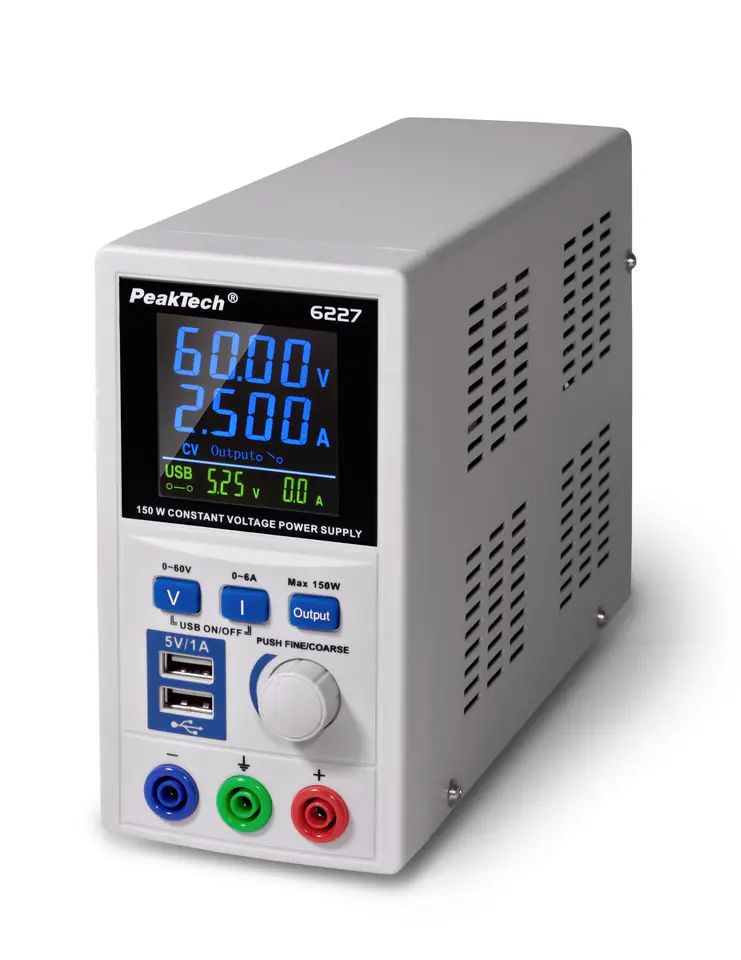

Pulse Bench Power Supply DC 0-60 V / 0-6 A with color LCD display and 2 x USB
This newly developed laboratory power supply offers a controllable main output of 0 - 60 V or 0 - 6A DC with a maximum continuous power of 150 W. For developers, this laboratory power supply offers two switchable USB outputs with their own LCD display with voltage and current values.
- Blue LCD display showing output voltage and current values
- Green LCD display showing output voltage and USB current values
- Constant output power 150 W
- Voltage adjustment range: 0~60V at 0~2.5A and 0~25V at 2.5~6A
- Pre-selection of voltage and current with switchable output
- C.C. (Direct Current) and C.V. Mode (DC Voltage) with Connected Load
- Protection against short circuit, overload and overheating
- Safety: EN 61010-1

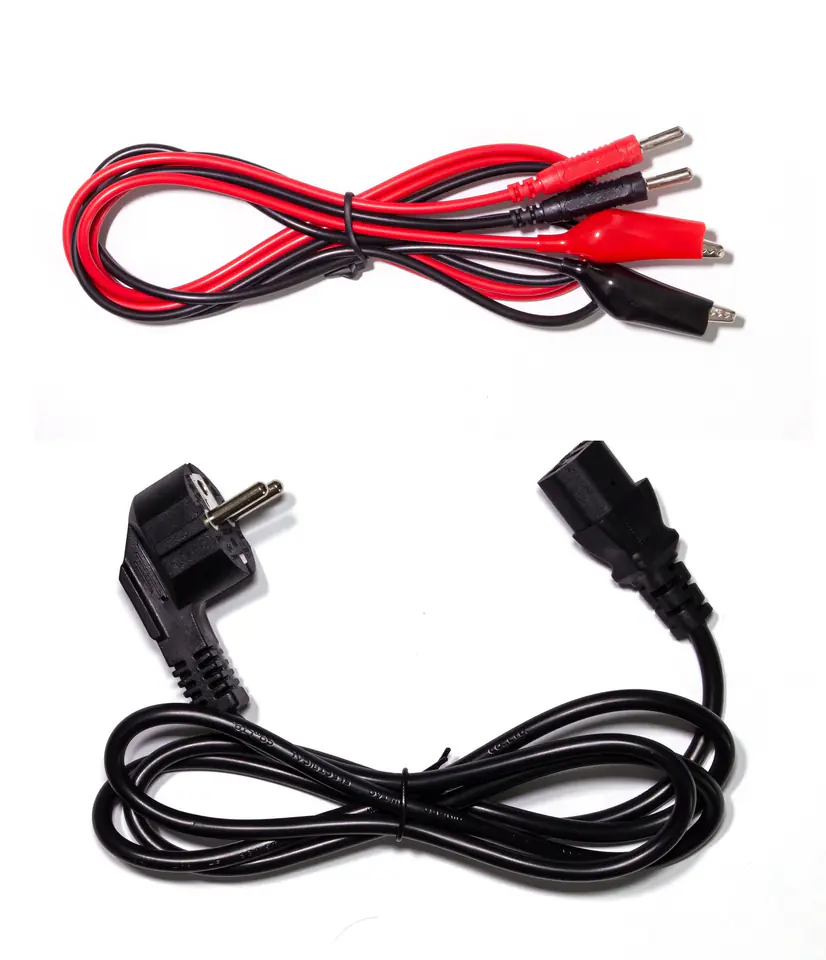

- Accessories: power cable, connection cables and user manual

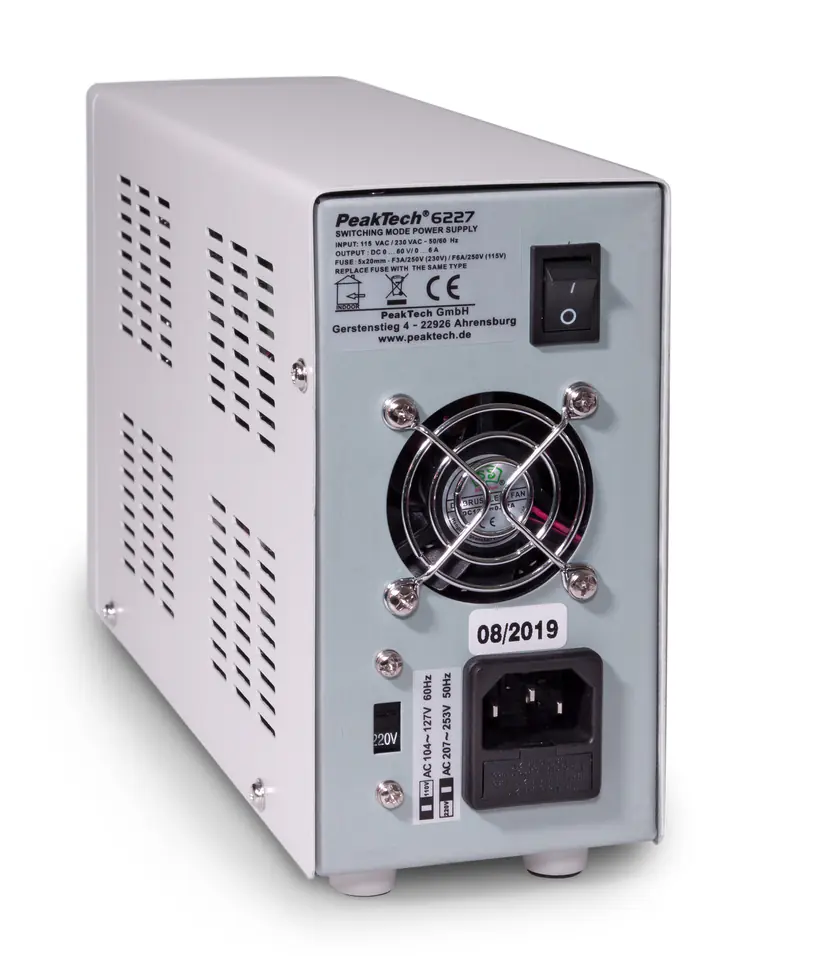

- Operating voltage: 115/240 V AC (+/- 10%); External 50/60 Hz switch
- Protection: constant current and short-circuit protection
- Main display: 2 x 4-digit color LCD display for voltage and current
- Safety: protection class 1; EN-61010-1
- Output voltage: 0~60V DC
- Output current: 0~6A DC
- Linear regulation: ≤ 0.1% ± 3 mV ≤ 0.2% ± 3 mA
- Load regulation: ≤ 0.05% ± 5 mV ≤ 0.5% ± 5 mA
- Ripple and noise: ≤ 5 mV rms ≤ 20 mA rms
- Voltage indication accuracy: ± 0.5% + 5 digits
- Current indication accuracy: ± 0.5% + 5 digits
- Dimensions: (width x height x depth) 80 x 160 x 260 mm
- Weight: 1.6 kg
- Accessories: Power cable and user manual
User manual in GERMAN and ENGLISH available >>HERE<<. https://dmtrade.pl/katalogi/peaktech/instr6227.pdf
