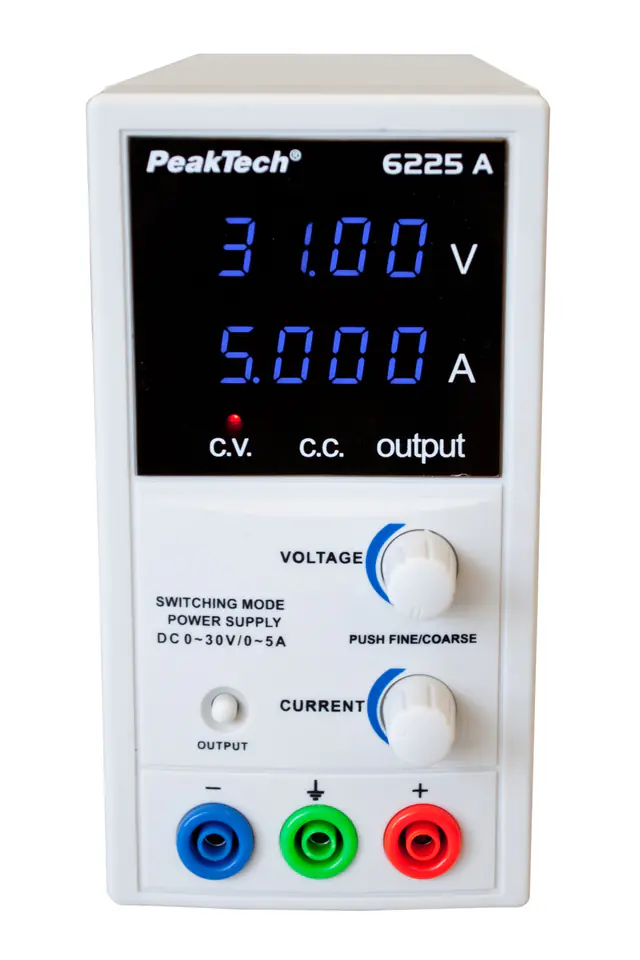

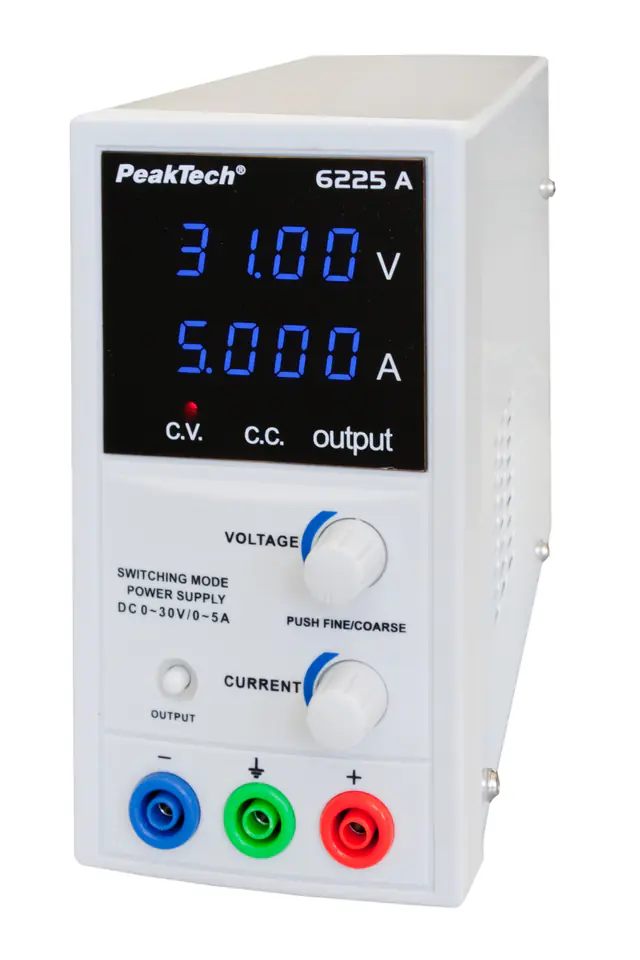

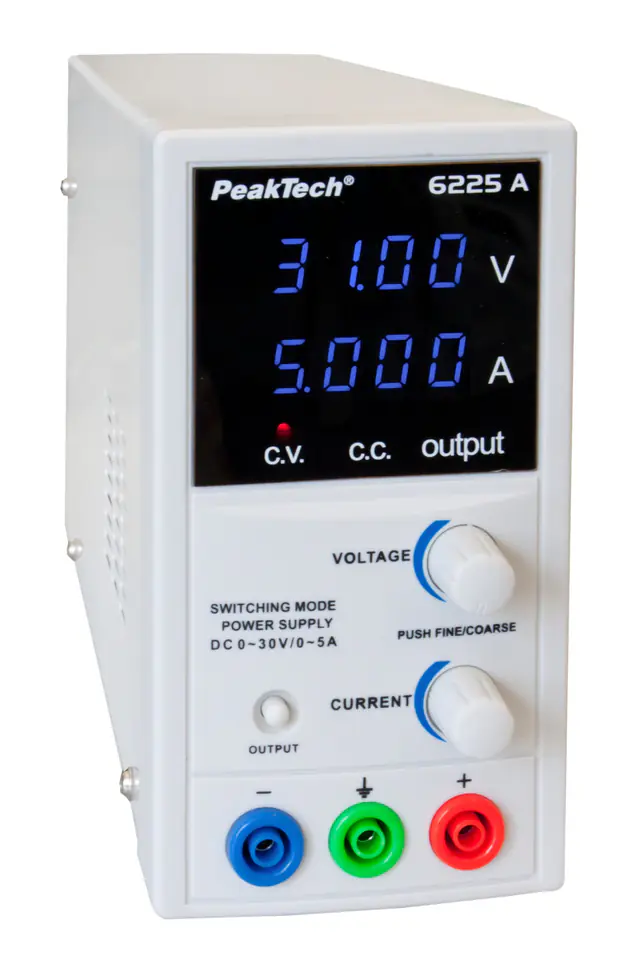

Laboratory Power Supply 30V 5A PeakTech 6225A

Laboratory Switch Mode Power Supply, 1-30V DC, 0-5A

Thanks to its very handy design and low weight, the AC adapter is ideal for applications in science and education.
Good display readability, easy handling and low weight as well as small design guarantee excellent conditions when used in the education and service area.

Features:
- Blue LCD display for imaging output voltage and current value
- High efficiency >85%
- Slight residual ripple
- Protection against short circuit, overload and overtemperature
- adjustable voltage range: 0 - 30 V
- Safety: EN 61010-1
- Accessories included: Network cable and user manual

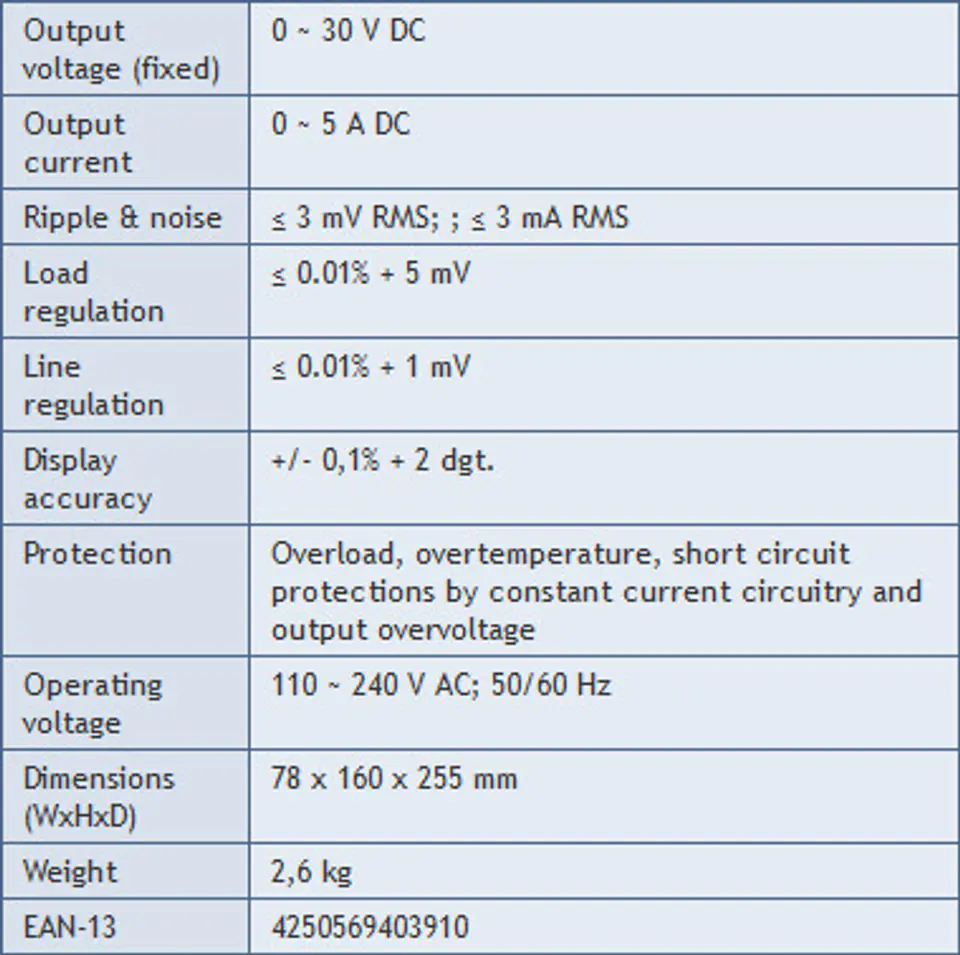

Specifications:
- Output voltage: 0 - 30 V DC
- Output current: 0 - 5 A DC
- Residual ripple:2 mV RMS; 3 mA RMS
- Protection: Overload, overheating, short circuit in case of constant current source and output overvoltage
- Working voltage:110 - 240 V AC; 50/60 Hz
- Dimensions (width x height x depth) :78 × 160 × 255 mm
- Weight:2.6 kg


User manual in GERMAN and ENGLISH available >>HERE<<. https://dmtrade.pl/katalogi/peaktech/instr6225a.pdf
