Manufacturer Number: Stamos Soldering 10021058
The professional Stamos Soldering laboratory power supply was created to convert alternating current into direct current of the selected voltage. This gives the opportunity to supply electricity to various devices used for scientific purposes, industry or telecommunications industry. The versatility of the device is evidenced by three channels, each with a plus and minus output. If necessary, all of them can work simultaneously.
The first two channels have three modes of operation:
- - independent - the channels operate independently of each other at a voltage of 30 V and a current of 5 A,
- - parallel - the value of the current increases to 10 A,
- - serial - current voltage reaches the value of 60 V at 5 A,
- - Versatility - three channels and three modes of operation,
- - Precise adjustment - knobs and buttons for smooth setting of parameters,
- - Readability - four large LCD screens ,
- - Safety - overheating protection system,
- - Mobility - small size and handle for transport.
- - Model - S-LS-28
- - Catalog No. - 10021058
- - Article status - New
- - Display - LED
- - Power - 550 W
- - Voltage - 230 V
- - Output current - 0-5 A
- - Output voltage - 0-30 V
- - Operating temperature - 0-40C
- - Storage temperature - 10-70C
- - Operating humidity - 80%
- - Storage relative humidity - 70%
- - DC voltage regulation range - Channel I/II 0-30 V / Channel III 5 / 3.3 / 2.5 V
- - Current adjustment range - Channel I/II 0-5 A / Channel III 3 A
- - Work stabilization coefficient - CV ≤ 0.01% + 3 mV / CC ≤ 0.1% + 3 mA
- - Current stabilization coefficient - V: ≤ 0.01% + 5 mV / A: ≤ 0.1% + 10 mA
- - Resolution - 10 mV / 1 mA
- - Ripple - CV ≤ 2 mVrms / CC ≤ 3 mArms
- - Accuracy of parameter settings (25C ± 5C) - Channel I/II/III - ≤ 0.5% + 20 mV / ≤ 0.5% + 10 mA / ± 50 mV
- - Temperature coefficient - ≤ 150 ppm
- - Response time to voltage/current rise/drop (at 10% load) - 0-100 ms
- - Display accuracy - 3
- - Security - OTP
- - Fuse - T5 A / 250 V
- - Ammeter - Yes
- - Voltmeter - Yes
- - Connector - 4 mm
- - Cooling - Fan
- - Power cord length - 1.2 m
- - Dimensions (LxWxH) - 38 x 25 x 15 cm
- - Weight - 10.6 kg
- - Shipping dimensions (LxWxH) - 49.5 x 39 x 28 cm
- - Shipping weight - 11.6 kg

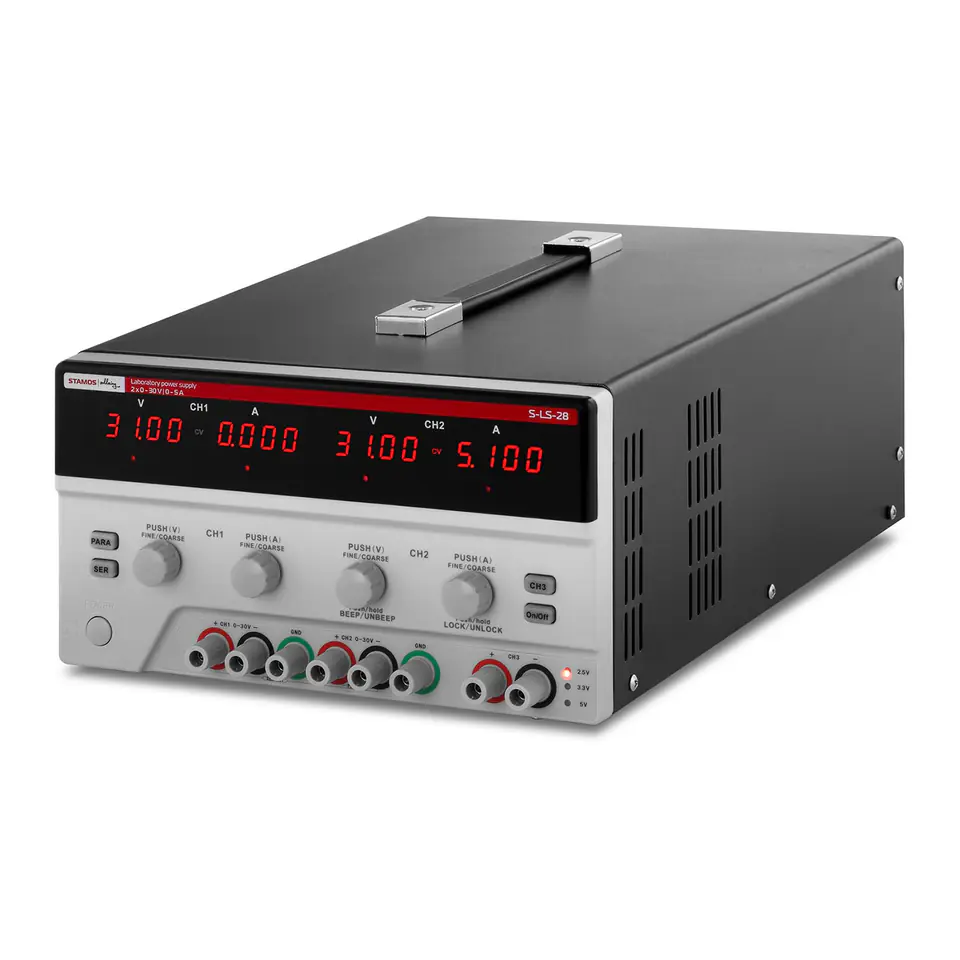

- - Laboratory power supply S-LS-28
- - Power cord
- - Manual EN
