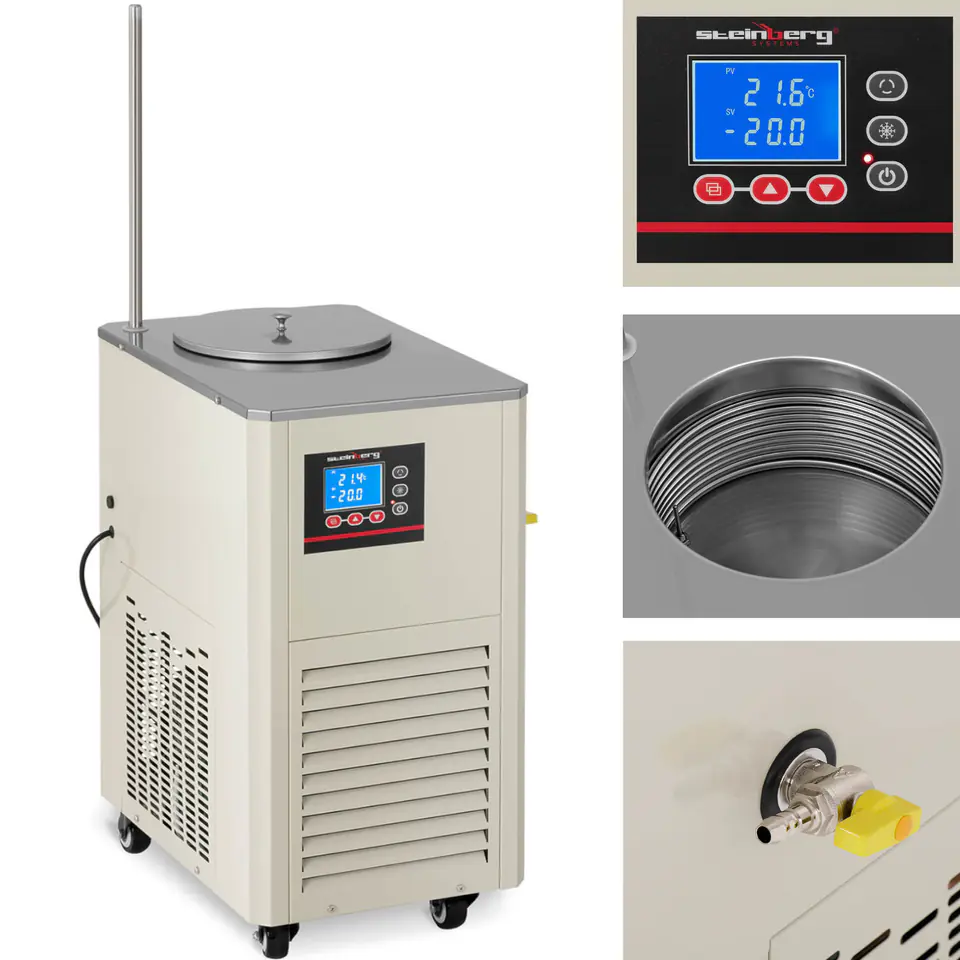

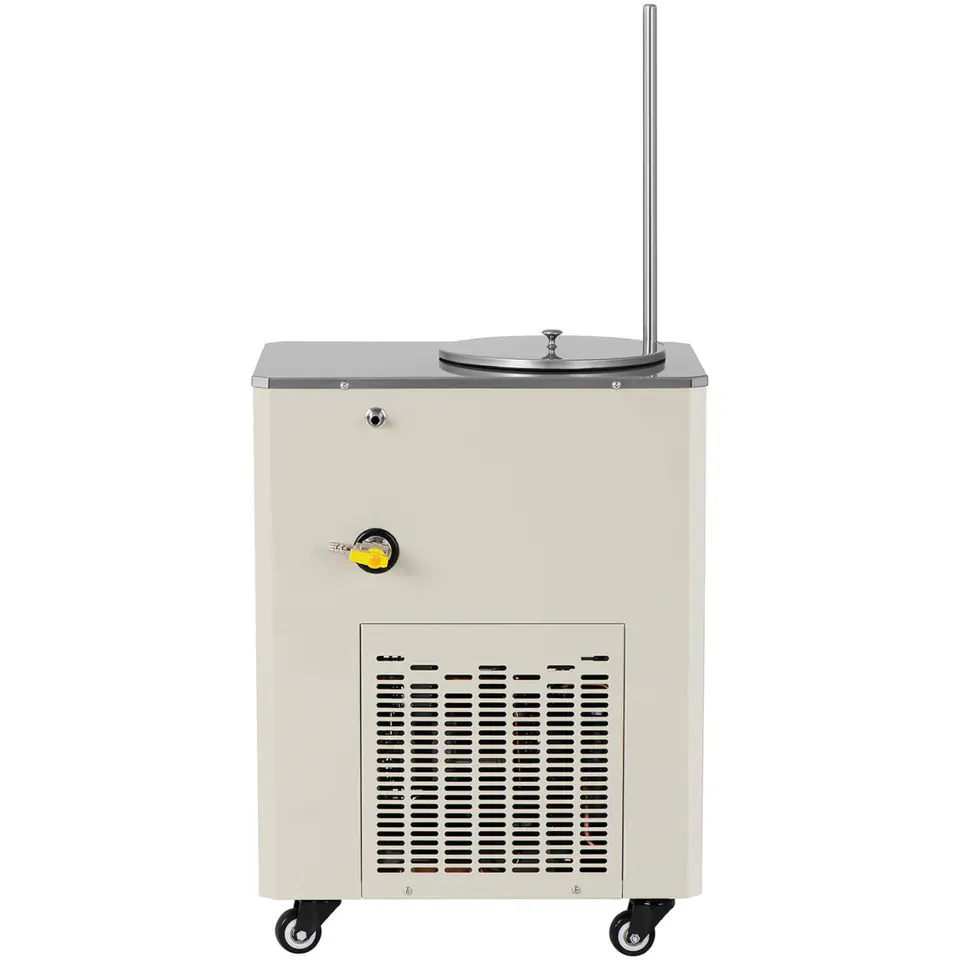

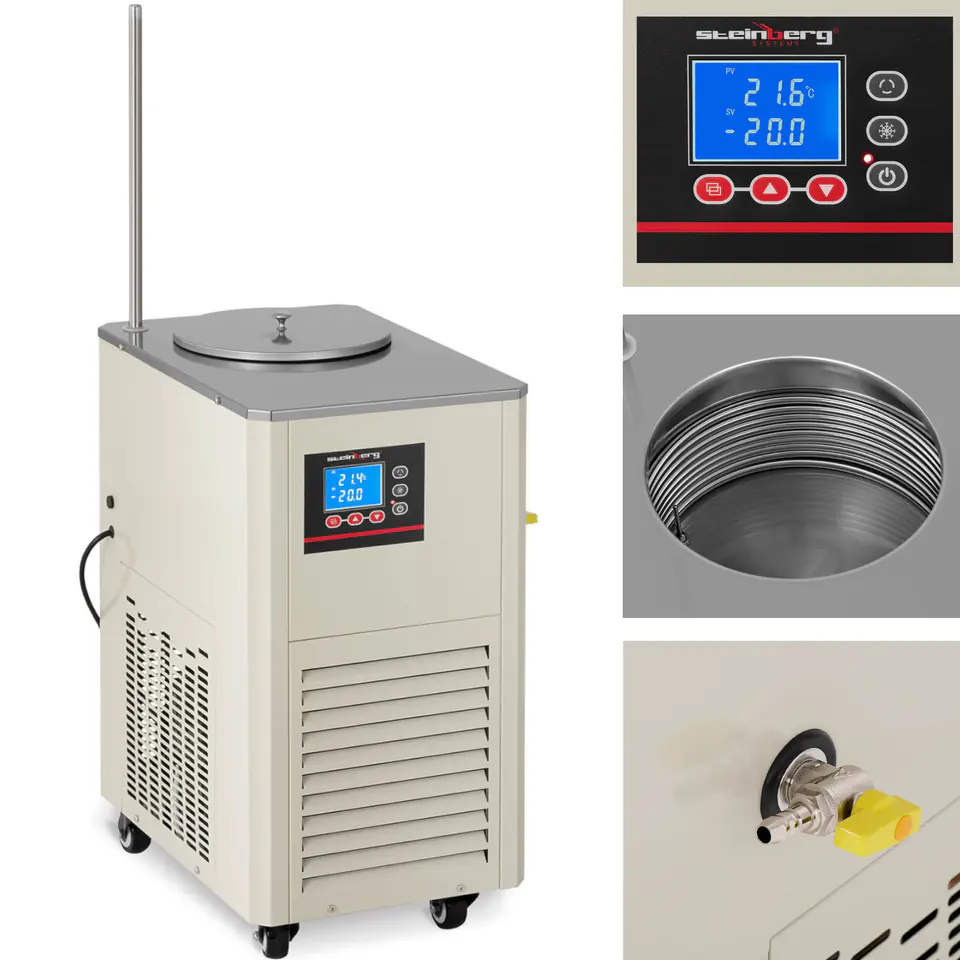

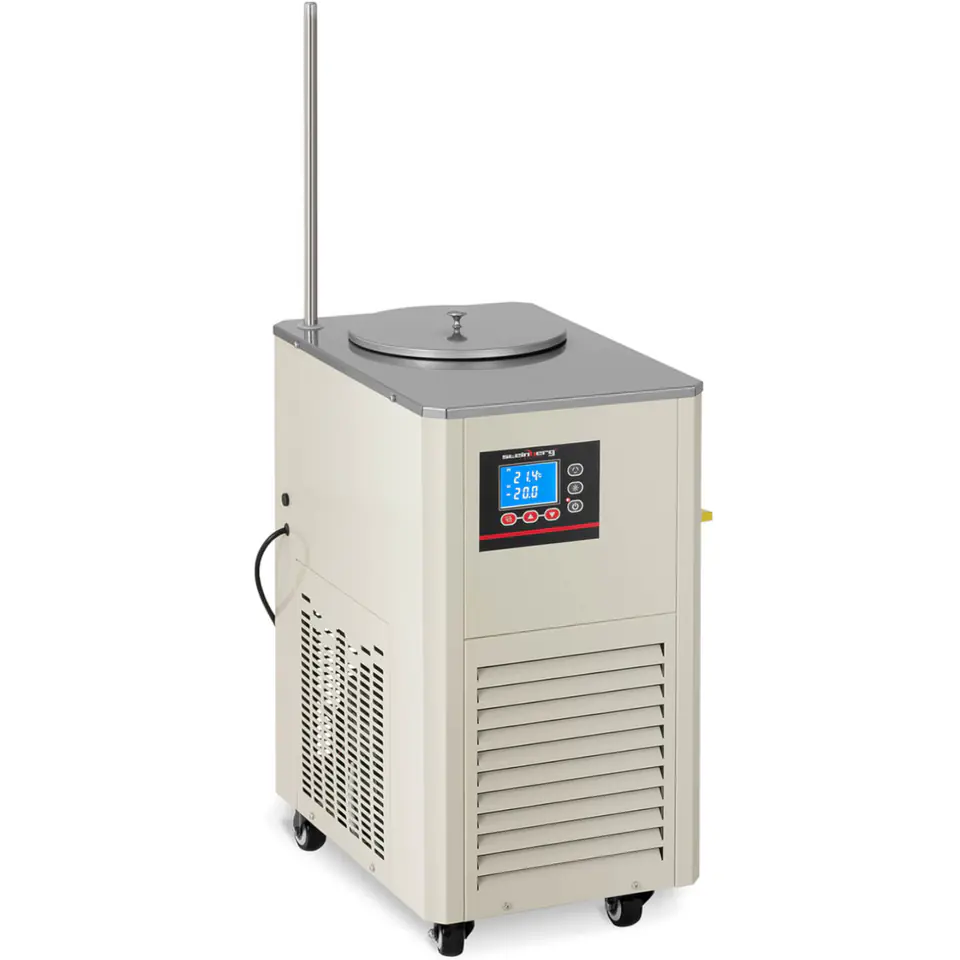

10030665 Capitalizer can be connected to the cooling of lasers and incubators with a PIDderdrodofer type PT100 precision +/-2C in the range of -20 til 20C stainless steel LCDsprotecting against rustProduct features:
- - Microprocessor-controlled PID controller,
- - Constant temperature with an accuracy of +/-2C,
- - LCD display,

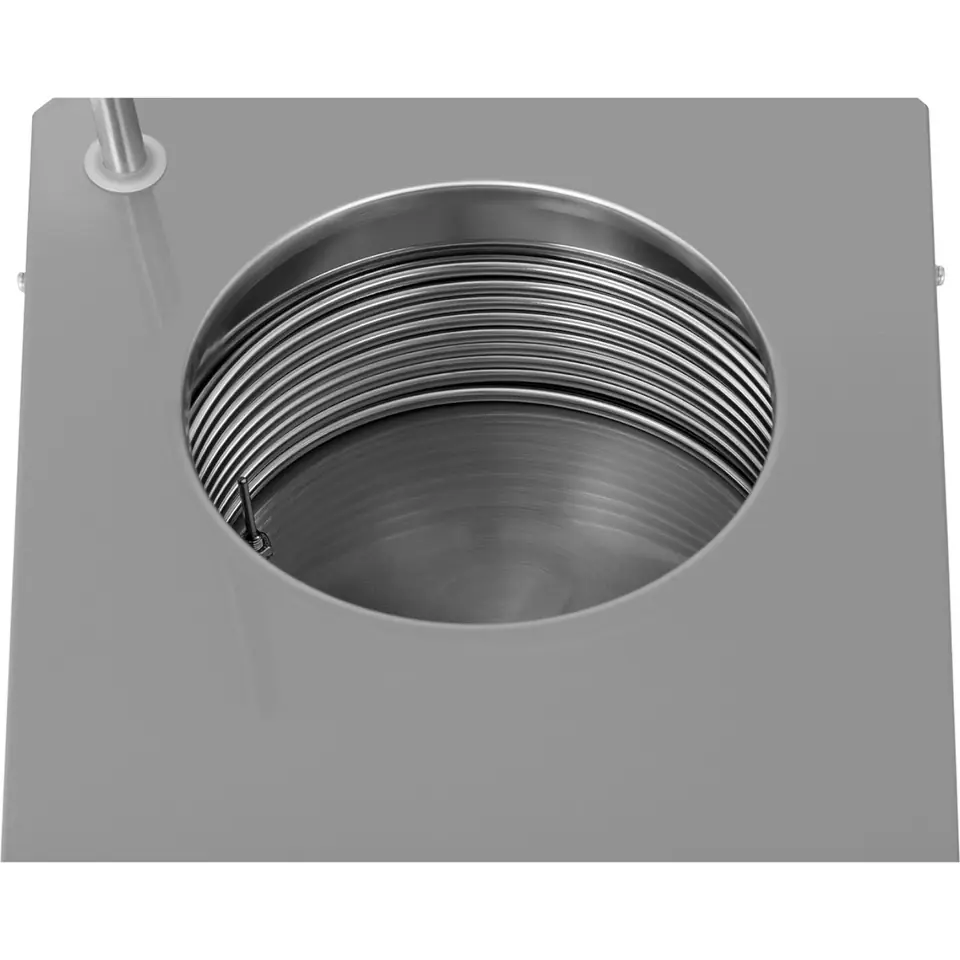

- - Stainless steel tank,
- - Lowest temperature down to -20C,
- - Compact design,
- - Overheating protection .
- - Catalogue number - 10030665
- - Article status - New
- - Manufacturer - Steinberg Systems
- - Model - SBS-LCC-5000
- - Voltage [V] - 230

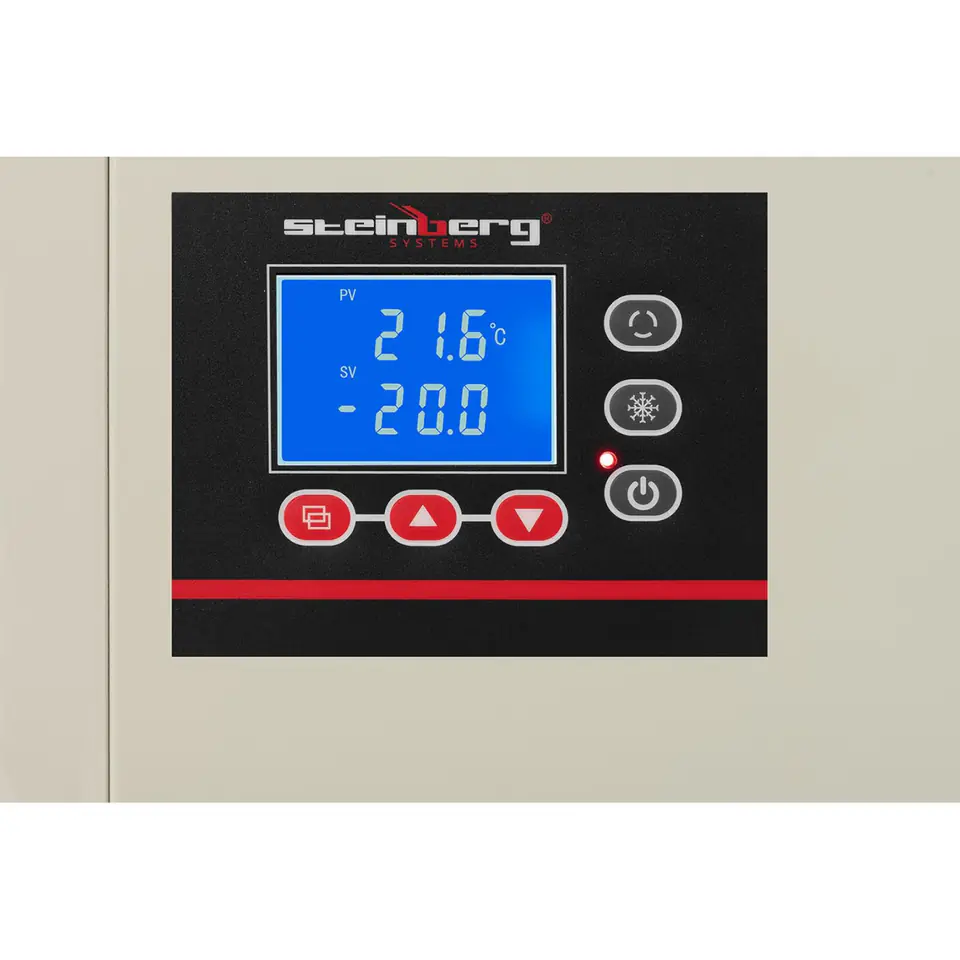

- - Display - LCD
- - User Manual - Yes
- - Overheating protection - Yes
- - Tank dimensions [cm] - ⌀250x130
- - Temperature accuracy [C] - +/-2
- - Protection against exceeding the maximum current - Yes
- - Temperature range [C] - -20 til 20
- - Current [A] - 4.2
- - Material - Stainless steel 304 / Q235
- - Operating temperature range [C] - ≤25
- - Capacity [l] - 5
- - Frequency [Hz] - 50/60
- - Relative humidity [%] - ≤60
- - Power compressor [W] - 726
- - Circulation pump power [W] - 100
- - Circulation pump flow [l/min] - 20
- - Cooling capacity [W] - 10C-1230 W, 0C-1150 W, -10C-1009 W, -20C-580 W
- - Circulating pump lifting [m] - 5-7
- - Lowest temperature [C] - -20
- - Delayed start - Yes
- - Dimensions (LxWxH) [cm] - 48 x 41 x 100
- - Weight [kg] - 40
- - Shipping dimensions (LxWxH) [cm] - 57 x 42 x 80
- - Shipping weight [kg] - 47
- - Cooling circulator,
- - Tubes (1.87 + 1.83 m) - 2 pcs.,

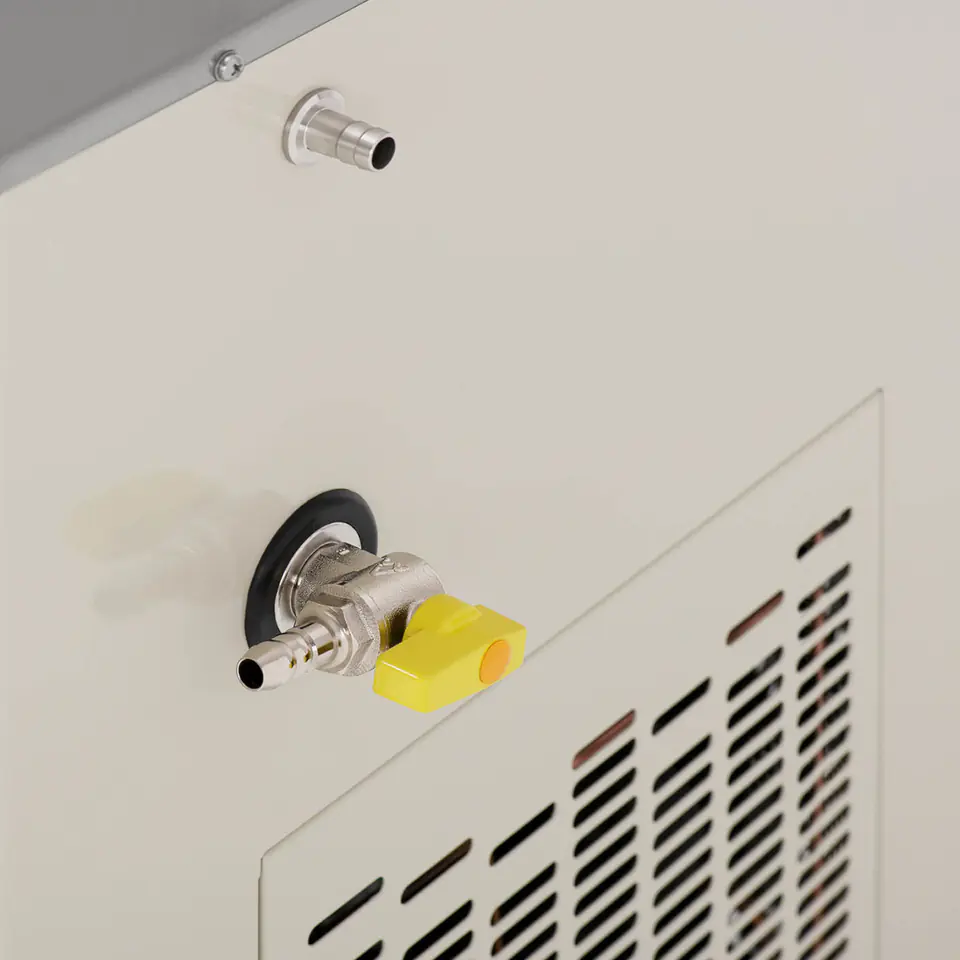

- - Valve,
- - Instruction manual.
