Manufacturer no: 10030664

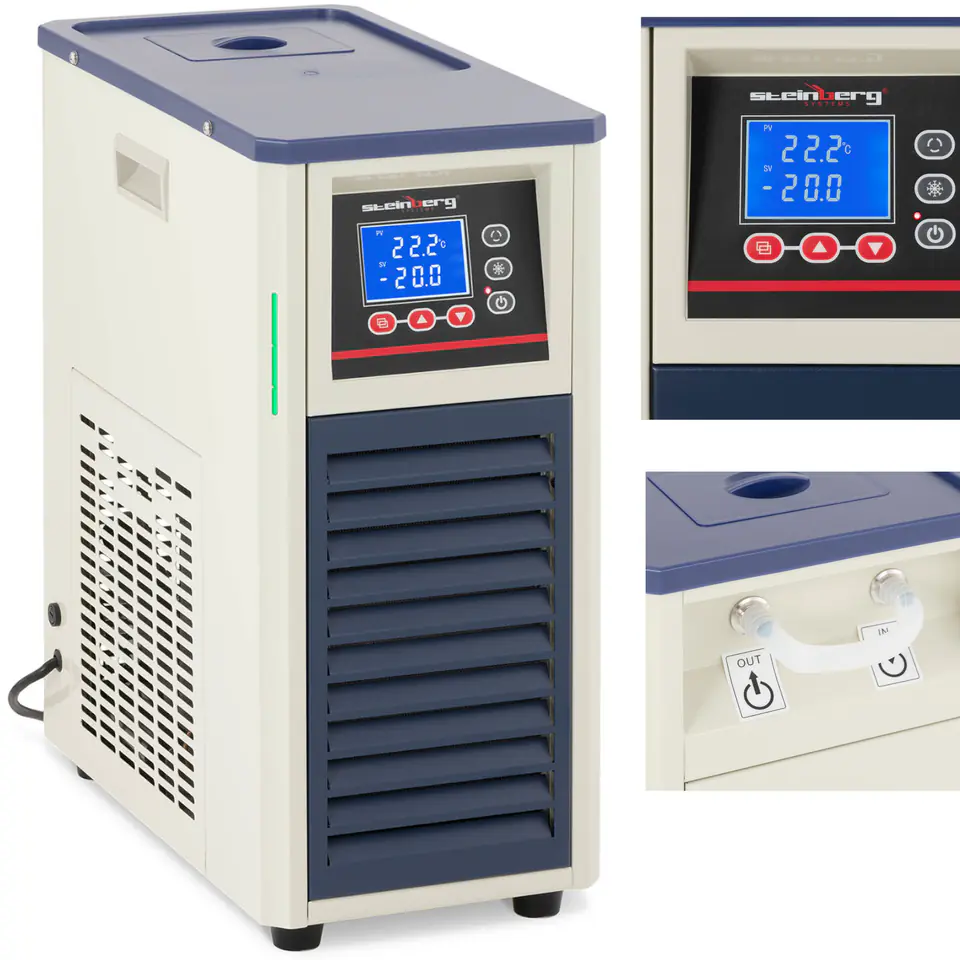

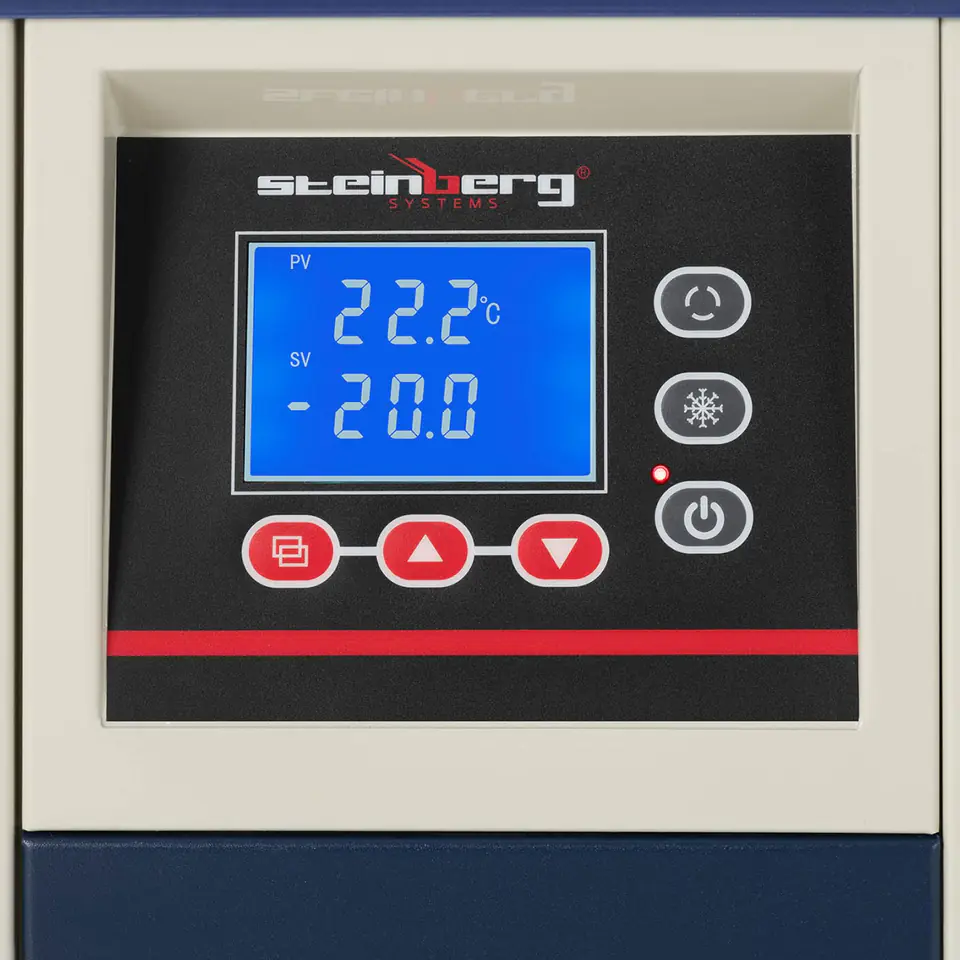

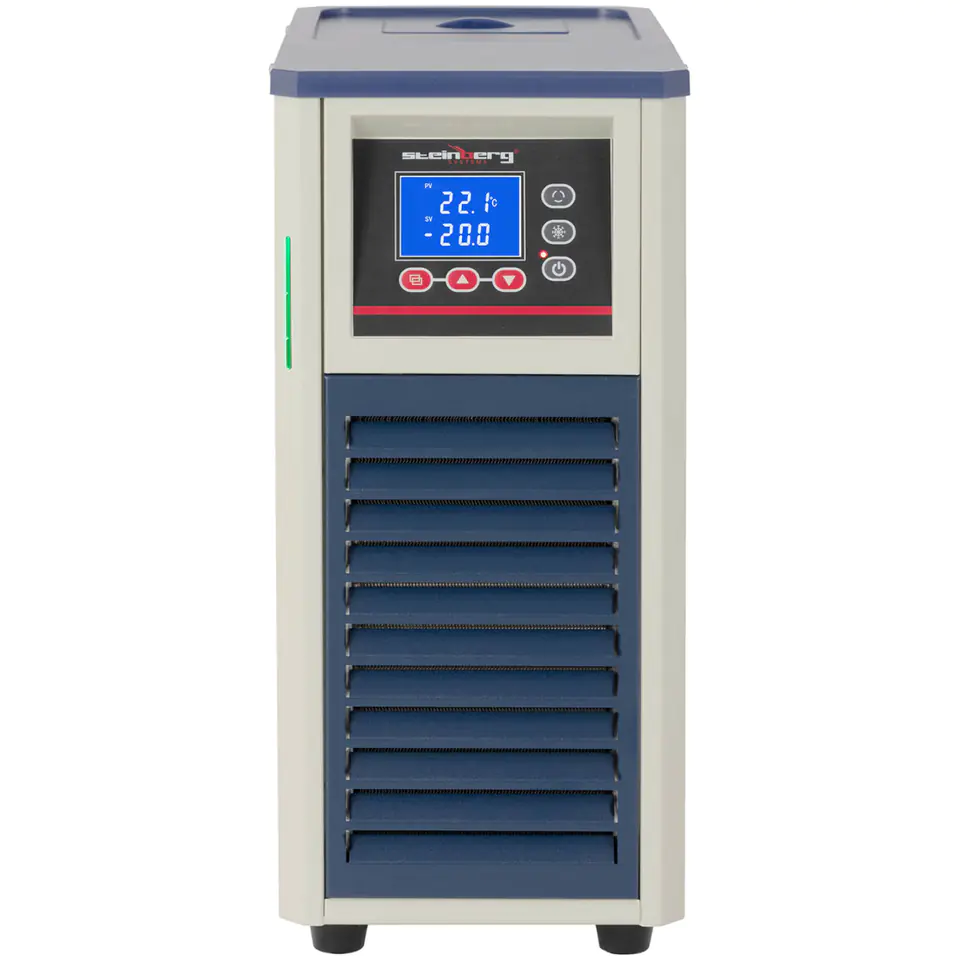

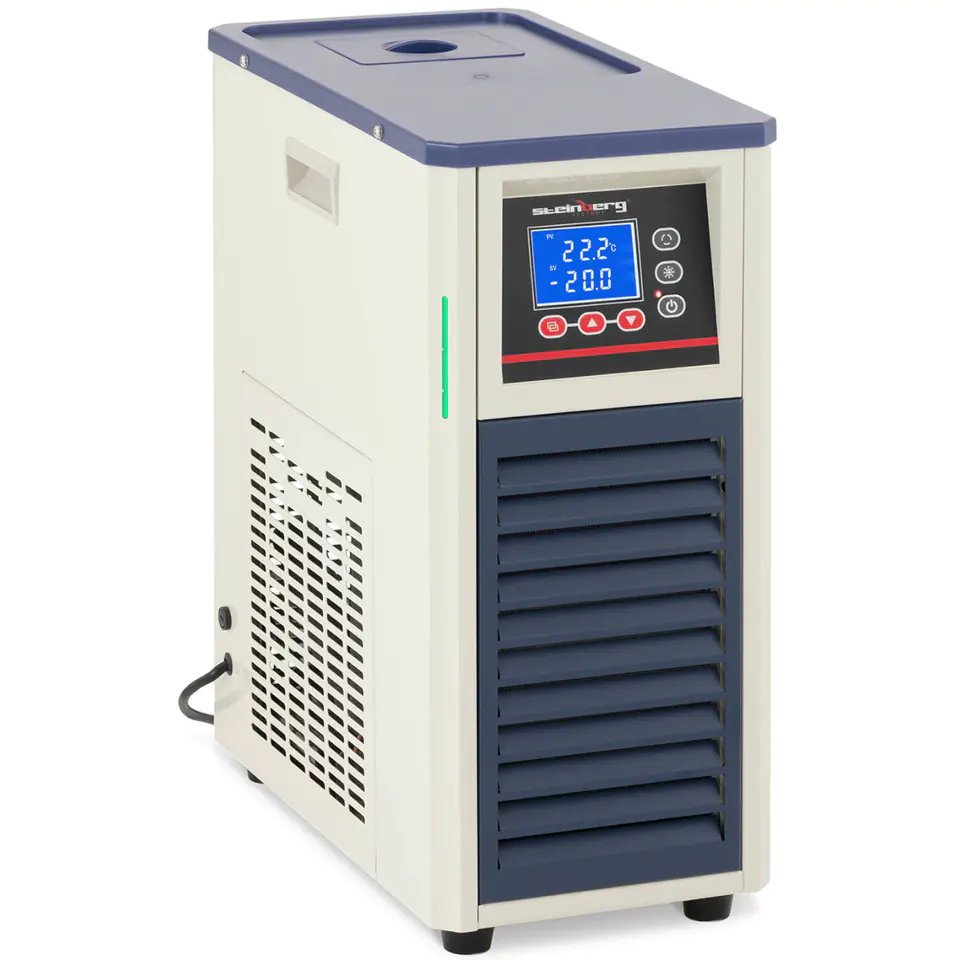

The cooling circulator from Steinberg Systems is a high-quality laboratory device for internal and external temperature control. The equipment can be connected , m.in to an electron microscope, rotary vacuum distiller or glass reactor. It is also suitable for cooling lasers and jacketed water incubators . The high accuracy of the control is due to the digital PID controller with microprocessor, which increases the level of heating/cooling depending on the temperature. Convenient adjustment in the range of -20 til 20C is possible thanks to the LCD display. The stainless steel tank is easy to keep clean. In addition, there are features to protect against rust and coolant contamination.
Product features:
- - Microprocessor-controlled PID controller,
- - Constant temperature with an accuracy of +/-2C,
- - LCD display,
- - Stainless steel tank,
- - The lowest temperature to -20C,
- - Compact design,
- - Overheating protection .
- - Catalogue number - 10030664
- - Article status - New
- - Manufacturer - Steinberg Systems
- - Model - SBS-LCC-3000
- - Voltage [V] - 230
- - Display - LCD
- - User manual - Yes
- - Overheating protection - Yes
- - Tank dimensions [cm] - ⌀180x130
- - Temperature accuracy [C] - +/-2
- - Protection against exceeding the maximum current - Yes
- - Temperature range [C] - -20 til 20
- - Current [A] - 2.25
- - Material - Stainless steel 304 / Q235
- - Operating temperature range [C] - ≤25
- - Capacity [l] - 3
- - Frequency [Hz] - 50/60
- - Relative humidity [%] - ≤60
- - Power compressor [W] - 495
- - Power compressor [hp] - 1
- - Circulation pump power [W] - 100
- - Circulation pump flow [l/min] - 20
- - Cooling capacity [W] - 10C-1150 W, 0C-880 W, -10C-600 W, -20C-3200 W
- - Raising the circulation pump [m] - 5-7
- - Lowest temperature [C] - -20
- - Delayed start - Yes
- - Dimensions (LxWxH) [cm] - 42 x 23 x 50
- - Weight [kg] - 27
- - Shipping dimensions (LxWxH) [cm] - 49 x 30 x 65
- - Shipping weight [kg] - 41
- - Cooling circulator,
- -Tube
- - Fuse - 2 pcs.,
- -Manual.
