KRAFTFORM KOMPAKT 400 RA IMPERIAL, SET 1, 17CZ.

Specifications:

Dimension: 150x130x50 mm
Part Number: 05057473001
Weight: 567 g
item-no.: Kraftform Kompakt 400 RA Set Imperial 1
Country of origin: CZ

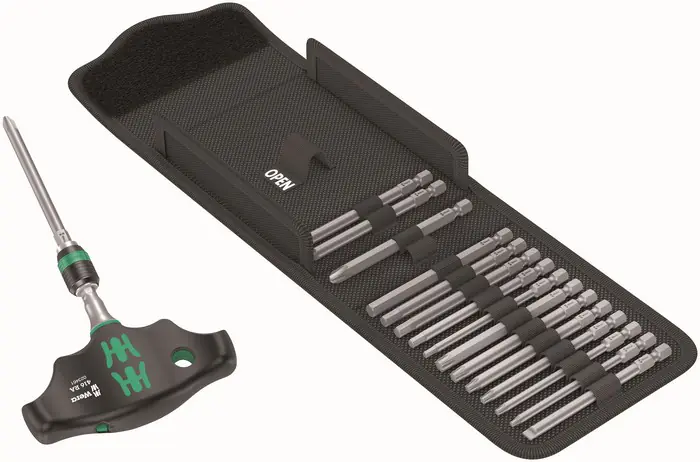

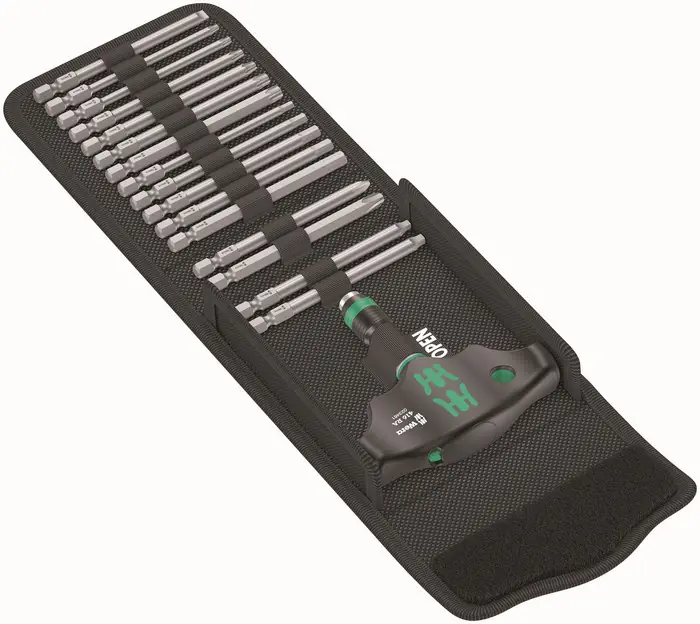

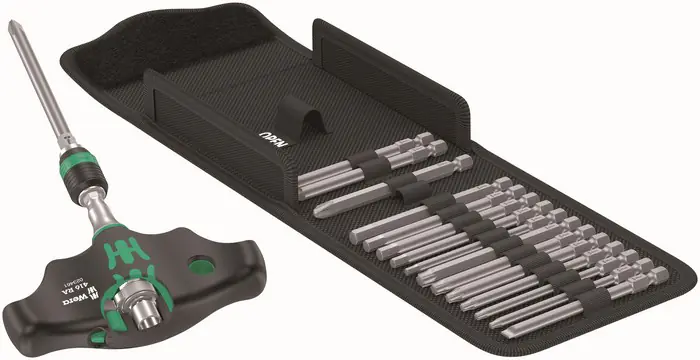

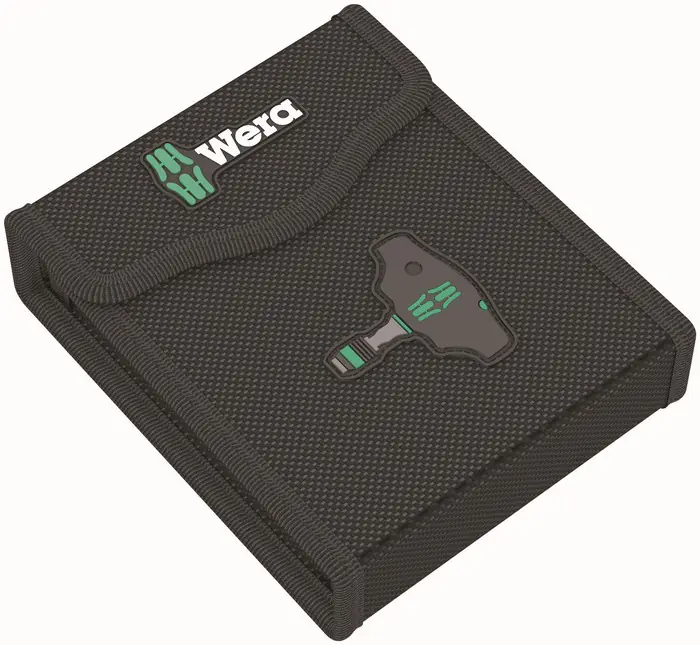

A 17-piece set in a durable textile box.

416 RA bit cross handle with ratchet function and Rapidaptor quick clamping chuck for 1" bits.

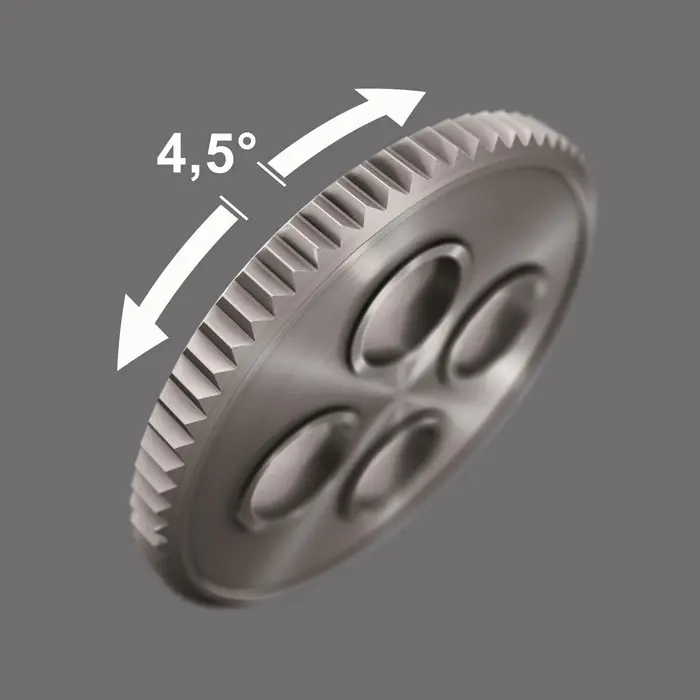

The fine-toothed ratchet mechanism in the handle (80 teeth/4.5° ratchet return angle) makes screwdriving easier and faster without the need to re-plant the tool.

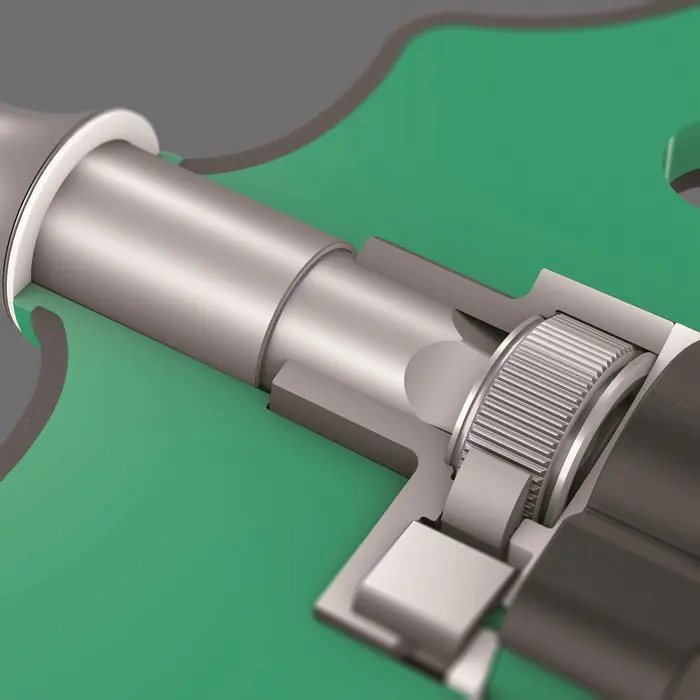

The ratchet mechanism fully built into the handle ensures very easy and comfortable work.

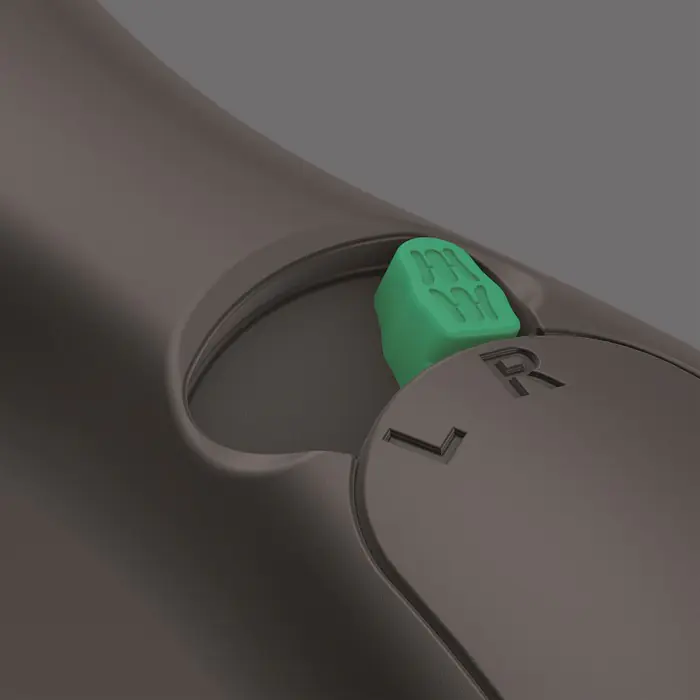

Switching lever for convenient right/left direction change with one hand.

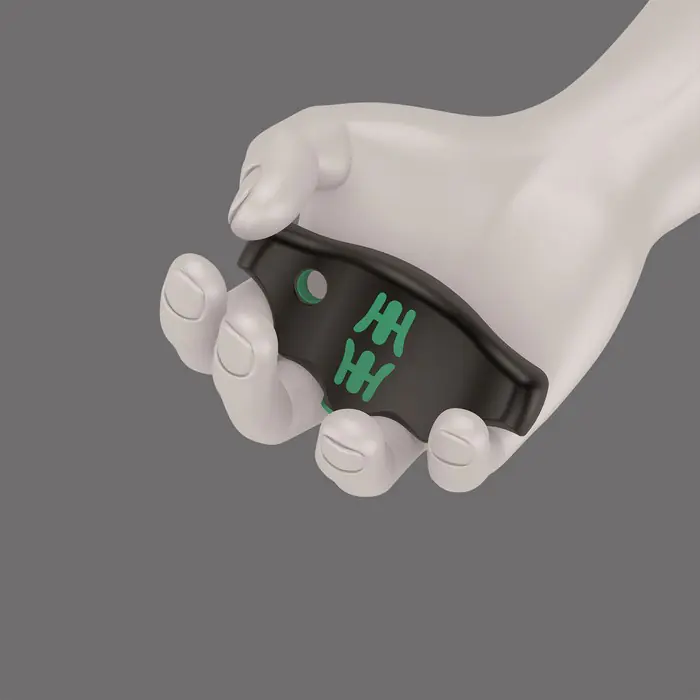

An ergonomically shaped handle fills the entire hand, and soft, rounded recesses provide support for the fingers.

Contact of the entire surface of the hand with the handle eliminates friction losses between the hand and the handle.

Bit holder with 1/4" hex grip according to DIN ISO 1173-C 6.3 and E 6.3.

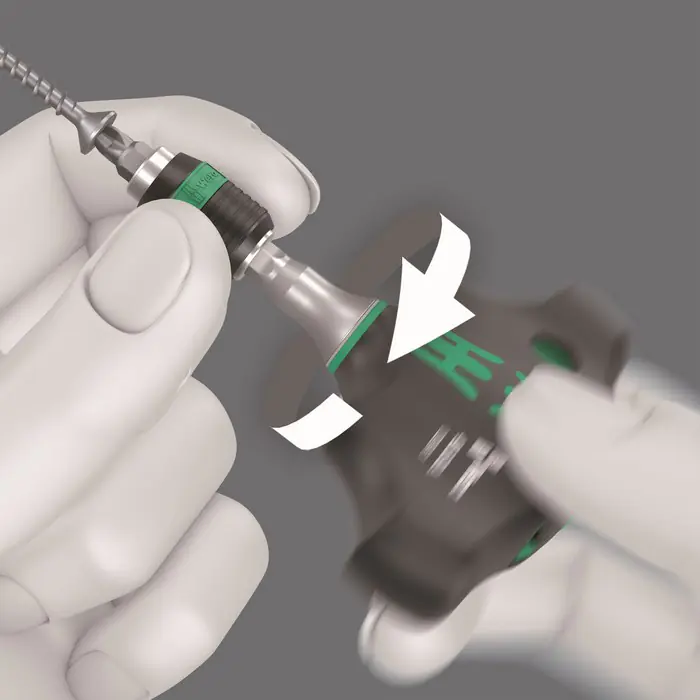

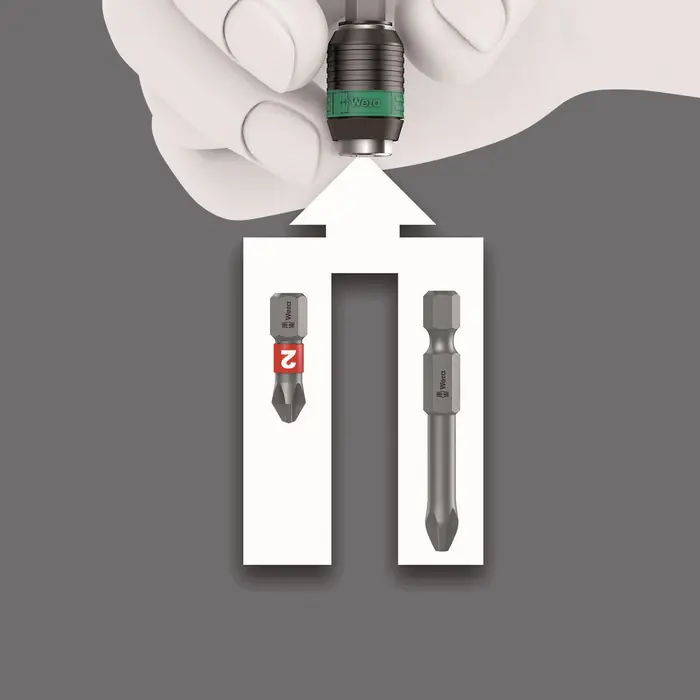

With Rapidaptor technology for fast bit exchange. 16 ductile hard bits, length 89 mm, for universal use.

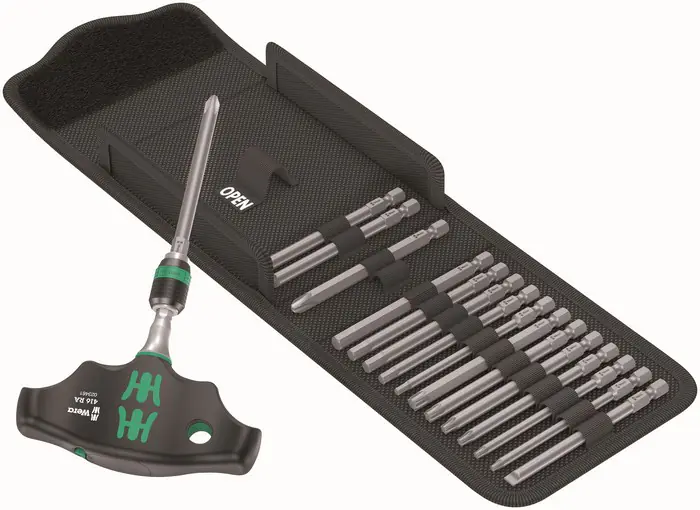

Kit Contents:

Transverse handle with bit-holder and ratchet function, with Rapidaptor 416 RA quick clamping chuck, 1/4 x 45 mm
05023461001 1x 1/4 x 45 mm
851/4 Z, PH 2 x 89 mm
05059775001 1x PH 2 x 89 mm
05059795001 1x PH 3 x 89 mm
867/4 With Torx®, TX 10 x 89 mm
05060186001 1x TX 10 x 89 mm
05060187001 1x TX 15 x 89 mm
05060188001 1x TX 20 x 89 mm
05060189001 1x TX 25 x 89 mm
05060191001 1x TX 30 x 89 mm
05060192001 1x TX 40 x 89 mm
840/4 Z, 1/8" x 89 mm
05059663001 1x 1/8" x 89 mm
05059665001 1x 5/32" x 89 mm
05059666001 1x 3/16" x 89 mm
05059667001 1x 7/32" x 89 mm
05059668001 1x 1/4" x 89 mm
868/4 Square-Plus, #2 x 89 mm
05134801001 1x #2 x 89 mm
05134802001 1x #3 x 89mm
800/4 Z, 1 x 5.5 x 89 mm
05059488001 1x 1 x 5.5 x 89 mm
Velcro set 120, 50 x 120 mm
1x 50 x 120 mm

**
