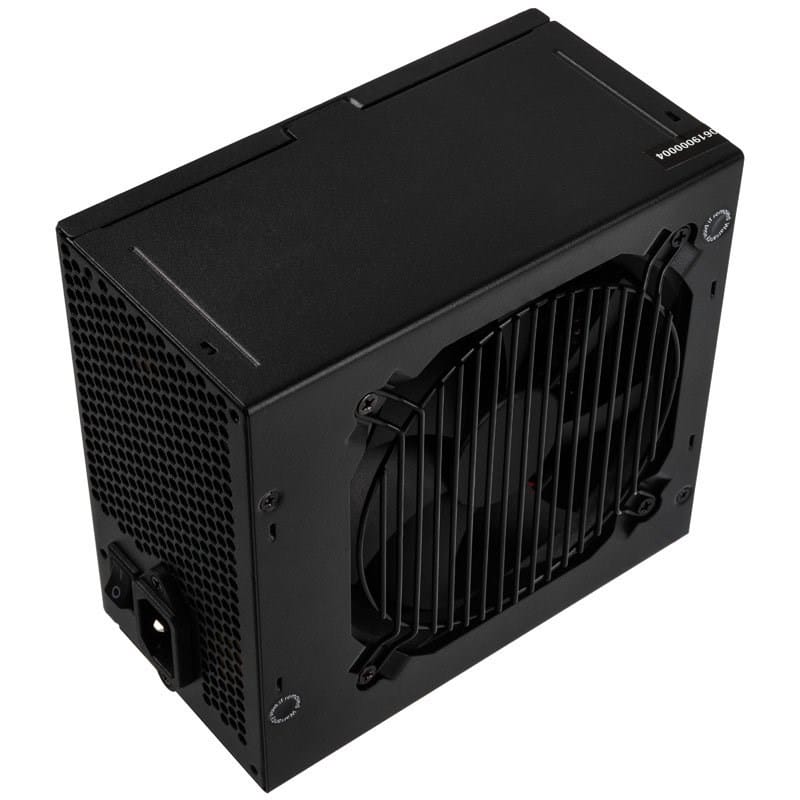

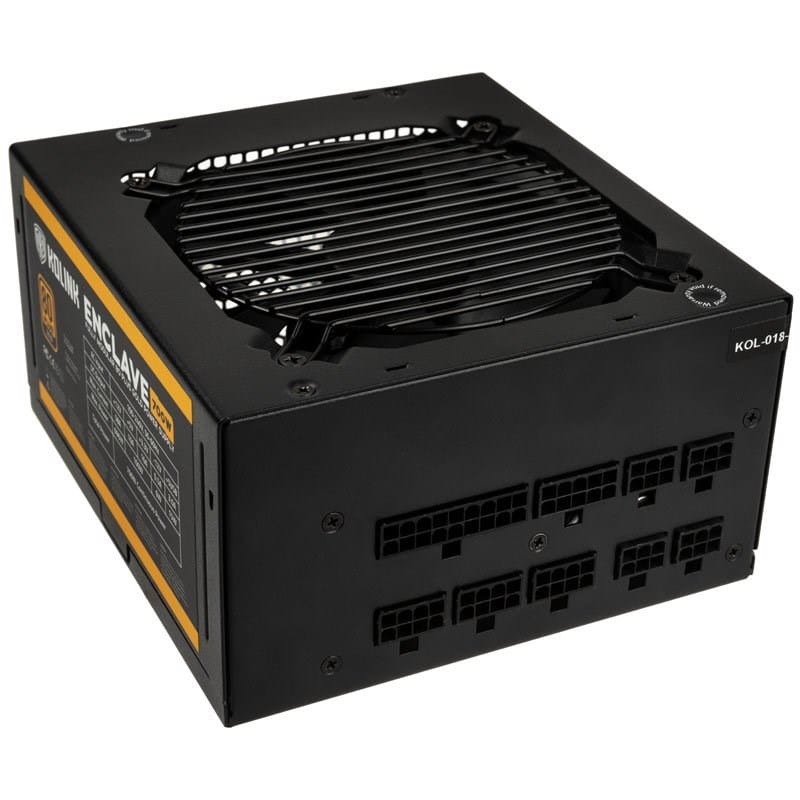

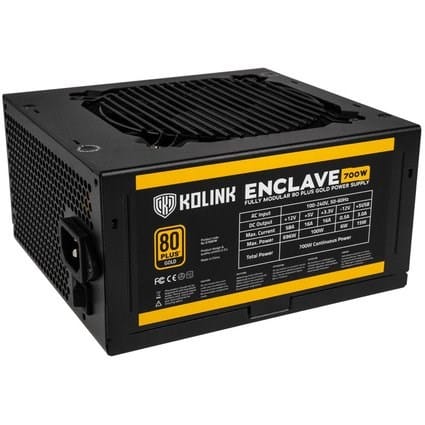

Kolink Enclave power supply unit 700 W 20+4 pin ATX ATX Black

€107.82
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
KOLINK
Product code:
KL-G700FM / 5999094002432

Specification

80 plus certification:80 PLUS Gold
Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Atx power connector (20+4 pin):Yes
Atx version:2.31

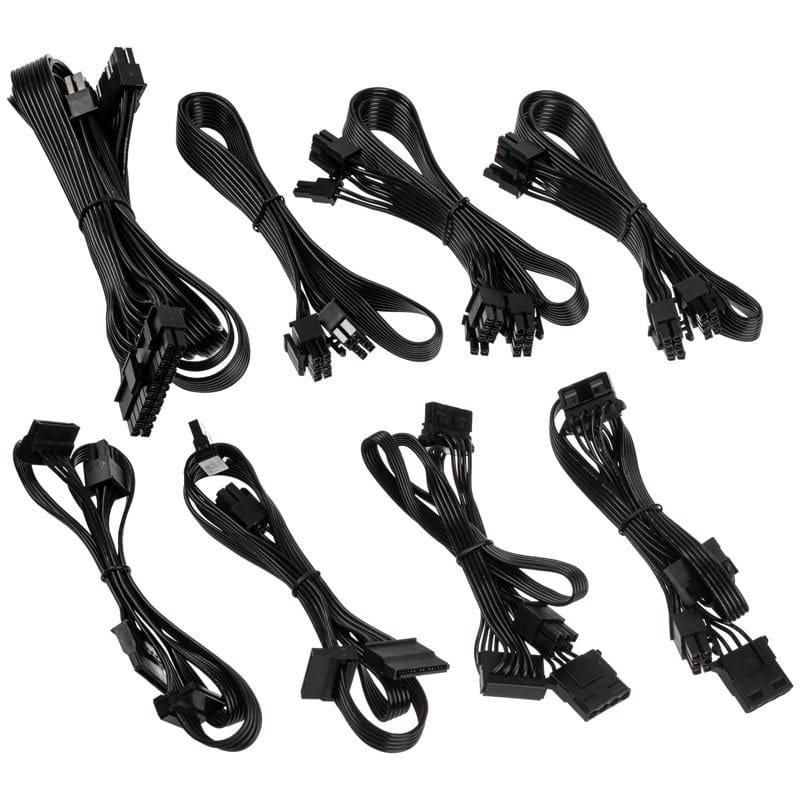

Cables included:CPU, PCIe, Peripheral (Molex), SATA

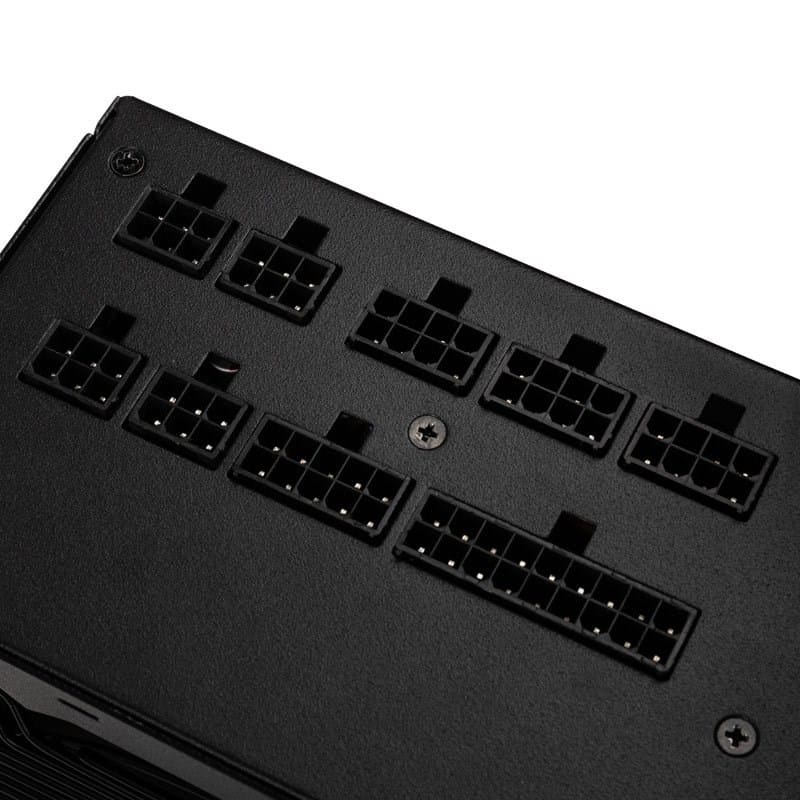

Cabling type:Fully-Modular
Combined power (-12v):6 W
Combined power (+12v):696 W
Combined power (+3.3v):100 W
Combined power (+5v):100 W
Combined power (+5vsb):15 W
Cpu power cable length:65 cm
Cpu power connector (4+4 pin):Yes
Depth:160 mm
Efficiency:90%

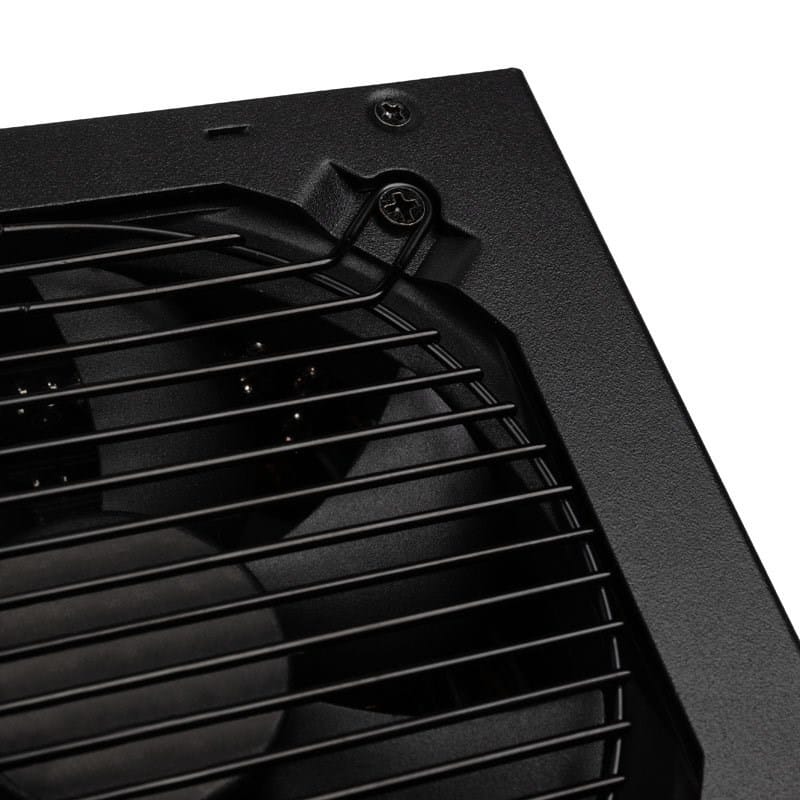

Fan diameter:12 cm
Height:86 mm
Input current:6 A
Max output current (-12v):0.5 A
Max output current (+12v):58 A
Max output current (+3.3v):16 A
Max output current (+5v):16 A
Max output current (+5vsb):3 A
Mean time between failures (mtbf):100000 h
Motherboard power cable length:50 cm
Motherboard power connector:20+4 pin ATX
Number of fans:1 fan(s)
Number of sata power connectors:8
Operating temperature (t-t):0 - 45 °C
Package depth:112 mm
Package height:249 mm
Package type:Box
Package weight:2.56 kg
Package width:299 mm
Pci express power connectors (6+2 pin):4
Peripheral (molex) power connectors (4-pin):4
Power factor correction (pfc) type:Active
Power protection features:Overload, Under voltage, Short circuit, Over voltage
Power supply unit (psu) form factor:ATX
Product colour:Black
Purpose:PC/Server
Total power:700 W
Weight:2.01 kg
Width:150 mm
