Knurling toolwithout knurling rollergrip12x12 ZEUS

€173.46
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ZEUS
Product code:
31000680 / 4030741290442

Specification

Cylindrical:12 x 12 mm
Grip length:101 mm
Knurling rollers used:15 x 4 x 4 mm
Model:851-12 R 150404
Working area diameter:6-20 mm

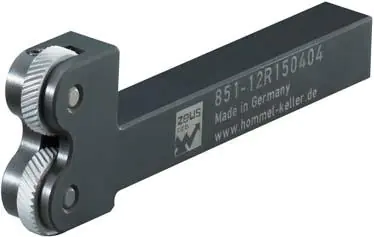

Knurling tool (without knurling roller)

Material: handle made of heat-treated steel. Delivery without knurling roller.
Application: for forming knurling (chipless machining).
For longitudinal and transverse knurling. In addition, the tool can be used for knurling objects according to DIN 82: RAA, RBL, RBR, RGE 30°, RGE 45°.
Knurling rollers:
RAA – 2 sztuki AA
RBL – 2 sztuki RBR
RBR – 2 sztuki RBL
RGE 30° – 1 piece BL 30°/1 piece BR 30°
RGE 45° – 1 piece BL 45°/1 piece BR 45°
Machine type: conventional and CNC longitudinal lathes – the height of the canines corresponds to the upper surface of the shank.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
