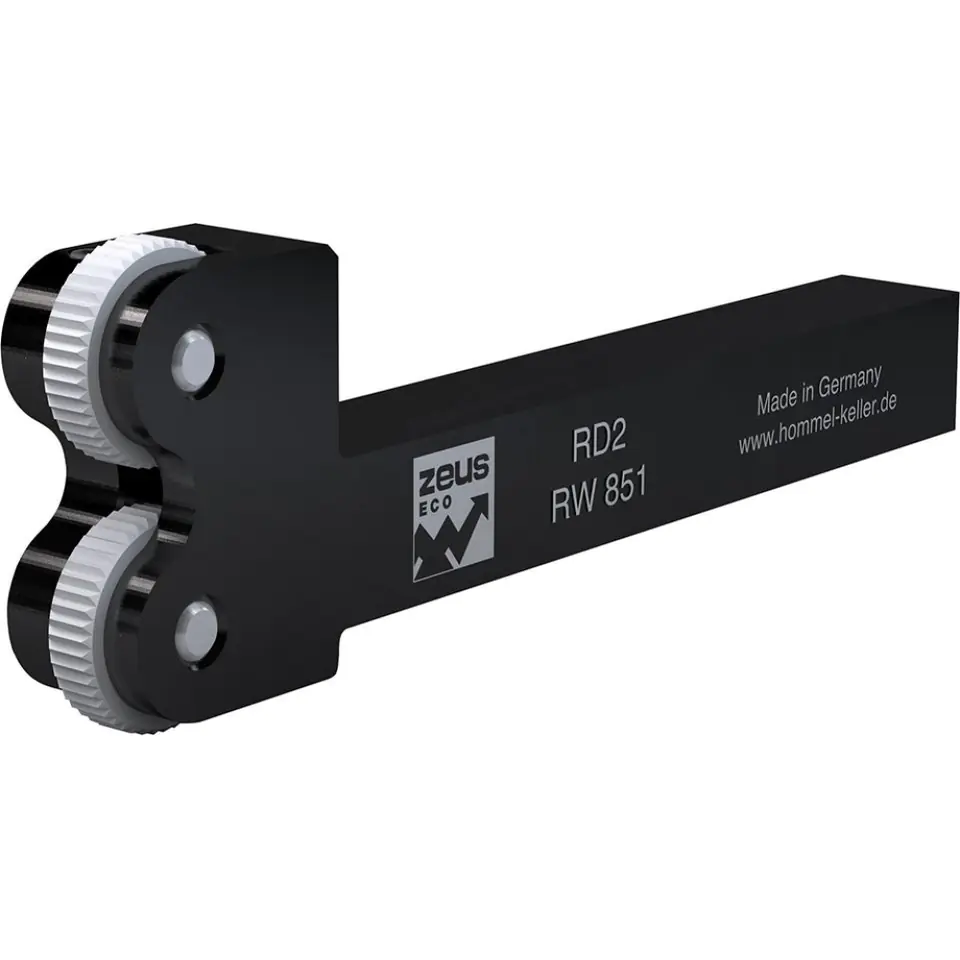

Knurling tool without knurling roller shank 20x20 ZEUS

€176.68
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ZEUS
Product code:
851-20U200806-ECO / 4030741707025

Specification

Cylindrical:20 x 20 mm
Grip length:101 mm
Knurling rollers used:15 x 4 x 4 mm
Model:851-20 U 200806-ECO
No:851-20U200806-ECO
Operating range (ø):6-20 mm

Knurling tool, without knurling roller

Material: handle made of heat-treated steel. Delivery without knurling roller.

Application: for forming knurling (chipless machining).
For longitudinal and transverse knurling. The tool can be used for knurling workpieces according to DIN 82: RAA, RBL, RBR, RGE 30°, RGE 45°.

Profile on the workpiece: RAA –2 x AA
RBL –2 x RBR
RBR –2 x RBL
RGE 30° –1 x BL 30° + 1 pc BR 30°
RGE 45° –1 x BL 45° + 1 pc BR 45°

Machine tool type: conventional and CNC longitudinal automatic lathes – the height of the canines corresponds to the upper surface of the shank.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
