The total capacity of the kit is 16GB. Each module has been tested to work with DDR5-5200 memory at a low latency of 36-40-40 at 1.25V. The SPDs are programmed to the standard JEDEC DDR5-4800 latency timings of 40-39-39 at 1.1V.

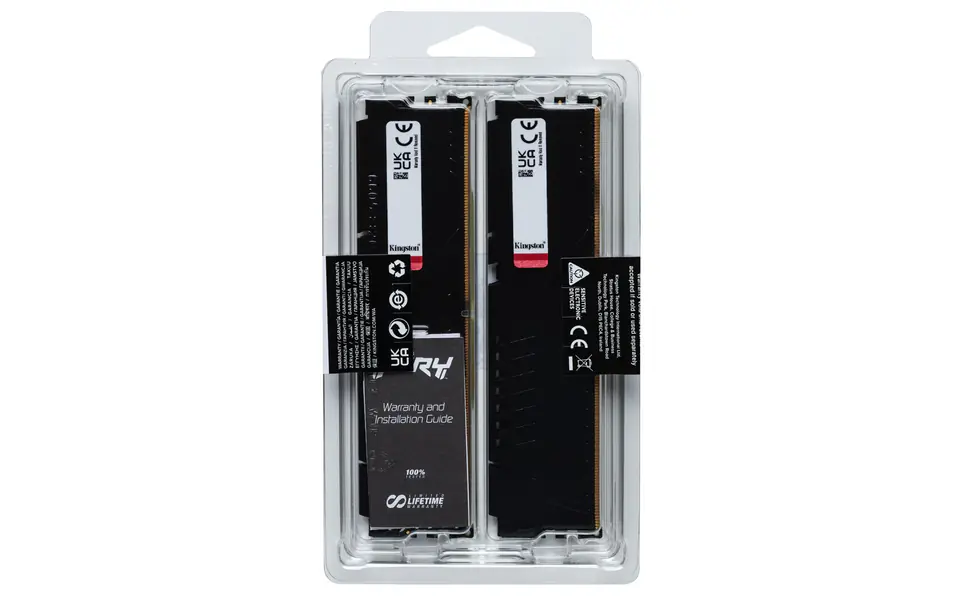

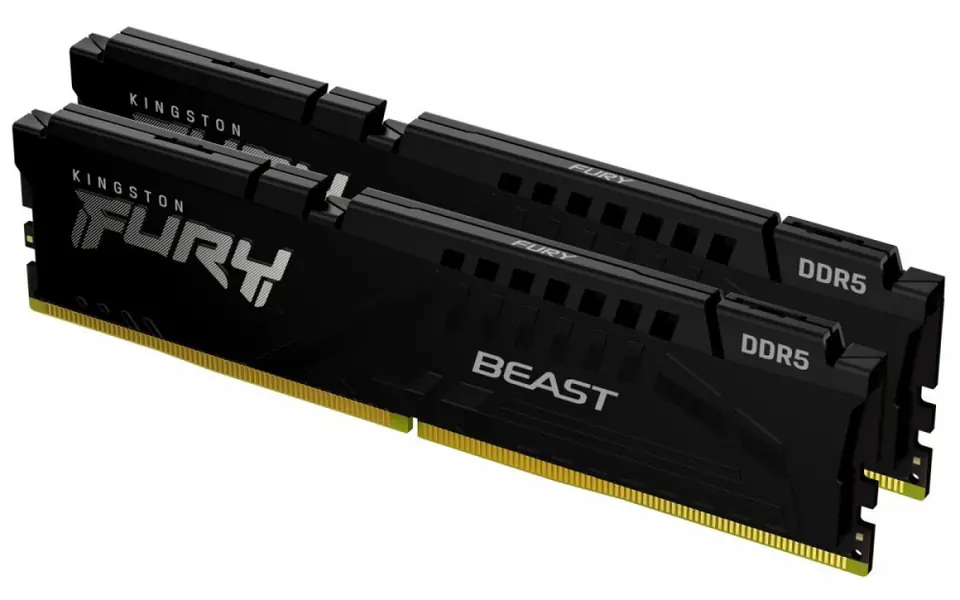

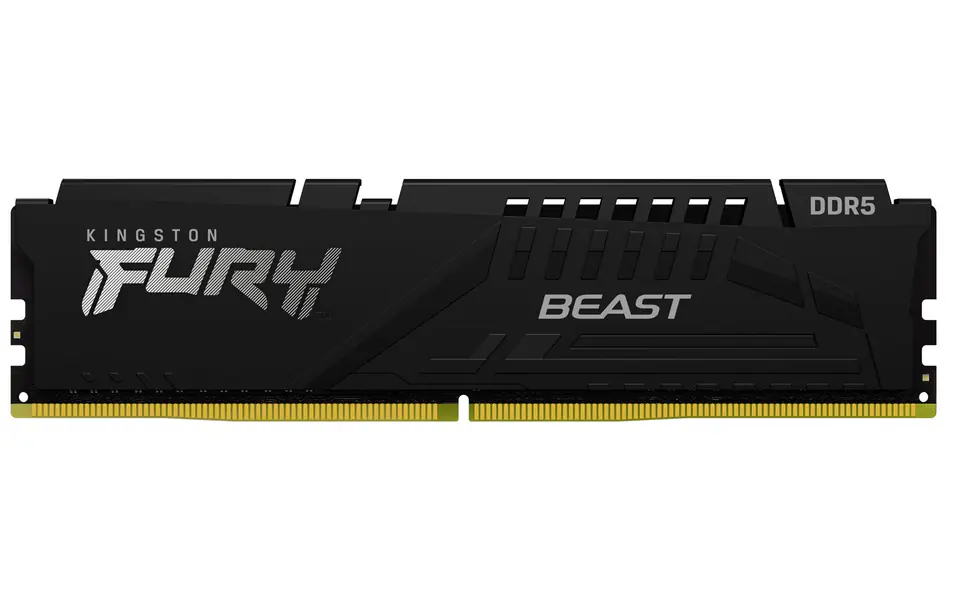

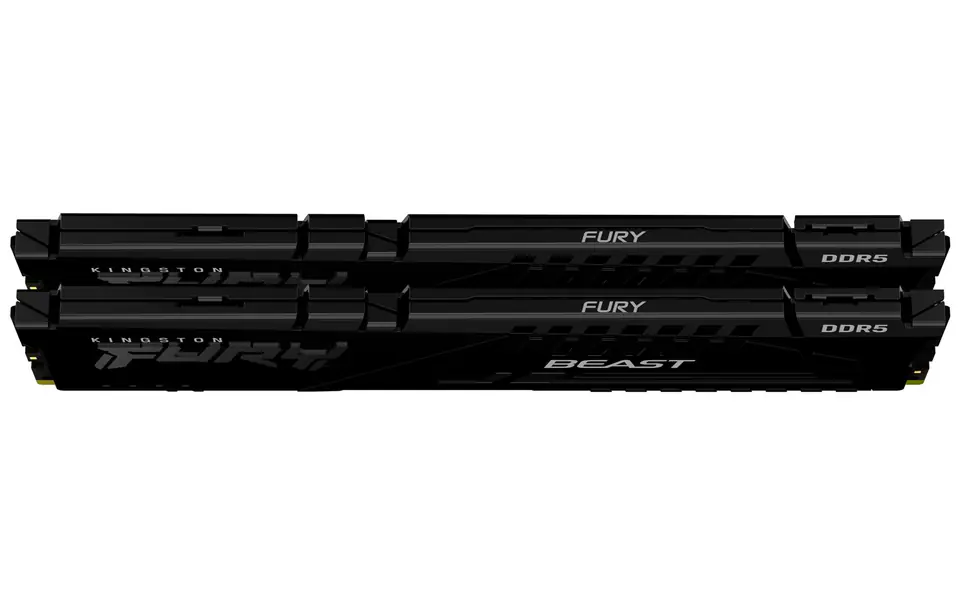

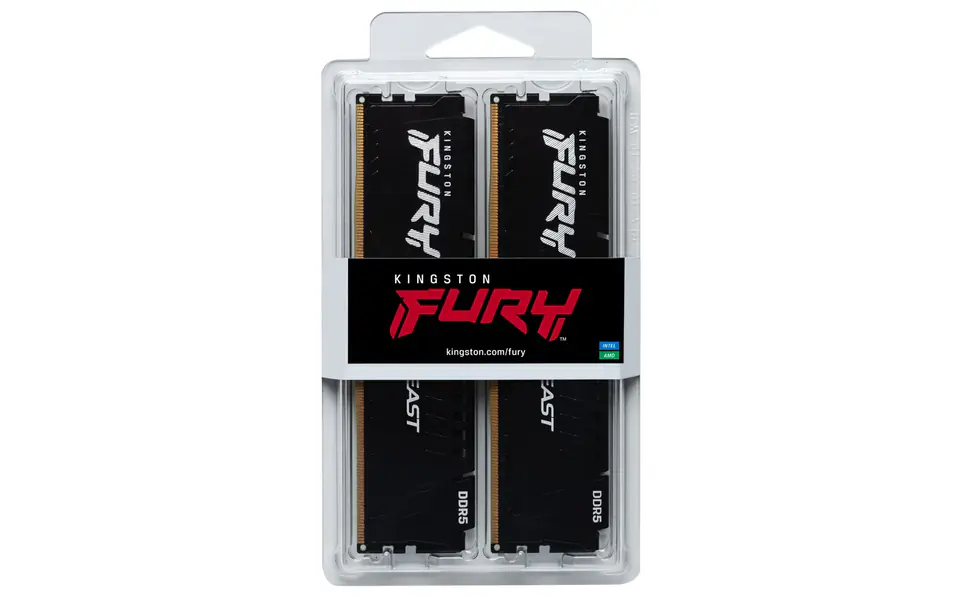

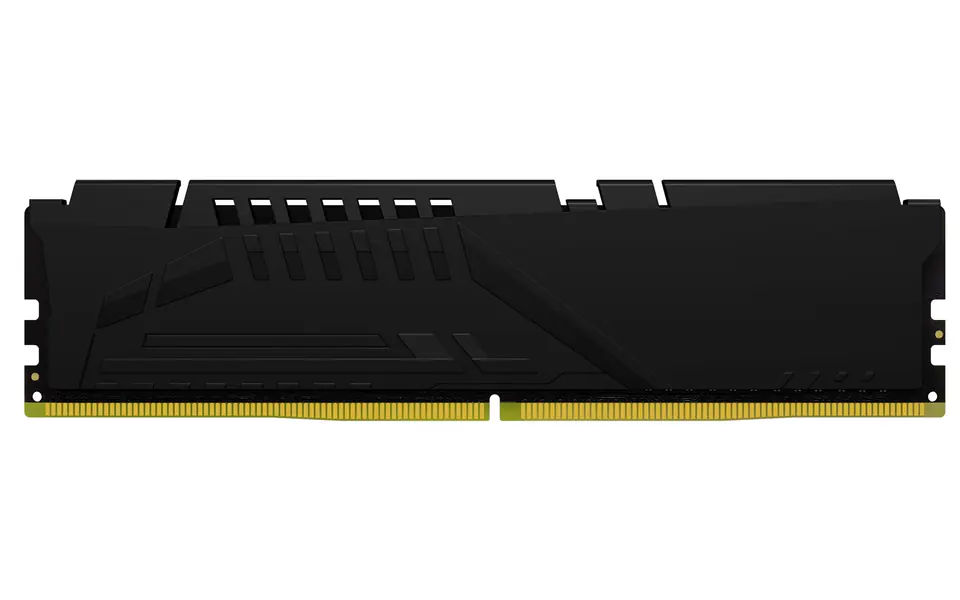

Kingston Technology FURY Beast 16GB 5200MT/s DDR5 CL36 DIMM Kit of 2) Black EXP
€76.66
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- KF552C36BBEK2-16 / 0740617331806
Share this product:
Specification
| Amd extended profiles for overclocking (expo): | Yes |
|---|---|
| Amd extended profiles for overclocking (expo) version: | 1.0 |
| Backlight: | No |
| Buffered memory type: | Unregistered (unbuffered) |
| Cas latency: | 36 |
| Component for: | PC/Server |
| Cooling type: | Heatsink |
| Depth: | 133.4 mm |
| Ecc: | No |
| Height: | 34.8 mm |
| Internal memory: | 16 GB |
| Internal memory type: | DDR5 |
| Jedec standard: | Yes |
| Lead plating: | Gold |
| Memory data transfer rate: | 5200 MT/s |
| Memory form factor: | 288-pin DIMM |
| Memory layout (modules x size): | 2 x 8 GB |
| Memory voltage: | 1.25 V |
| Module configuration: | 1024M x 64 |
| On-die ecc: | Yes |
| Operating temperature (t-t): | 0 - 85 °C |
| Package depth: | 14 mm |
| Package height: | 171.5 mm |
| Package weight: | 101.7 g |
| Package width: | 95.3 mm |
| Programming power voltage (vpp): | 1.8 V |
| Refresh row cycle time: | 295 ns |
| Row active time: | 32 ns |
| Row cycle time: | 48 ns |
| Spd profile: | Yes |
| Storage temperature (t-t): | -55 - 100 °C |
| Weight: | 77.1 g |
| Width: | 6.6 mm |
