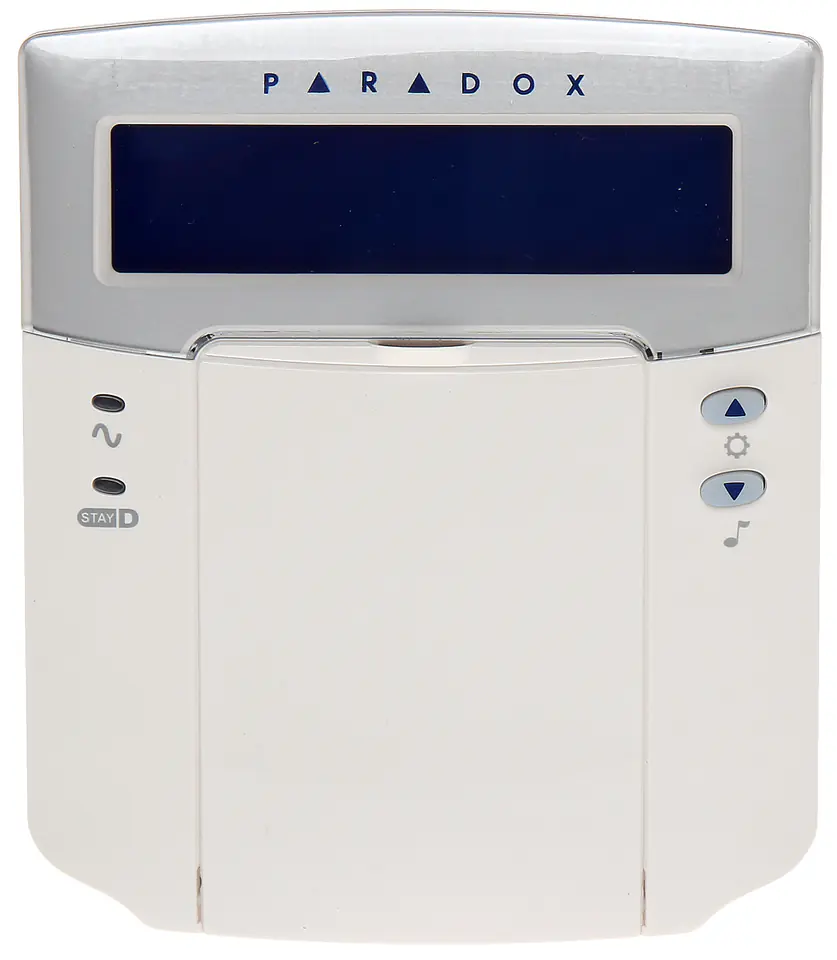

The K-32/LCD/PLUS keypad is designed for operation and programming of alarm control panels from the PARADOX series - Spectra SP, Magellan MSC display, on which text messages are presented, makes using even the advanced functionality of the control panel simple and convenient
KEYPAD FOR K-32/LCD/PLUS PARADOX CONTROL PANEL
€76.70
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Specification
Colour:: | White / Silver |
---|---|
Compliance with standards:: | EN 50130-4, EN 61000-6-3, EN 60950-1, EN 50581 |
Cooperation:: | PARADOX: SPECTRA SP V4.90+, MAGELLAN M V2.31+ |
Country of origin:: | Canada |
Current consumption:: | Max. 150 mA |
Dimensions:: | 126 x 150 x 27 mm |
Manufacturer / brand:: | PARADOX |
Operating temperature:: | -10 °C ... 55 °C |
Permissible relative humidity:: | 5 % ... 93 % |
Power:: | 9 ... 16 VDC |
Scales:: | 0.220 kg |
Selected features:: | LCD 2x16 characters Backlight color - Blue StayD support Audio signaling of selected events in the system Quick access buttons for the alarm function Alarms: ASSAULT, FIRE, HELP called from the keyboard Support for one or more partitions Possibility to connect 1 alarm line Independent setting of gong lines Connection to a 4-wire communication bus Adjustment of the intensity of backlight, contrast and speed of scrolling messages |
Supported languages:: | Polish |
Warranty:: | 2 years |
