| Backlight: | Yes |
|---|---|
| Battery capacity: | 60 mAh |
| Colour:: | Black |
| Cooperation:: | INTEGRATION |
| Current consumption:: | Max. 110 mA |
| Depth: | 143 mm |
| Device interface: | RS-485 |
| Dimensions:: | 145 x 143 x 25 mm |
| Height: | 25 mm |
| Manufacturer / brand:: | SATEL |
| Operating temperature (t-t): | -15 - 55 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Operating voltage: | 12 V |
| Power source type: | DC |
| Power:: | 12 VDC |
| Product colour: | Black |
| Scales:: | 0.34 kg |
| Selected features:: | Large, easy-to-read LCD display with backlight showing detailed information about the system status Support 3EOL configuration - 2 Inputs LED indicator indicating the operating status Alarms: ASSAULT, FIRE, HELP called from the keypad Sound signaling of selected events in the system RS-232 port enabling programming using a computer with GUARDX installed Built-in proximity reader - Unique EM 125kHz Microswitch detecting manipulator tamper tamper |
| Usb hub: | No |
| Warranty:: | 2 years |
| Weight: | 346 g |
| Width: | 145 mm |

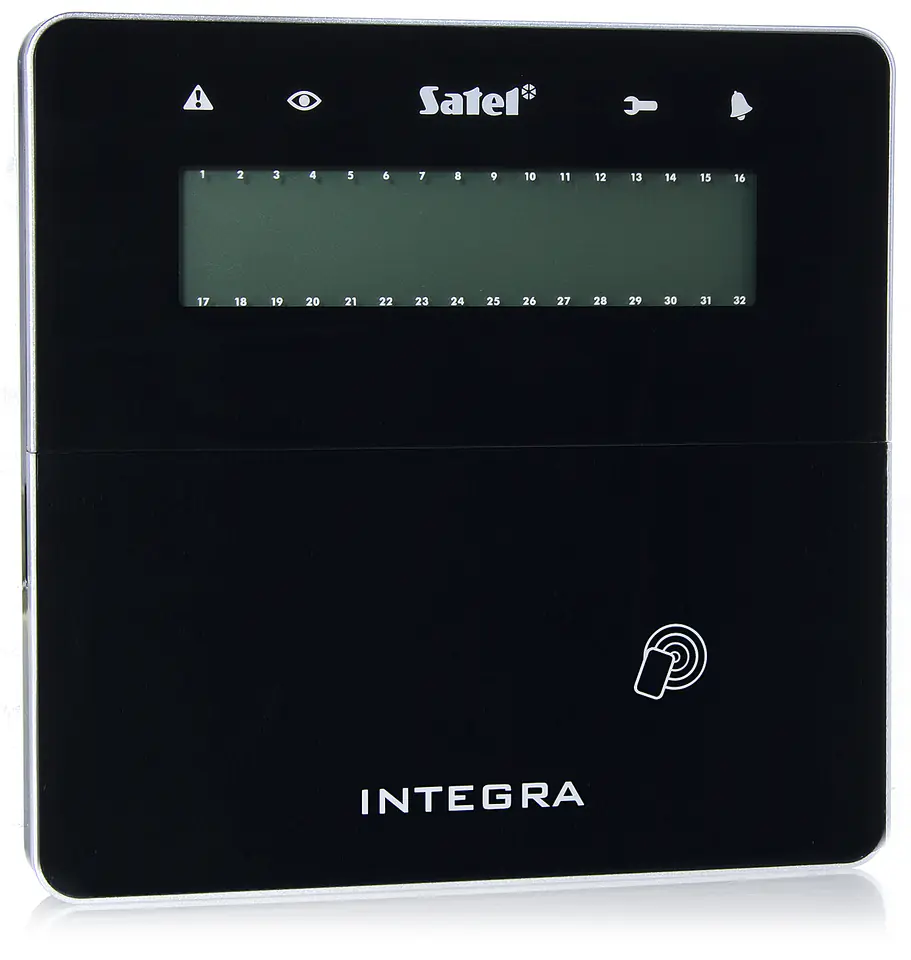

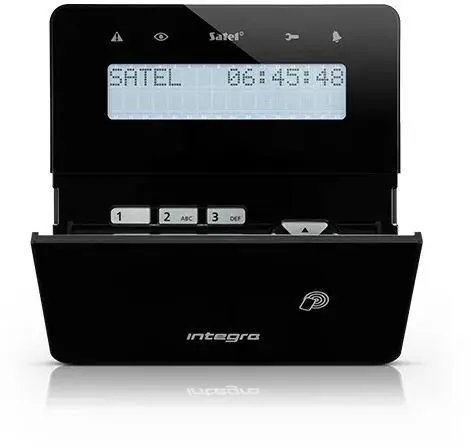

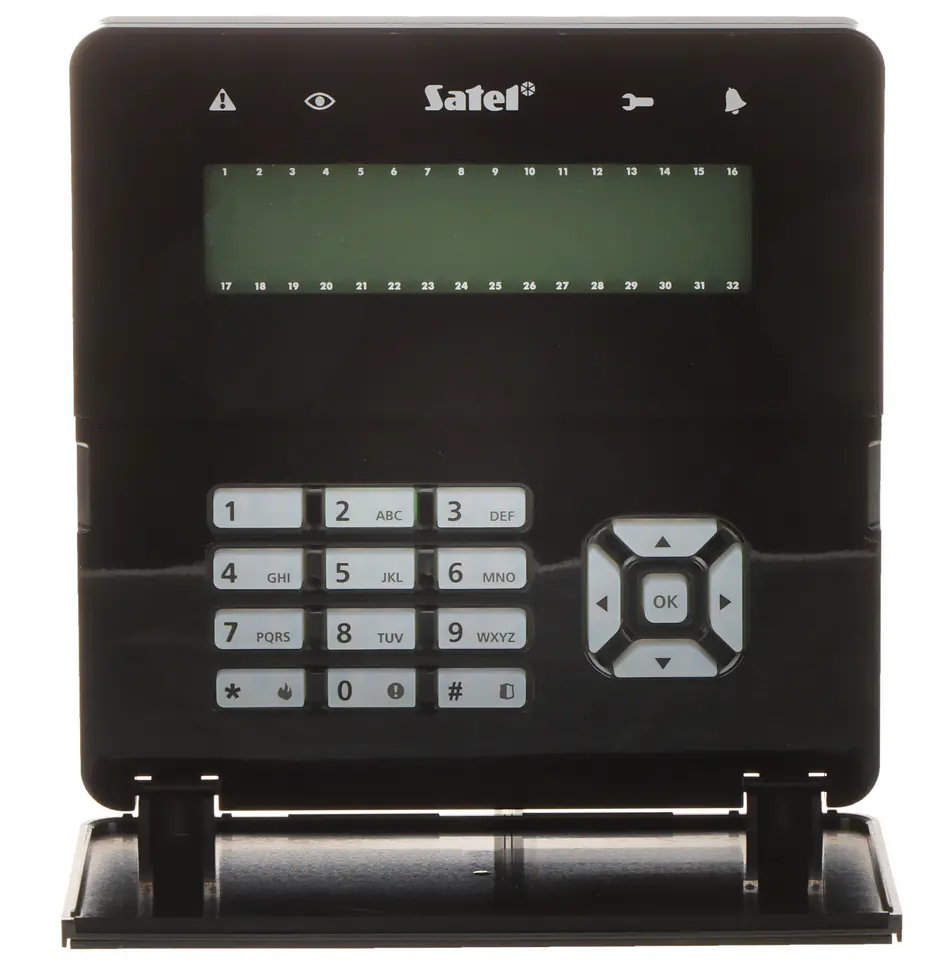

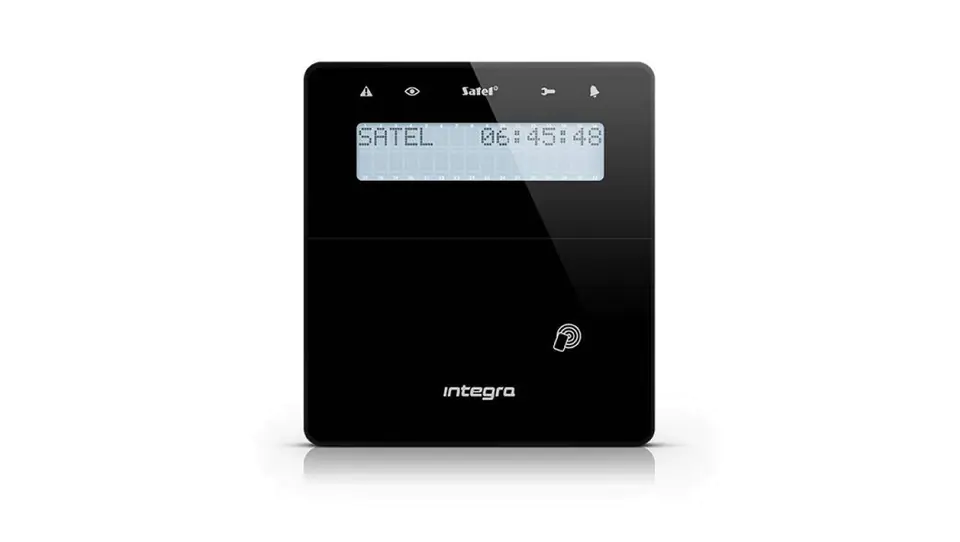

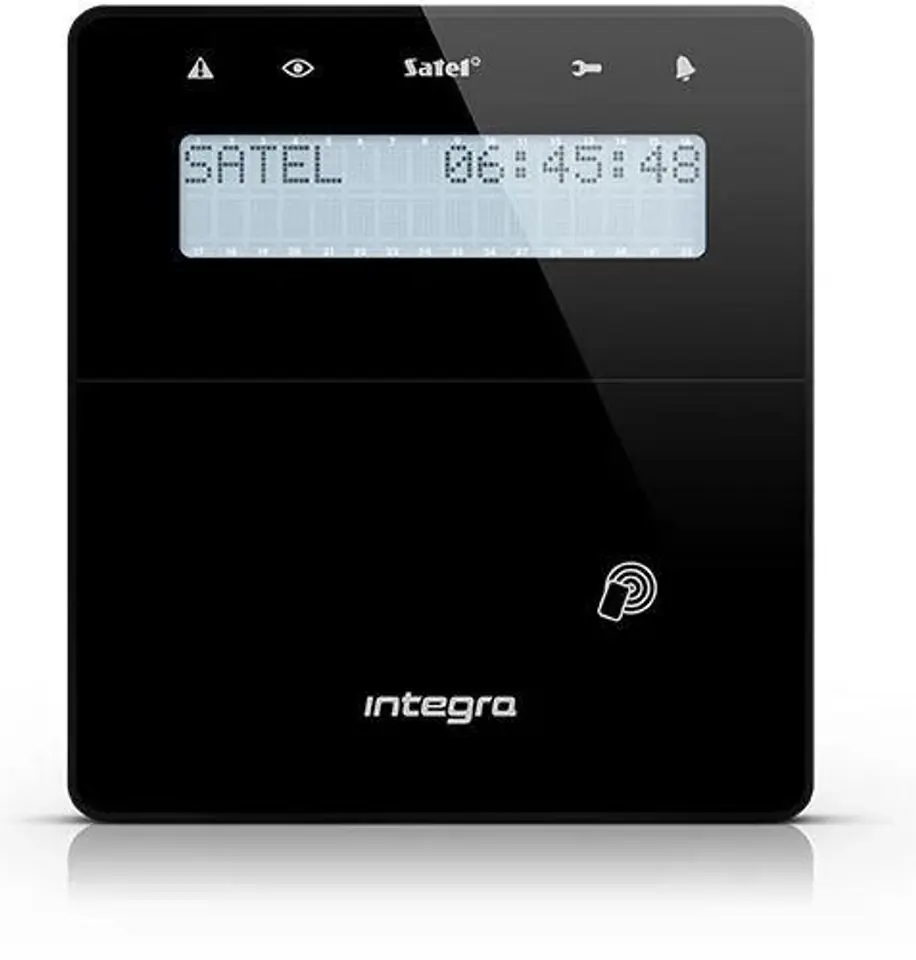

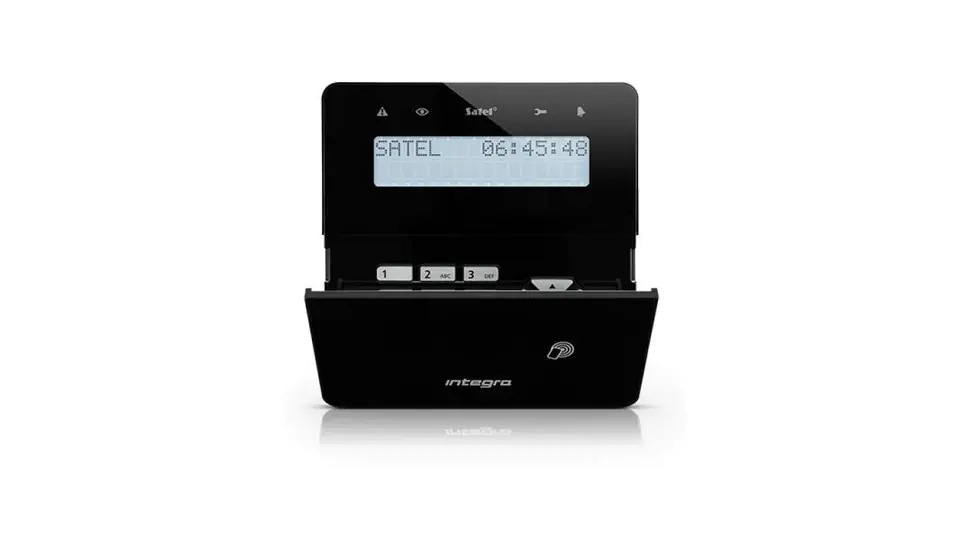

The INT-KLFR-B keypad is designed for operation and programming of Integra series control panels
Built-in proximity card reader allows you to operate the system without having to remember the passwordTHE LCD display on which text messages are presented makes the use of even the advanced functionality of the alarm control panel simple and convenient
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
