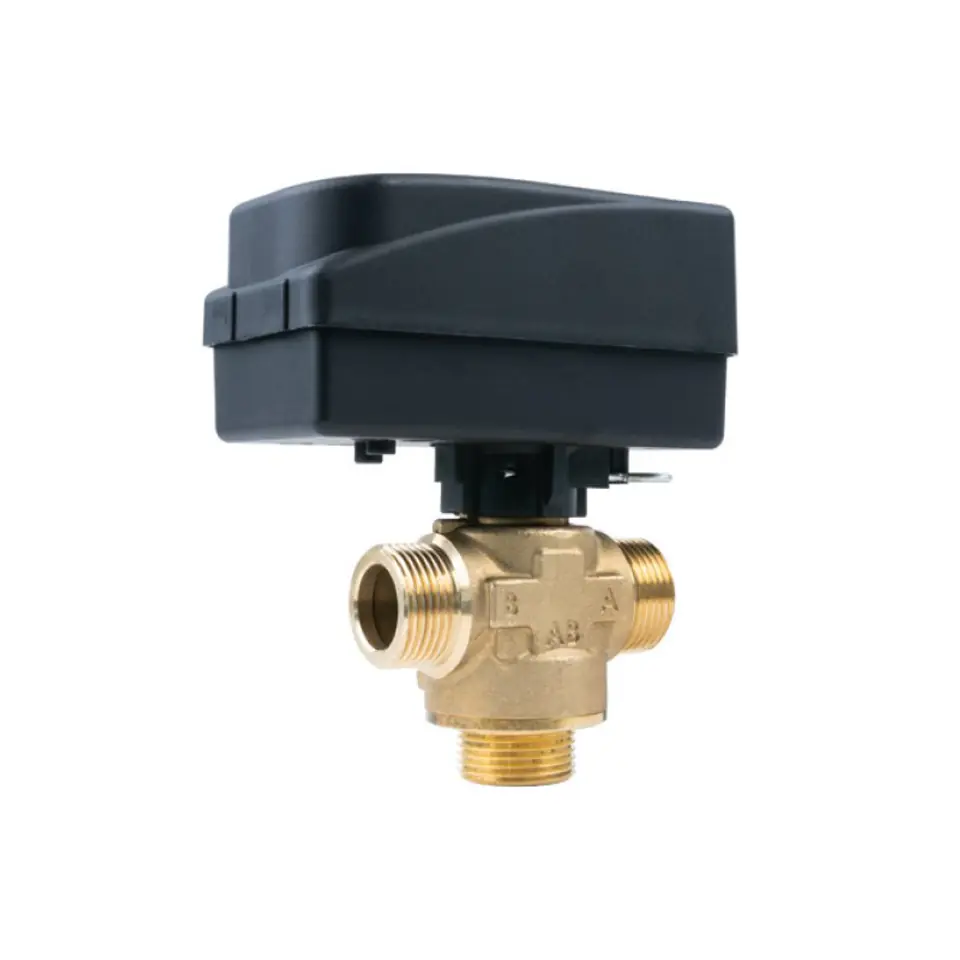

KENSOL 3-way diverter valve G1 inch
€165.11
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KENSOL
- Product code:
- 945 01 001 / 5904473573724
Share this product:
Specification
Angle of rotation: | 90° |
---|---|
Connecting thread: | 1" |
Connections: | Male thread |
Factors: | Glycol solution (up to 50% concentration) , Cold and hot water |
Frequency: | 50 / 60 Hz |
Input voltage: | 100 - 240 V |
International protection (ip) code: | IP65 |
Material: | PPS, Brass |
Power consumption (typical): | 2.5 W |
Pressure differential: | 0.6 Mpa |
Pressure rating: | 1.6 MPa |
Product colour: | Copper, Black |
Product type: | Three-way valve |
Protection class: | II |
Quantity per pack: | 1 pc(s) |
Rated power: | 6,5 W |
Refrigerant temperature: | 2 - 110°C |
Time from override to open position: | 15 s |
Time to switch to closed position: | 15 s |
Torque (max): | 4 N⋅m |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
