10090147 Character diesel diameter up to 100 mm two-stroke single cylinder 1.5 kW / 9000 rpm2.5 Nm / 5000 rpm3 rings49, 69 and 100 mmProduct values:
- - Engine power 1.5 kW,
- - Maximum power and speed - 1.5 kW / 9000 rpm,
- - Torque and speed - 2.5 Nm / 5000 rpm,
- - Beat frequency 700 ~ 1350 bpm,
- - Impact energy - 20 ~ 55 J.
- - Model - HT-PILOT-1500
- - Catalog No. - 10090147
- - Article status - New
- - Engine - Gasoline, single cylinder, 2-stroke, air-cooled
- - Power - 1,5 kW
- - Max. speed - 9000 rpm
- - Fuel consumption - 0.86 l/h
- - Fuel tank capacity - 1.3 l
- - Fuel mixture - 25:1, gasoline: oil
- - Impact frequency - 700-1350 bpm
- - Impact energy - 20-55 J
- - Engine oil type - API TC/JASOFB
- - Dimensions (LxWxH) - 28 x 26.6 x 82.6 cm
- - Weight - 20 kg
- - Shipping dimensions (LxWxH) - 97.3 x 42.5 x 37 cm
- - Shipping weight - 32.18 kg

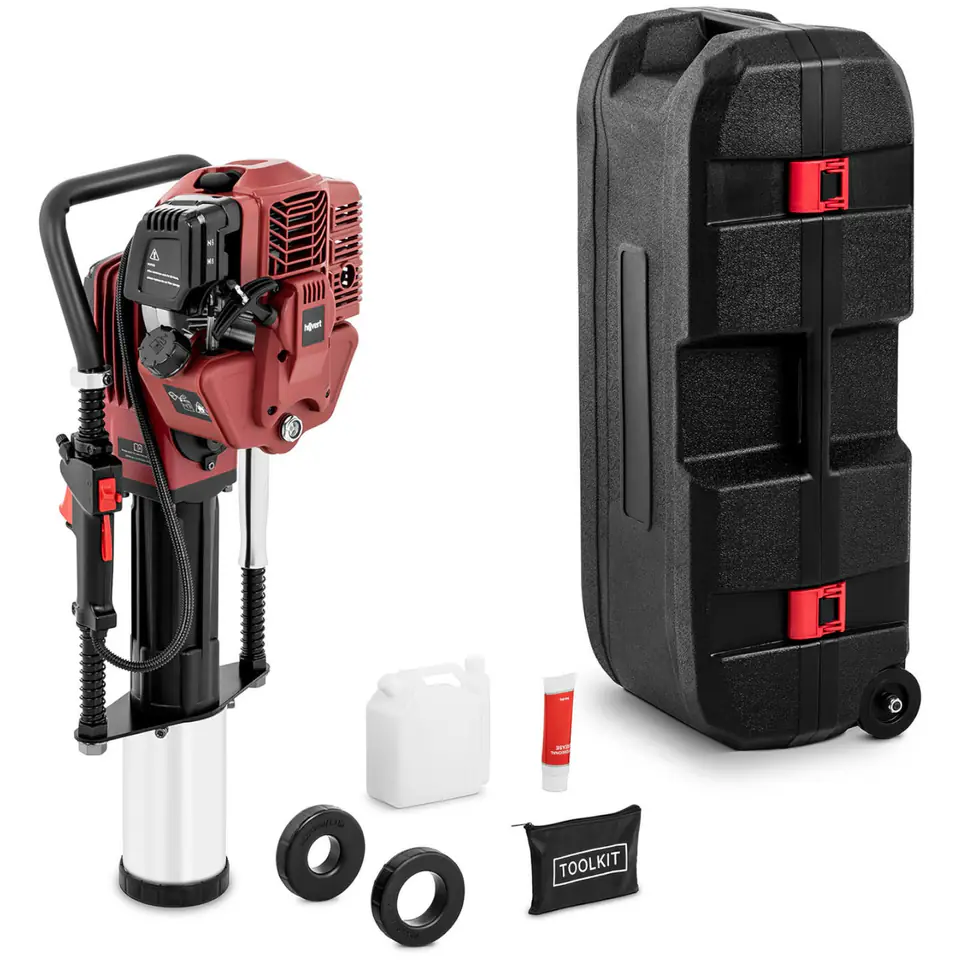

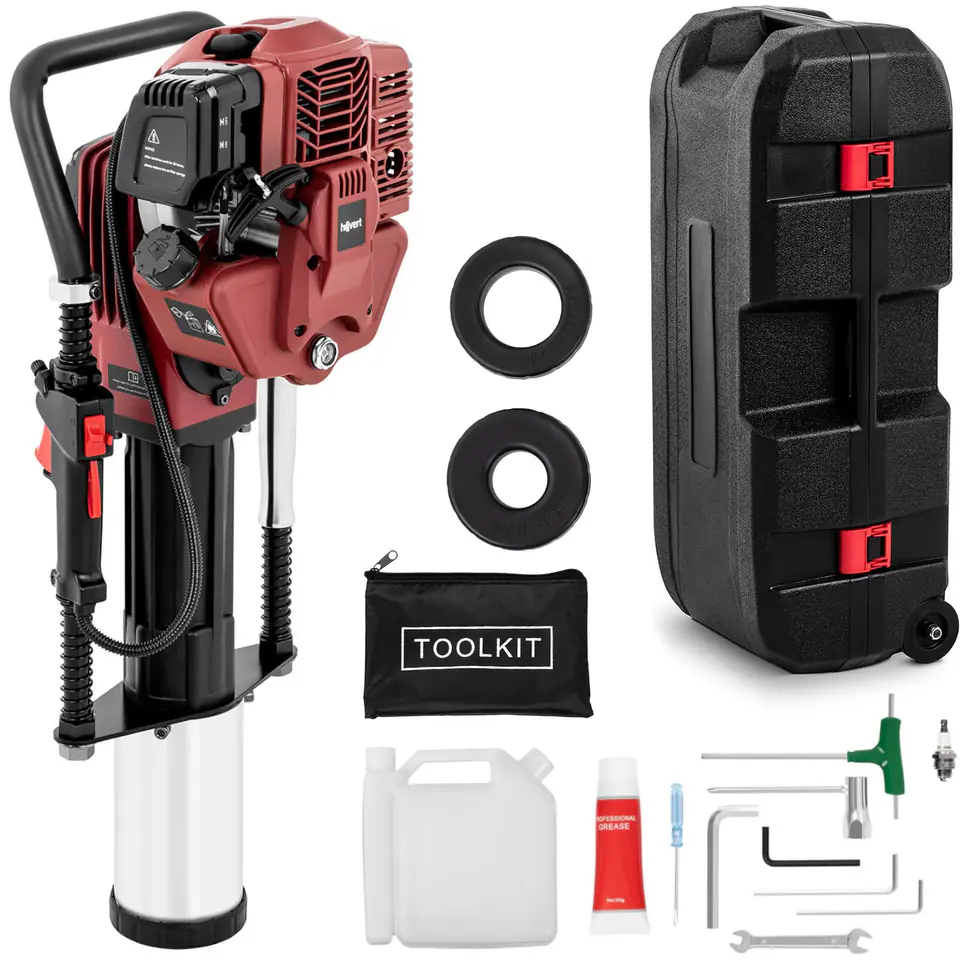

- - Diesel caper,

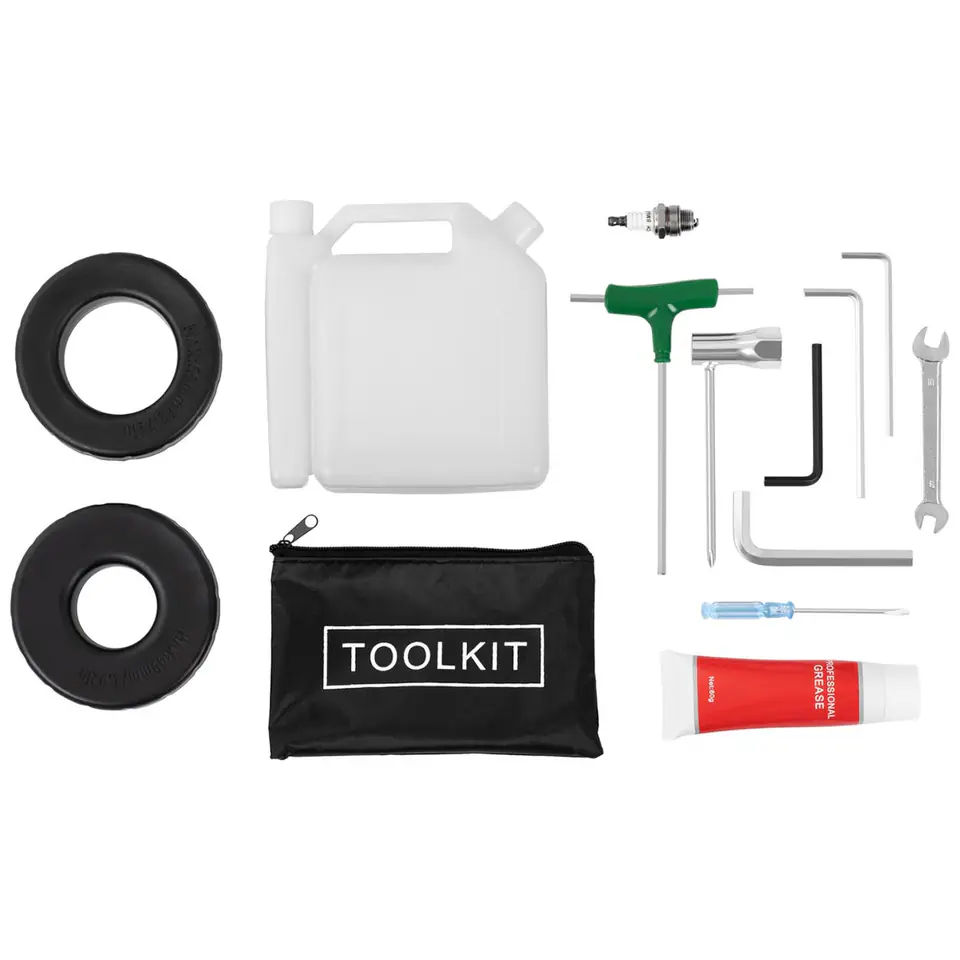

- - Reduction rings - 3 pcs.,
- - Grease - 60 g,
- - Spark plug BM6A,
- - Flat wrench 8 mm/10 mm,
- - Allen keys: M10, M6, M5, M4,
- - Spark plug wrench,
- - Screwdriver,
- - Hexagonal wrench type T4/M5,

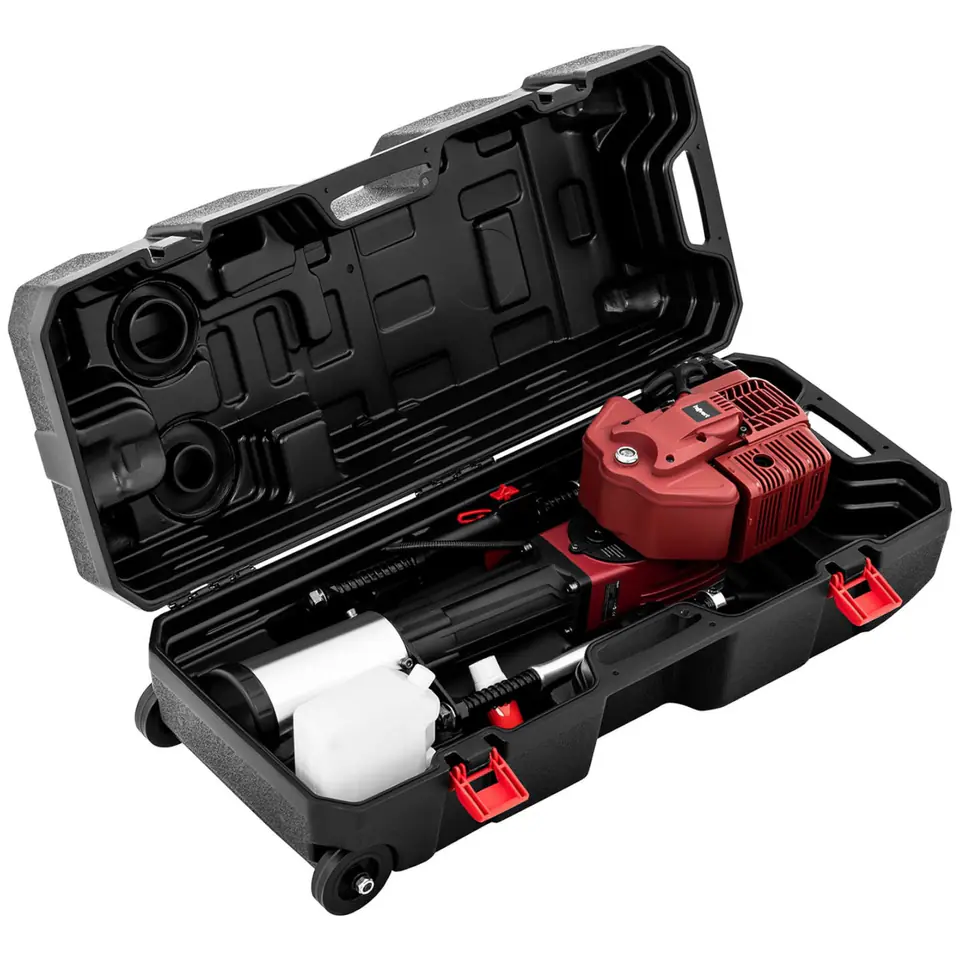

- - Plastic suitcase,
- - Mixing container,
- - Instruction manual.
