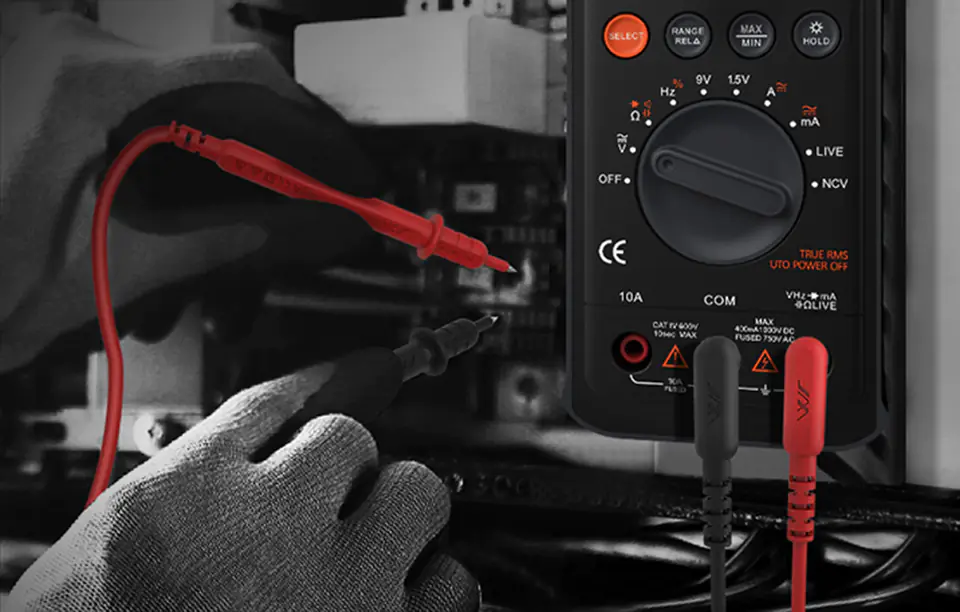

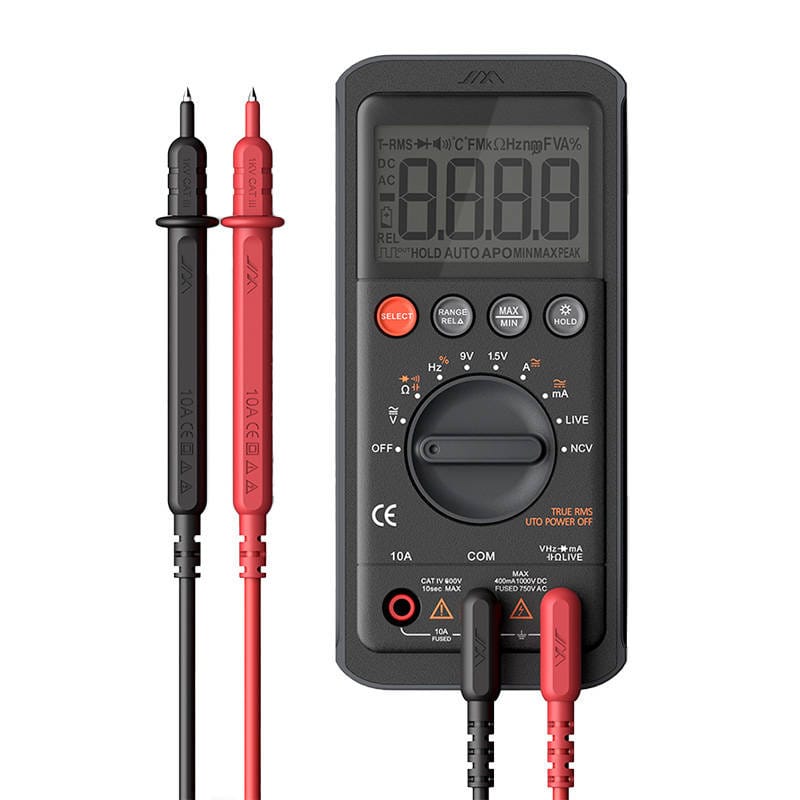

JIMI Home JM-G3401 is a multifunctional device that you will use during electrical work. With it, you can measure voltage, resistance, capacitance, frequency, true RMS value and much more. It has been equipped with a display, a large knob and buttons for convenient operation.
The JIMI Home digital universal multimeter stands out for its extraordinary precision. Thanks to the clever design, you can accurately measure the true RMS value regardless of the conditions. What's more, it automatically changes the measurement range of AC/DC voltage, current, resistance, etc., making the measurements more accurate. In addition, it offers non-contact voltage detection (NCV) and Live Test.

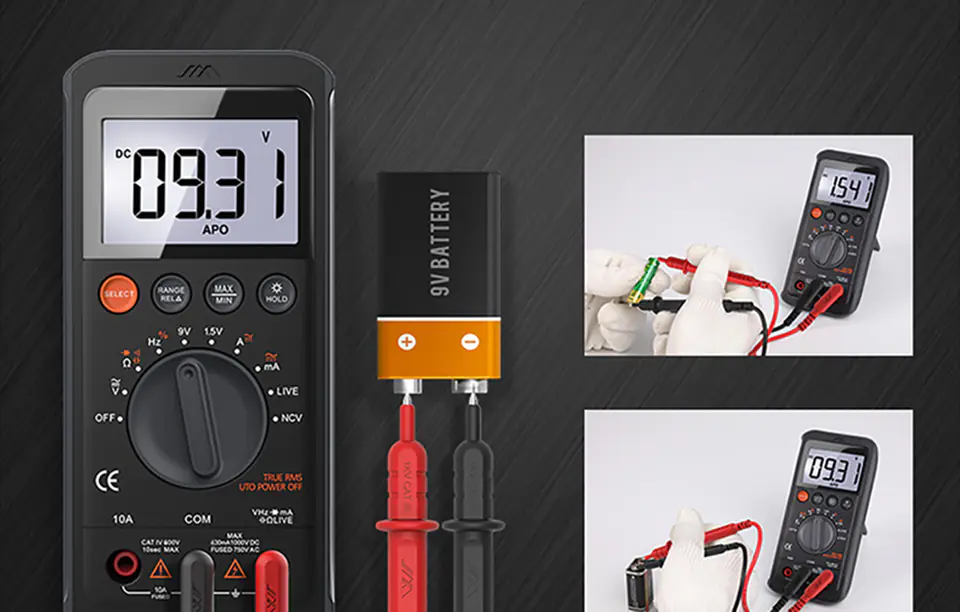

The JIMI Home JM-G3401 also allows you to measure the battery voltage by simply placing a black (-) and red (+) cable against it. In addition, it has self-healing fuses, which in the event of a blow will be renewed in about 3-5 seconds. In addition, the LCD display will provide you with information about the operation of the device. The multimeter also has a screen backlight function. To turn it on, hold down the HOLD button for 2 seconds.

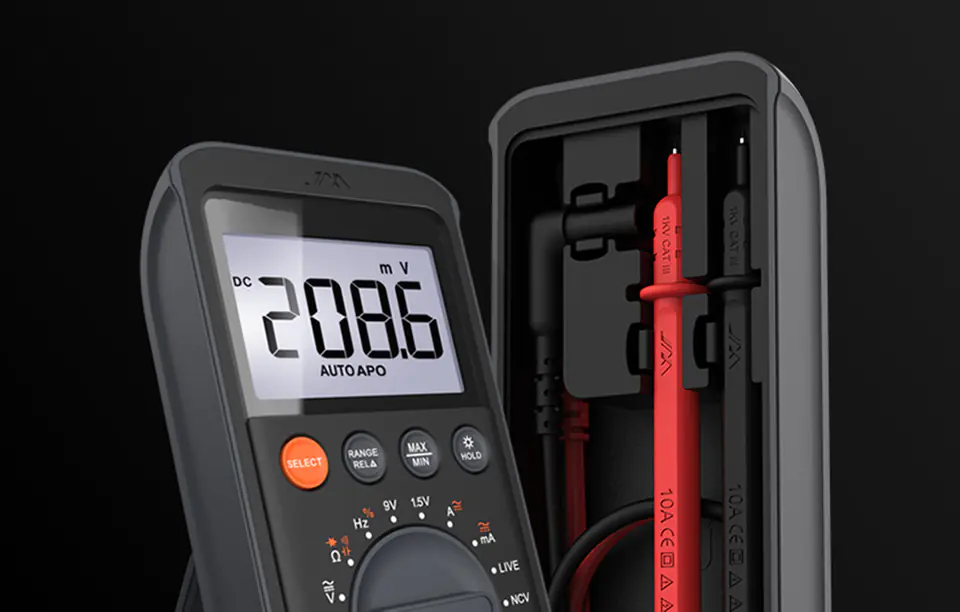

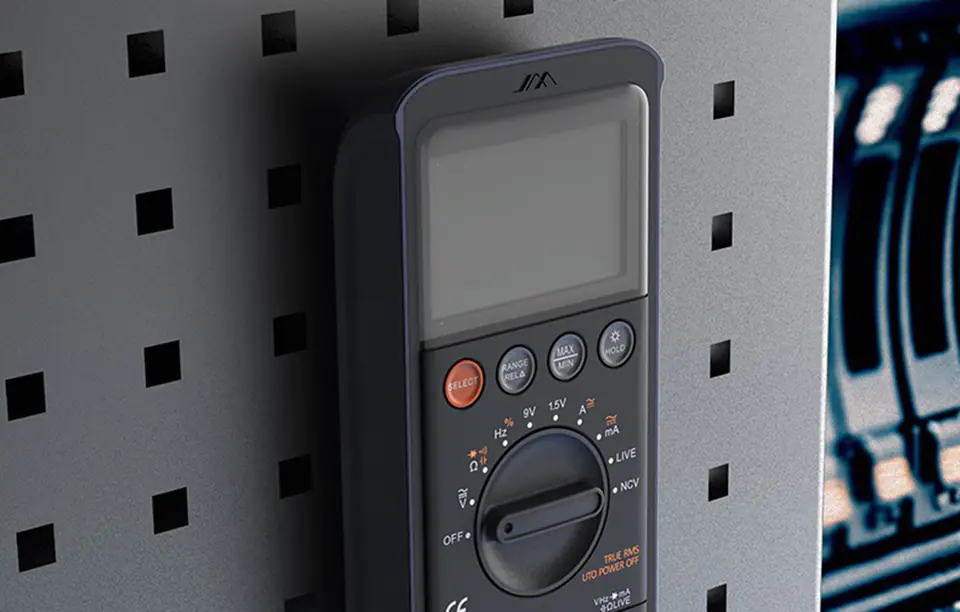

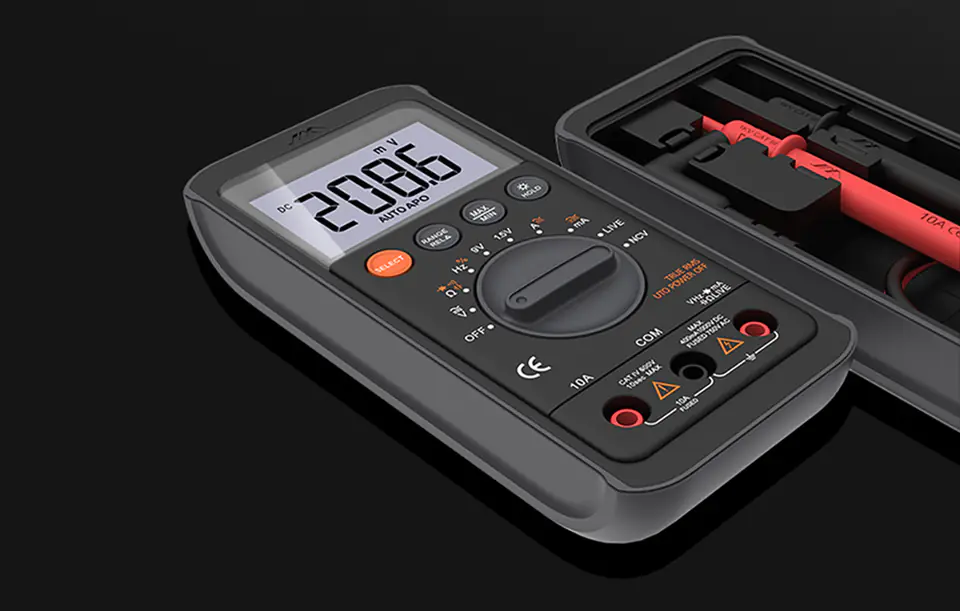

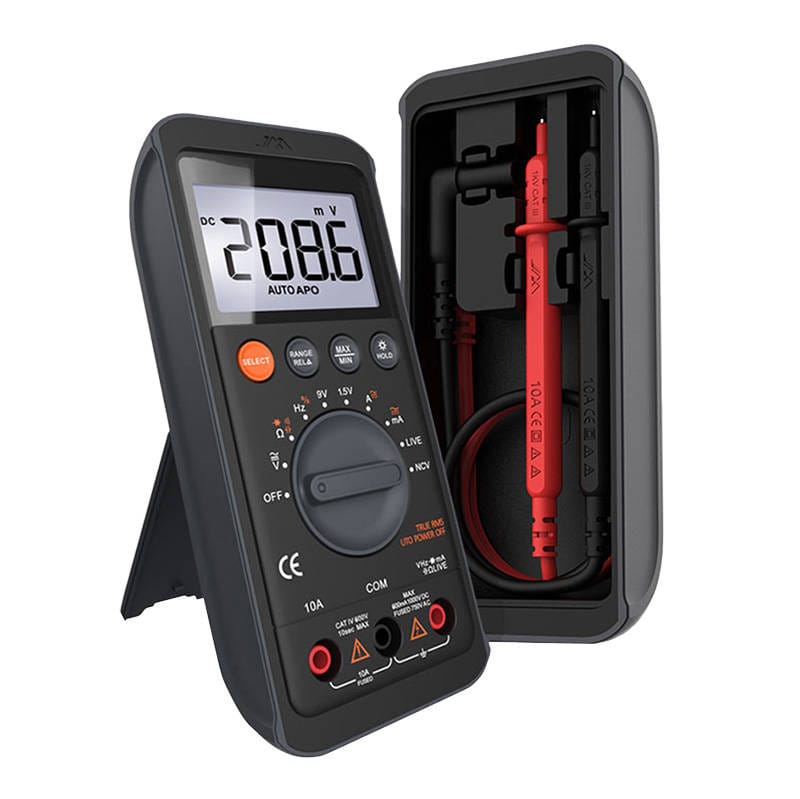

The JIMI Home digital multimeter is designed to be comfortable to use. The magnetic design allows you to attach the product to a metal surface for comfortable use. The device also has a kickstand for greater freedom. The cables are made of pure 10A copper and finished with heat-resistant plastic. In addition, the product is distinguished by a 2-piece design, which allows you to simultaneously store wires and protects the display from scratches.
This is not the end of the advantages of JIMI Home JM-G3401. The product has an automatic shutdown function if you do not use it for 15 minutes. After this time, it will go into sleep mode to save power. In addition, you can disable this function at any time – just press the SELECT button and the APO message will appear on the screen.
- Digital Universal Multimeter
- Leads
- Manual
| Producer | JIMI Home |
|---|---|
| Model | JM-G3401 |
| DC voltage measuring range | 600mV/6V/60V/600V/1000V (±0.5%+3, 0.8%+10) |
| AC voltage measuring range | 500mV/6V/60V/600V750V (±0.8%+3, 1.2%+10) |
| DC current measuring range | 60mA/400mA/6A/10A (±1.2%+10, 2.0%+10) |
| AC current measuring range | 60mA/400mA/6A/10A (±1.2%+10, 2.0%+10) |
| Resistance measuring range | 600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ (±0.8%+5, 0.8%+3, 2.5%+3) |
| Capacitance measuring range | 60nF/600nF/6μF/60μF/600μF/6mF/60mF (±5.5%+20, 5.0%+3) |
| Frequency measuring range | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
| Temperature (°C/°F) | 0°C ~ 40°C |
| Diode Testing | Yes |
| NCV | Yes |
| Live test | Yes |
| Test On/Off | Yes |
| Display | LCD |
| True RMS Value | Yes |
| Self-recovery fuse | Yes |
| Sampling rate | approx. 3 times per second |
| Automatic power off | Yes, after 15 min |
| Low voltage indicator | Yes |
| Backlight | Yes |
| Data Retention | Yes |
| Number of counts | 5999 |
| Overload indicator | OL |
| Power | 2x 1.5V AAA battery |
| Scales | 340g (including batteries) |
| Dimensions | 153 x 70 x 53 mm |
