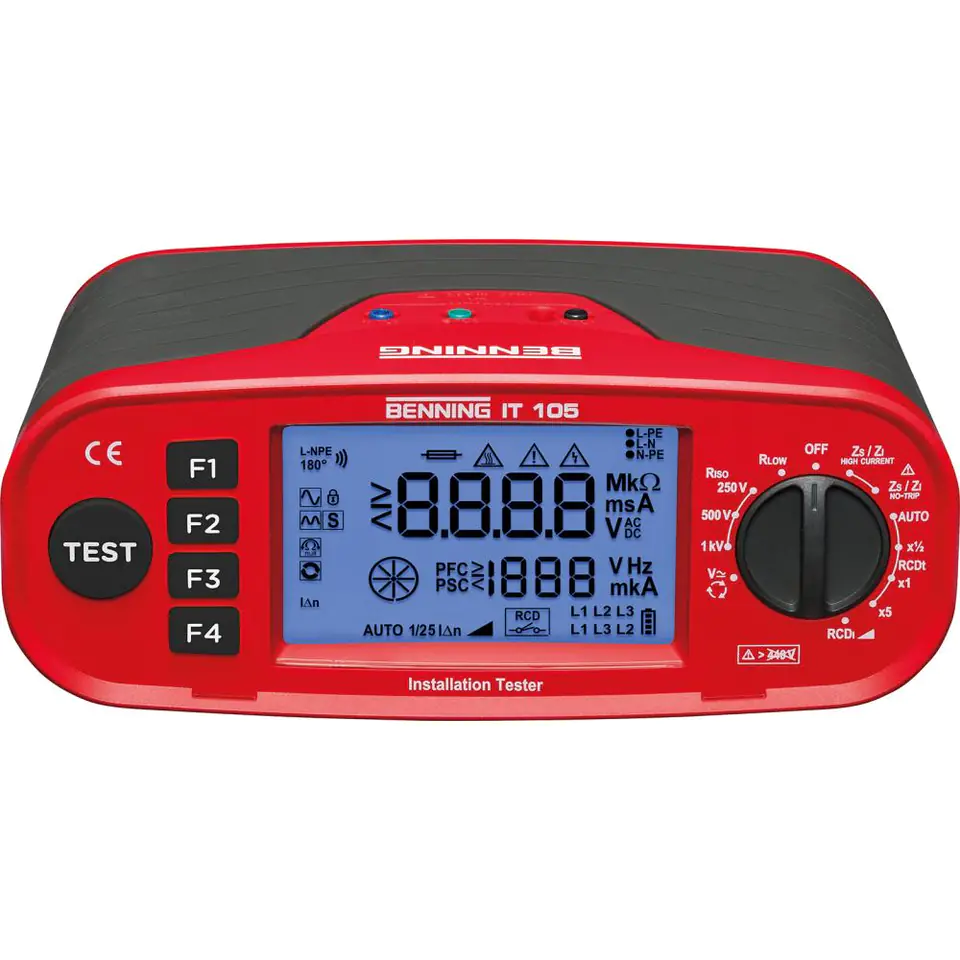

IT Installation Tester 105

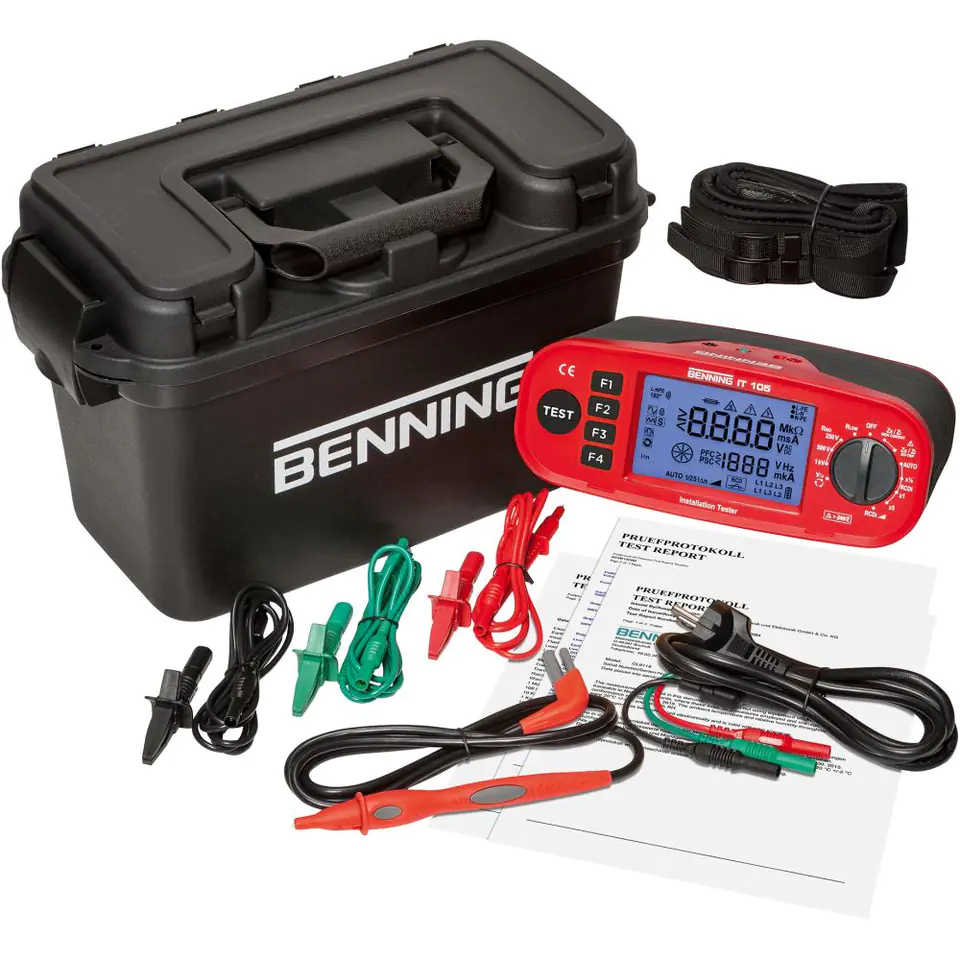

IT 105. Testing of standard and delayed (S) type AC, A FI/RCD protection switch with AUTO test. Delivery with shoulder strap and carrying case with reinforced lid and bottom.
IT Installation Tester 105 Benning
€1,092.25
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- BENNING
- Product code:
- 44105 / 4014651441057
Share this product:
Specification
| Batteries: | 6 x Mignon AA/LR6 |
|---|---|
| Cable impedance (l-n/l): | 0.2 Ohm–1999 Ohm |
| Frequency: | 45 Hz - 65 Hz |
| Insulation: | 0.2 MΩ–199 MΩ |
| Loop impedance (l-pe): | 0.2 Ohm–1999 Ohm |
| Low impedance resistance: | 0.15 Ohm–199 Ohm |
| Measurement method: | RMS |
| Model: | IT 105 |
| No: | 44105 |
| Rotating field: | yes |
| Short-circuit current: | 0,01 A to 26 kA |
| Tension: | 1 volts to 440 volts |
