Network recorder equipped with advanced intelligent image analysis functions

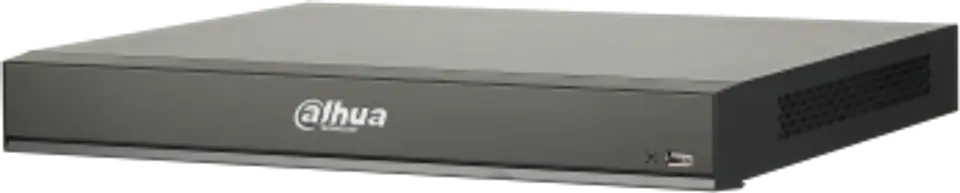

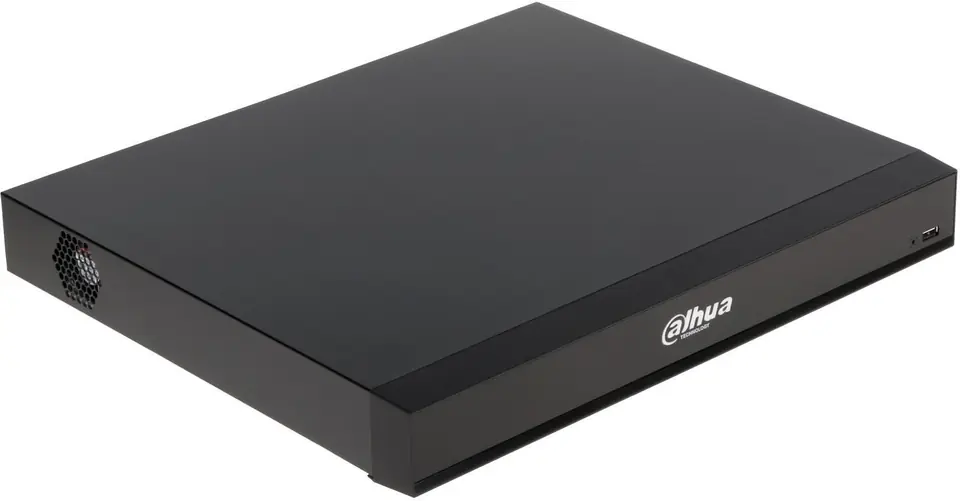

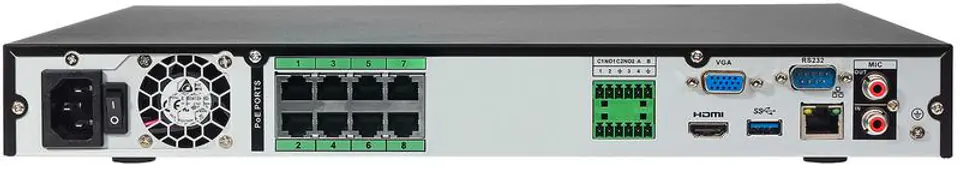

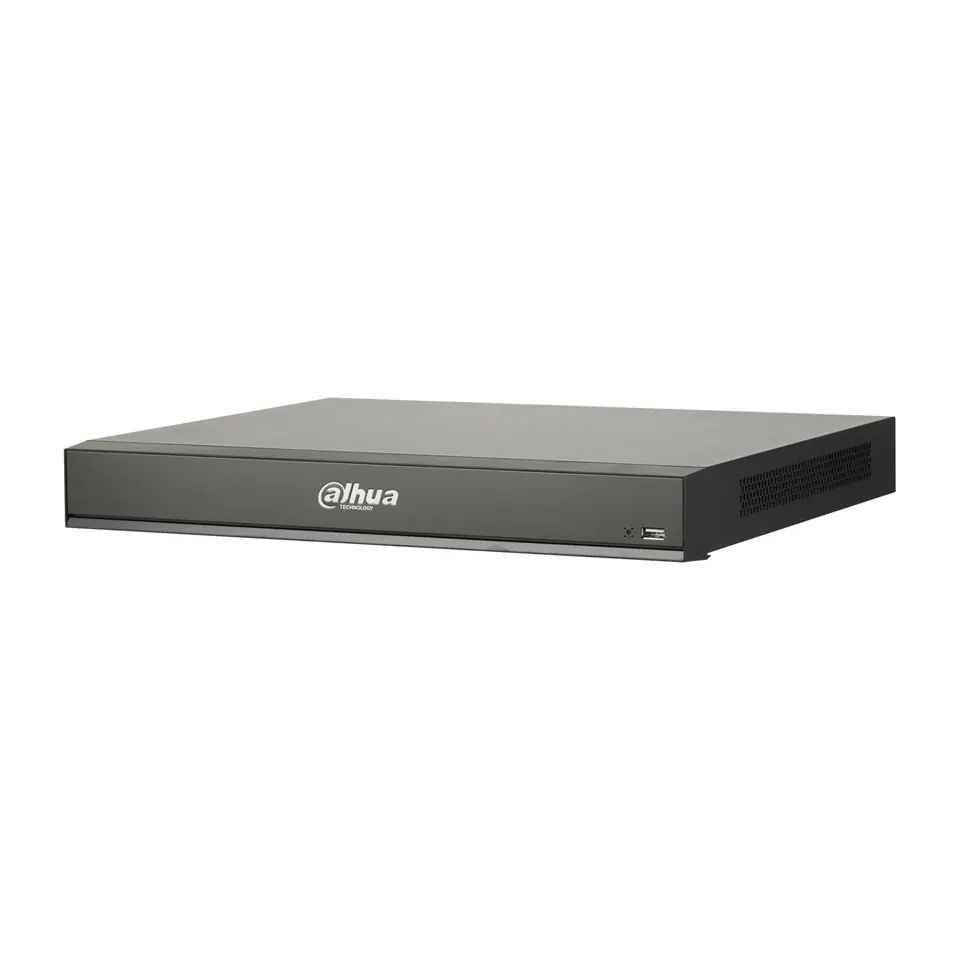

IP RECORDER NVR5216-8P-I (16 CHANNELS, 8 POE DAHUA)
€1,004.45
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Dahua
- Product code:
- NVR5216-8P-I / 6939554926204
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100 - 240 V |
| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app Watch the video on how to set up P2P in Dahua DVRs and how to enable the mobile app |
| Alarm input channels: | 4 |
| Alarm inputs / outputs:: | 4 / 2 |
| Archiving on external media:: | Backup to USB drive (pendrive, external drive) |
| Audio inputs:: | 1 pc. CINCH |
| Audio outputs:: | 1 pc. CINCH |
| Audio support:: | 16 Channels - Audio from cameras |
| Backup function: | Yes |
| Bitrate:: | Max. 320 Mbps |
| Country of origin:: | China |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |
| Depth: | 327.4 mm |
| Dimensions:: | 375 x 327 x 53 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 1000 Mbit/s, 10 |
| Face detection: | Yes |
| Hdd interface: | Serial ATA III |
| Hdmi ports quantity: | 1 |
| Height: | 53 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Manufacturer / brand:: | DAHUA |
| Maximum resolution: | 3840 x 2160 pixels |
| Motion detection:: | 22 x 18 detection fields - when motion is detected, only the camera with detection is recorded |
| Multi-screen: | Yes |
| Network features:: | Full network support, Remote copying of recordings, Built-in web servermax. 128 users on-line |
| Network protocols:: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, ONVIF 2.4 |
| Networking standards: | IEEE 802.3at, IEEE 802.3af |
| Number of hdds supported: | 2 |
| Number of users: | 128 user(s) |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Package weight: | 4 kg |
| Poe switch:: | Built-in 8-port PoE switch, 25.5 W / Channel, PoE (802.3af/at), max. 130 W (total) ePoE - 800 m : Ports 1 ... 8 |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power consumption (typical): | 15.6 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 8 |
| Power over ethernet (poe) power per port: | 25.5 W |
| Power:: | 100 ... 240 V AC @ 50 / 60 Hz |
| Product colour: | Black |
| Ptz rotary heads control:: | RS-485, PELCO-D/P PTZ IP Cameras (Speed Dome) |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Recording modes: | Manual |
| Recording modes:: | Manual, alarm, motion detection, scheduler |
| Rs-232 interface: | Yes |
| Rs-232 ports: | 1 |
| Rs-485 ports: | 1 |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Scales:: | 2.70 kg |
| Searching and playing recordings:: | Search for recordings by time and type of events. Playback: forward, backward, accelerate, slow down recordingAdvanced search (to the second)Synchronous playback of all channels, Smart Search function |
| Selected features:: | Advanced perimeter protection features: intrusion, line crossing with separate rules for vehicles and pedestrians, Support for devices with ANPR vehicle identification and facial recognition, Recognition of the type of object observed (human, vehicle), Real-time facial recognition and analysis (max. 22 photos per second) : Comparison of faces with images from the database Face analysis: determination of gender, age and characteristic elements of appearance (glasses, facial hair, mask) Real-time search of people based on the provided secondary information in the range of features corresponding to the features recognized by artificial intelligence Face databases can be used globally or locally for one video channel - depending on the need In the database, in addition to facial photography, information such as: name, gender, date of birth, nationality, address, ID number Recognition of people based on characteristic elements of the outfit may also be stored in the database. (type of clothes, color of clothes, accessories) Recognition of cars based on color, body type, color of license plates and brand Recognition of other non-car vehicles Intelligent search of an object based on a photo - the recorder allows you to load a photo of a person or vehicle to search for it on a recording from POS cameras - cooperation with devices installed at points of sale and display data from them in the form of superimposed text in the selected channel windowSMD PLUS - object search classified as: human, motor vehicle, motorized vehicleInterface RS-232 |
| Standard:: | TCP/IP |
| Storage temperature (t-t): | 0 - 40 °C |
| Supported hard drives:: | 2 x 10 TB SATA III |
| Supported languages:: | Polish, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Slovenian, Serbian, Spanish, Swedish |
| Supported resolutions:: | Max. 16 Mpx |
| Total power over ethernet (poe) budget: | 130 W |
| Two-way talk: | Yes |
| Usb 2.0 ports quantity: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Usb:: | 1 pc. USB 2.01 pcs. USB 3.0 |
| Vga (d-sub) output ports: | 1 |
| Video formats supported: | H.265+, H.265, M-JPEG, H.264+, H.264 |
| Video input channels: | 16 channels |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video outputs:: | 1 pc. HDMI 4K1 pcs. VGA - Ability to configure the SPOT function on one of the video outputs1 pcs. |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Weight: | 2.7 kg |
| Width: | 375 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
