Network recorder equipped with advanced intelligent image analysis functions

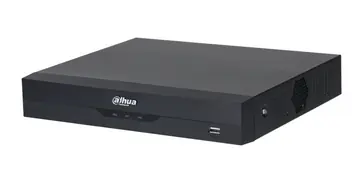

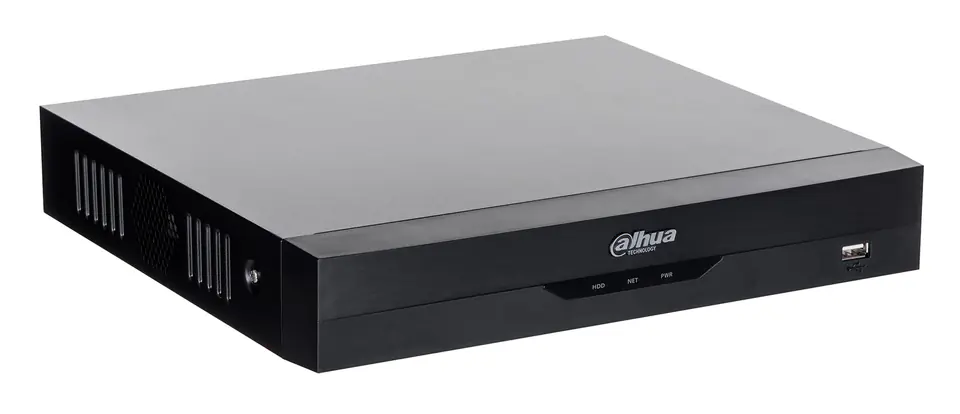

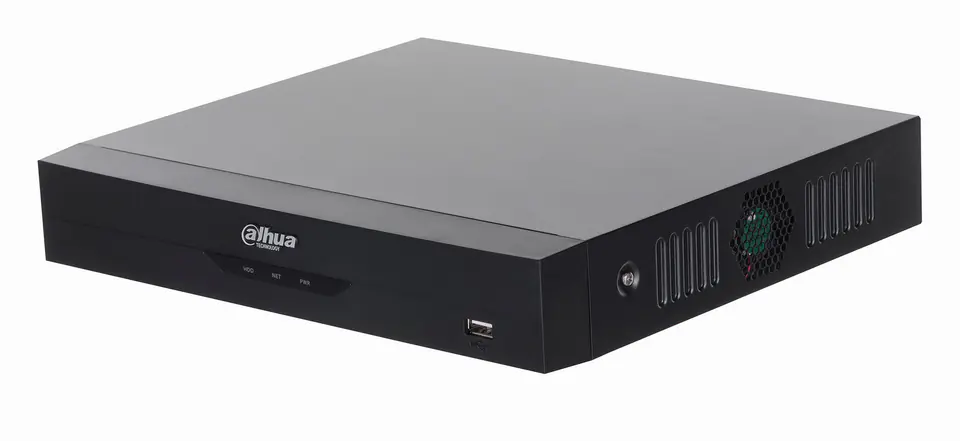

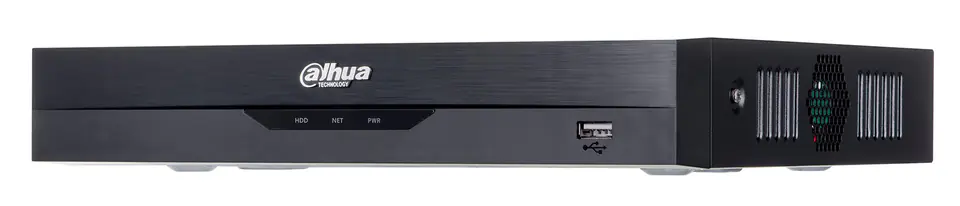

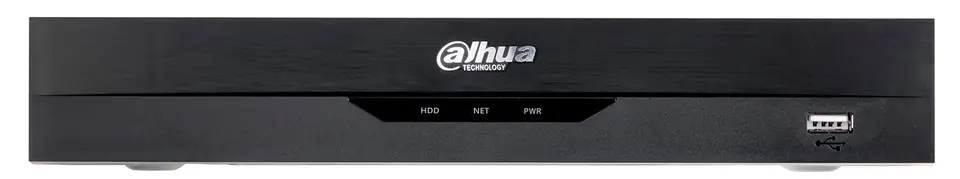

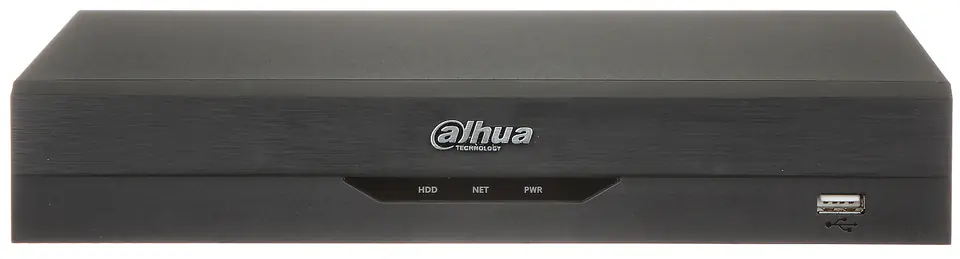

IP RECORDER NVR2108HS-I2 (8 CHANNELS DAHUA)
€133.08
Shipping from warehouse: D4
Estimated shipping: Thu, Jan 23 - Mon, Jan 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- NVR2108HS-I2 / 6923172505026
Share this product:
Specification
| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app Watch the video on how to set up P2P in Dahua DVRs and how to enable the mobile app |
|---|---|

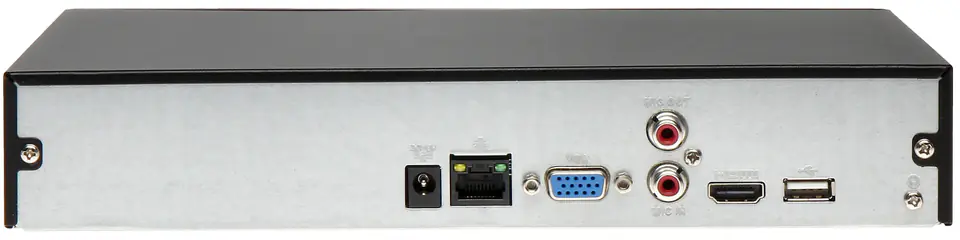

| Archiving on external media:: | Backup to USB drive (pendrive, external drive) |
| Audio codecs: | G.711a, G.711Mu, G726 |
| Audio inputs:: | 1 pc. CINCH |
| Audio outputs:: | 1 pc. CINCH |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Audio support:: | 8 Channels - Audio from cameras |
| Bitrate:: | Max. 80 Mbps |
| Built-in processor: | Yes |
| Current: | 1.5 A |

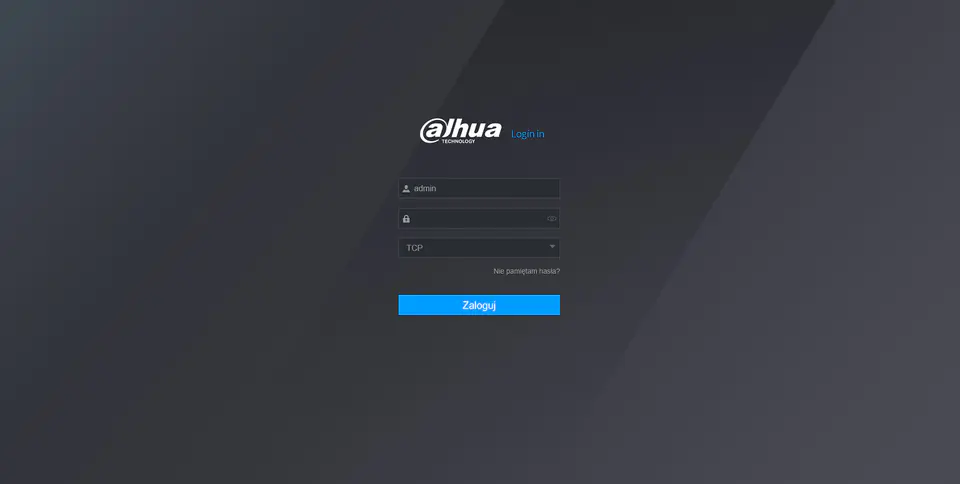

| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |
| Depth: | 232.7 mm |
| Dimensions:: | 260 x 233 x 48 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 10 |
| Hdd interface: | Serial ATA |
| Hdmi ports quantity: | 1 |
| Height: | 47.6 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Manufacturer / brand:: | DAHUA |
| Maximum resolution: | 4000 x 3000 pixels |
| Maximum storage capacity: | 10 TB |
| Motion detection:: | 22 x 18 detection fields - when motion is detected, only the camera with detection is recorded |
| Multi-screen: | Yes |
| Network features:: | Full network support, Remote copying of recordings, Built-in web server |
| Network protocols:: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, P2P, ONVIF |
| Number of hdds supported: | 1 |
| Operating relative humidity (h-h): | 10 - 93% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Package depth: | 315 mm |
| Package height: | 89 mm |
| Package width: | 333 mm |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power consumption (typical): | 10 W |
| Power supply voltage: | 12 V |

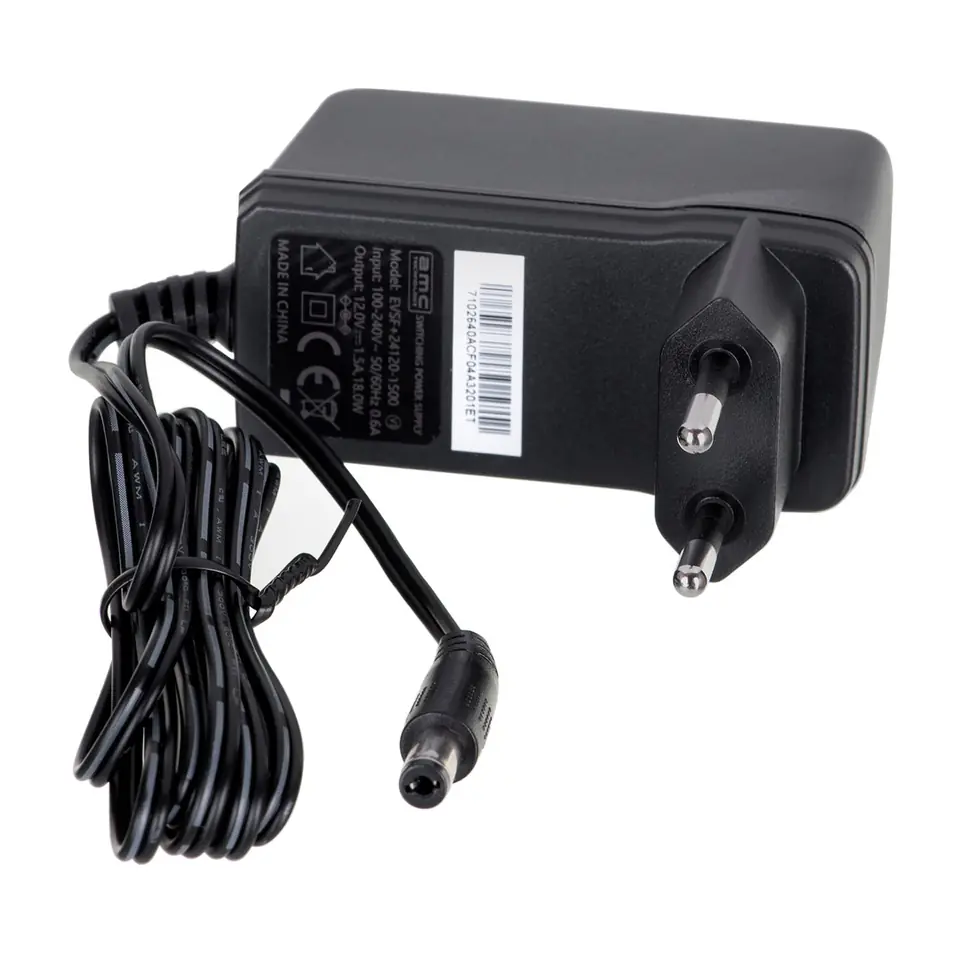

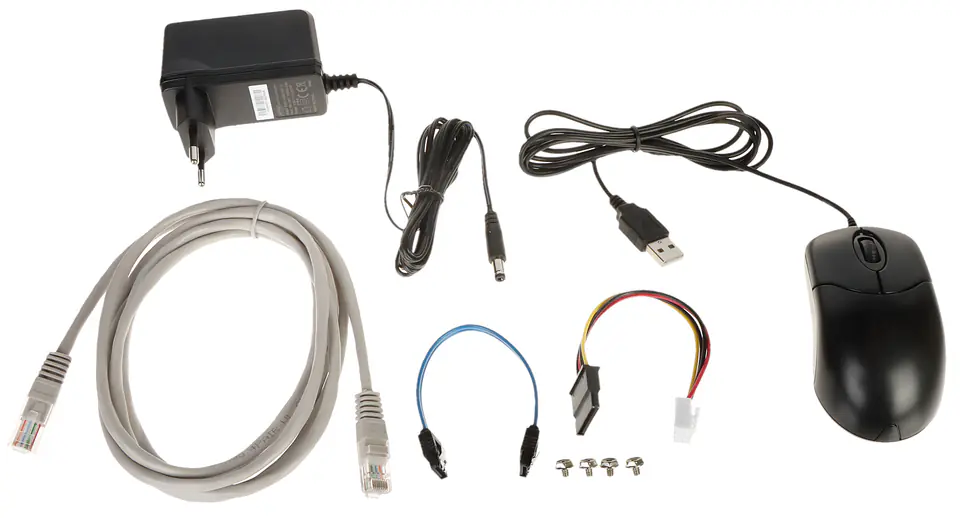

| Power:: | 12 V DC / 1.5 A (power supply included) |
| Product colour: | Black |
| Ptz rotary heads control:: | PTZ IP Cameras (Speed Dome) |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Recording modes:: | Manual, alarm, motion detection, scheduler |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Scales:: | 0.83 kg |
| Searching and playing recordings:: | Search for recordings by time and type of events. Playback: forward, backward, accelerate, slow down recordingAdvanced search (to the second)Synchronous playback of all channels, Smart Search function |
| Selected features:: | Advanced perimeter protection features: intrusion, line crossing with separate rules for vehicles and pedestrians, classification of people and vehicles, Real-time facial recognition and analysis (max. 12 photos per second) : Comparison of faces with images from the database Face analysis: determination of gender, age and characteristic elements of appearance (glasses, facial hair, mask) Real-time search of people based on provided side information in the field of Support for up to 10 face databases, including 5000 face photos Face databases can be used globally or locally for one video channel - depending on the need In the database, in addition to face photography, information such as: name, gender, date of birth, nationality, address, SMD PLUS ID number - search for an object classified as: man, motor vehicle, motorized vehicle |
| Snapshot: | Yes |
| Standard:: | TCP/IP |
| Supported hard drives:: | 1 x 10 TB SATA III |
| Supported languages:: | Polish, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Slovenian, Serbian, Spanish, Swedish |
| Supported resolutions:: | Max. 12 Mpx |
| Syslog: | Yes |
| Usb 2.0 ports quantity: | 2 |
| Usb:: | 2 pcs. USB 2.0 |
| Vga (d-sub) output ports: | 1 |
| Video codecs: | H.264,H.264+,H.265,H.265+,M-JPEG |
| Video input channels: | 8 channels |
| Video loss detection: | Yes |
| Video motion detection: | Yes |
| Video outputs:: | 1 pc. HDMI 4K1 pcs. VGA |
| Video recording modes: | 1080p, 4K, 720p, 2.7K |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Weight: | 810 g |
| Wi-fi: | No |
| Width: | 260 mm |
