| Alarm input channels: | 4 |
|---|---|
| Alarm output channels: | 1 |
| Audio formats supported: | G.722, G.711 A-law, G.711 μ-law, AAC, G.726 |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Built-in display: | No |
| Depth: | 315 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100, 1000 Mbit/s |
| Face detection: | Yes |
| Hdd capacity: | 10 TB |
| Hdd interface: | SATA |
| Hdmi output: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 52 mm |
| Input bandwidth: | 160 Mbit/s |
| Internal sata ports quantity: | 2 |
| Maximum frame rate: | 30 fps |
| Maximum resolution: | 3840 x 2160 pixels |
| Maximum storage capacity: | 20 TB |
| Number of hdds supported: | 2 |
| Number of simultaneously playbacked channels: | 16 channels |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -10 - 55 °C |
| Output bandwidth: | 160 Mbit/s |
| Output current: | 3.3 A |
| Output voltage: | 12 V |
| Power consumption (typical): | 15 W |
| Power over ethernet (poe): | Yes |
| Product colour: | Black |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Supported network protocols: | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Sustainability certificates: | Federal Communications Commission (FCC), CE |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video formats supported: | H.265+, H.265, H.264+, H.264 |
| Video input channels: | 16 channels |
| Weight: | 1 kg |
| Wi-fi: | No |
| Width: | 385 mm |

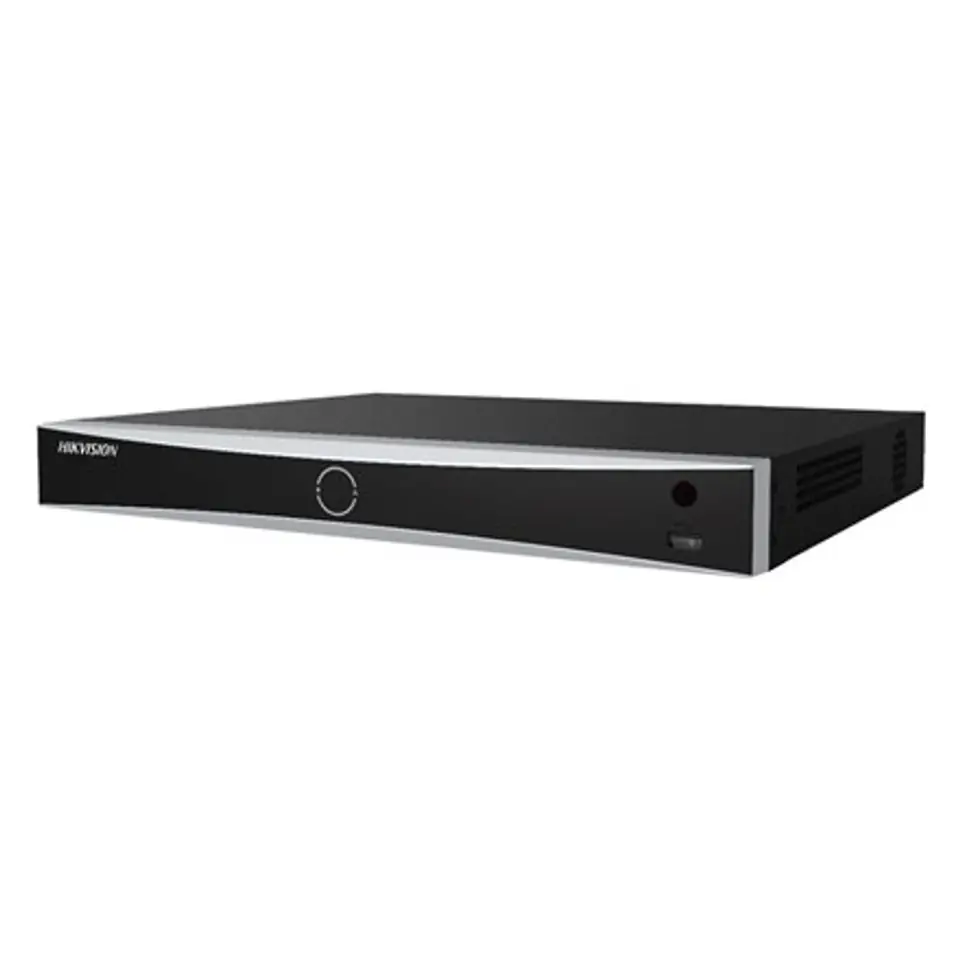

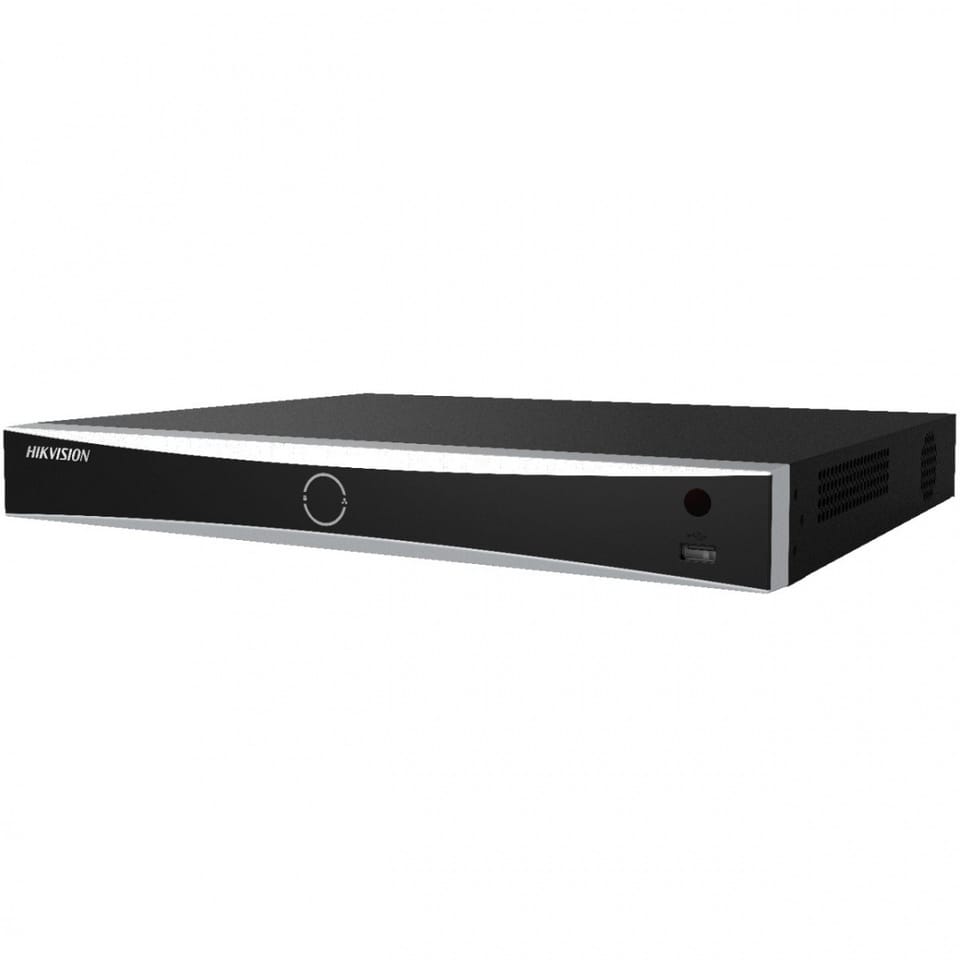

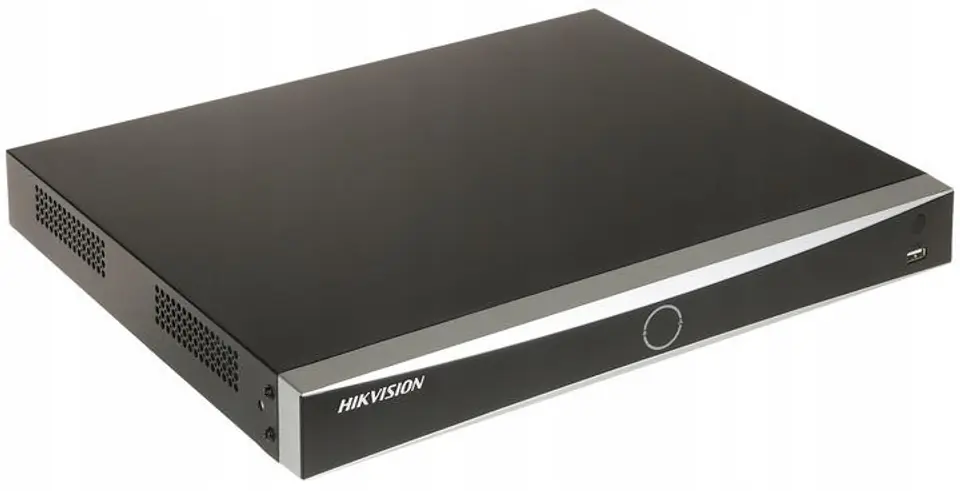

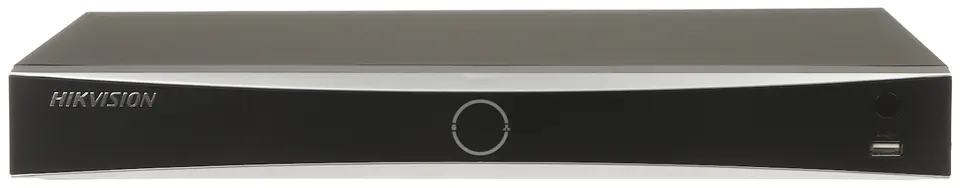

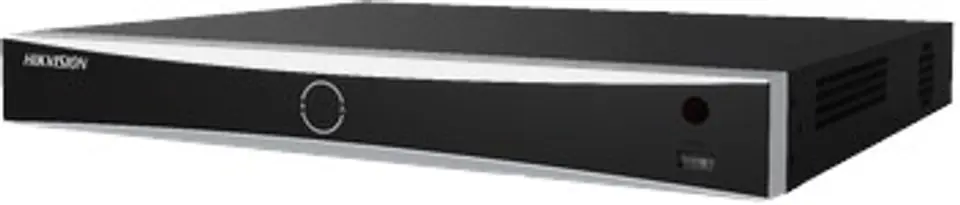

16-channel 1U K-Series AcuSense 4K NVR
