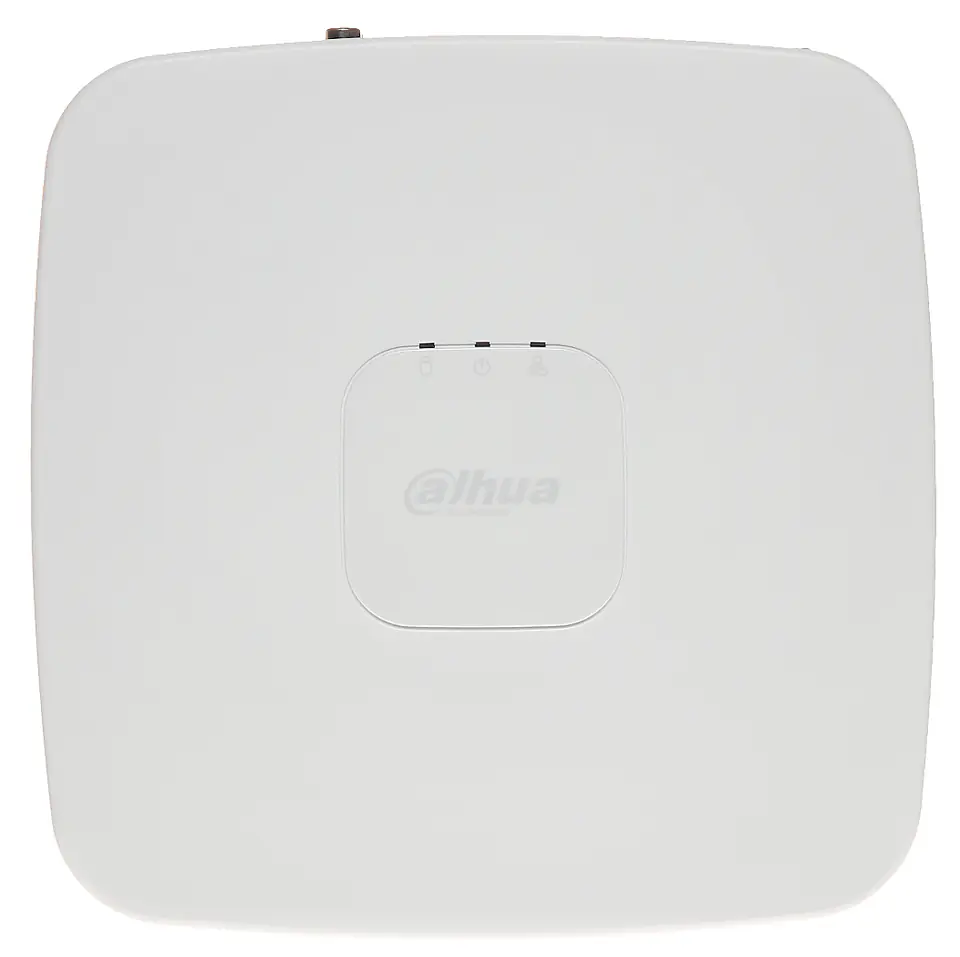

IP NVR2104-P-S3 (4CH), 4CH D&P
€108.39
Shipping from warehouse: D4
Estimated shipping: Mon, Dec 2 - Tue, Dec 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- NVR2104-P-S3 / 6923172533210
Share this product:
Specification
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
|---|---|
| Audio codecs: | PCM; G711A; G711U; G726 |
| Audio formats supported: | G.711 μ-law, PCM, G.711 A-law, G.726 |
| Audio inputs: | 1 pc CINCH |
| Audio outputs: | 1 pc CINCH |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Audio support: | 4 channels - Audio from cameras |
| Backup function: | Yes |
| Bitrate: | .max. 80 Mbps |
| Browser supported: | Chrome; IE9 or later; Firefox |
| Built-in processor: | Yes |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Depth: | 206.4 mm |
| Dimensions: | 205 x 206 x 46 mm |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 100, 10 |
| Hdd interface: | SATA |
| Hdmi output: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 45.6 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Input bandwidth: | 80 Mbit/s |
| Led indicators: | Yes |
| Maximum frame rate: | 30 fps |
| Maximum storage capacity: | 16 TB |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | Android, iOS |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
| Multi-screen: | Yes |
| Network features: | Full network support, Remote copying of recordings, Built-in web server |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search, P2P, ONVIF |
| Number of hdds installed: | 1 |
| Operating relative humidity (h-h): | 10 - 93% |
| Operating system installed: | Embedded LINUX |
| Operating temperature (t-t): | -10 - 55 °C |
| Output bandwidth: | 60 Mbit/s |
| Output current: | 1.25 A |
| Output voltage: | 48/53 V |
| Package depth: | 364 mm |
| Package height: | 261 mm |
| Package weight: | 1.37 kg |
| Package width: | 96 mm |
| Pc app access ports: | 37777 |
| Playback modes: | Pause, Play, Stop |
| Power: | 53 V DC / 1.22 A (power adapter included) |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) ports quantity: | 4 |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Recording modes: | Manual, motion detection, scheduling |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.48 kg |
| Search and play back recordings: | Search for recordings by time and type of events. Playback: forward, backward, accelerate, slow downframe by frame |
| Selected features: | The functions are performed in cooperation of the recorder with cameras supporting these functions Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians, SMD PLUS - search for an object classified as: human, motor vehicle, non-motor vehicle, Privacy zones |
| Standard: | TCP/IP |
| Supported hard drives: | 1 x 16 TB SATA III |
| Supported languages: | Polish, English |
| Supported resolutions: | .max. 12 MP |
| Switch poe: | Built-in 4-port PoE switch, 25.5 W/Channel-PoE (802.3af/at), max. 36 W (total) |
| Usb: | 2 pcs. USB 2.0 |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video codecs: | Smart H.265; H.265; Smart H.264; H.264 |
| Video input channels: | 4 channels |
| Video motion detection: | Yes |
| Video outputs: | 1 pc HDMI1 pcs. VGA |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Weight: | 480 g |
| Width: | 204.6 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
