Hikvision NVR network recorders are devices used to support professional security systems. They are designed for high operational reliability and an easy-to-use system, yet containing many advanced functions. The recorder's menu allows you to manage it and the entire monitoring system. Advanced functionalities such as detection systems, content analysis and the ability to set privacy zones allow you to create a perfectly tailored system. Motion detection can only record when an intruder appears in the area or trigger various alarms, such as e-mail notification or triggering an alarm output. Setting privacy zones will allow you to exclude from the preview areas that could violate the privacy of others (for example, windows of other buildings).

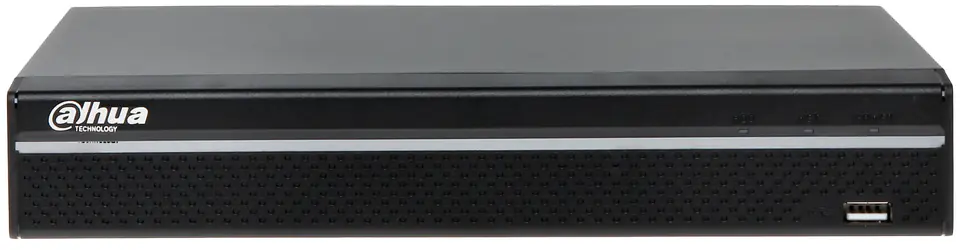

IP DVR: NVR2104HS-S3 (4 CHANNELS) DAHUA
€77.17
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- NVR2104HS-S3 / 6923172533180
Share this product:
Specification
| Ac adapter included: | Yes |
|---|---|
| Analog signal format system: | PAL, NTSC |
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
| Audio formats supported: | G.711a, PCM, G.711u, G.726 |
| Audio input: | 1 |
| Audio inputs: | 1 pc CINCH |
| Audio output: | 1 |
| Audio outputs: | 1 pc CINCH |
| Audio support: | Yes |
| Audio support: | 4 channels - Audio from cameras |
| Backup function: | Yes |
| Bitrate: | .max. 80 Mbps |
| Built-in memory: | No |
| Cables included: | AC |
| Channels quantity: | 4 channels |
| Dc voltage: | 12 V |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Depth: | 232.7 mm |
| Digital zoom: | Yes |
| Dimensions: | 260 x 233 x 48 mm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |

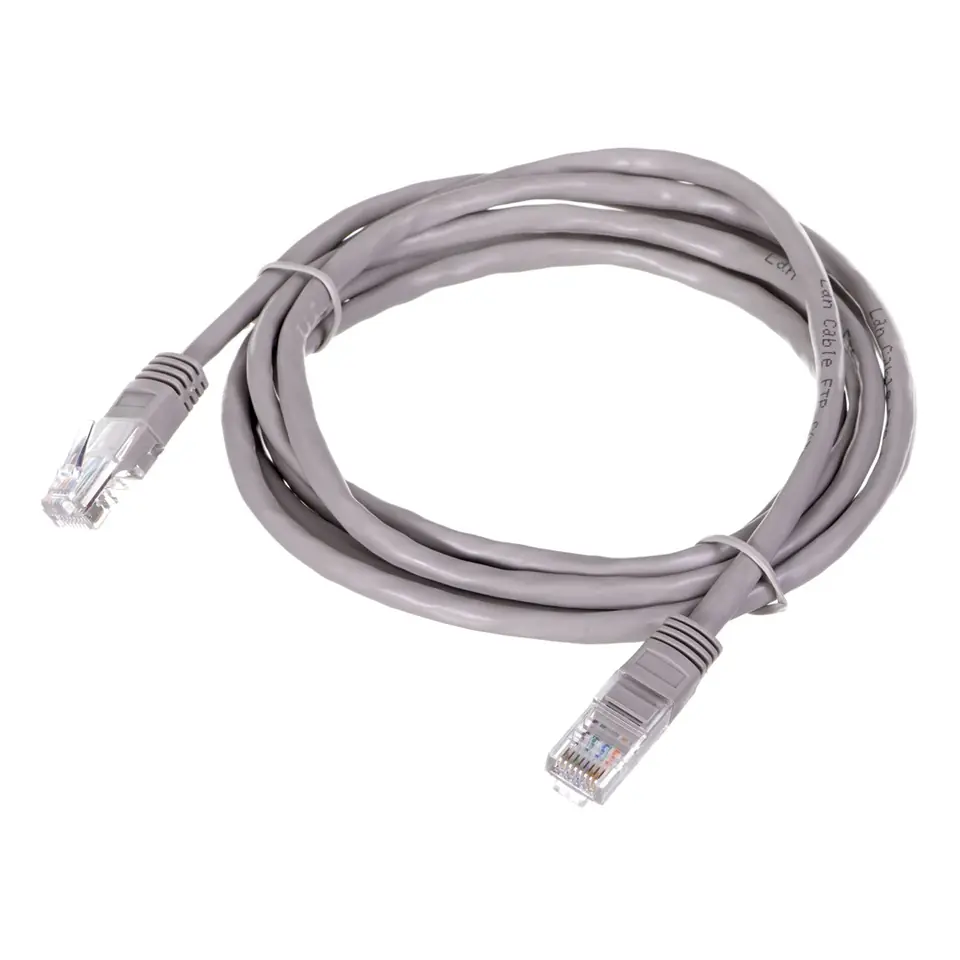

| Ethernet lan (rj-45) ports: | 1 |

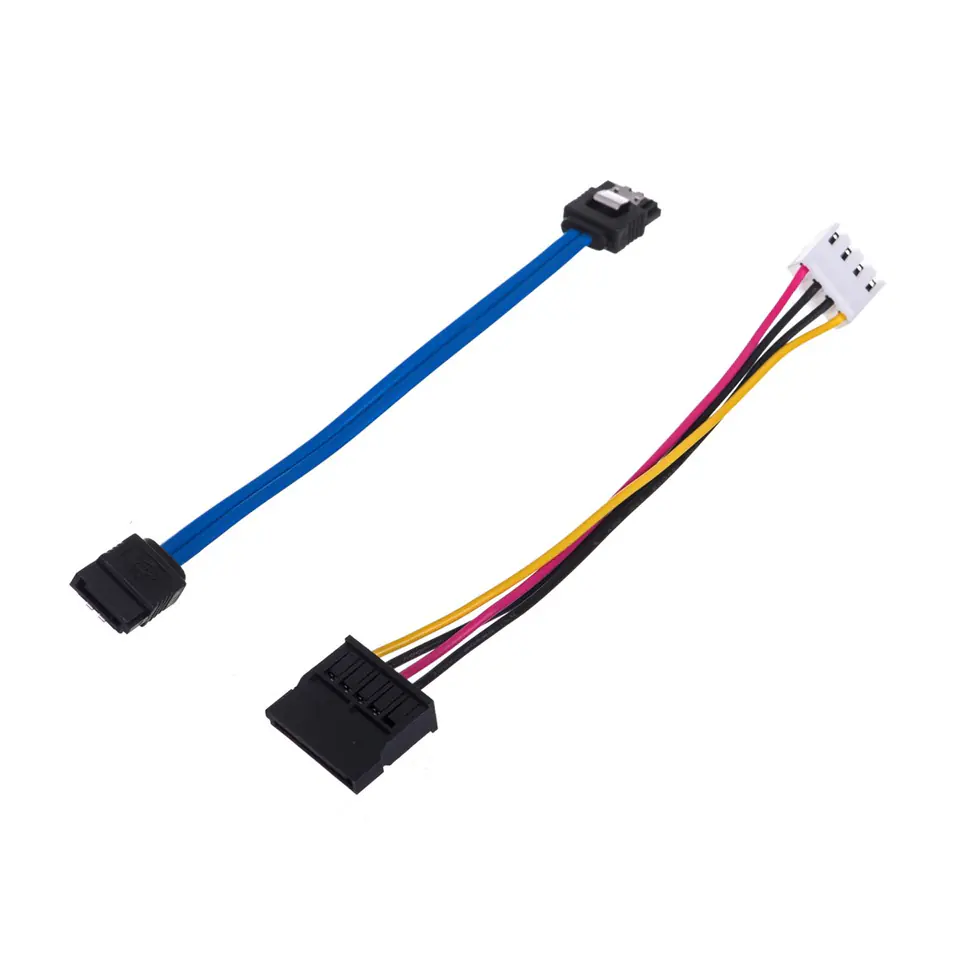

| Hdd interface: | SATA |
| Hdmi ports quantity: | 1 |
| Height: | 47.6 mm |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Maximum hdd capacity: | 16 TB |
| Maximum resolution of supported cameras: | 12 Mpix |
| Maximum video resolution: | 4000 x 3000 pixels |
| Mobile app access port: | 37777 |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
| Mounting kit: | Yes |
| Network features: | Full network support, Remote copying of recordings, Built-in web server |
| Network protocols: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, Alarm Server, IP Search, P2P, ONVIF |
| Number of hdds supported: | 1 |
| Number of users: | 128 user(s) |
| Onvif standard: | Yes |
| Operating temperature (t-t): | -10 - 55 °C |
| P2p: | Y |
| Package depth: | 315 mm |
| Package height: | 89 mm |
| Package weight: | 1.33 kg |
| Package width: | 333 mm |
| Pc app access ports: | 37777 |
| Playback modes: | Shuffle, Slow, Pause, Fast, Stop, Repeat, Zoom, Next, Play, Previous |

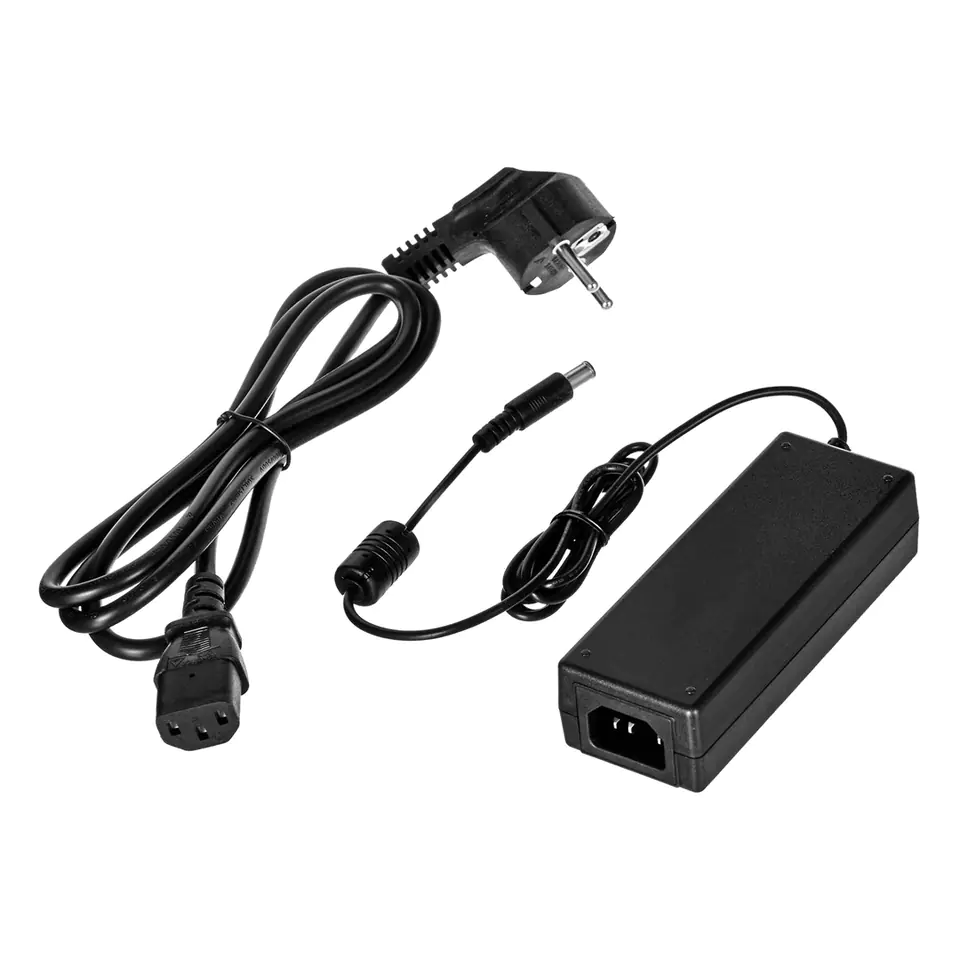

| Power: | 12 V DC / 1.5 A (power adapter included) |
| Power consumption (typical): | 10 W (max) |
| Power supply type: | DC |
| Privacy masking: | Yes |
| Producer / brand: | DAHUA |
| Product colour: | Black |
| Ptz control: | Yes |
| Ptz rotary head control: | IP PTZ control |

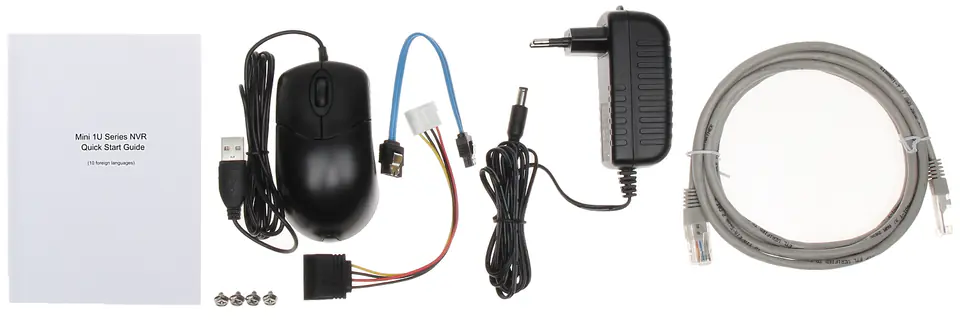

| Quick start guide: | Yes |
| Rack capacity: | 1U |
| Recording modes: | Manual, motion detection, scheduling |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.81 kg |
| Search and play back recordings: | Search for recordings by time and type of events. Playback: forward, backward, accelerate, slow downTime-lapse playback ("frame by frame")Channels played simultaneously: 1 @ 12 Mpx, 30 fps1 @ 8 Mpx, 30 fps 2 @ 5 Mpx, 30 fps @ 4 Mpx, 30 fps 6 @ 1080p, 30 fps |
| Selected features: | The functions are performed in cooperation of the recorder with cameras supporting these functions Advanced perimeter protection functions: intrusion, line crossing with separate rules for vehicles and pedestrians, classification of people and vehicles, SMD PLUS - search for an object classified as: human, motor vehicle Motion detection Privacy zones |
| Smd plus: | Yes |
| Standard: | TCP/IP |
| Storage temperature (t-t): | 10 - 93 °C |
| Supported hard drives: | 1 x 16 TB SATA |
| Supported languages: | Polish, English |
| Supported network protocols: | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search |
| Supported resolutions: | .max. 12 Mpx - 4000 x 3000 px, |
| Two-way talk: | Yes |
| Usb: | 2 pcs. USB 2.0 |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video compression formats: | H.264, H.265 |
| Video in: | HDCVI/AHD/TVI/CVBS/IP |
| Video motion detection: | Yes |
| Video outputs: | 1 pc HDMI1 pcs. VGA |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Weight: | 810 g |
| Width: | 260 mm |
