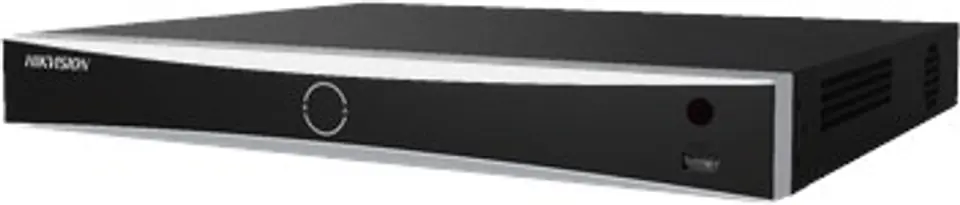

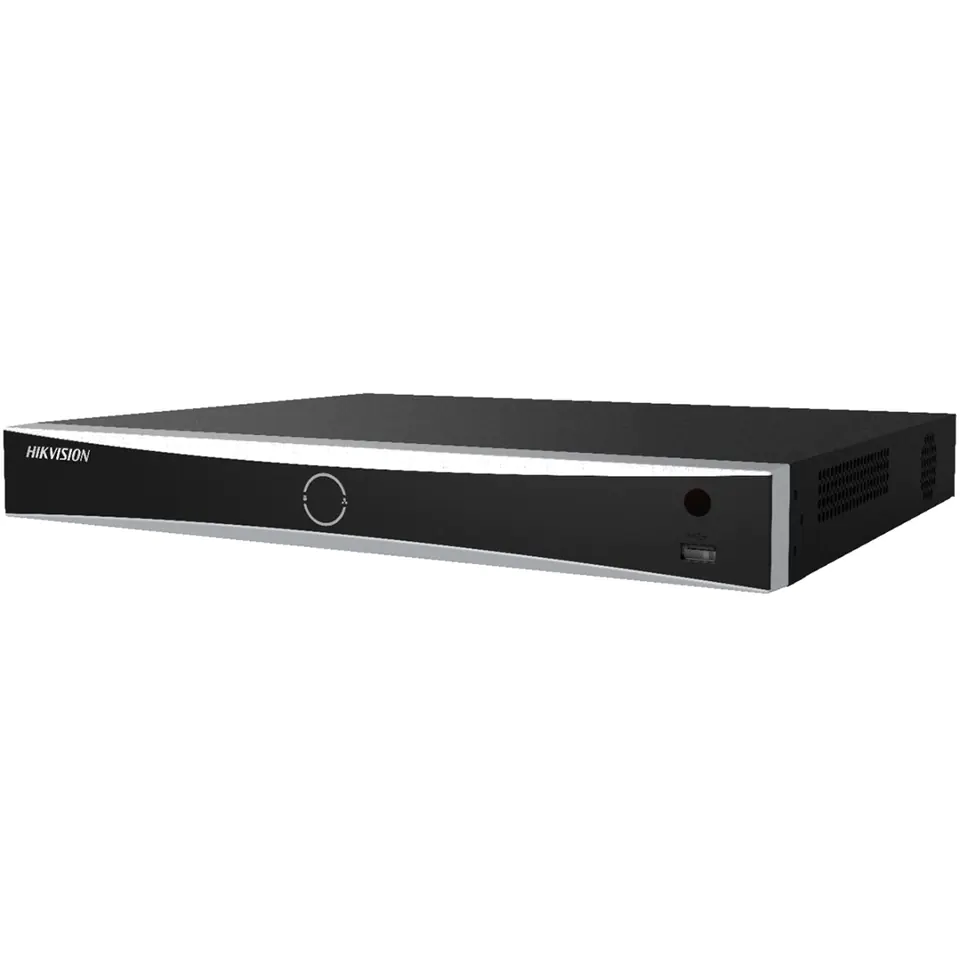

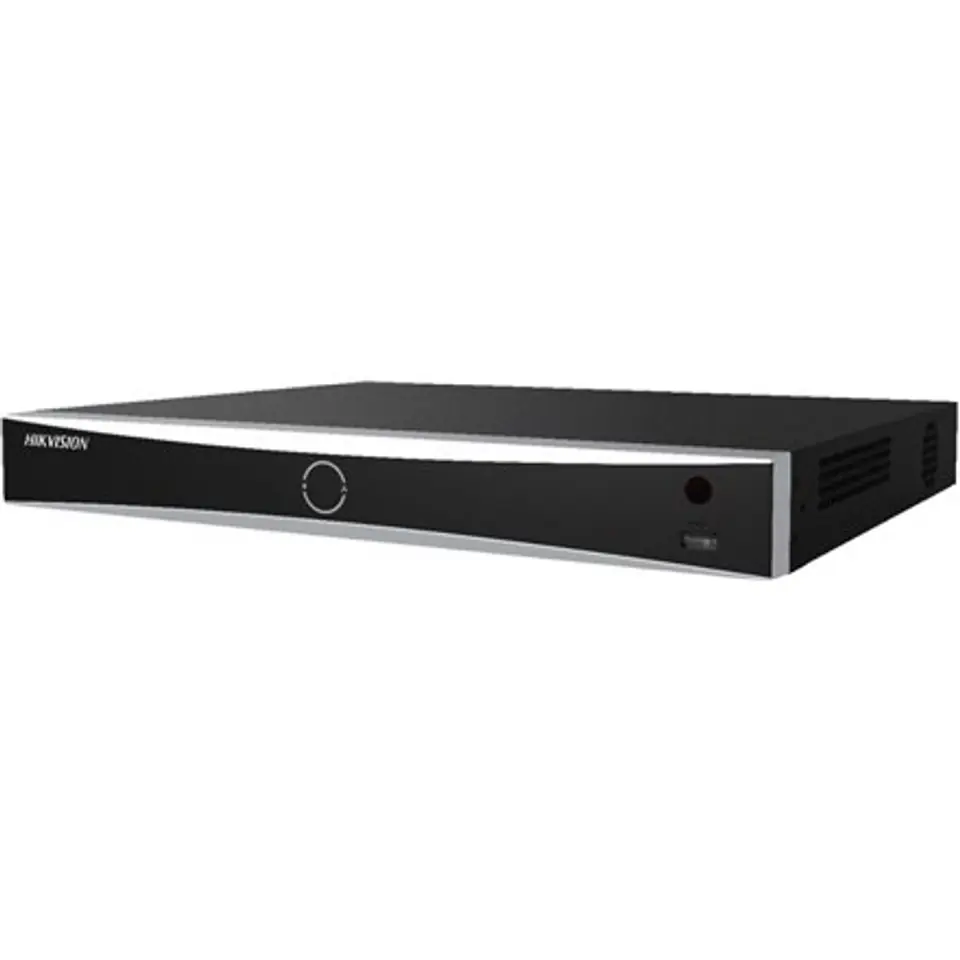

Network recorder with advanced intelligent video analysis

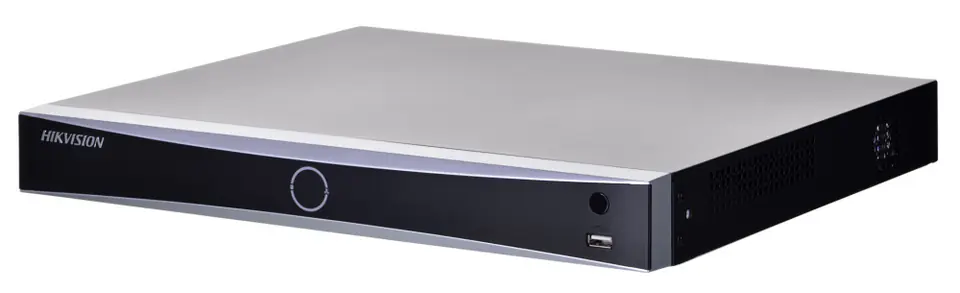

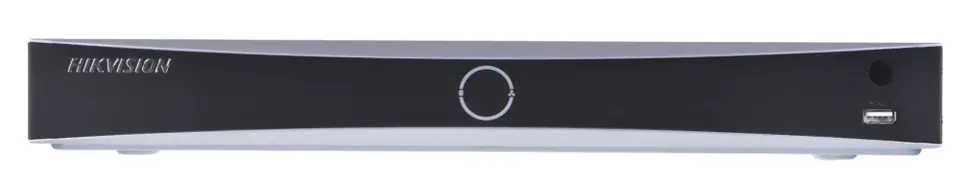

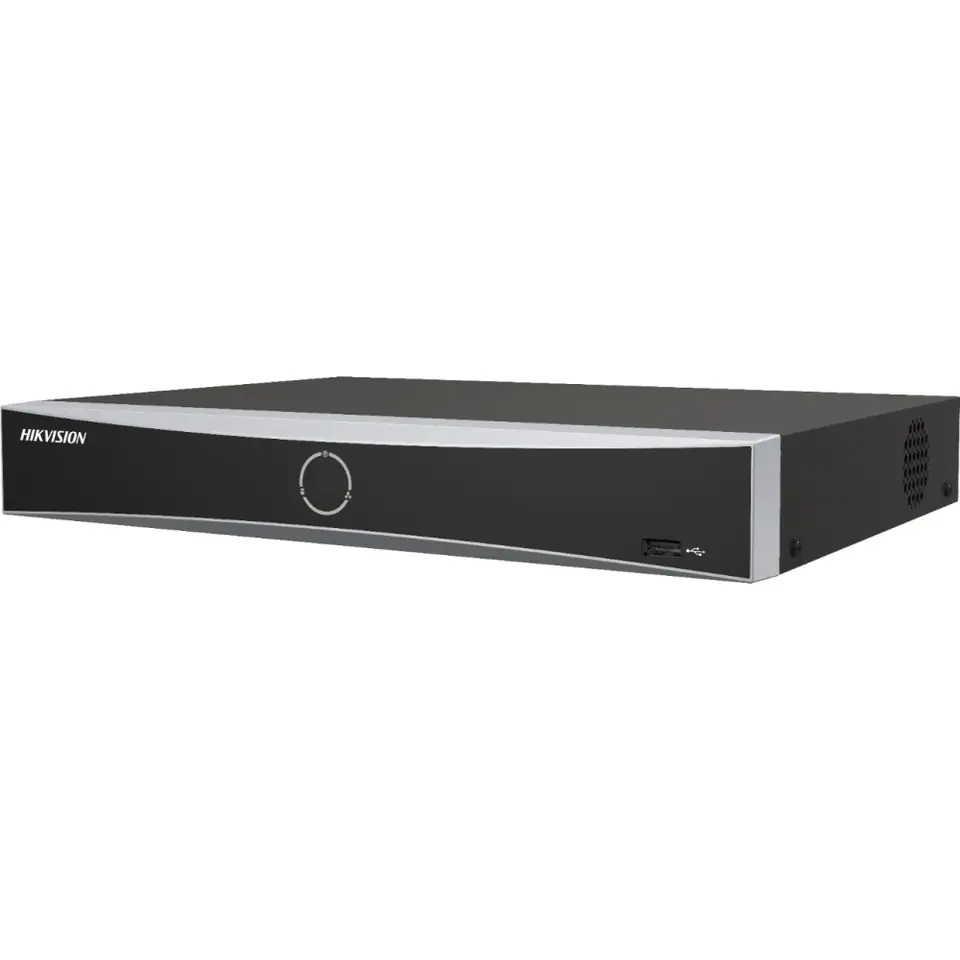

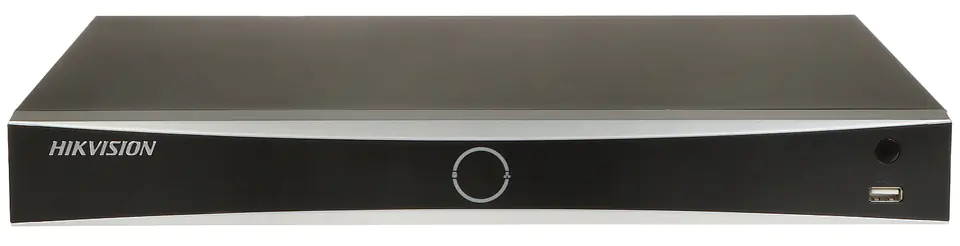

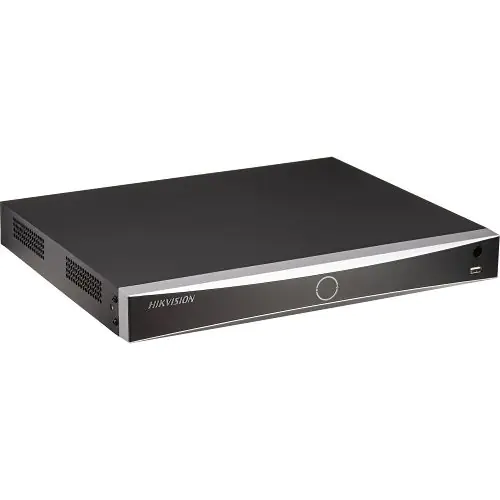

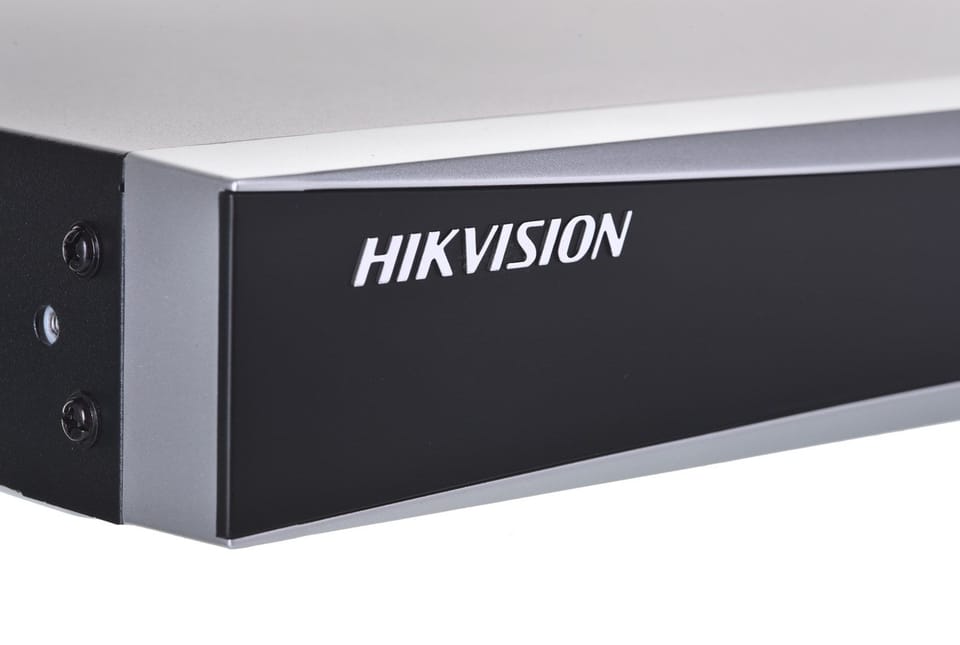

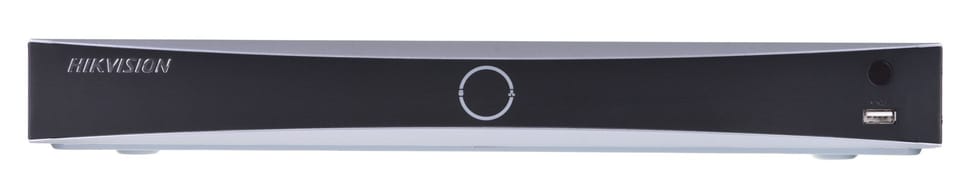

IP DVR DS-7608NXI-K2 (8 CHANNELS: Hikvision) ACUSENSE
€170.48
Shipping from warehouse: H7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- 303616117 / 6931847175191
Share this product:
Specification
| Alarm input channels: | 4 |
|---|---|
| Alarm inputs / outputs: | 4 / 1 |
| Alarm output channels: | 1 |
| Archiving on external media: | Archiving to a USB drive (pendrive, external drive) |
| Audio formats supported: | G.722, AAC, G.726, G.711 μ-law, G.711 A-law |
| Audio inputs: | 1 pc CINCH |
| Audio outputs: | 1 pc CINCH |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Audio support: | Yes |
| Audio support: | 8 Channels - Audio from cameras Two-way audio support |
| Bitrate: | .max. 80 Mbps |
| Dedicated application: | Hik-Connect (Android, iOS) |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.64 |
| Depth: | 315 mm |
| Dfu / user manual: | Y |
| Dimensions: | 385 x 322 x 52 mm |

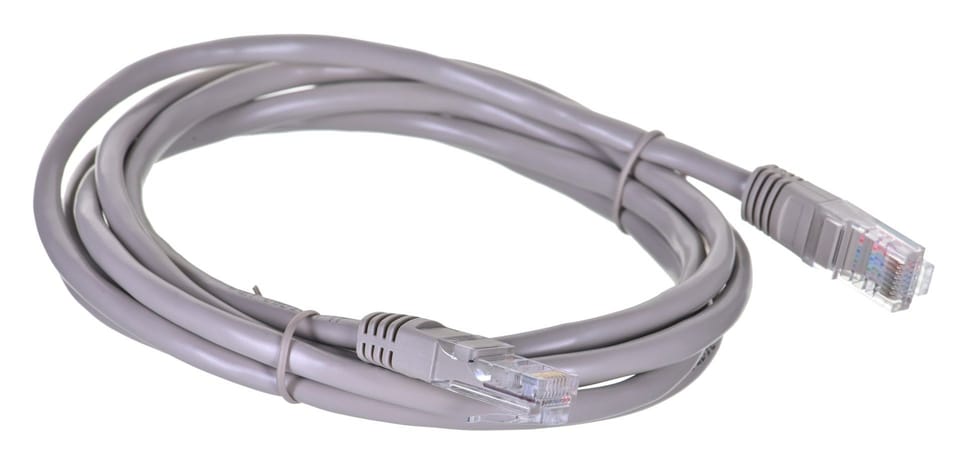

| Ethernet cable: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100, 1000 Mbit/s |
| Face detection: | Yes |
| Face recognition: | Yes |
| Filtering out false alarms: | Yes |
| Hdd capacity: | 10 TB |

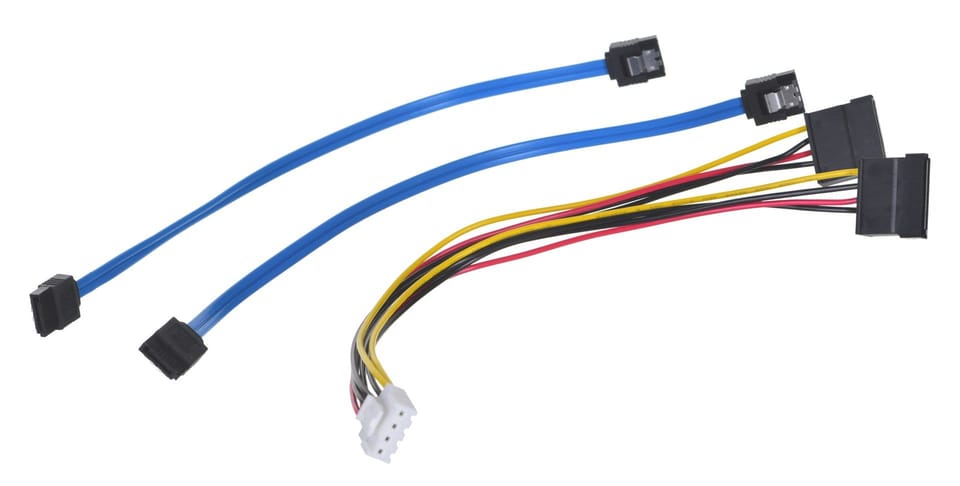

| Hdd interface: | SATA |
| Hdmi output: | Yes |
| Hdmi ports quantity: | 1 |
| Height: | 52 mm |
| Image compression method: | H.265+ / H.265 / H.264 / H.264+ |
| Input bandwidth: | 80 Mbit/s |
| Internal sata ports quantity: | 2 |
| Maximum frame rate: | 30 fps |
| Maximum resolution: | 3840 x 2160 pixels |
| Maximum storage capacity: | 20 TB |
| Mobile app access port: | 8000 |
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
| Motion detection 2.0: | Yes |

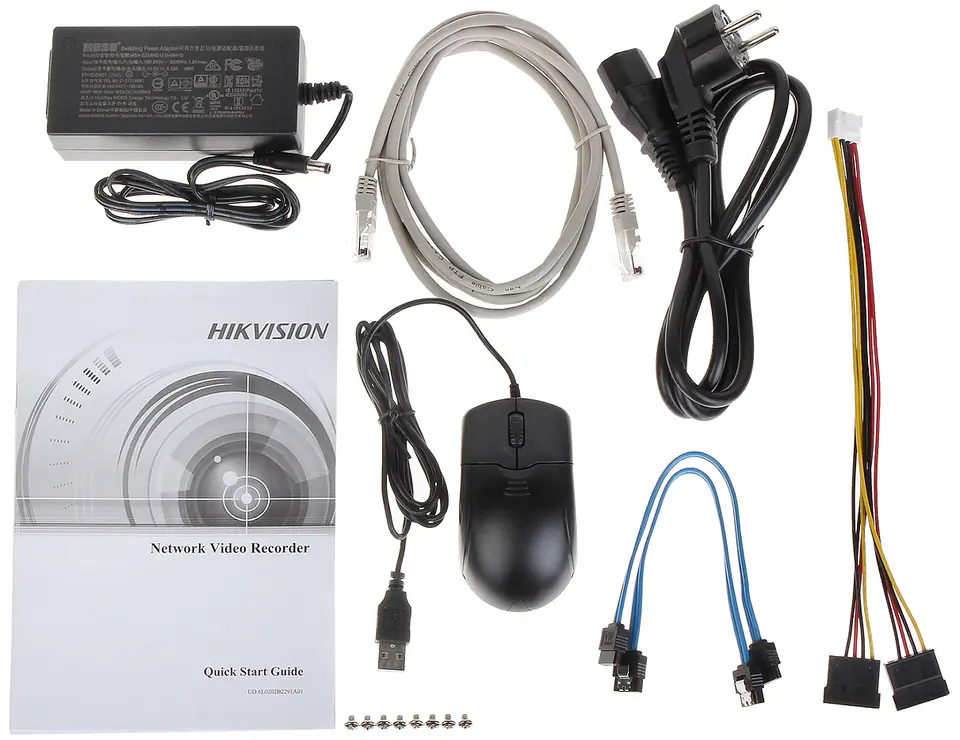

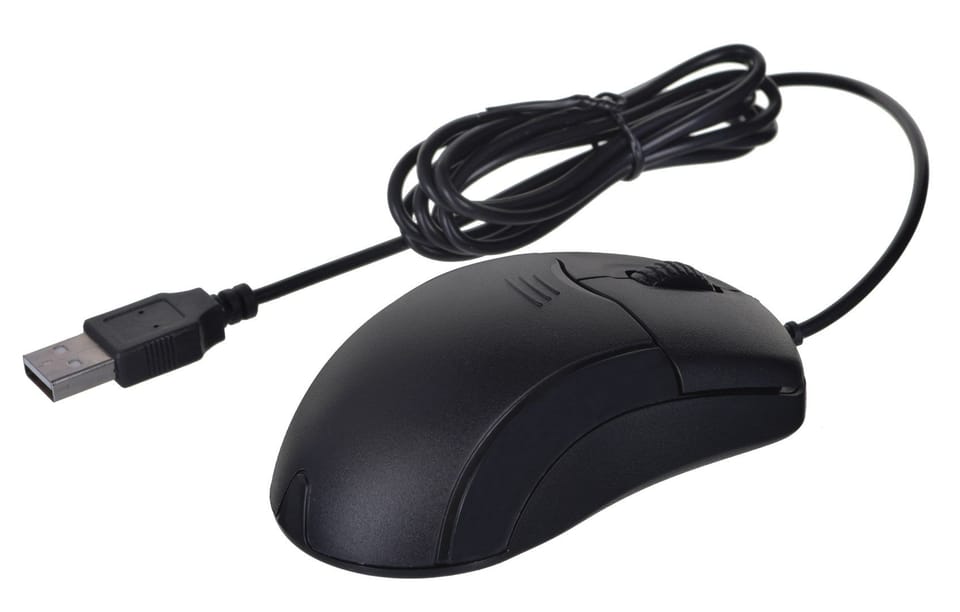

| Mouse included: | Yes |
| Network features: | Live image preview, Playback of recordings, Archiving of recordings max. 128 on-line users - iVMS-4200 application |
| Network protocols: | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF |
| Networking standards: | IEEE 802.3af, IEEE 802.3at |
| Number of hdds supported: | 2 |
| Number of simultaneously playbacked channels: | 8 channels |
| Onvif standard: | Yes |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -10 - 55 °C |
| Output bandwidth: | 160 Mbit/s |
| Output current: | 3.3 A |
| Output voltage: | 12 V |
| Pc app access ports: | 8000 |
| Power: | 12 V DC / 3.3 A (power adapter included) |

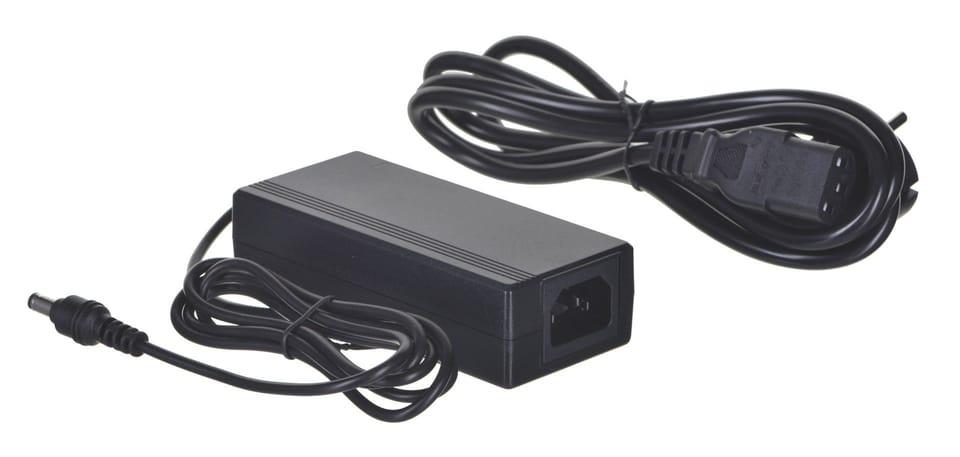

| Power adapter included: | Yes |
| Power consumption (typical): | 15 W |
| Producer / brand: | Hikvision |
| Product colour: | Black |
| Quantity: | 1 |
| Rack capacity: | 1U |
| Rack mounting: | Yes |
| Recording modes: | Manual, alarm, motion detection, scheduling |
| Remote control of ptz cameras: | Yes |
| Rtsp url: | rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału01/ - Main stream rtsp://user:password o@192.168.1.64:554/Streaming/Channels/nrkanału02/ - Auxiliary stream |
| Sap code: | 303616117 |
| Scales: | 1.74 kg |
| Search and play back recordings: | Search for recordings by time and type of events. Playback: forward, backward, accelerate, slow downAdvanced search (up to the second)Synchronous playback of all channels, Smart Search functionSimultaneous playback of recordings up to 8 cameras |
| Selected features: | Intelligent motion detection (distinguishing between people and vehicles) False alarm filtering based on person and vehicle recognition Face detection Comparison of faces with images from the database Supports up to 16 face databases, including 20,000 face photos Intelligent person search based on face photo AcuSense NVR series |
| Standard: | TCP/IP |
| Supported hard drives: | 2 x 10 TB SATA |
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Supported network protocols: | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Supported resolutions: | .max. 12 Mpx - 4000 x 3000 px |
| Sustainability certificates: | CE, Federal Communications Commission (FCC) |
| Usb: | 2 pcs. USB 2.0 |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Video formats supported: | H.264, H.264+, H.265, H.265+ |
| Video input channels: | 8 channels |
| Video outputs: | 1 pc HDMI 4K1 pcs. VGAMability to configure the SPOT function on one of the video outputs |
| Warranty: | 3 years |
| Web access ports: | 80, 8000 |
| Web-based management: | Yes |
| Weight: | 1 kg |
| Wi-fi: | No |
| Width: | 385 mm |
