| Active tampering alarm: | Yes |
|---|
| Adjustment shutter speed: | Auto/Manual |
|---|

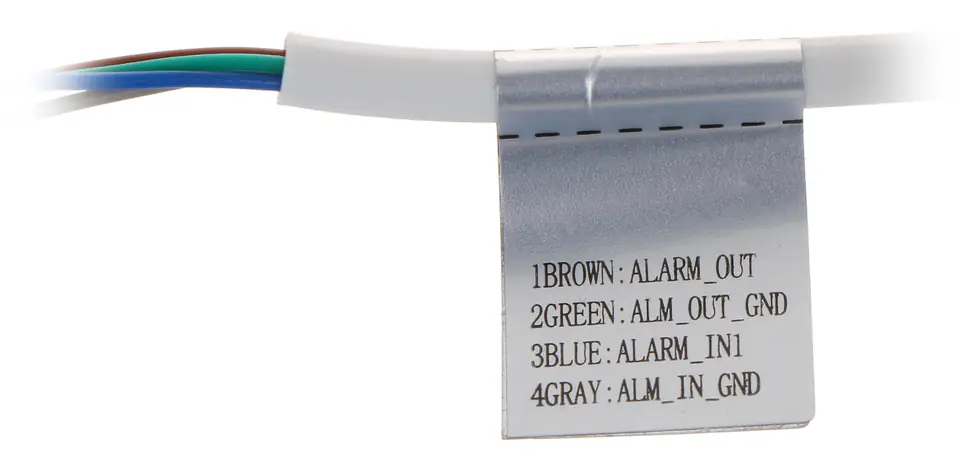

| Alarm inputs / outputs: | 1 / 1 |
|---|
| Ambient temperature: | -40°C ~ +60°C |
|---|

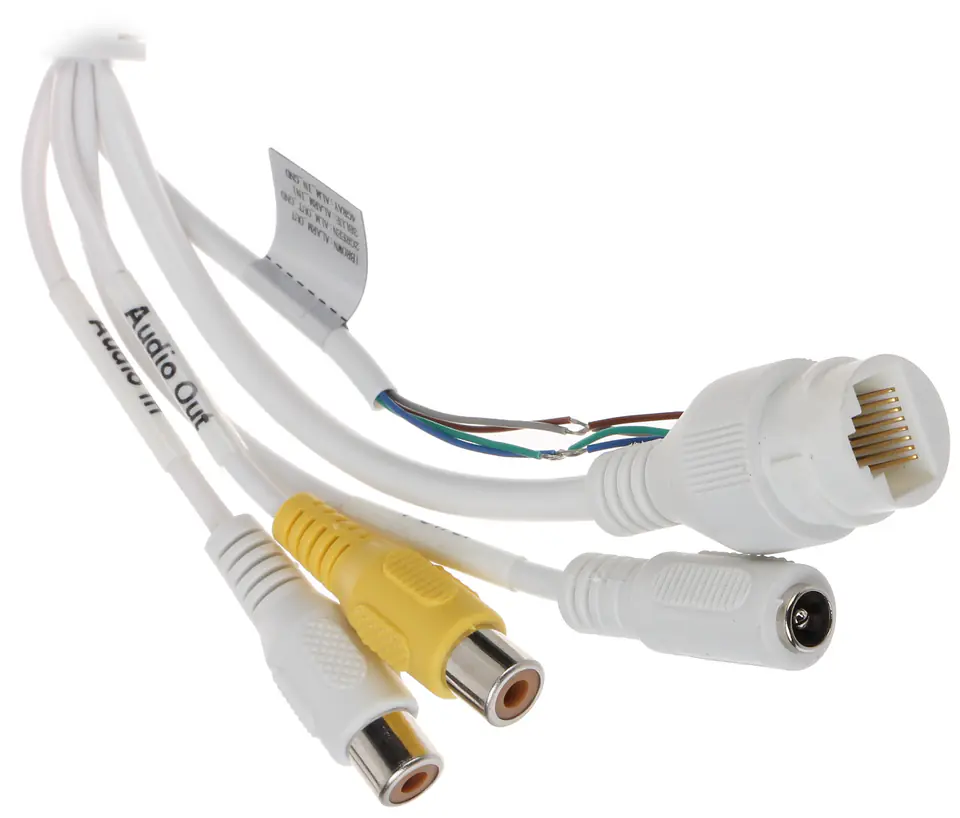

| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
|---|
| Audio detection: | Yes |
|---|
| Audio formats supported: | G.711a, PCM, G.726, G.723, G.711Mu |
|---|
| Back light compensation (blc): | Yes |
|---|
| Bit rate: | 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bitrate: | 3Kbps ~ 8192Kbps (H.264) 3Kbps ~ 8192Kbps (H.265) |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Card reader integrated: | Yes |
|---|
| Case: | Compact, Metal |
|---|
| Closest focusing distance: | 0.8 m |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSD (TransFlash) |
|---|
| Compression: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Connectivity technology: | Wired |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|
| Degree of protection ik: | IK10 |
|---|
| Depth: | 244.1 mm |
|---|

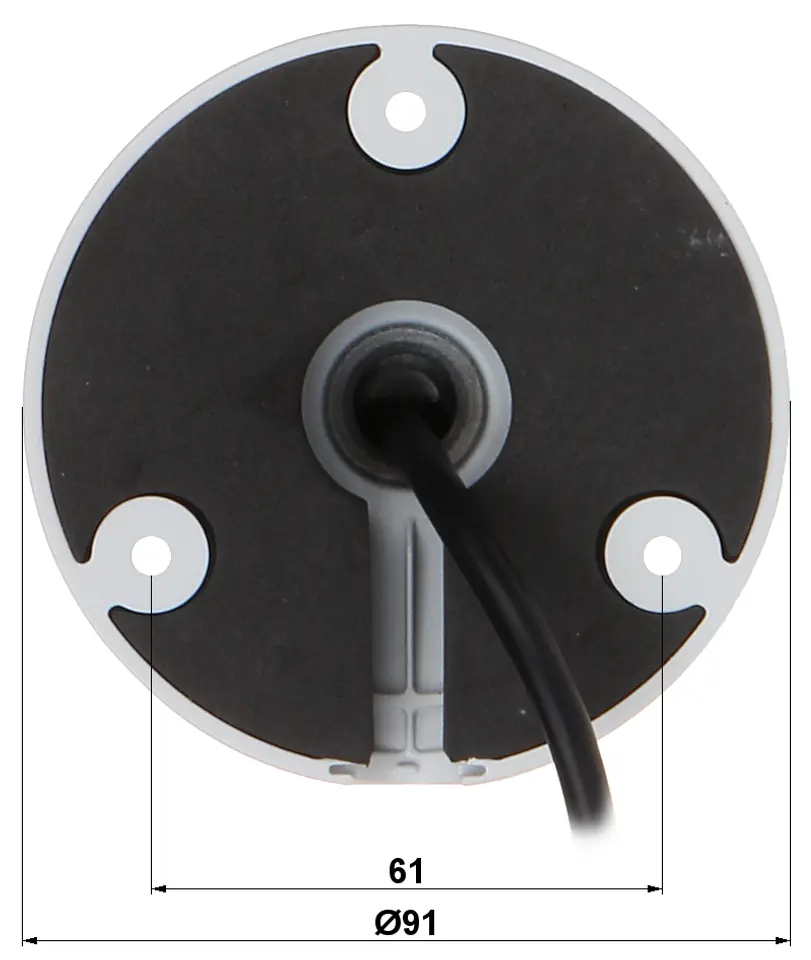

| Dimensions: | 244 x 79 x 76 mm |
|---|
| Ethernet: | One 10/100Mbps RJ45 port |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Form factor: | Dome |
|---|
| Frame rate: | 25 / 30 fps |
|---|
| Gain control type: | Auto/Manual |
|---|
| Height: | 75.9 mm |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Housing material: | Metal |
|---|
| Ik code: | IK10 |
|---|
| Internal memory: | 512 MB |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 60 m |
|---|
| Led type: | 4 IR LED |
|---|

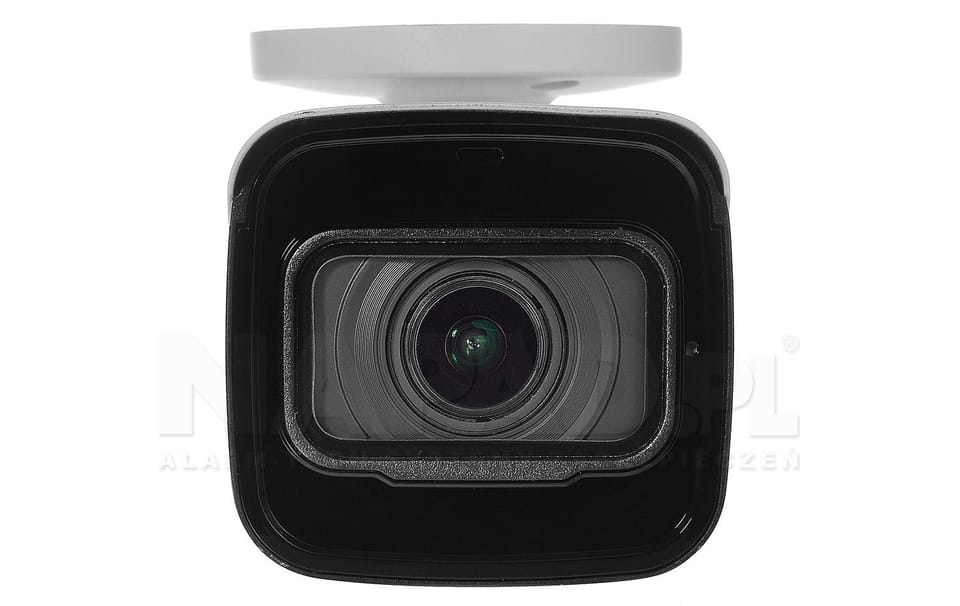

| Lens: | 2.7 ... 13.5 mm |
|---|
| Lens type: | Varifocal |
|---|
| Lens viewing angle, horizontal: | 99° |
|---|
| Lens viewing angle, vertical: | 71° |
|---|
| Main stream transmission speed: | 20 fps - 5 Mpx25 fps - 4 Mpx |
|---|
| Max. number of on-line users: | 20 |
|---|
| Maximum aperture number: | 1.5 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 3840 x 2160 pixels |
|---|
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum illumination: | 0.005 lx |
|---|
| Mirror function: | Yes |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | Android, iOS |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|
| Mounting type: | Ceiling |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
|---|
| Networking standards: | IEEE 802.3af |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 60 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D NR |
|---|
| Number of cameras: | 1 |
|---|
| Number of illumination leds: | 4 |
|---|
| Number of lenses: | 1 |
|---|
| Number of privacy masking areas: | 4 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 20 user(s) |
|---|
| Objective: | 2.7 ... 13.5 mm - Motozoom |
|---|
| Observe distance: | 60 m |
|---|
| Onvif: | 21.12 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -30°C ~ +60°C |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -30 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
|---|
| Pan range: | 0 - 360° |
|---|
| Pc app access ports: | 37777 |
|---|
| Placement supported: | External / Internal |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 820 mA |
|---|
| Power consumption: | ≤ 7.4 watts @ 12 volts DC ≤ 8.5 watts @ PoE |
|---|
| Power consumption (max): | 7.4 W |
|---|
| Power consumption (power over ethernet (poe)): | 8.5 W |
|---|
| Power consumption (typical): | 2.8 W |
|---|
| Power source type: | DC, PoE |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Quality of service (qos) support: | Yes |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Regulatory approvals: | CE, FCC, UL |
|---|
| Resolution: | 2960 x 1668 - 5 Mpx, 2880 x 1620 - 4.7 Mpx, 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2048 x 1536 - 3 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
|---|
| Rom capacity: | 128 MB |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scales: | 0.87 kg |
|---|
| Sealing: | IP67 |
|---|

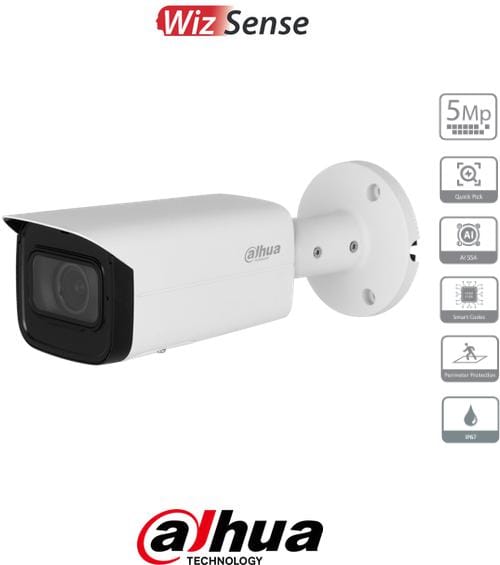

| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image EIS - Electronic image stabilization ROI - improving the quality of selected parts of the image F-DNR (Defog) - Noise reduction associated with precipitation Quick Pick - AI technology that allows quick identification of interesting objects (people / vehicles) based on an artificial intelligence algorithm together with the recorder. Allows you to extract and compare the colors of clothes and vehicles AI SSA - English.AI Smart Scene Adaptive - scene auto-adaptation using deep learning algorithms to detect environmental conditions such as rain, fog, backlight, low light and flicker to set optimal image parameters AFSA - Anti-flicker Self-adaption - Technology to eliminate the tiring effect of image flickering BLC - backlight (background) compensation HLC - Strong Light Compensation (spot) ICR - Mechanical IR filter AGC - Automatic adjustment of image gain Motion detection - max. 4 privacy zones - max. 4 Auto white balance IVS analysis: line crossing, intrusion, intelligent motion detection (distinguishing between people and vehicles) |
|---|
| Sensor size: | 5 MP |
|---|
| Sensor type: | HD CMOS |
|---|
| Signal-to-noise ratio (snr): | 56 dB |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -40 - 60 °C |
|---|
| Supported graphics resolutions: | 1920 x 1080 (HD 1080), 3072 x 1728, 704 x 480, 2688 x 1520, 2880 x 1620, 3840 x 2160, 1280 x 720 (HD 720), 352 x 240, 2304 x 1296, 1280 x 960, 640 x 480 (VGA), 3072 x 2048 |
|---|
| Supported languages: | Polish, Arabic, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish |
|---|
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
|---|
| Tilt angle range: | 0 - 90° |
|---|
| Total megapixels: | 5 MP |
|---|
| Transducer: | 1/2.7" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Video compression formats: | H.265, H.264B, M-JPEG, H.264H, H.264 |
|---|
| Video motion detection: | Yes |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 99° ~ 28° |
|---|
| Viewing angle: | 99 ° ... 28 ° (manufacturer's data) 106 ° ... 34° (our tests) |
|---|
| Voice codecs: | G.711a, G.726, PCM, G.711Mu, G.723 |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web browser: | Yes |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 820 g |
|---|
| White balance: | Outdoor, Auto, Natural, Manual, Street lamp |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
| Width: | 79 mm |
|---|
