| Adjustment shutter speed: | Auto/Manual |
|---|---|

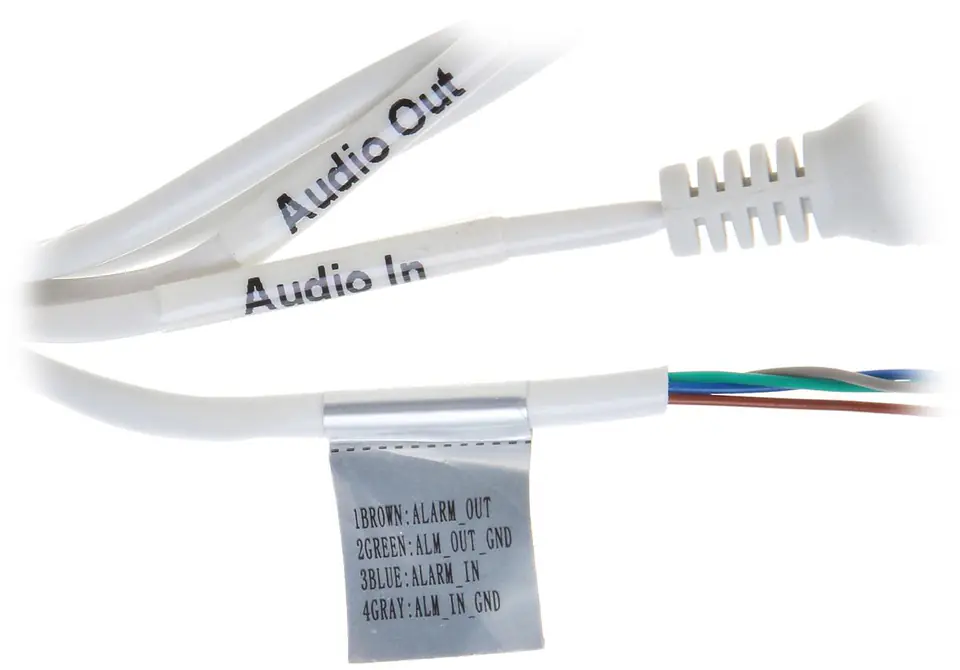

| Alarm inputs / outputs: | 1 / 1 |

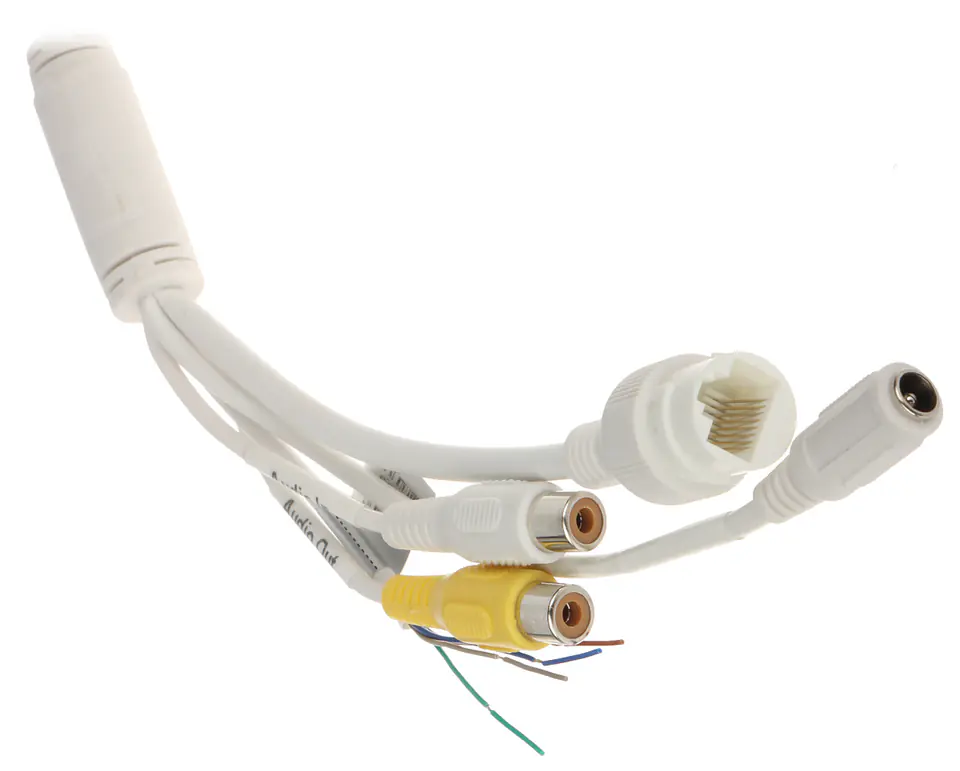

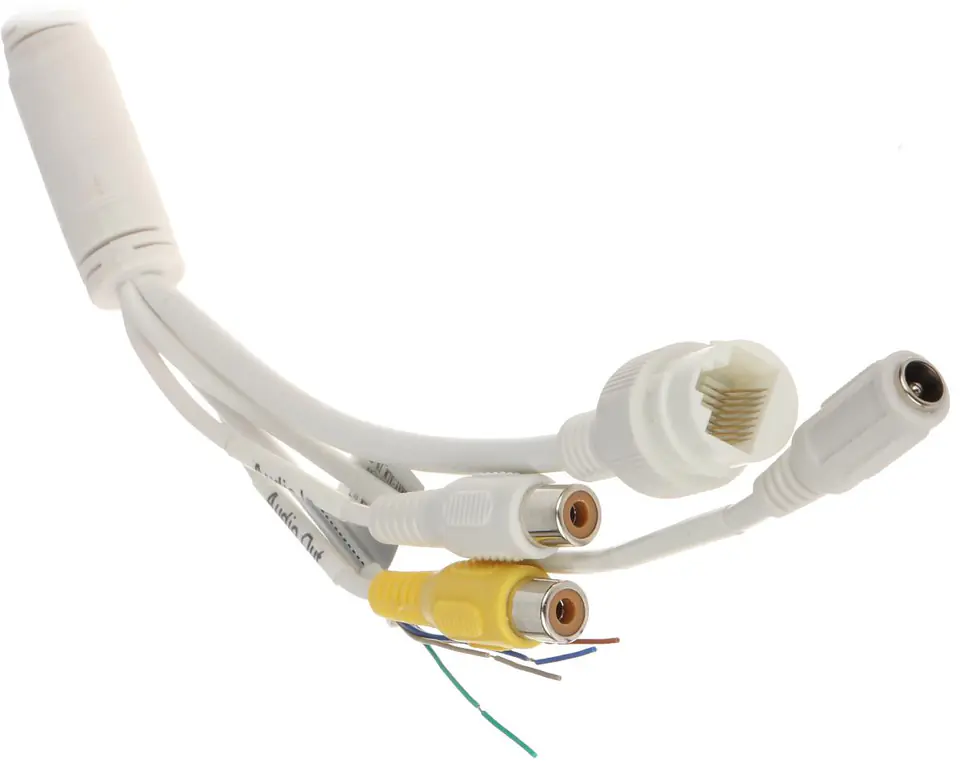

| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
| Audio formats supported: | G.726, G.723, PCM, G.711a, G.711Mu |
| Back light compensation (blc): | Yes |
| Bit rate: | 3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Built-in microphone: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Case: | Compact - Metal |
| Closest focusing distance: | 0.6 m |
| Colour: | white |
| Connectivity technology: | Wired |
| Dc output voltage: | 12 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Degree of protection ik: | IK10 |
| Depth: | 249.2 mm |

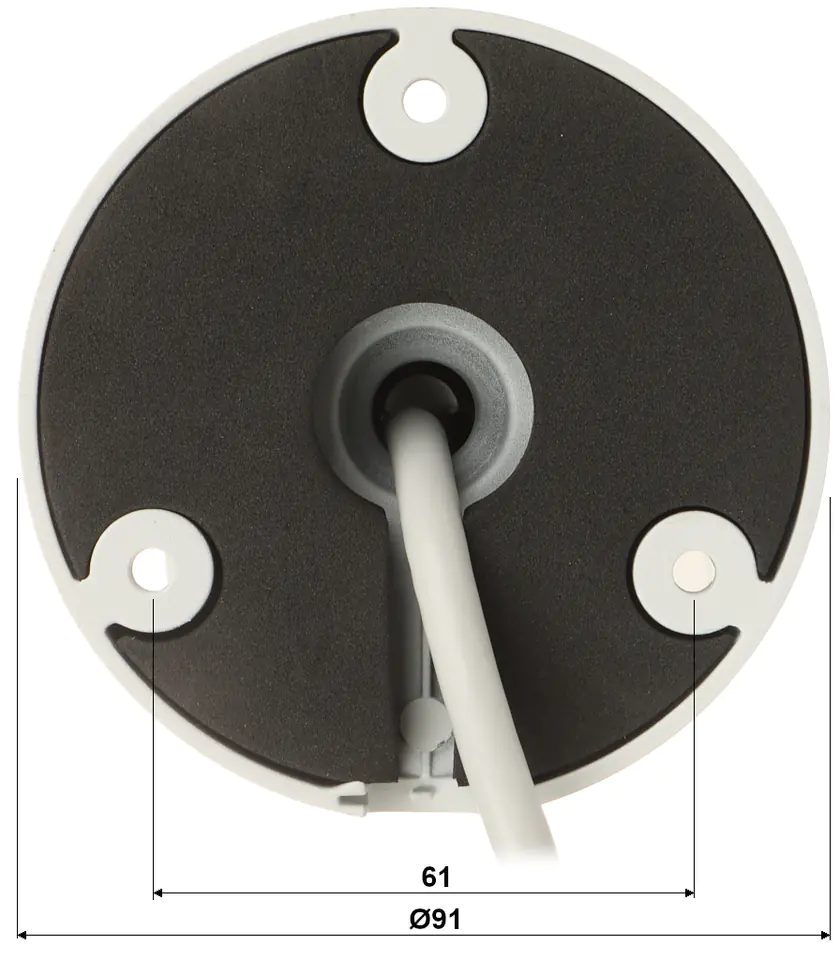

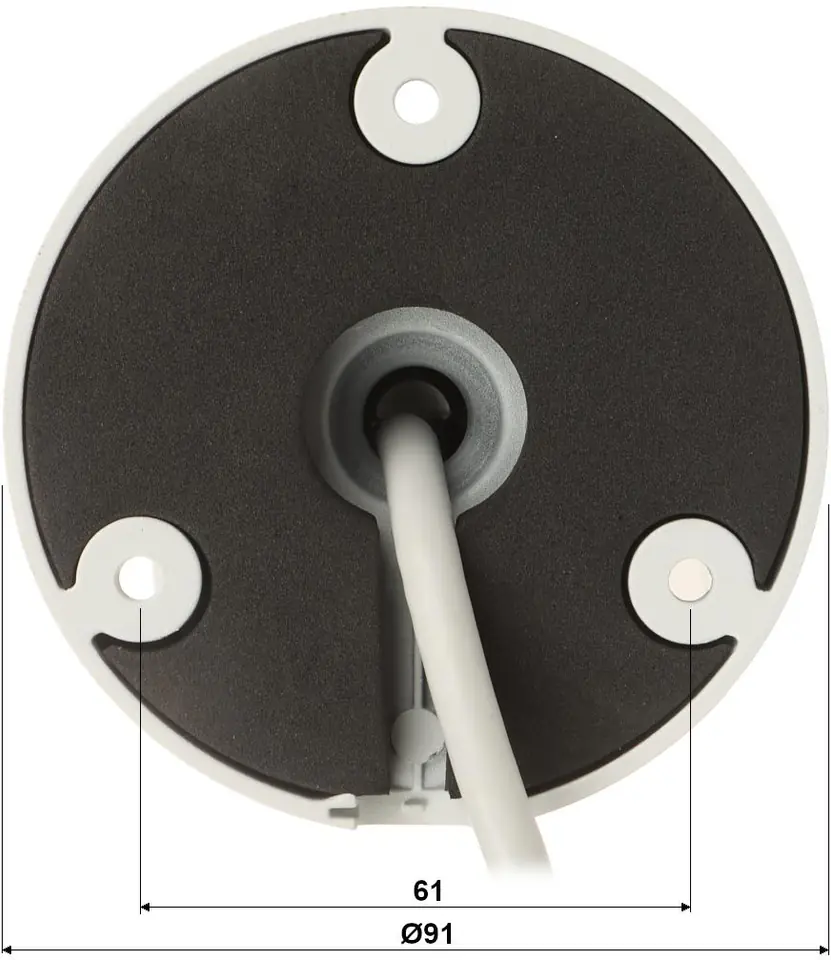

| Dimensions: | 249 x 91 x 90 mm |
| Ethernet interface type: | Fast Ethernet |
| Focal length range: | 2.1 - 2.31 mm |
| Form factor: | Tube/dome |
| Frame rate: | 30 fps |
| Gain control type: | Auto/Manual |
| Height: | 75.9 mm |
| Highlight compensation (hlc): | Yes |
| Housing material: | Metal, Plastic |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Internal memory: | 512 MB |
| International protection (ip) code: | IP67 |
| Ir illuminator range: | 20 m |
| Led type: | IR |
| Lens type: | Varifocal |
| Lens viewing angle, diagonal: | 180° |
| Lens viewing angle, horizontal: | 180° |
| Lens viewing angle, vertical: | 78° |
| Main stream transmission speed: | 20 fps @ 4.7 Mpx 25 fps @ 4 Mpx |
| Max. number of on-line users: | 20 |
| Maximum aperture number: | 2 |
| Maximum resolution: | 2880 x 1620 pixels |

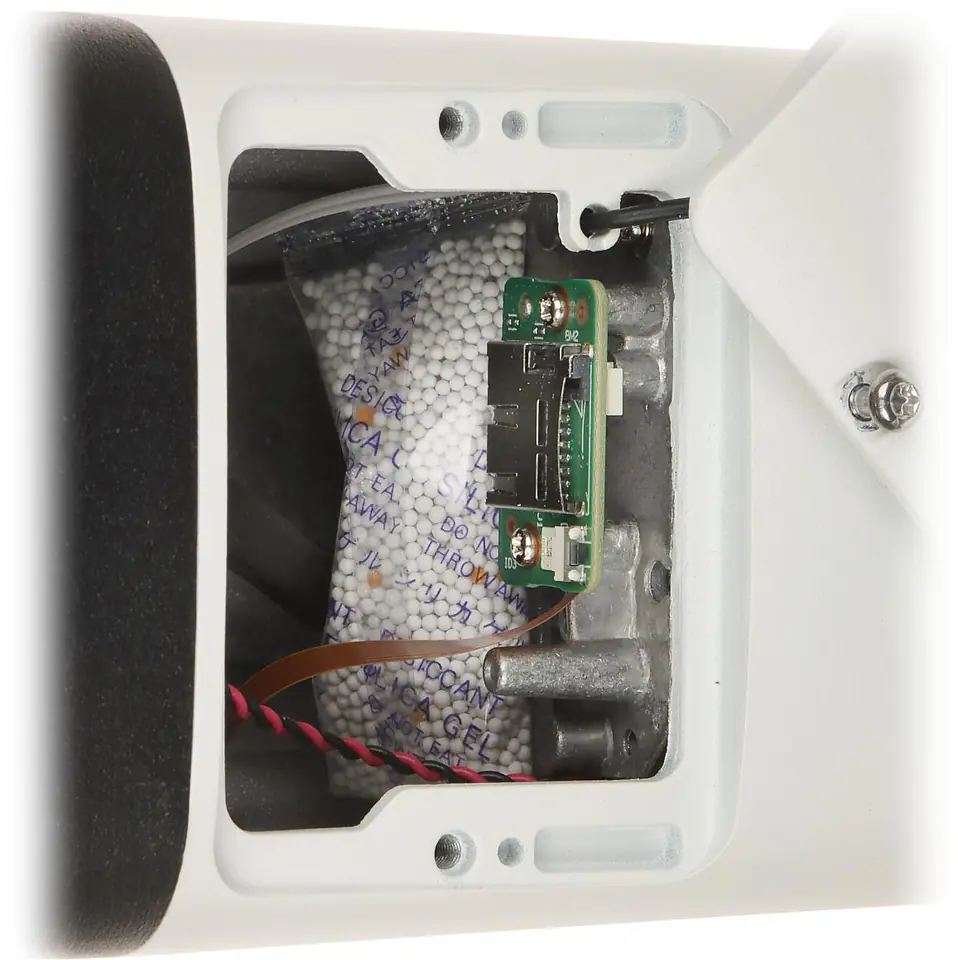

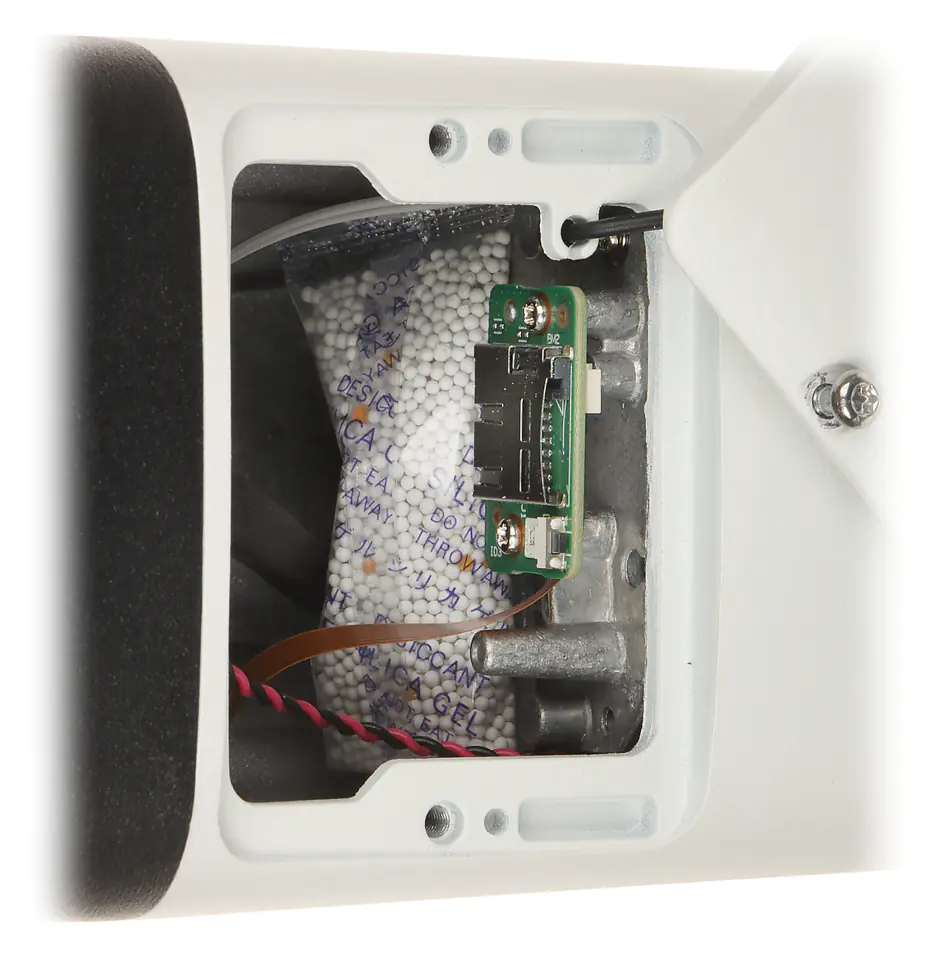

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Minimum illumination: | 0.001 lx |
| Mirror function: | Yes |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | Android, iOS |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Mounting type: | Ceiling |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 20 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of illumination leds: | 2 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 20 user(s) |
| Objective: | 2.1 mm |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -30 °C ... 60 °C |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 2.7 mm (1 / 2.7") |
| Pan range: | 0 - 360° |
| Pc app access ports: | 37777 |
| Placement supported: | External / Internal |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 330 mA |
| Power consumption: | ≤ 4W @ 12V DC ≤ 6.5W @ PoE |
| Power consumption (max): | 4 W |
| Power consumption (power over ethernet (poe)): | 6.5 W |
| Power source type: | DC, PoE |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Resolution: | 2880 x 1620 - 4.7 Mpx, 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 Mpx, 2048 x 1536 - 3 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 Mpx, 1280 x 720 - 720p |
| Rom capacity: | 128 MB |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.97 kg |
| Sealing: | IP67 |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image F-DNR (Defog) - Noise reduction associated with precipitation SSA - Smart Scene Adaptive - intelligent scene adaptation by automatically adjusting exposure parameters for a better image SMD 3.0 - search for an object classified as: human, motor vehicle - increased detection distance and resistance to false alarms EPTZ - advanced target detection and tracking algorithms that trigger alarms - can simultaneously zoom in and track multiple people and/or vehicles BLC/HLC - background light / strong light compensation Ability to change resolution, quality and bandwidth Configurable privacy zones ICR - Mechanical IR filter Mirror - Mirror image intelligent motion detection (distinguishing between people and vehicles) IVS analysis : Line crossing, intrusion - classification of people and vehicles, scene change - video sabotage |
| Sensor size: | 4 MP |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Standard: | TCP/IP |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported graphics resolutions: | 2880 x 1620, 352 x 240, 2304 x 1296, 352 x 288, 2560 x 1440, 640 x 480 (VGA), 1280 x 720 (HD 720), 704 x 480, 2688 x 1520, 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian, Vietnamese |
| Tilt angle range: | 0 - 90° |
| Total megapixels: | 4 MP |
| Transducer: | 1/2.7" Progressive Scan CMOS |
| Type: | IP security camera |
| Video compression formats: | H.264, H.264B, H.264H, M-JPEG, H.265 |
| Video streaming: | Yes |
| Viewing angle: | 170° - LDC - Lens Distortion Correction - Function On 180° - LDC - Lens Distortion Correction - Off Function |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Web browser: | Yes |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 820 g |
| White balance: | Auto, Street lamp, Manual, Natural, Outdoor |
| Wi-fi: | No |
| Wide dynamic range (wdr): | 120 dB |
| Width: | 79 mm |

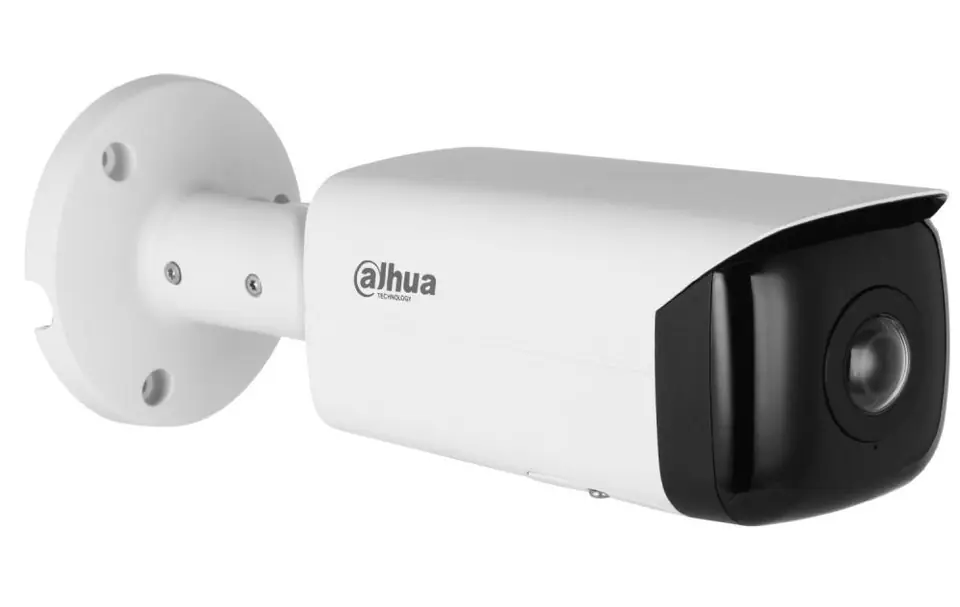

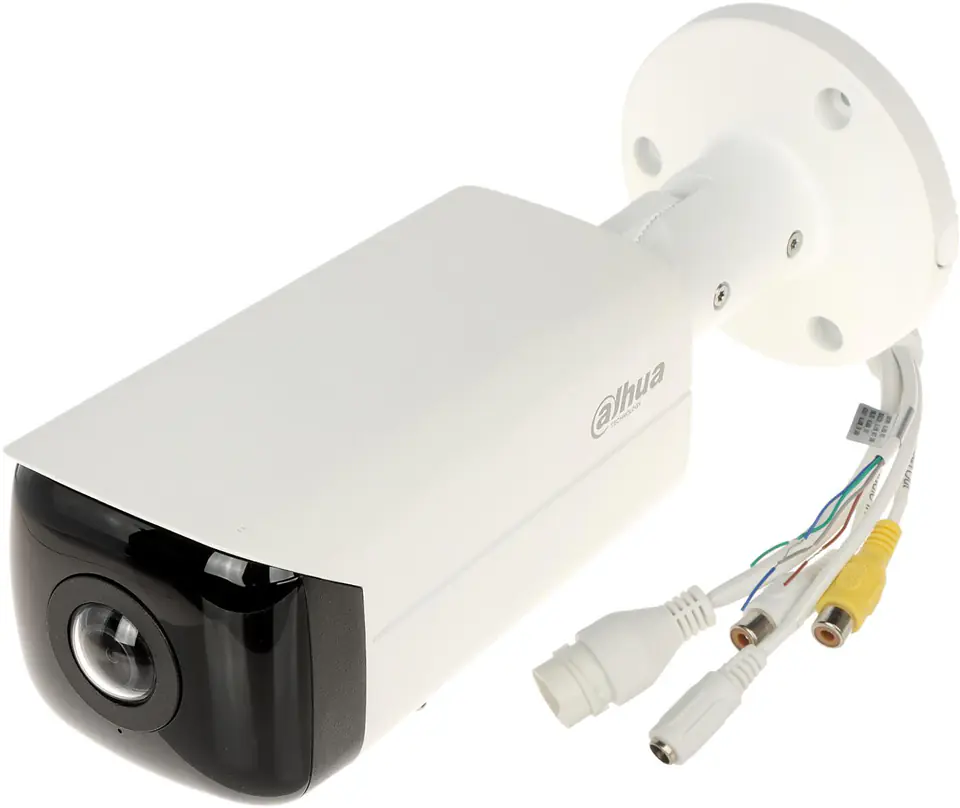

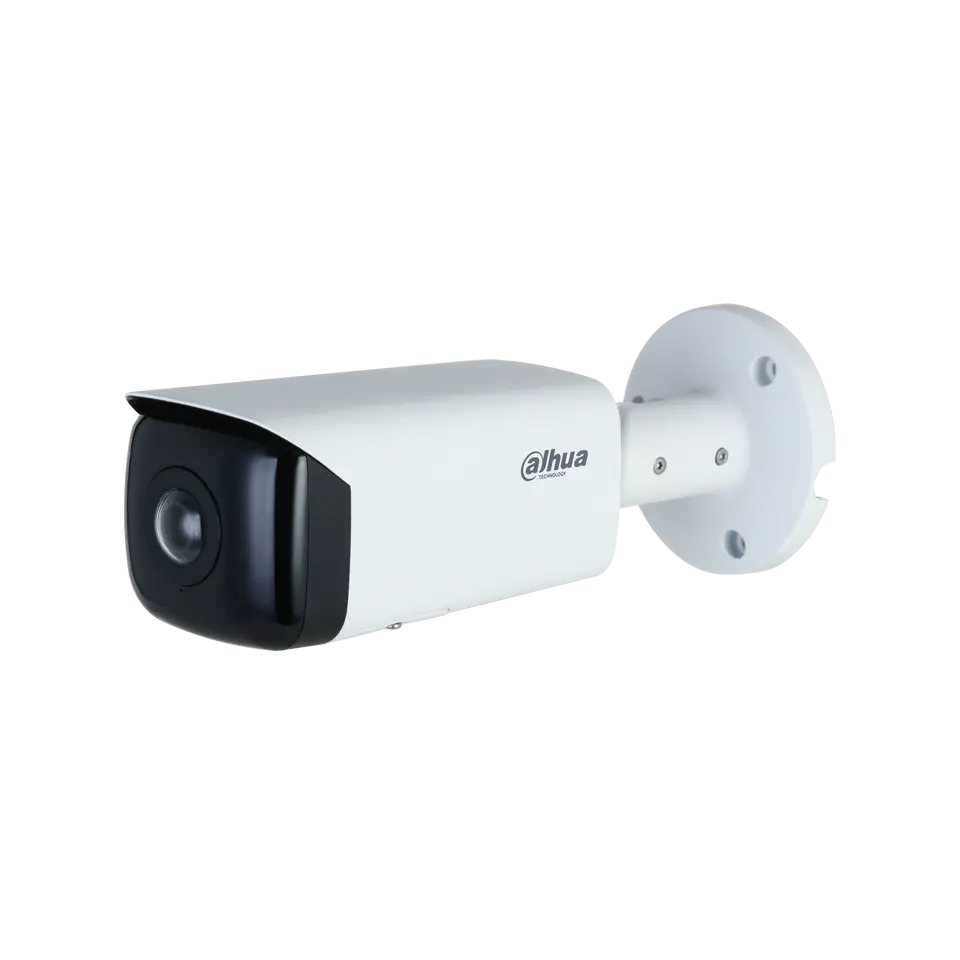

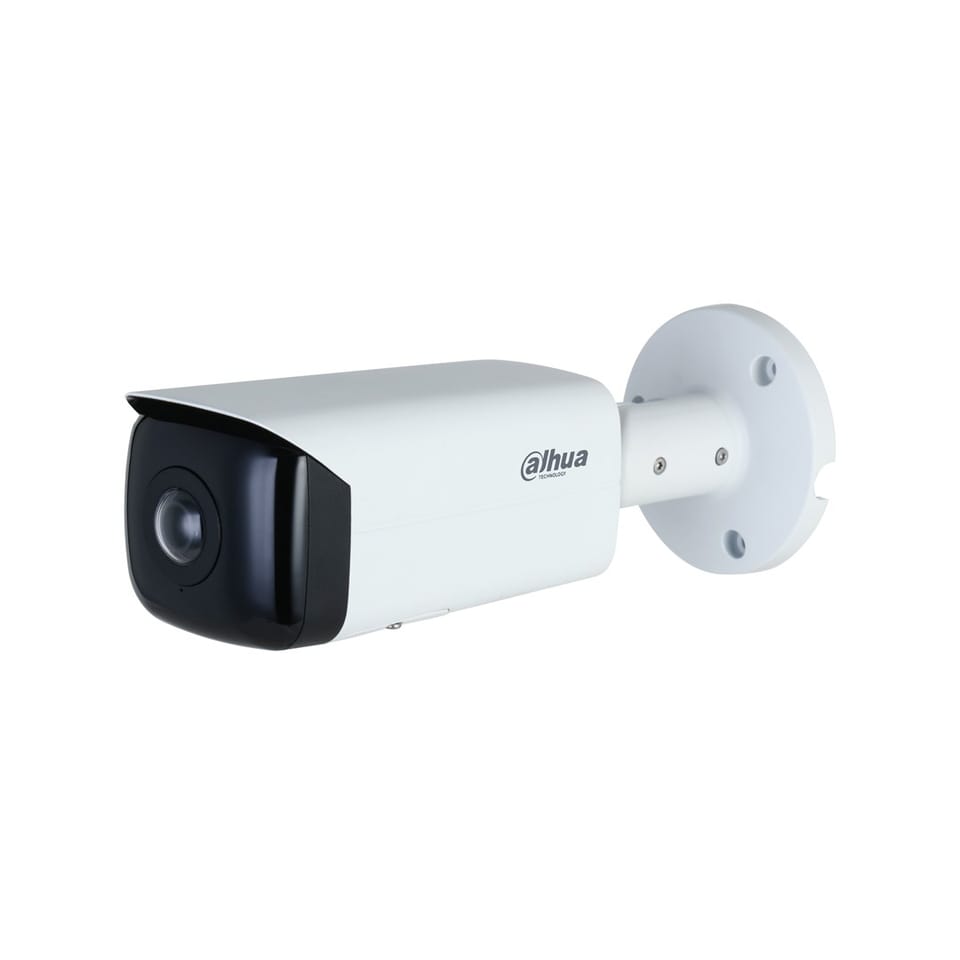

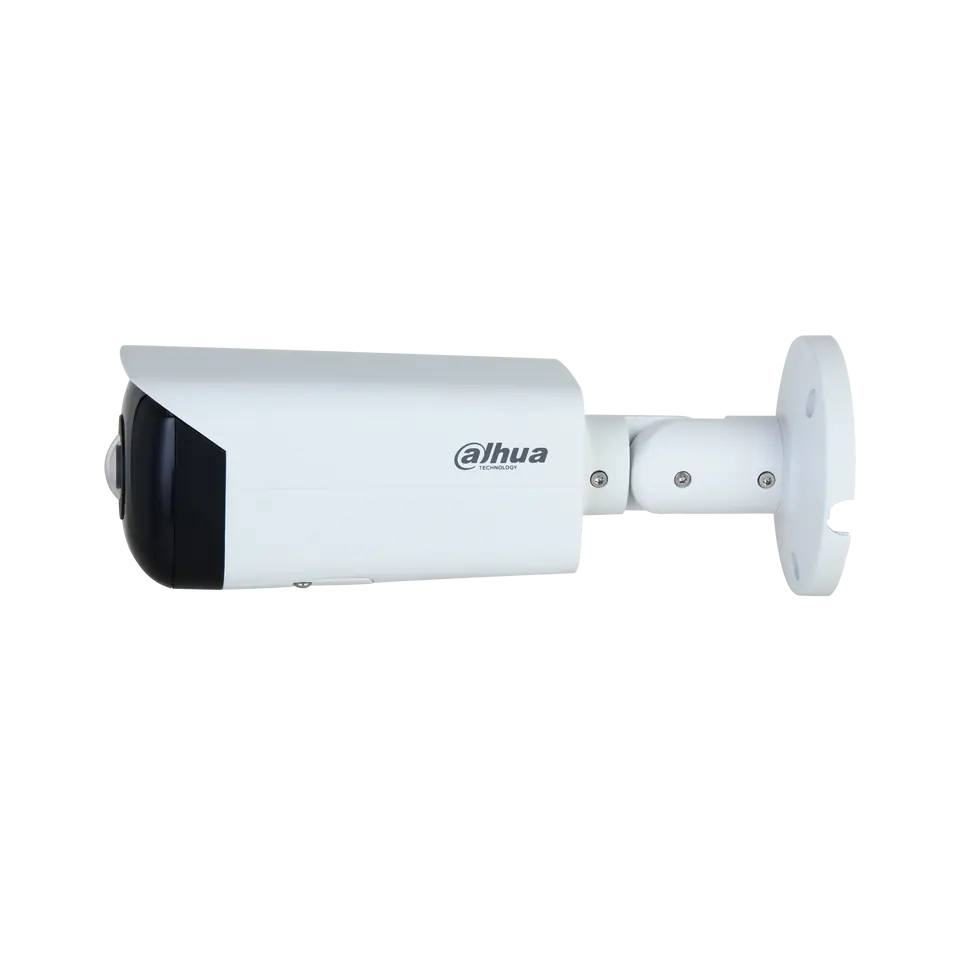

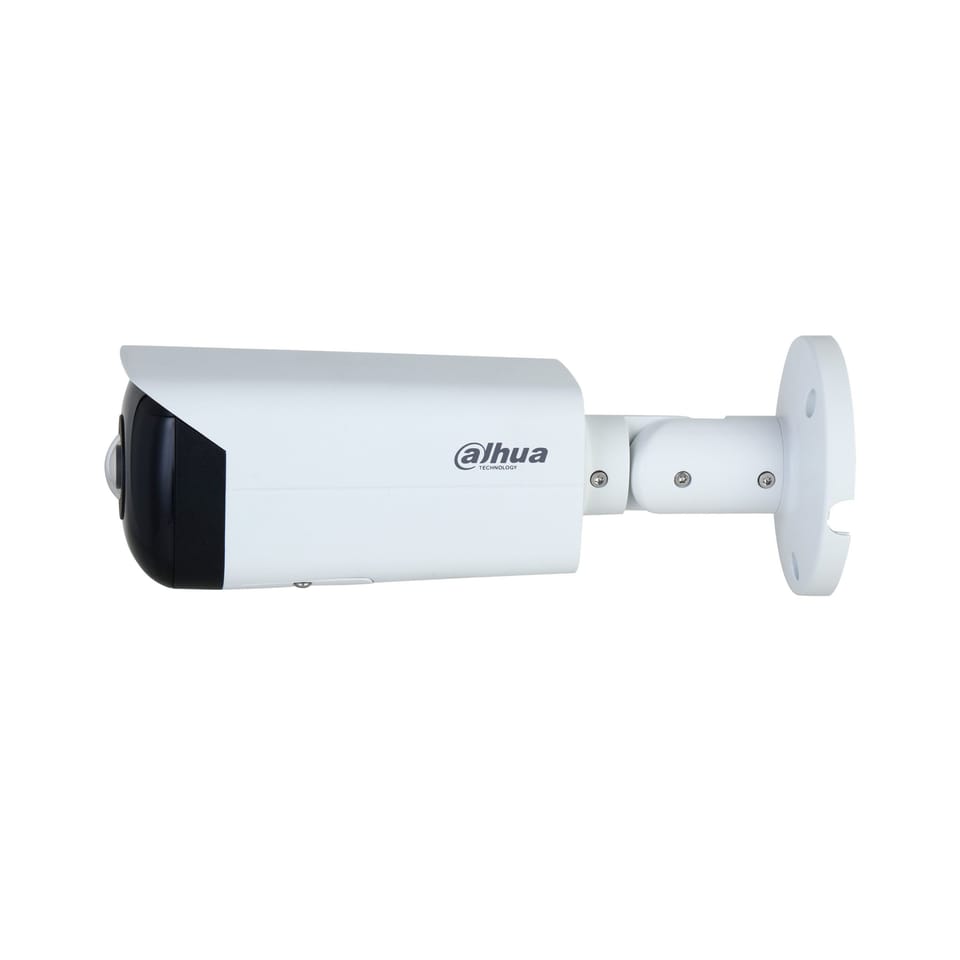

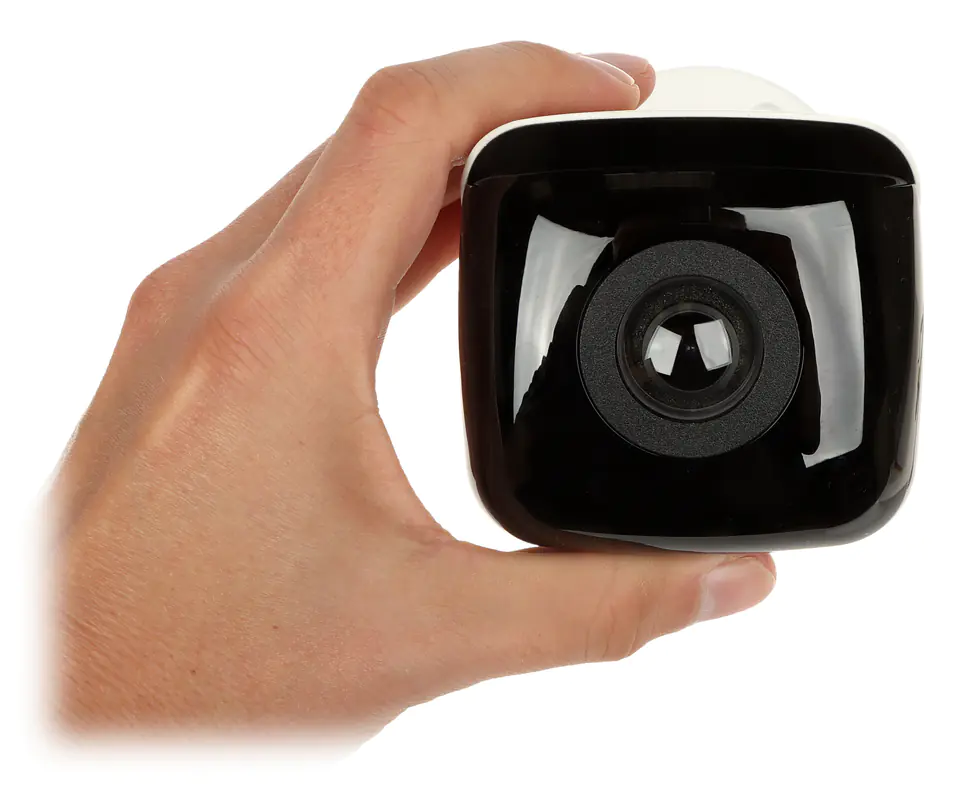

IP Camera with Wide-Angle Fisheye Lens
Thanks to the "Starlight" technology, the camera only needs very low light to obtain a clear color imageThe possibility of PoE power supply, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
The camera has extensive intelligent image analysis functions
