| Audio: | Built-in microphone Sound detection |
|---|
| Case: | Compact - Metal |
|---|
| Colour: | White + Black |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|

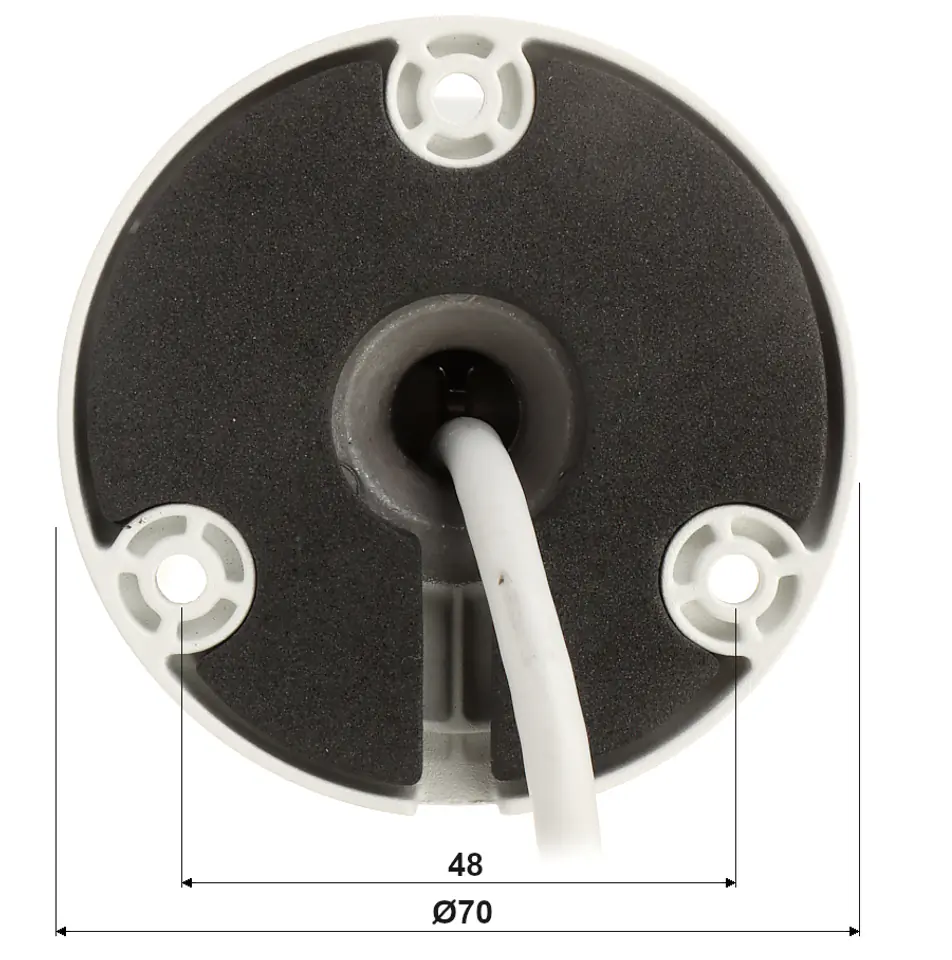

| Dimensions: | 162 x 70 x 70 mm |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Ir illuminator range: | 30 m |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Max. number of on-line users: | 6 |
|---|

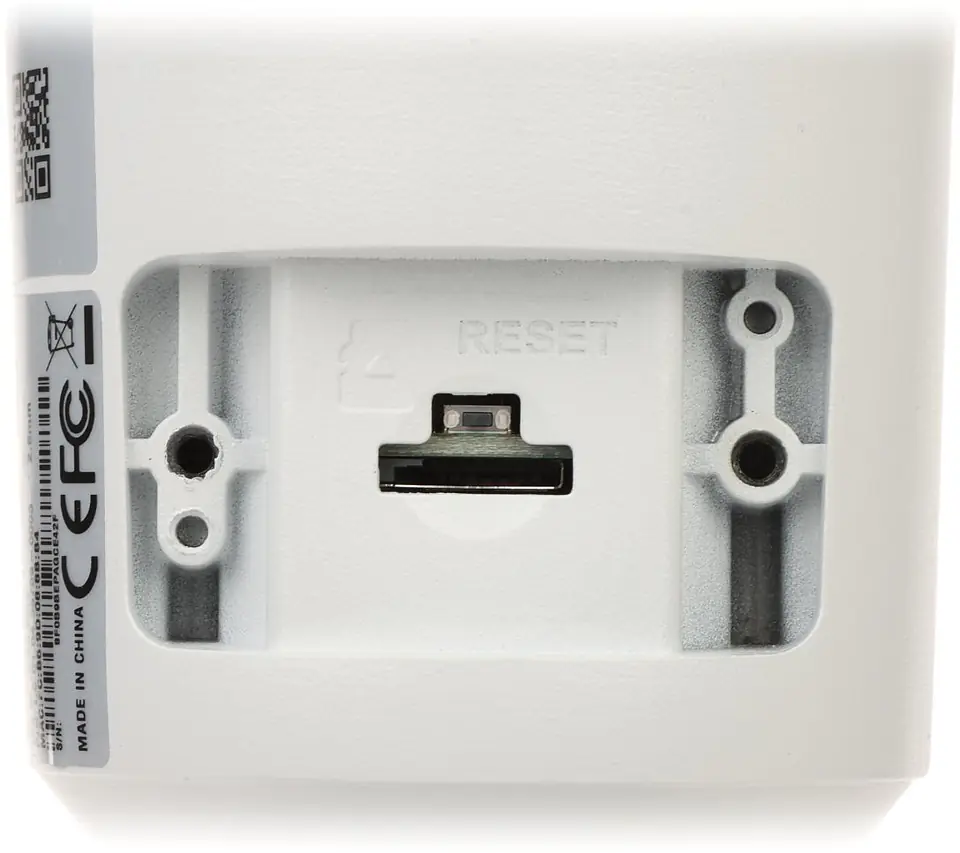

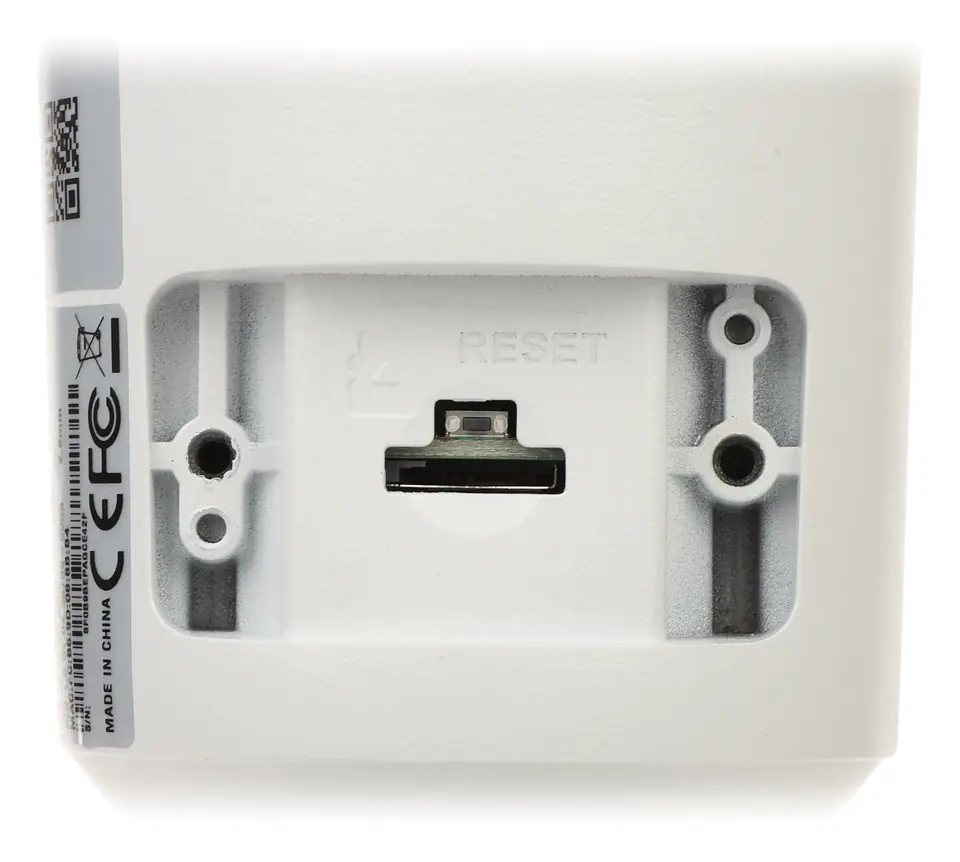

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
|---|
| Objective: | 3.6 mm |
|---|
| Onvif: | 21.06 |
|---|
| Operating temperature: | -40 °C ... 60 °C |
|---|
| Pc app access ports: | 37777 |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 330 mA |
|---|
| Power consumption: | ≤ 3.8 watts @ 12 volts DC ≤ 4.4 watts @ PoE |
|---|
| Producer / brand: | DAHUA |
|---|
| Range of white light illuminator (led): | 30 m |
|---|
| Resolution: | 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 MP, 2304 x 1296 - 3 MP, 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| S/n ratio (s/n): | > 56 dB |
|---|
| Scales: | 0.47 kg |
|---|
| Scanning system: | Progressive |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones Mirror - Image mirroring SMD PLUS - search for an object classified as: human, motor vehicle IVS analysis : intrusion, line crossing - classification of people and Vehicle video sabotage |
|---|
| Sensitivity: | 0.002 Lux / F1.0 (color) |
|---|
| Sensor size: | 4 MP |
|---|
| Standard: | TCP/IP |
|---|
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Russian, Portuguese, Romanian, Spanish, Turkish, Ukrainian |
|---|
| Transducer: | 1/2.9" Progressive Scan CMOS |
|---|
| Viewing angle: | 78 ° |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web server: | Built-in |
|---|
