| Adjustment shutter speed: | Auto/Manual |
|---|
| Angle of rotation: | 360° |
|---|
| Audio: | Built-in microphone Sound detection |
|---|
| Audio formats supported: | G.711a, G.726, PCM, G.711Mu |
|---|
| Back light compensation (blc): | Yes |
|---|
| Bit rate: | H.264: 32 - 6144Kbps; H.265: 12 - 6144Kbps |
|---|
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
|---|
| Bluetooth: | No |
|---|
| Built-in hdd: | No |
|---|
| Built-in microphone: | Yes |
|---|
| Camera pan control: | Yes |
|---|
| Camera shutter speed: | 1/3 - 1/100000 s |
|---|
| Camera shutter type: | Electronic |
|---|
| Camera tilt control: | Yes |
|---|
| Card reader integrated: | Yes |
|---|
| Case: | Compact - Metal |
|---|
| Closest focusing distance: | 0.7 m |
|---|
| Colour: | white |
|---|
| Compatible memory cards: | MicroSD (TransFlash) |
|---|
| Connectivity technology: | Wired |
|---|
| Day/night mode: | Yes |
|---|
| Dc output voltage: | 12 |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|
| Depth: | 166.2 mm |
|---|
| Detect distance: | 43.9 m |
|---|

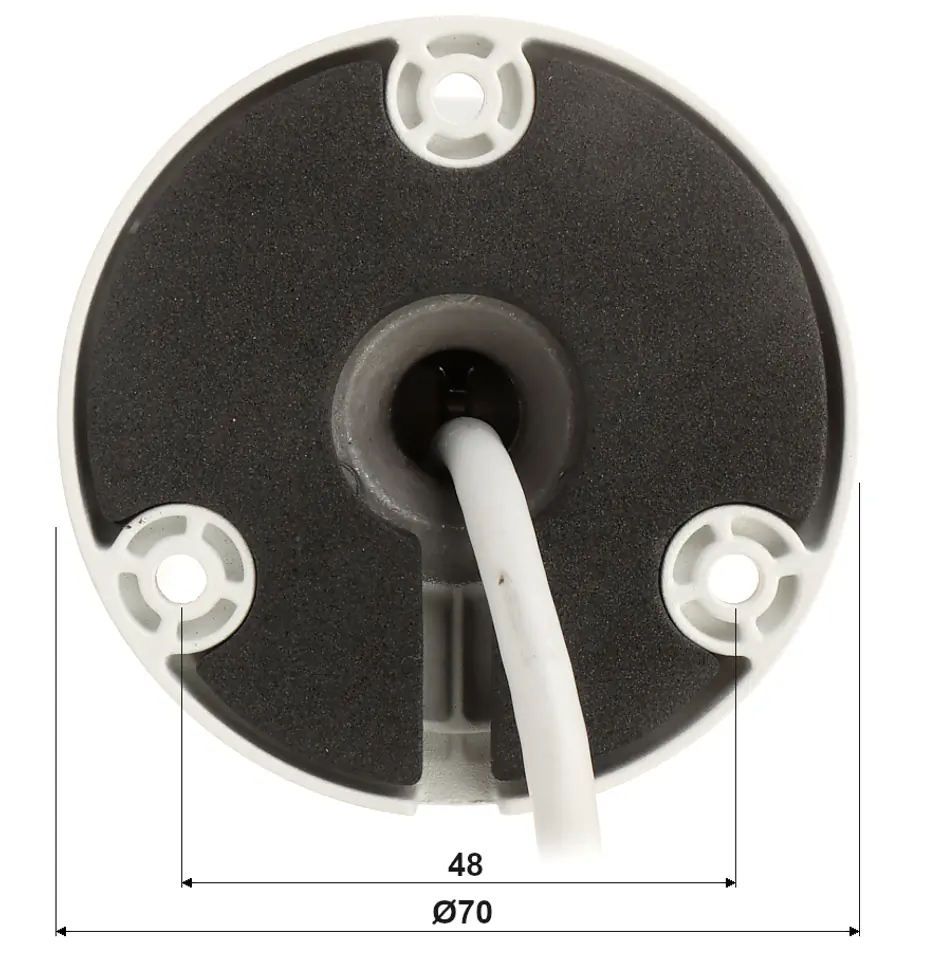

| Dimensions: | 162 x 70 x 70 mm |
|---|
| Ethernet interface type: | Fast Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Fixed focal length: | 2.8 mm |
|---|
| Focal length range: | 2.8 mm |
|---|

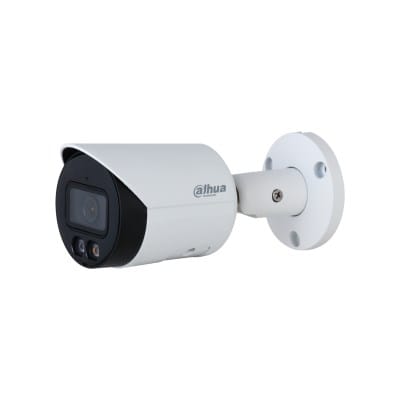

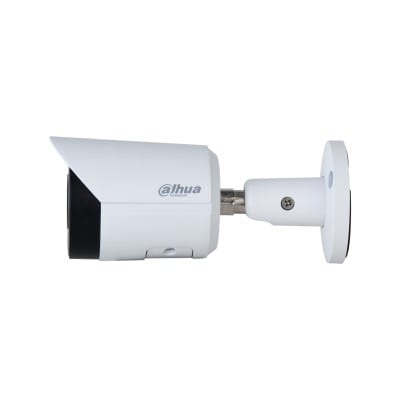

| Form factor: | Bullet |
|---|
| Frame rate: | 30 fps |
|---|
| Gain control type: | Auto/Manual |
|---|
| Height: | 70 mm |
|---|
| Highlight compensation (hlc): | Yes |
|---|
| Housing material: | Metal |
|---|
| Identify distance: | 4.4 m |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Internal memory: | 128 MB |
|---|
| International protection (ip) code: | IP67 |
|---|
| Ir illuminator range: | 30 m |
|---|
| Led type: | IR |
|---|
| Lens viewing angle, diagonal: | 127° |
|---|
| Lens viewing angle, horizontal: | 107° |
|---|
| Lens viewing angle, vertical: | 56° |
|---|
| Main stream transmission speed: | 25 fps @ 1080p |
|---|
| Max. number of on-line users: | 6 |
|---|
| Maximum aperture number: | 1.6 |
|---|
| Maximum memory card size: | 256 GB |
|---|
| Maximum resolution: | 1920 x 1080 pixels |
|---|

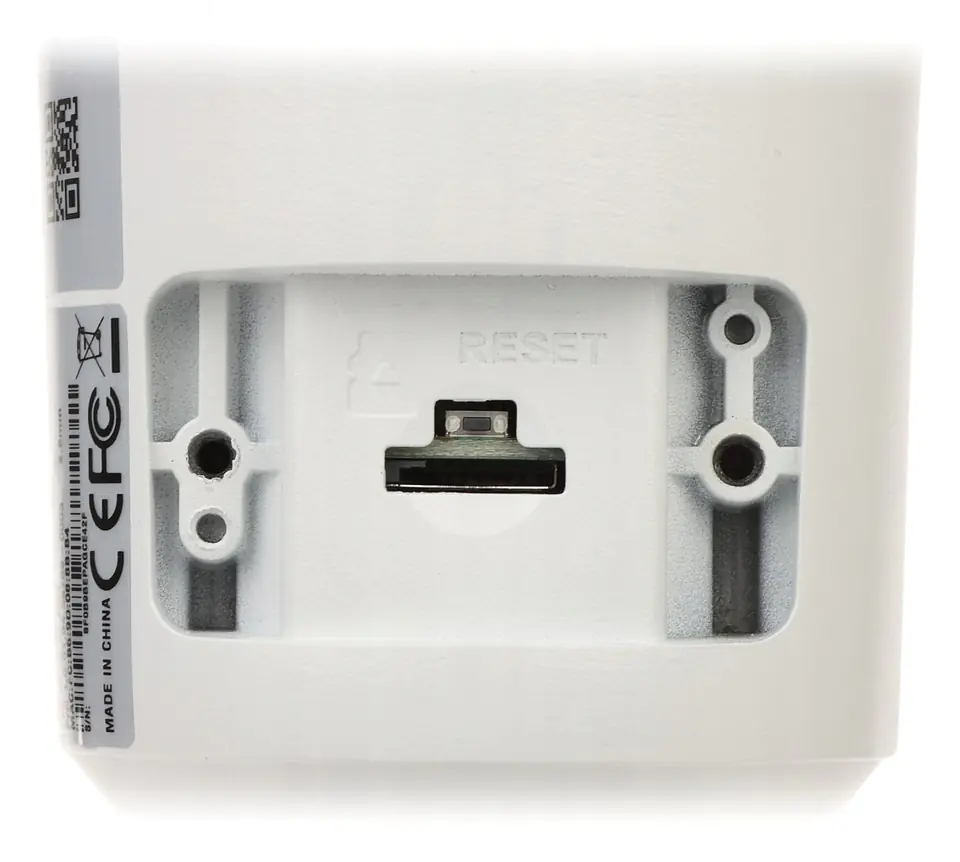

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Minimum aperture number: | 1.6 |
|---|
| Minimum illumination: | 0.002 lx |
|---|
| Mirror: | Yes |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile operating systems supported: | iOS, Android |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|
| Mounting type: | Wall |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
|---|
| Networking standards: | IEEE 802.3af |
|---|
| Night vision: | Yes |
|---|
| Night vision distance: | 30 m |
|---|
| Noise reduction: | Yes |
|---|
| Noise reduction technology: | 3D noise reduction |
|---|
| Number of cameras: | 1 |
|---|
| Number of illumination leds: | 2 |
|---|
| Number of lenses: | 1 |
|---|
| Number of sensors: | 1 |
|---|
| Number of users: | 6 user(s) |
|---|
| Objective: | 2.8 mm |
|---|
| Observe distance: | 17.5 m |
|---|
| Onvif: | 21.06 |
|---|
| Operating relative humidity (h-h): | 0 - 95% |
|---|
| Operating temperature: | -40 °C ... 60 °C |
|---|
| Operating temperature (t-t): | -40 - 60 °C |
|---|
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
|---|
| Package weight: | 590 g |
|---|
| Pan range: | 0 - 360° |
|---|
| Pc app access ports: | 37777 |
|---|
| Placement supported: | Indoor & outdoor |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 330 mA |
|---|
| Power consumption: | ≤ 3.9 watts @ 12 volts DC ≤ 4.4 watts @ PoE |
|---|
| Power consumption (max): | 3.8 W |
|---|
| Power consumption (power over ethernet (poe)): | 4.4 W |
|---|
| Power consumption (typical): | 1.6 W |
|---|
| Power source type: | DC, PoE |
|---|
| Privacy masking: | Yes |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | White |
|---|
| Progressive scan: | Yes |
|---|
| Quality of service (qos) support: | Yes |
|---|
| Range of white light illuminator (led): | 30 m |
|---|
| Recognize distance: | 8.8 m |
|---|
| Region of interest (roi) encoding: | Yes |
|---|
| Resolution: | 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p |
|---|
| Rom capacity: | 128 MB |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| S/n ratio (s/n): | > 56 dB |
|---|
| Scales: | 0.47 kg |
|---|
| Scanning system: | Progressive |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC/HLC - compensation of background light / strong light Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones Mirror - Image mirroring SMD PLUS - search for an object classified as: human, motor vehicle IVS analysis : intrusion, line crossing - classification of people and Vehicle video sabotage |
|---|
| Sensitivity: | 0.002 Lux / F1.0 (color) |
|---|
| Sensor size: | 2.1 MP |
|---|
| Sensor type: | CMOS |
|---|
| Signal-to-noise ratio (snr): | 56 dB |
|---|
| Standard: | TCP/IP |
|---|
| Storage temperature (t-t): | -40 - 60 °C |
|---|
| Supported graphics resolutions: | 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 640 x 480 (VGA), 704 x 480, 352 x 240, 1280 x 720 (HD 720), 352 x 288 |
|---|
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Russian, Portuguese, Romanian, Spanish, Turkish, Ukrainian |
|---|
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
|---|
| Tilt angle range: | 0 - 90° |
|---|
| Total megapixels: | 2 MP |
|---|
| Transducer: | 1/2.8" Progressive Scan CMOS |
|---|
| Type: | IP security camera |
|---|
| Video compression formats: | M-JPEG, H.265, H.264B, H.264H, H.264 |
|---|
| Video motion detection: | Yes |
|---|
| Video streaming: | Yes |
|---|
| Viewing angle: | 107°(manufacturer data) 101° (our tests) |
|---|
| Voice codecs: | G.711Mu, PCM, G.711a, G.726 |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web browser: | Yes |
|---|
| Web server: | Built-in |
|---|
| Web-based management: | Yes |
|---|
| Weight: | 480 g |
|---|
| White balance: | Auto, Manual, Custom modes, Outdoor, Natural, Street lamp |
|---|
| Wi-fi: | No |
|---|
| Wide dynamic range (wdr): | Yes |
|---|
| Width: | 70 mm |
|---|
