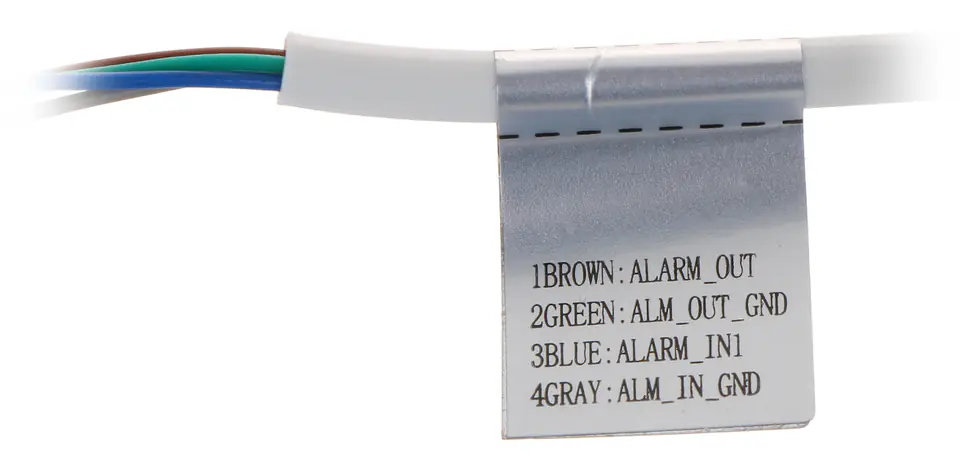

| Alarm inputs / outputs: | 1 / 1 |
|---|

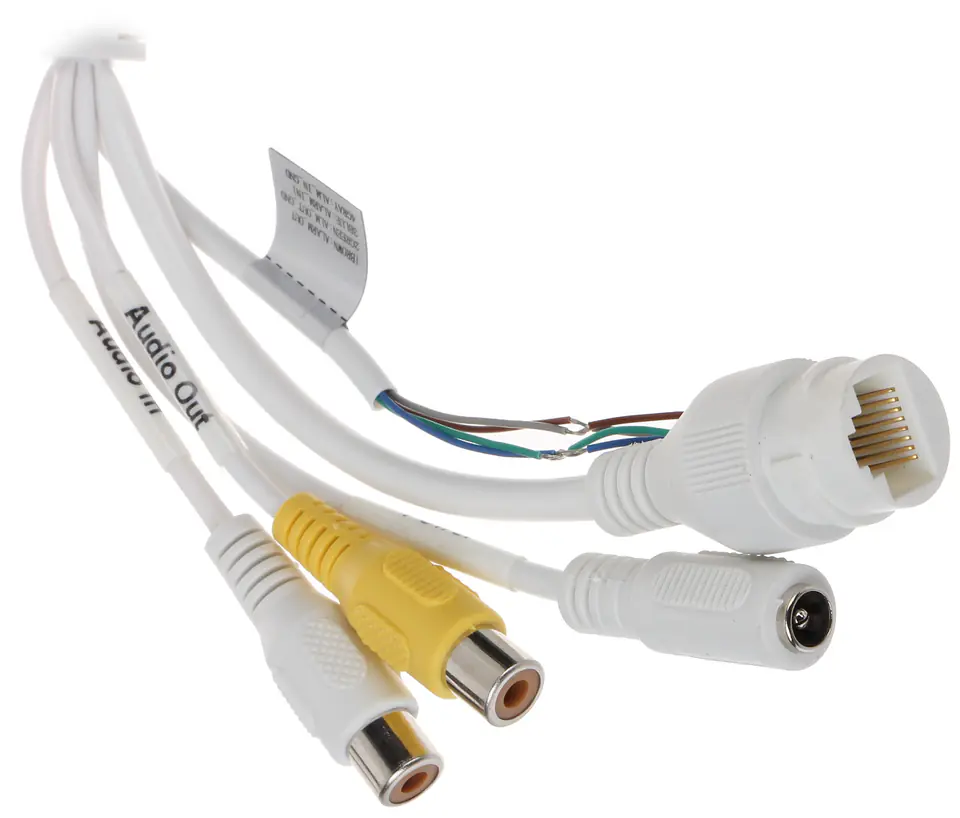

| Audio: | Built-in Microphone External Microphone Input Audio Output Support Two-way Audio Detection Sound Detection |
|---|
| Case: | Compact, Metal |
|---|
| Colour: | white |
|---|
| Compression: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|
| Default administrator login / password: | admin / -Administrator password must be set on first run |
|---|
| Default ip address: | 192.168.1.108 |
|---|

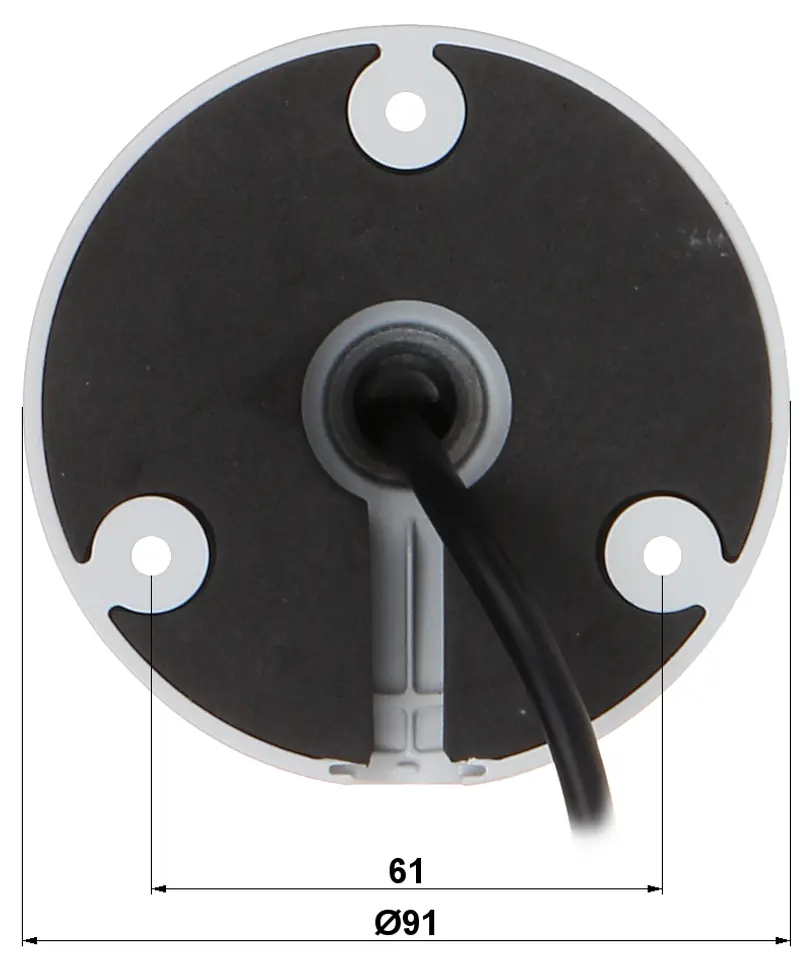

| Dimensions: | 239 x 91 x 91 mm |
|---|
| Ir illuminator range: | 60 m |
|---|
| Main stream transmission speed: | 25 fps - 1080p |
|---|
| Max. number of on-line users: | 6 |
|---|

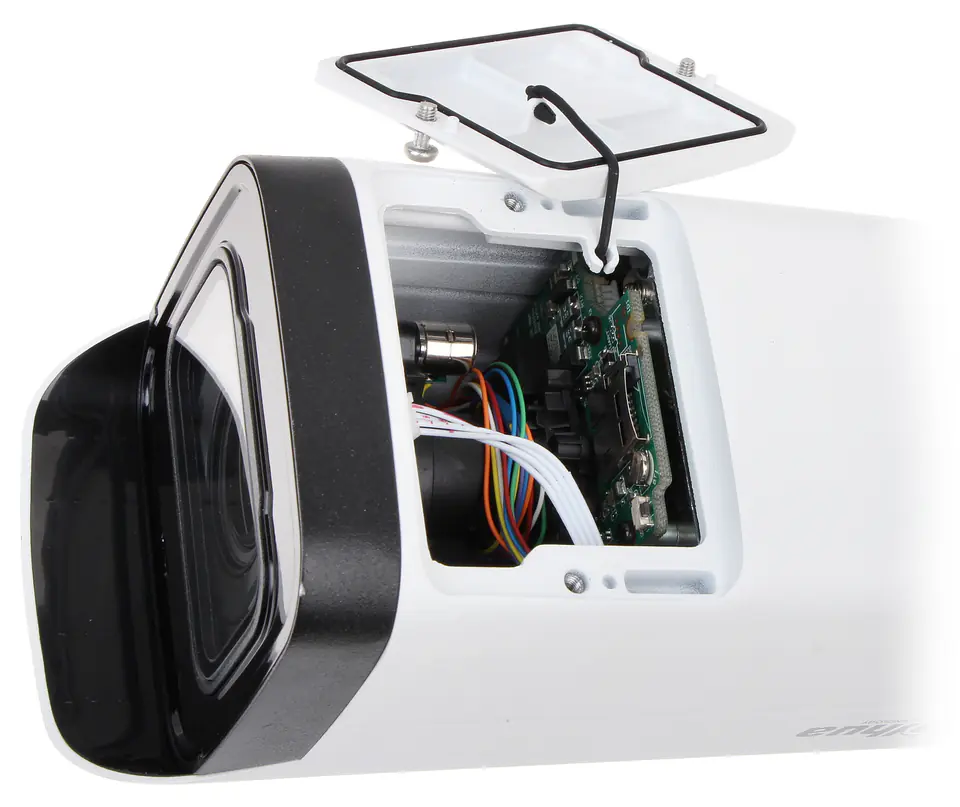

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
|---|
| Mobile app access port: | 37777 |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
|---|
| Network interface: | 10/100 Base-T (RJ-45) |
|---|
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
|---|

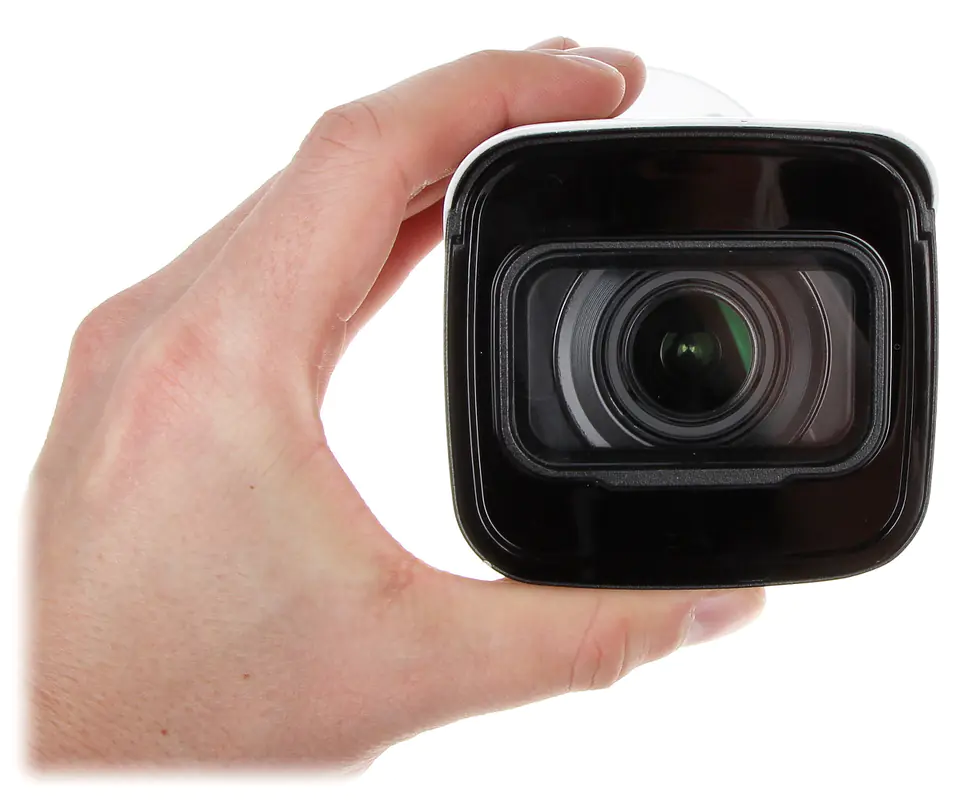

| Objective: | 2.7 ... 13.5 mm - Motozoom |
|---|
| Onvif: | 21.06 |
|---|
| Operating temperature: | -30 °C ... 60 °C |
|---|
| Pc app access ports: | 37777 |
|---|
| Port onvif: | 80 |
|---|
| Power: | PoE (802.3af), 12 V DC / 710 mA |
|---|
| Power consumption: | ≤ 8.6 watts @ 12 volts DC ≤ 9.9 watts @ PoE |
|---|
| Producer / brand: | DAHUA |
|---|
| Resolution: | 1920 x 1080 - 1080p, 1280 x 960 - 1.3 MP, 1280 x 720 - 720p |
|---|
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
|---|
| Scales: | 0.77 kg |
|---|
| Sealing: | IP67 |
|---|
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC - backlight compensation (background) HLC - Strong light compensation (spot) ICR - Mechanical IR filter AGC - Automatic adjustment of image gain Motion detection - max. 4 privacy zones - max. 4 Auto White Balance Mirror - Mirror image SMD PLUS - search for an object classified as: human, motor vehicle, non-motor vehicle IVS analysis: line crossing, intrusion, intelligent motion detection (distinguishing between people and vehicles) |
|---|
| Sensor size: | 2.1 MP |
|---|
| Standard: | TCP/IP |
|---|
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian |
|---|
| Transducer: | 1/2.8" Progressive Scan CMOS |
|---|
| Viewing angle: | 108 ° ... 30 ° (manufacturer's data) 104 ° ... 31° (our tests) |
|---|
| Warranty: | 3 years |
|---|
| Web access ports: | 80, 37777 |
|---|
| Web server: | Built-in |
|---|
