| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app |
|---|---|
| Audio:: | Built-in Microphone Network Audio Streaming Audio Detection |
| Case:: | Compact - Metal |
| Colour:: | white |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |

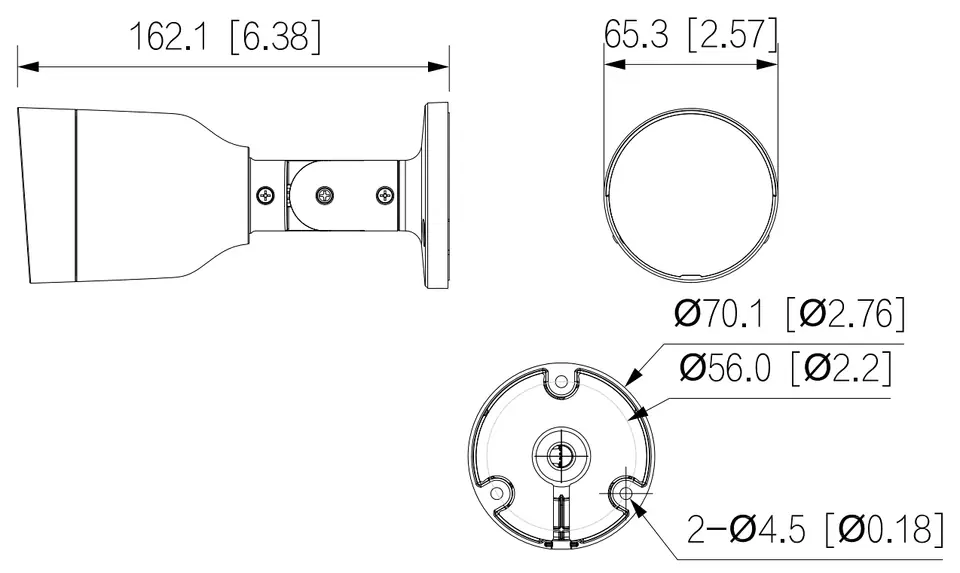

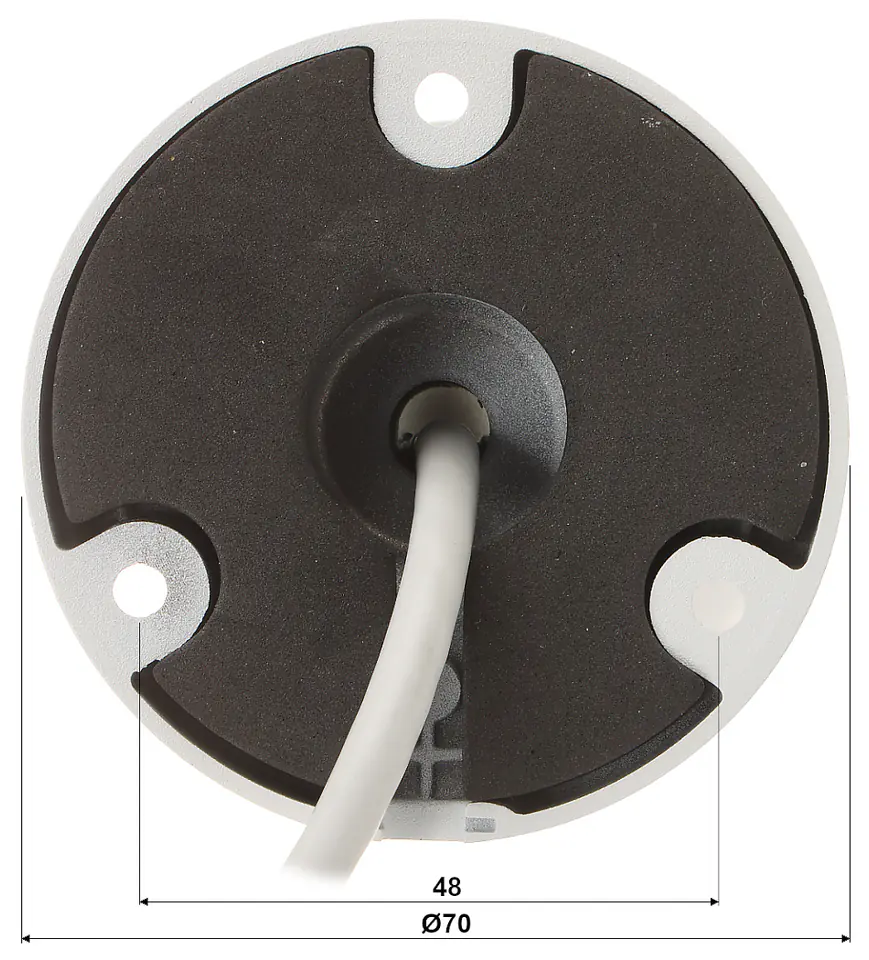

| Dimensions:: | Ø 70 x 162 mm |
| Image compression method:: | H.265+ / H.265 / H.264 / H.264+ / MJPEG |
| Ir illuminator range:: | 30 m |
| Main stream transmission speed:: | 20 fps @ 5 Mpx25 fps @ 4 Mpx |
| Manufacturer / brand:: | DAHUA |
| Matrix size:: | 5 Mpx |
| Max. number of on-line users:: | 6 |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast |
| Objective:: | 2.8 mm |
| Onvif port:: | 80 |
| Onvif:: | 20.06 |
| Operating temperature :: | -40 °C ... 60 °C |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power consumption:: | ≤ 3.9 W @ 12 V DC ≤ 4.5 W @ PoE (802.3af) |
| Power:: | PoE (802.3af), 12 V DC / 330 mA |
| Resolution:: | 2880 x 1620 - 5 Mpx ,2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx ,2048 x 1536 - 3 Mpx ,2304 x 1296 - 3 Mpx ,1920 x 1080 - 1080p1280 x 960 - 1.3 Mpx1280 x 720 - 720p |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Scales:: | 0.32 kg |
| Sealing:: | IP67 |
| Selected features:: | D-WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - Improving the Quality of Selected BLC/HLC Image Fragments - Background Light / Strong Light Compensation Ability to Change Resolution, Quality and Bandwidth Motion Detection Privacy Zones Customizable Privacy Zones Sound Detection Mirror - Image Mirror |
| Standard:: | TCP/IP |
| Supported languages:: | English, Spanish, Russian |
| Transducer:: | 1/2.7" Progressive Scan CMOS |
| Viewing angle:: | 106° (manufacturer data) 102 (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Web server:: | Built-in |

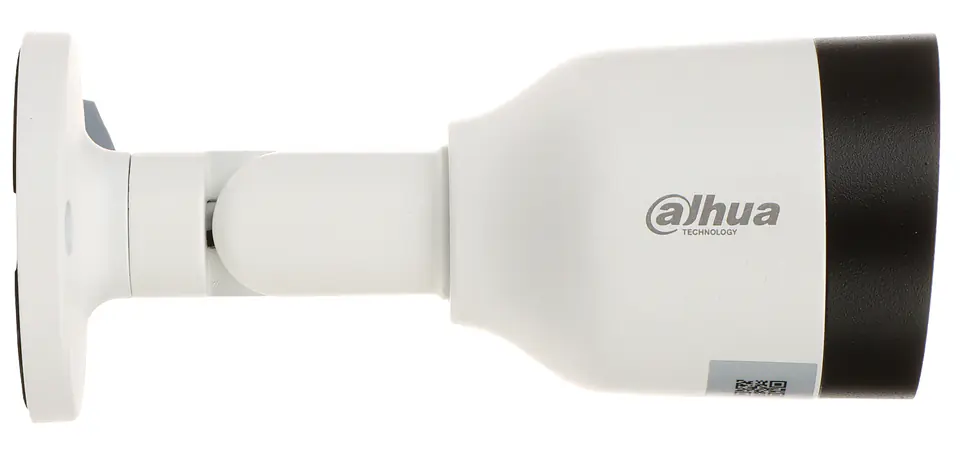

IP camera with efficient H.265 / H.264 image compression algorithm for clearer and smoother image transmission at a maximum resolution of 5 Mpx
The range of the illuminator given by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, i.e. the so-called scene reflectance)
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
