| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app |
|---|---|
| Case:: | Compact - Metal |
| Colour:: | white |
| Default administrator login / password:: | admin / -Administrator password should be set at first startup |
| Default ip address:: | 192.168.1.108 |

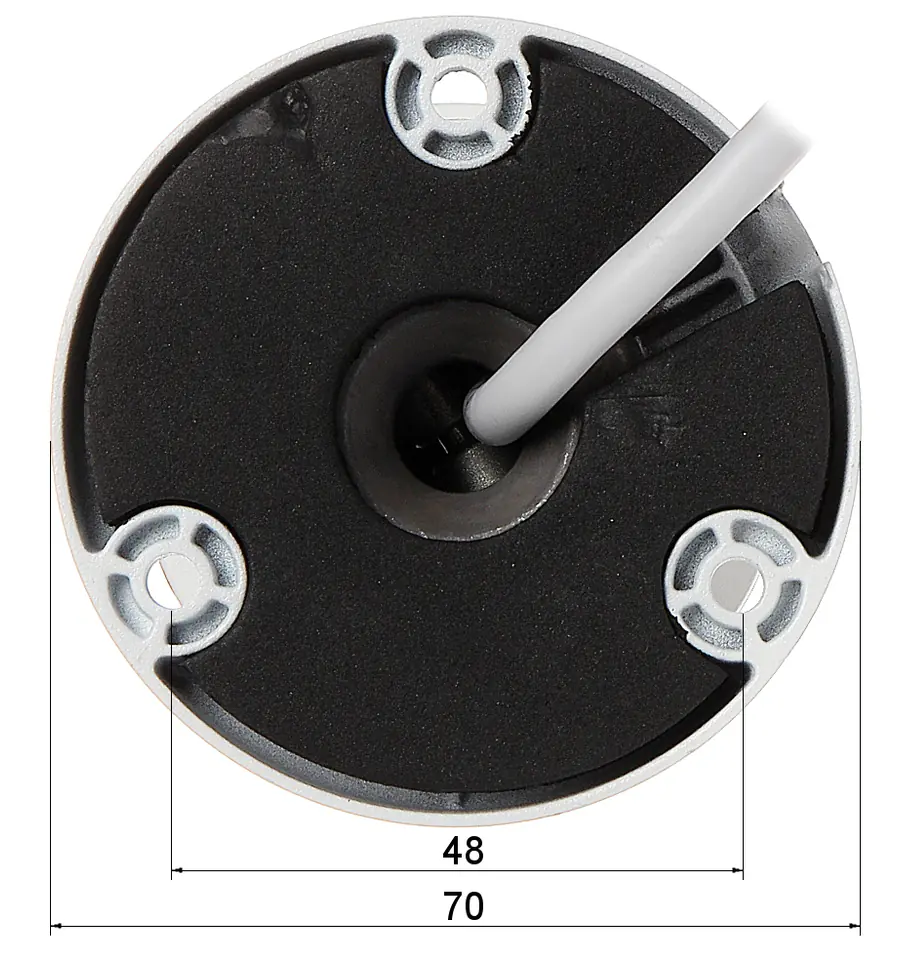

| Dimensions:: | Ø 70 x 165 mm |
| Image compression method:: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Ir illuminator range:: | 30 m |
| Main stream transmission speed:: | 25 fps @ 1080p |
| Manufacturer / brand:: | DAHUA |
| Matrix size:: | 2.1 Mpx |
| Max. number of on-line users:: | 6 |
| Network interface:: | 10/100 Base-T (RJ-45) |
| Network protocols:: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast |
| Objective:: | 3.6 mm |
| Onvif port:: | 80 |
| Onvif:: | 19.12 |
| Operating temperature :: | -40 °C ... 60 °C |
| Port of access via mobile application:: | 37777 |
| Ports for access via the pc application:: | 37777 |
| Power consumption:: | ≤ 4.3 W @ 12 V DC≤ 5.5 W @ PoE |
| Power:: | PoE (802.3af), 12 V DC / 360 mA |
| Resolution:: | 1920 x 1080 - 1080p1280 x 960 - 1.3 Mpx1280 x 720 - 720p |
| Rtsp url:: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Stream mainrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Secondary stream |
| Scales:: | 0.4 kg |
| Scanning system:: | Progressive |
| Sealing:: | IP67 |
| Selected features:: | D-WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction in ROI Image - Improving the Quality of Selected BLC Image Fragments - HLC Back light (Background) Compensation - Strong Light (Spot) ICR Compensation - AGC Mechanical IR Filter - Automatic Image Gain Adjustment Automatic White Balance Mirror - Image MirrorIng Customizable Privacy Zones Motion Detection |
| Standard:: | TCP/IP |
| Supported languages:: | English, Spanish, Russian |
| Transducer:: | 1/2.8" Progressive Scan CMOS |
| Viewing angle:: | 84° (manufacturer data) 82° (our tests) |
| Warranty:: | 3 years |
| Web access ports:: | 80, 37777 |
| Web server:: | Built-in |
Entry Series IP camera with powerful H.265 / H.264 image compression algorithm for smooth image transfer at up to 1080p resolution
The ability to power PoE, in accordance with the 802.3af standard, makes the device even more versatile and easier to install
